• The maximum load always means the mirror ball weight including chains and the fixation material.
• 2 chains and 4 quick links must be ordered separately.
• 1 rotation per minute.
• The motor always has to be installed with a secondary safety attachment.
• Before taking into operation for the first time, the installation has to be approved by an expert.
• Suitable for a mirror ball with a diameter of up to 150 cm.
• For application areas such as: Clubs/dancing schools.

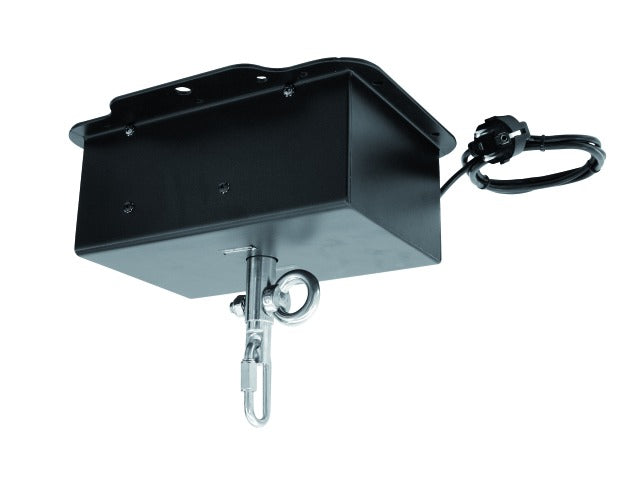

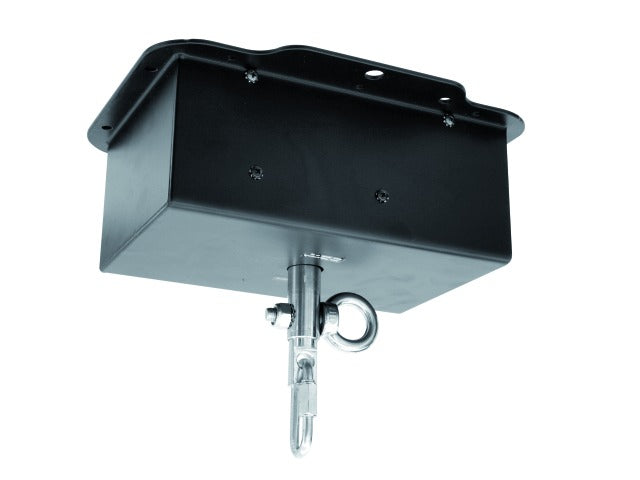

Eurolite MD-3050 Mirror Ball Motor (150 cm)

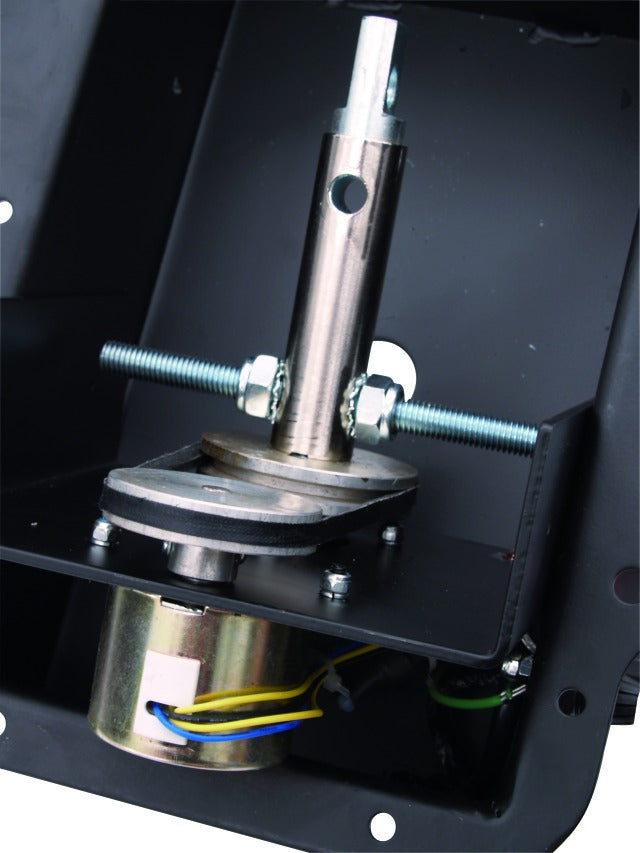

• Mirror ball motor with a continuous shaft, capable of carrying a load of up to 150 kg, equivalent to a mirror ball of approximately 150 cm. A 12-fold safety margin is included.
• The motor's speed is 1 RPM (revolutions per minute), creating a calm effect, especially when a pin-spot illuminates the mirror ball.
• Equipped with a patented mechanical drop protection to prevent accidental shaft loosening, as well as an additional eyelet for securing a safety chain.
• All Eurolite safety motors comply with the safety standard DIN EN ISO 12100 and relevant accident prevention regulations.
• Each production series undergoes strict quality control, making the motor suitable for discos and other public events.

• Power supply: 230 V AC, 50 Hz
• Power consumption: 7 W
• IP classification: IP20
• Protection class: Protection class I
• Speed: 1 RPM
• Maximum load: 150 kg
• Max. mirror ball diameter: 150 cm (EUROLITE)
• Dimensions:
  • Width: 28 cm
  • Depth: 24 cm
  • Height: 11 cm
• Weight: 5.40 kg
