• 20 W warm white COB LED with high efficiency and CRI >95 for precise color rendering
• 19° beam angle for focused lighting and adjustable shutter blades
• Passive convection cooling for quiet operation
• Flicker-free light output, ideal for video and photo shoots
• Electronic dimming and mounting bracket for flexible setup

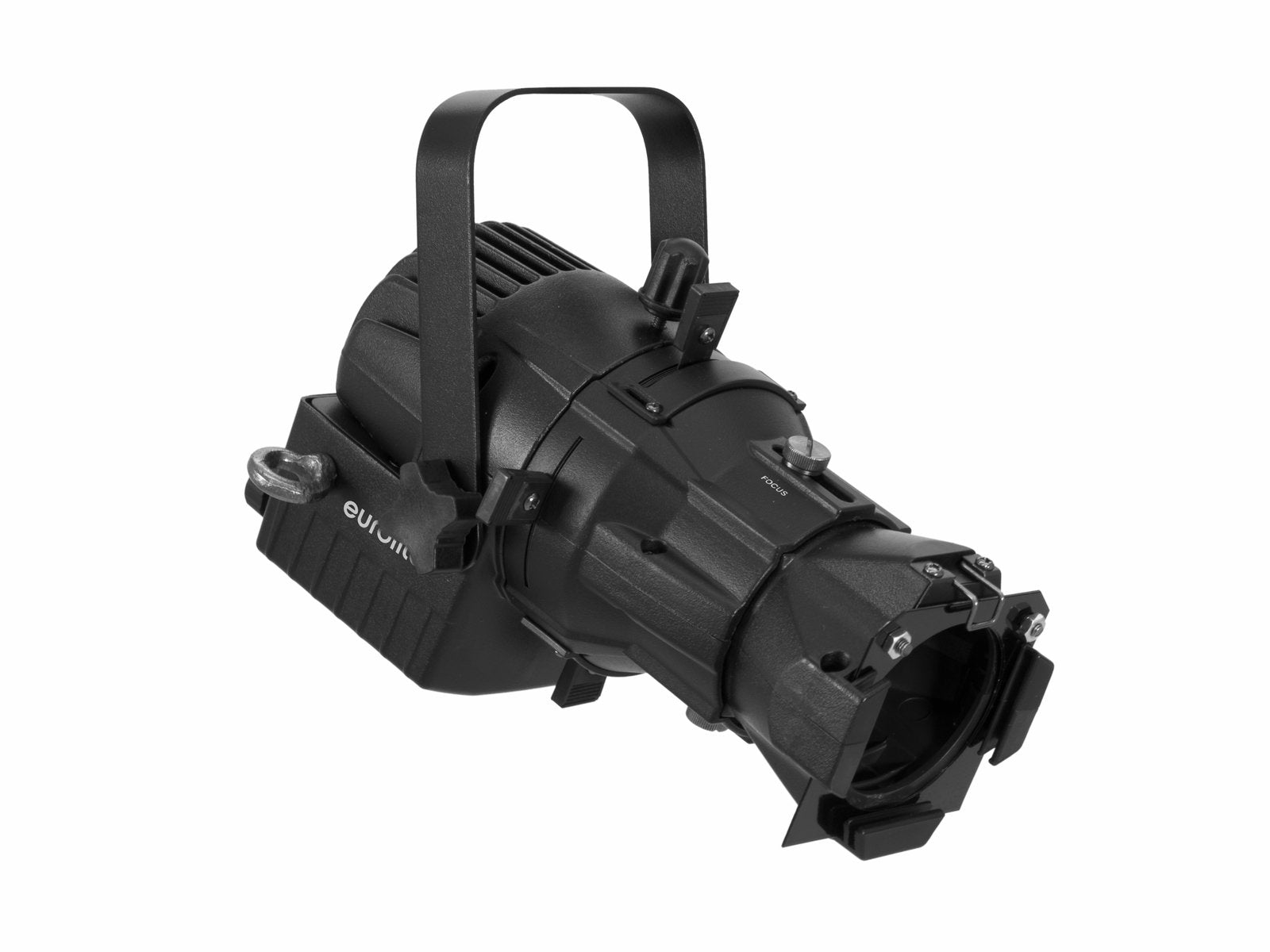

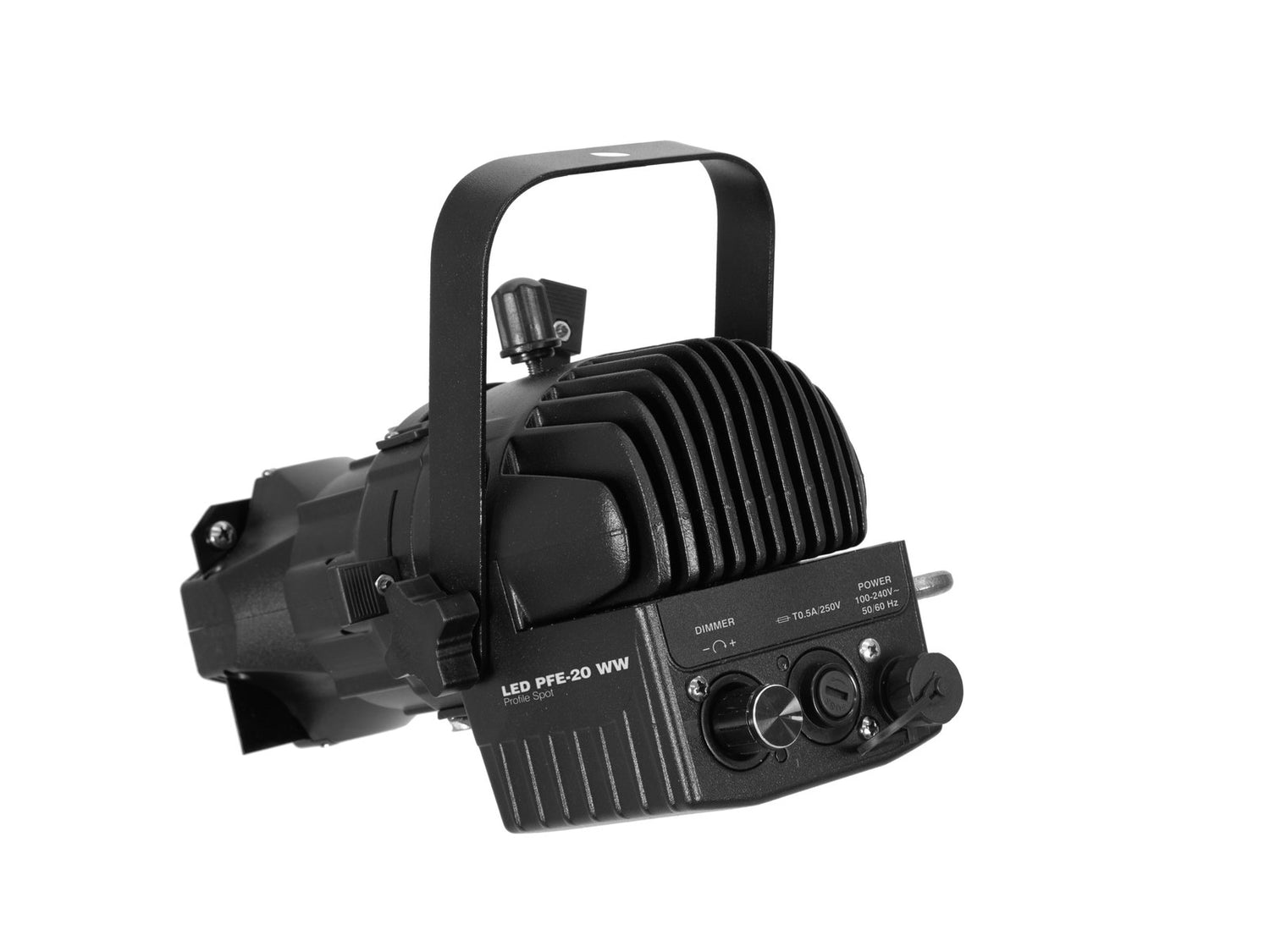

Eurolite LED PFE-20 Profile Spot

• Efficient 20 W COB LED (chip-on-board) in warm white (WW)
• Light angle of 19°
• Equipped with 4 shutter blades
• Passive convection cooling for silent operation
• Electronic dimming function
• Flicker-free light output
• Very high color rendering index (CRI >95)
• Supplied with mounting bracket
• Suitable for areas such as: trade shows, retail environments, installation, restaurants, bars, and hotels, as well as video and photo shoots
• Quiet in operation
• Can be used suspended or on a stand

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 20 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Mains input via 3-pin screw plug connector (M), mounting version, power supply cord with safety plug (provided)
• Fuse: 5 x 20 mm, T 0.5 A, replaceable fuse
• Lamp type: LED lamp
• LED type: 1 x 20 W COB (chip-on-board) warm white (WW)
• Cooling: Passive convection cooling
• Projection: Flicker-free
• Beam angle: 19°
• Beam angle (1/2 peak): 19°
• Color temperature: 3000K
• Color rendering index (CRI): 96 Ra
• Illuminance in Lux (lx):
  • Warm white (WW) 1m: 3849 lx
  • 3m: 460 lx
  • 6m: 116 lx
• Housing color: Black
• Attachment system: Mounting bracket
• Material: Aluminum casting, metal, plastic
• Dimensions:
  • Length: 22.2 cm
  • Width: 15.8 cm
  • Height: 20.3 cm
• Weight: 1.23 kg
• Noise classification: Class 0 (no noise at all)

Gobo holder:

• Gobos:
  • Outside diameter: 42 mm
  • Image diameter: 18 mm
  • Material: Aluminum, 0.3 mm
• Dimensions:
  • Width: 4.4 cm
  • Height: 10.1 cm
  • Diameter: Ø 3.4 cm

Power cord:

• Cable construction: 3 x 0.75 mm² H05VV-F
• Cable length: Approx. 1.4 m

Filter frame:

• Material: Aluminum, 0.3 mm
• Dimensions:
  • Width: 6.9 cm
  • Height: 6.9 cm
  • Diameter: Ø 5.6 cm

Mounting bracket:

• Diameter of mounting holes: 1 x Ø11 mm; 2 x Ø7 mm
• Material: Aluminum casting, 2 mm

Screw:

• Thread: M5 thread x 11 mm

Washer:

• Material: Plastic
• Color: Pink
• Dimensions:
  • Height: 1 mm
  • Diameter: Ø 1.2 cm

Legal specifications:

• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
