• LED Beam Effect with 80 w COB LED in cool white and gobo wheel
• 3 different motion axes
• Rotating and swiveling mirror cylinder
• Manual focus
• Electronic dimmer
• 1 powerful LED 80 w COB (chip-on-board) cool white (CW)
• Rainbow effect with adjustable speed
• Gobo wheel with static gobos, 1 gobo, 8 colors gobos and open
• Can be run in 7 CH mode
• Can be controlled stand-alone, master/slave, sound to light via microphone, DMX, QuickDMX via USB, W-DMX wirelessly via USB. CRMW by LumenRadio via USB
• Effect: Mirror cylinder effect, strobe effect

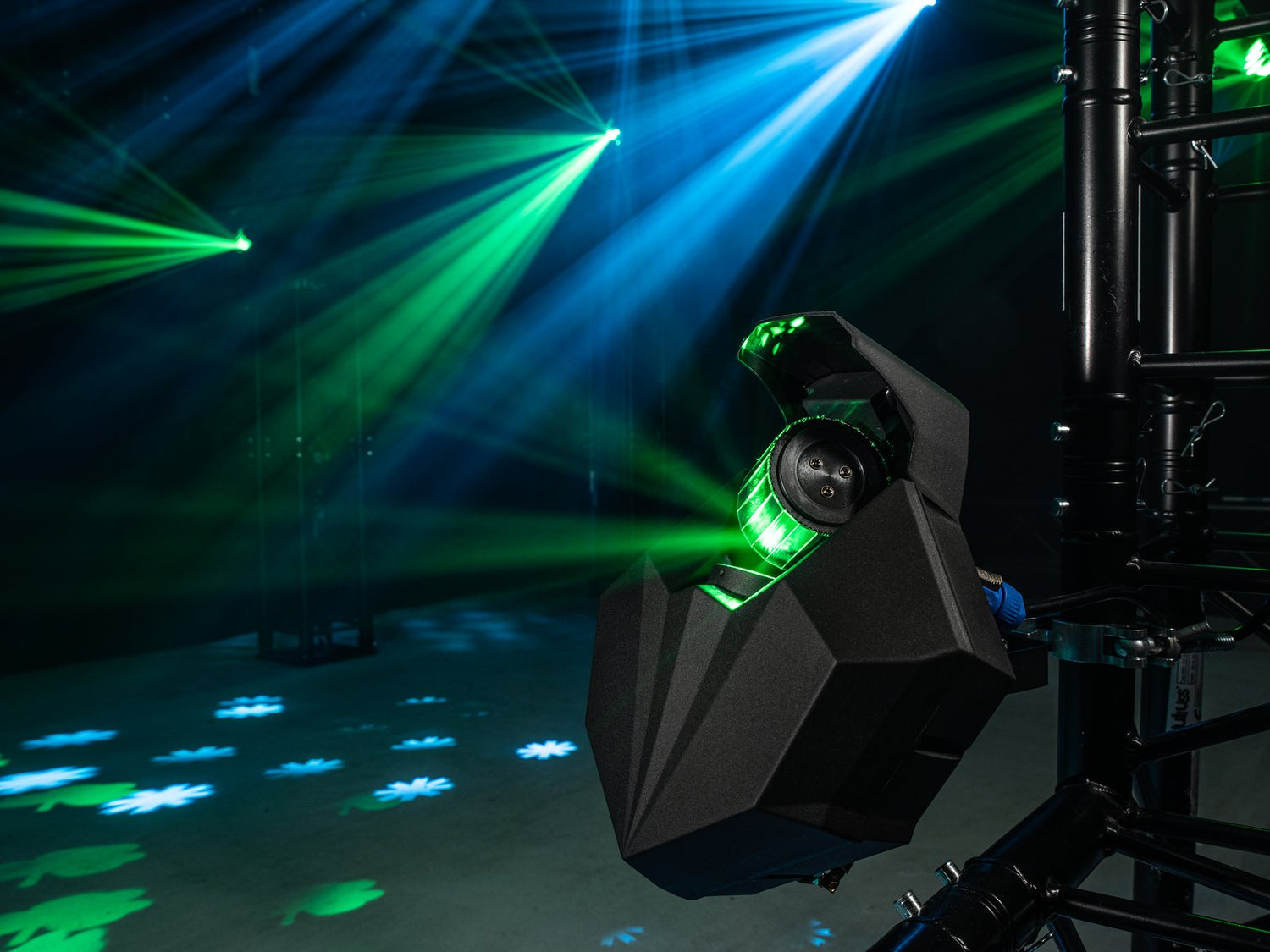

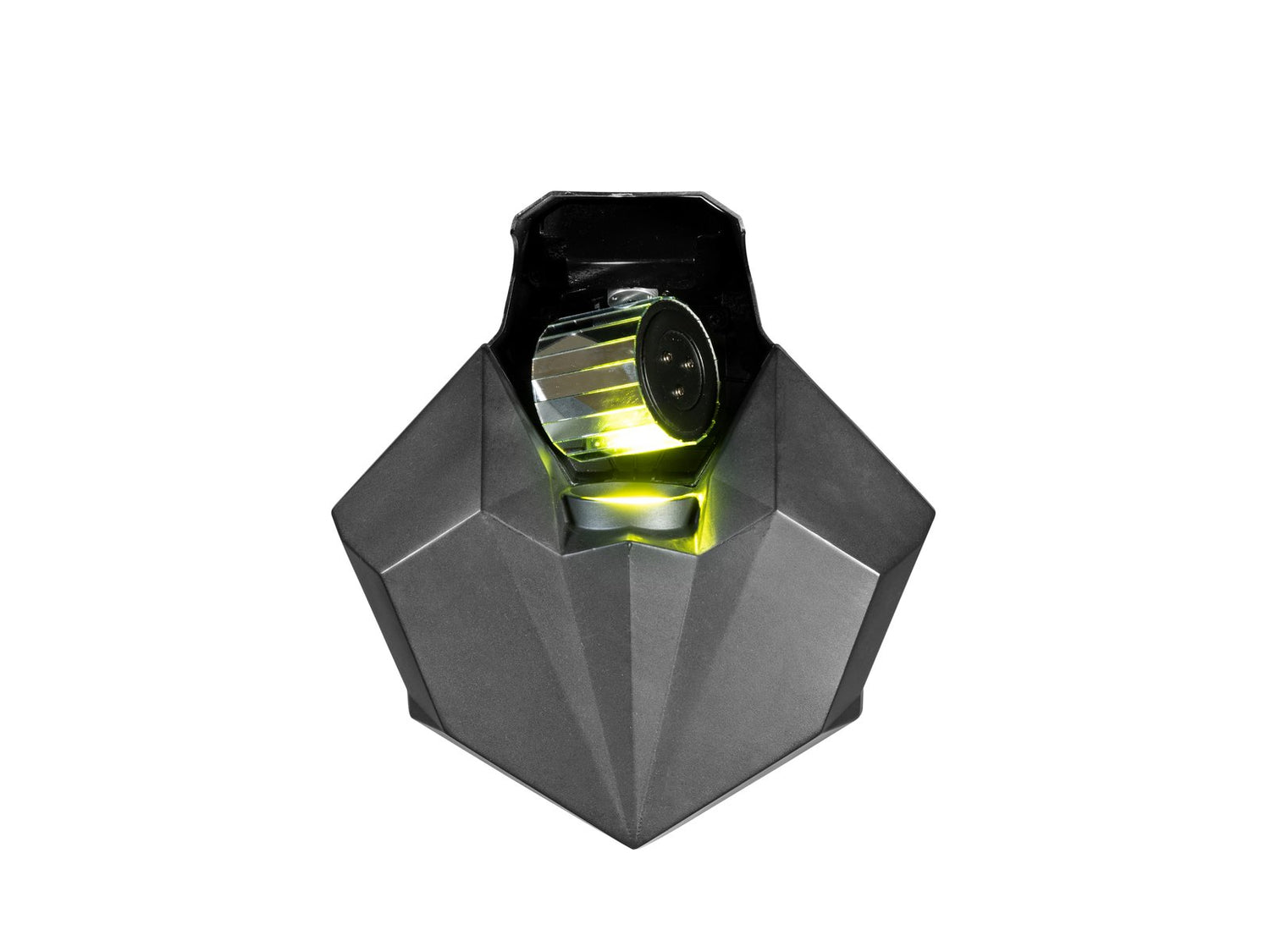

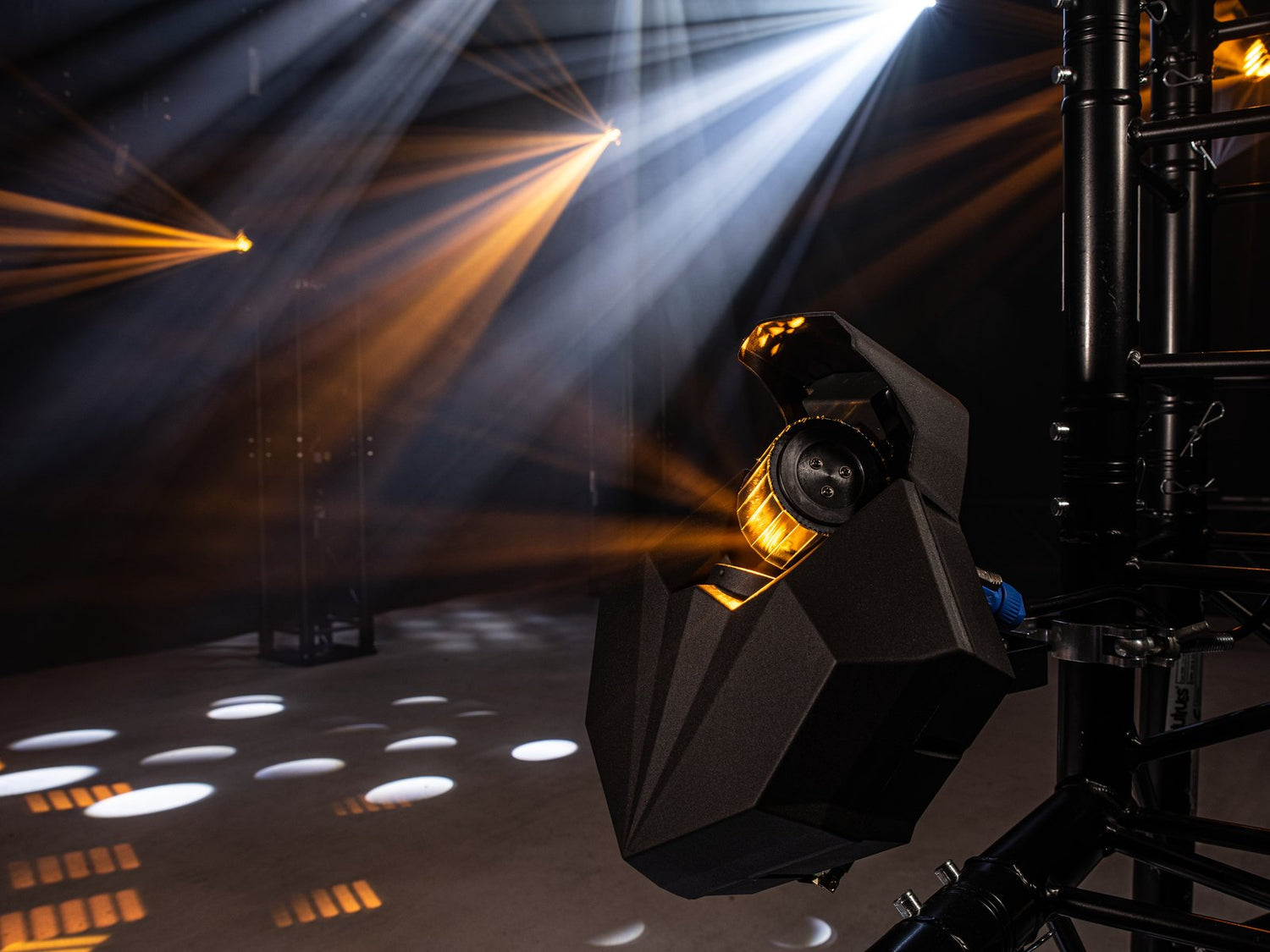

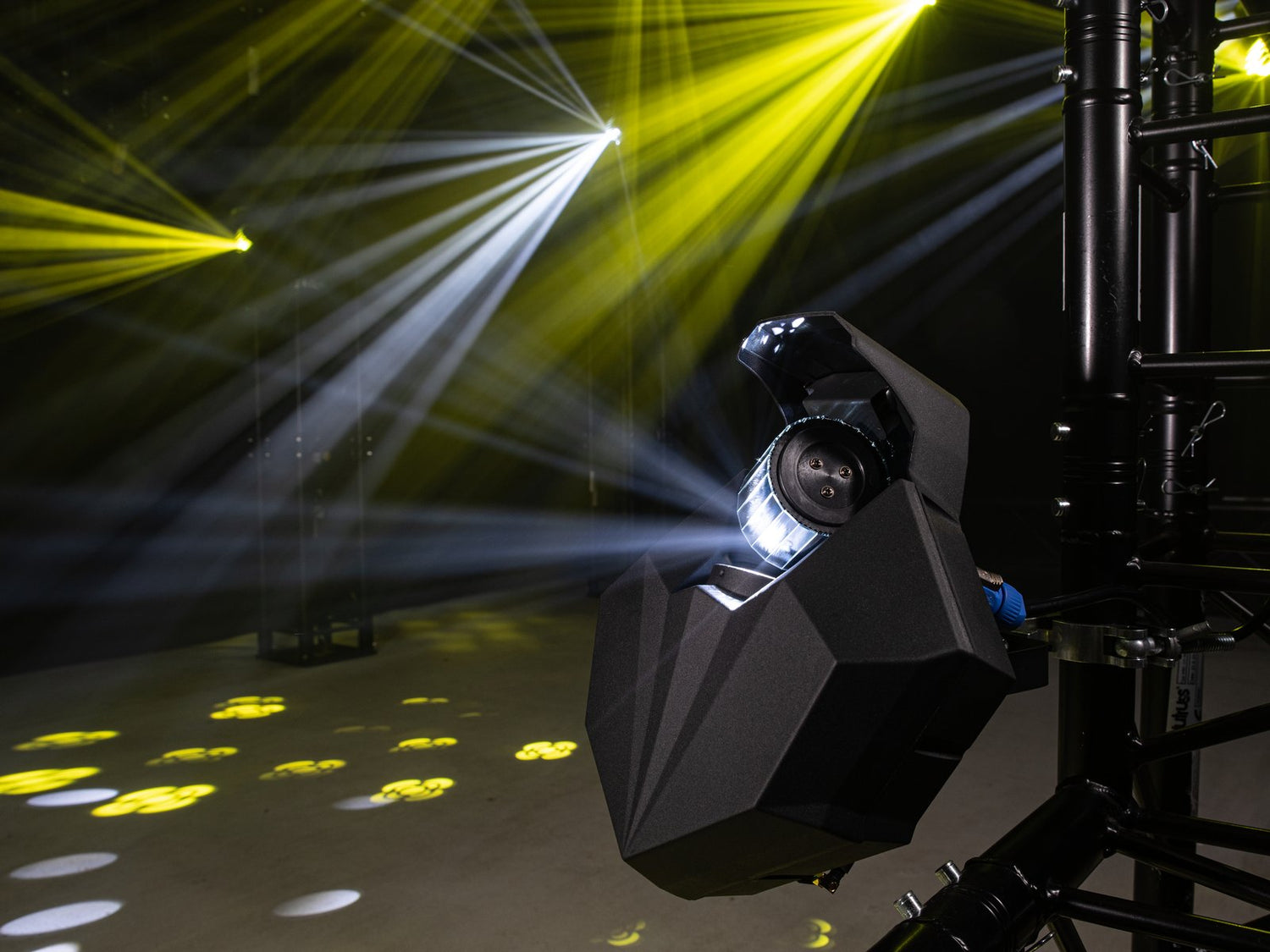

EUROLITE LED CAT-80 Beam Effect

• LED Beam Effect with 80 w COB LED in cool white and gobo wheel.
• 3 different motion axes.
• Rotating faceted mirror inside.

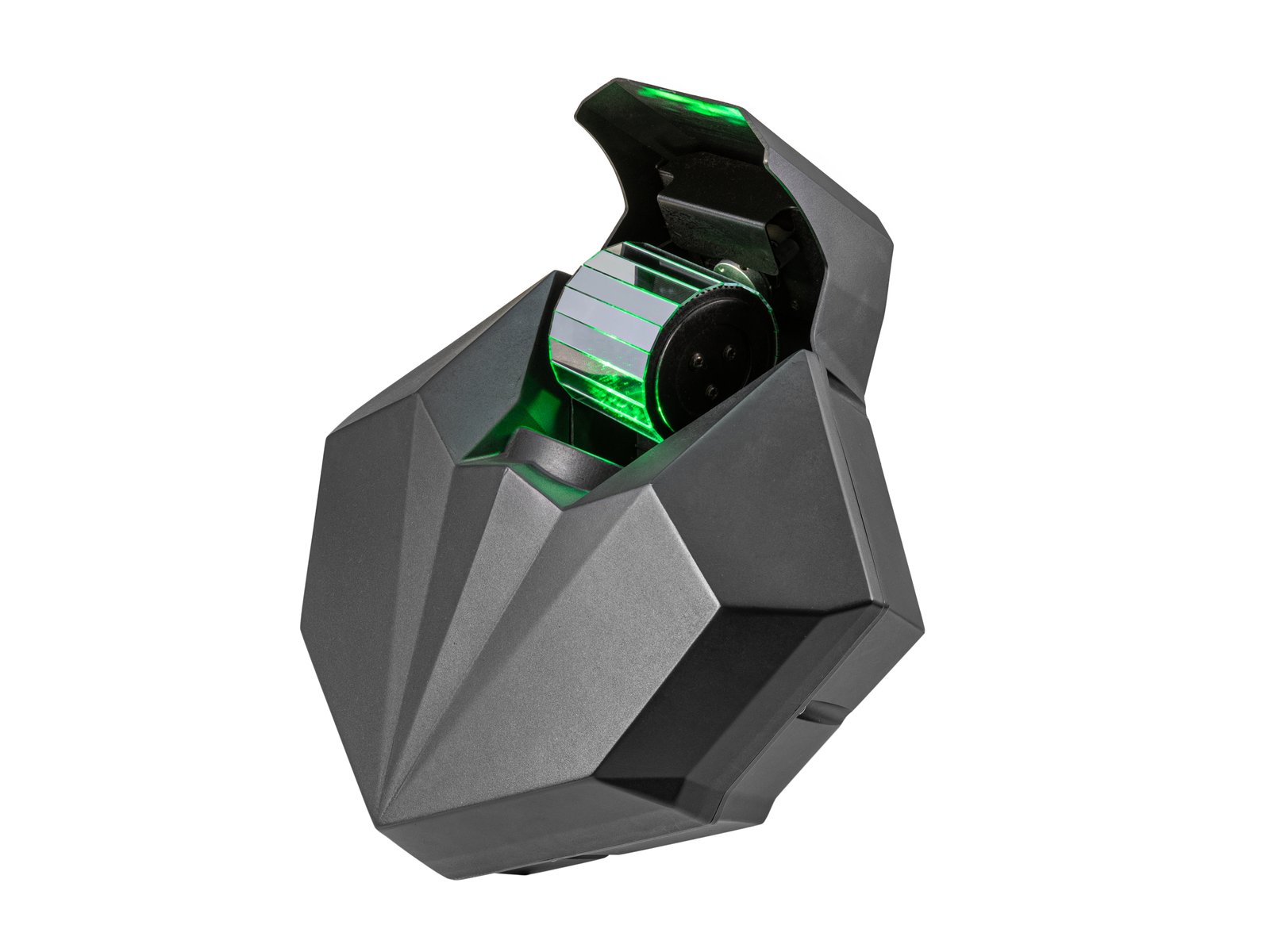

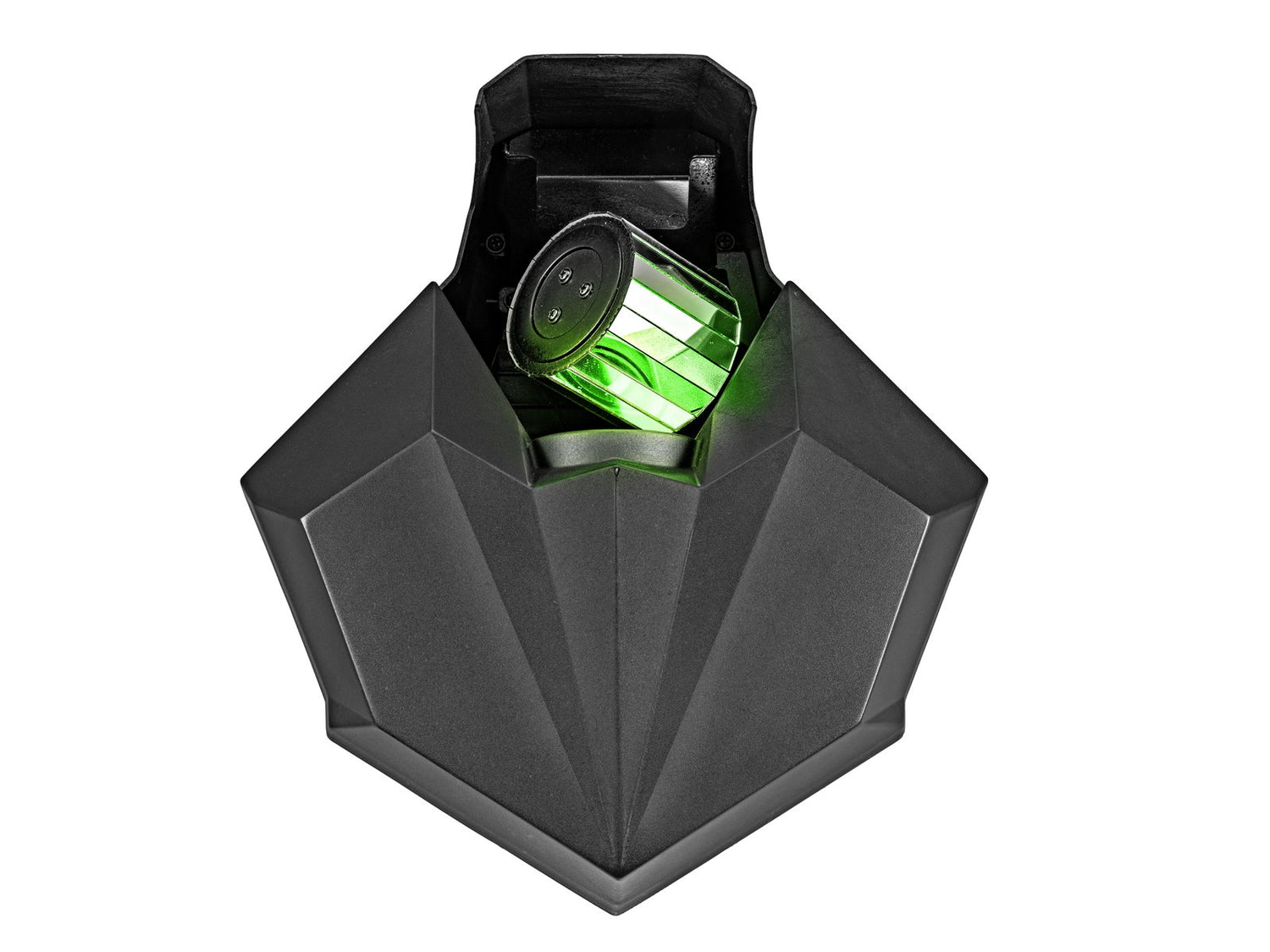

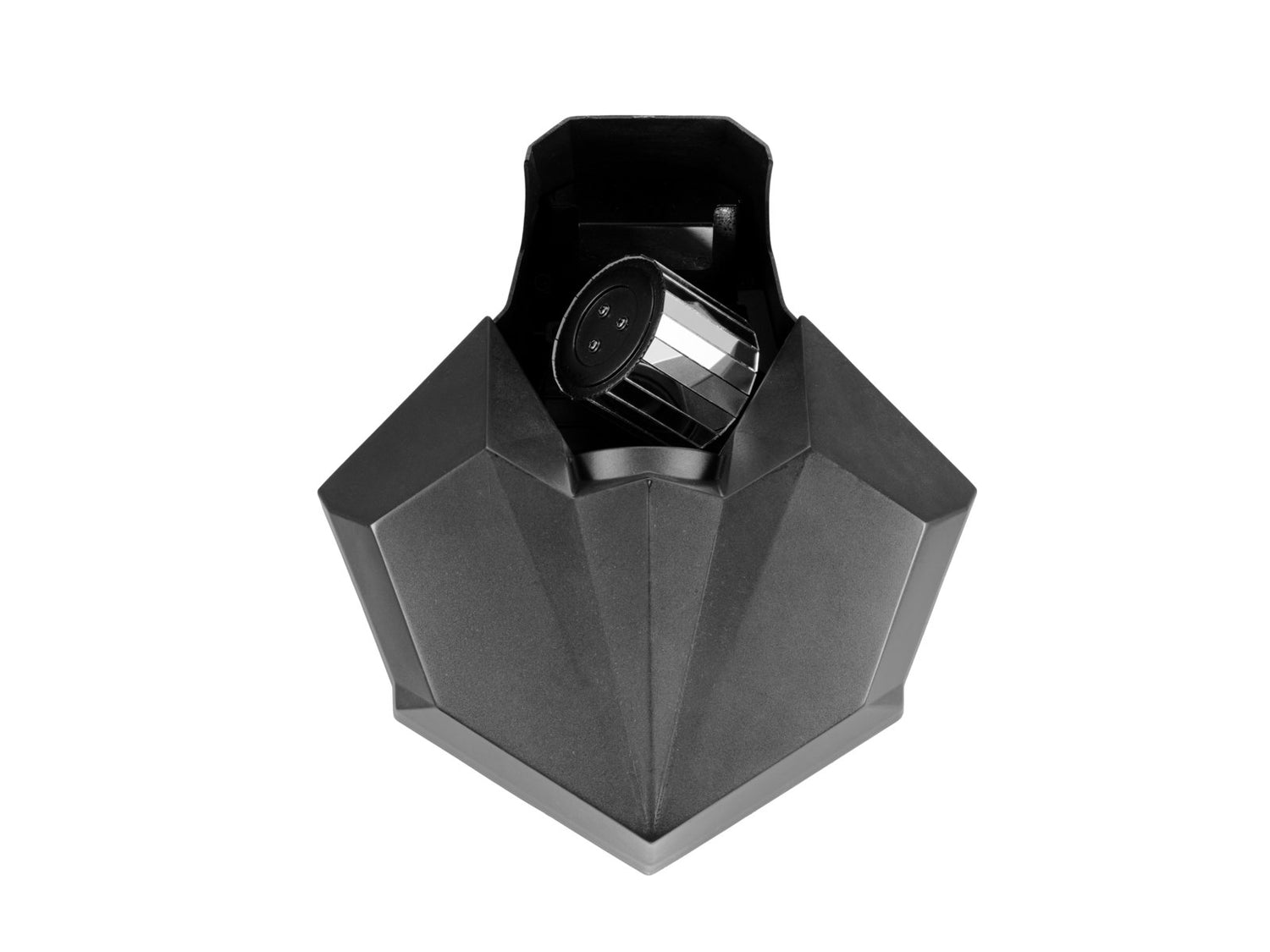

• Rotating and swiveling mirror cylinder.

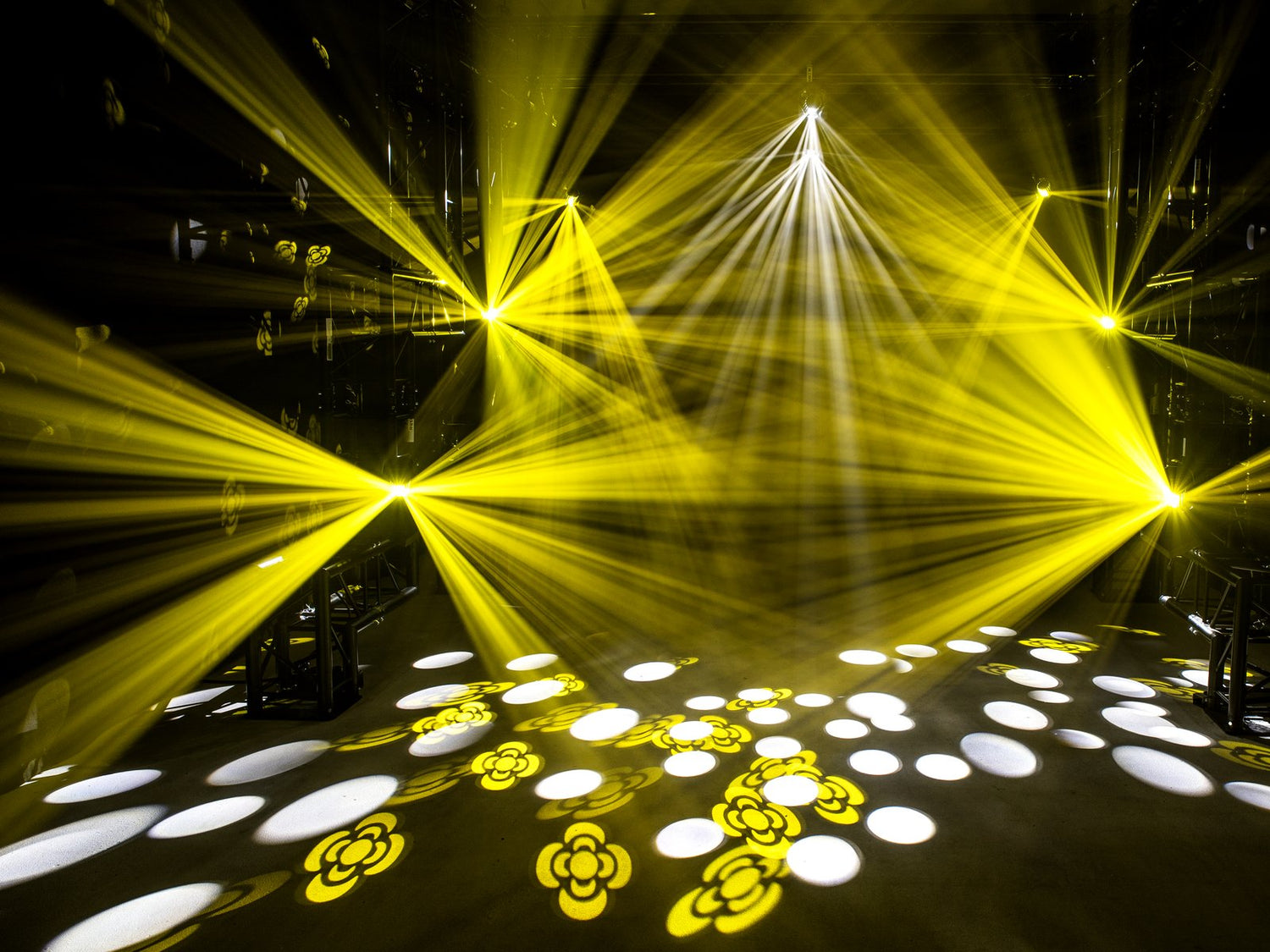

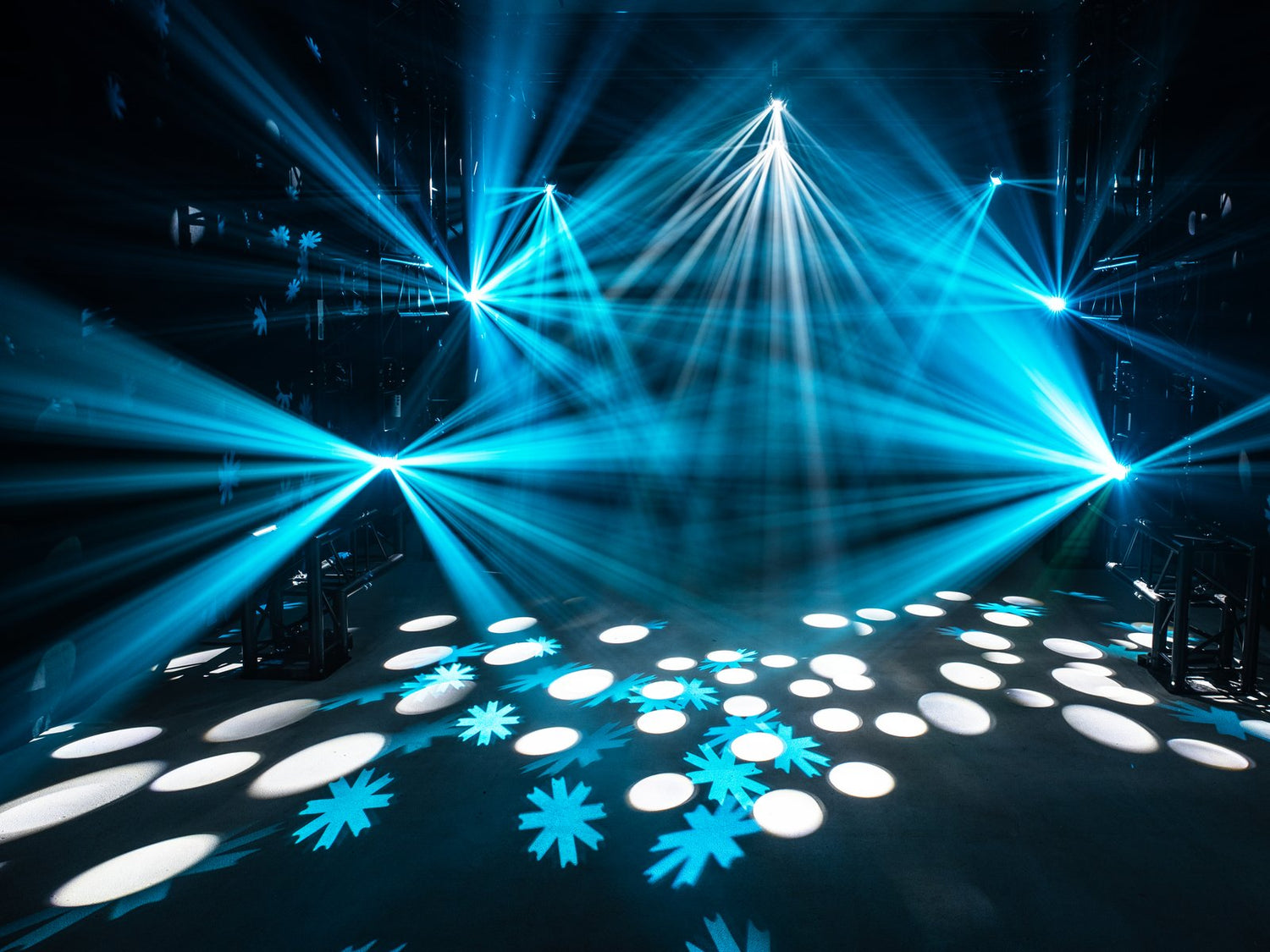

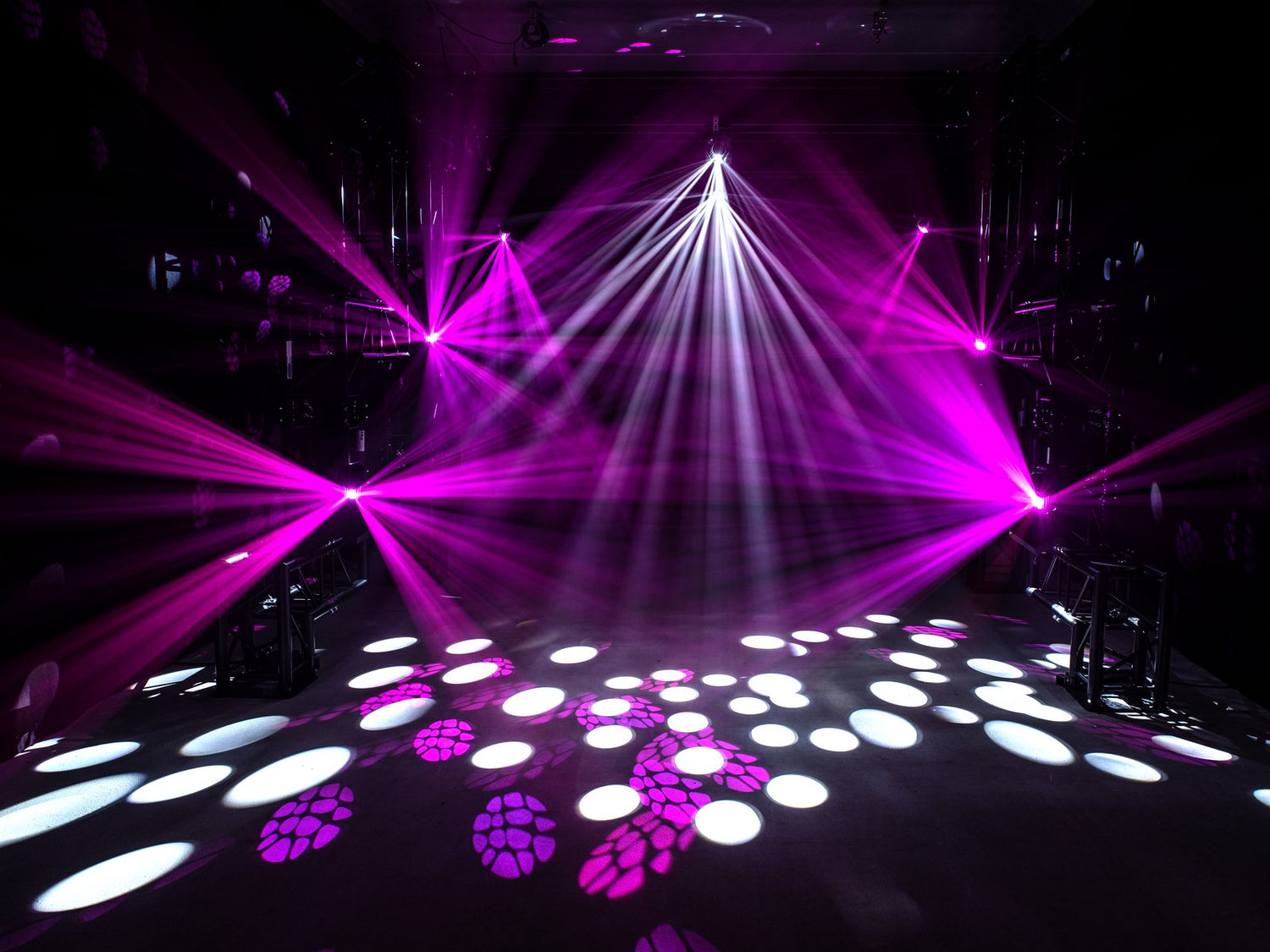

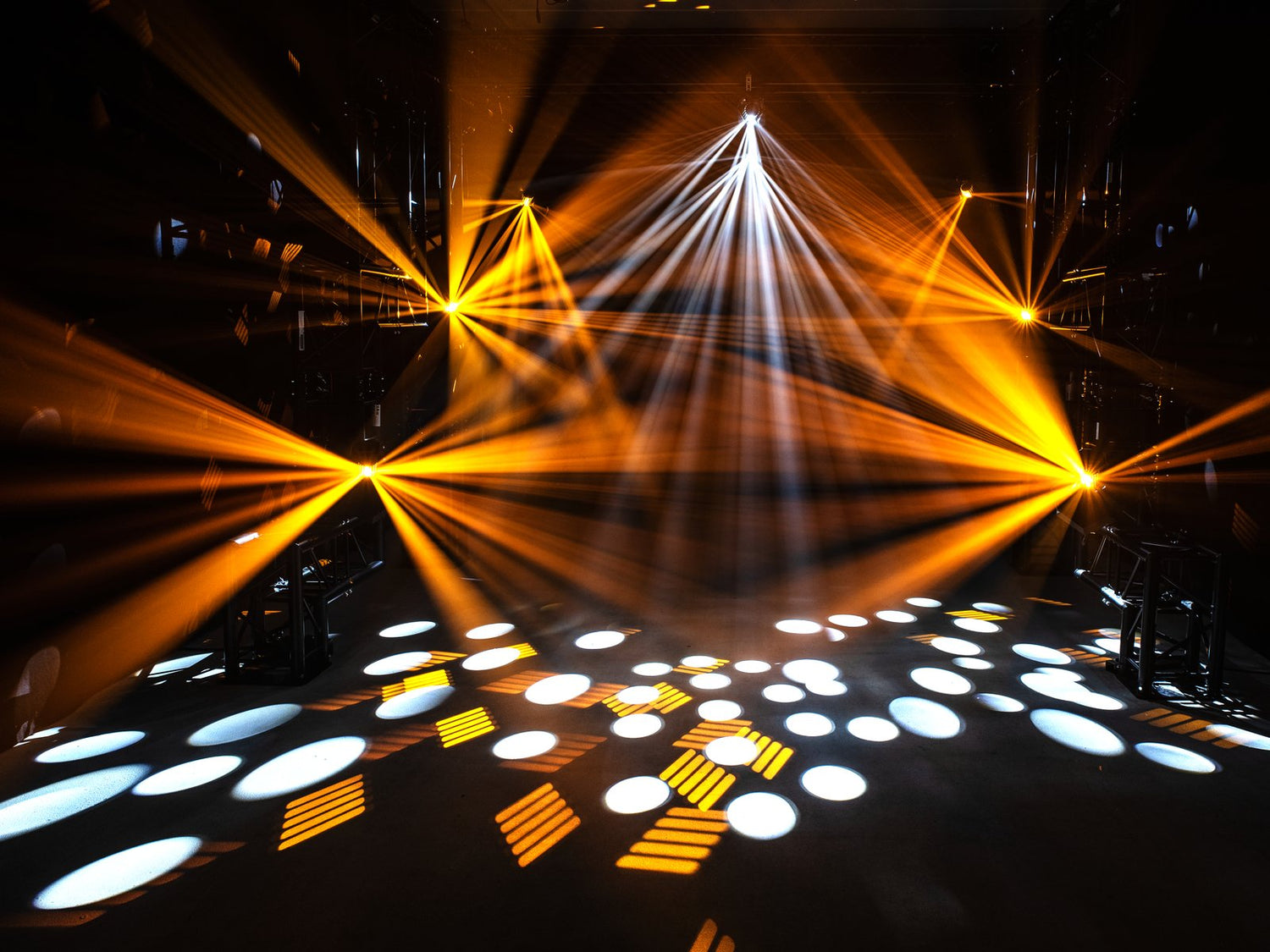

• Creates countless motion patterns in space.
• Manual focus.
• Electronic dimmer.
• 1 powerful LED 80 w COB (chip-on-board) cool white (CW).
• Rainbow effect with adjustable speed.
• Gobo wheel with static gobos, 1 gobo, 8 colors gobos and open.
• Can be run in 7 CH mode.
• Cooled by built-in fan.
• Can be controlled stand-alone, master/slave, sound to light via microphone, DMX, QuickDMX via USB, W-DMX wireless via USB. CRMW by LumenRadio via USB.
• Pre-programmed in Light´J, Light Captain, Easy Show 2, Easy Show 3.
• Flicker-free.
• Effect: Mirror cylinder effect, strobe effect.
• OLED display.
• Package includes:
• LED CAT-80 Beam Effect, manual, power cable, xlr cable.

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 110 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
• Fuse: 5 x 20 mm, T 2 A Fuse replaceable
• Lamp type: LED lamp
• LED: 1 x 80 W COB (chip-on-board) cold white (CW)
• Flash rate: 0 - 25 Hz
• Equipment: Gobo wheel with static gobos; Focus manual

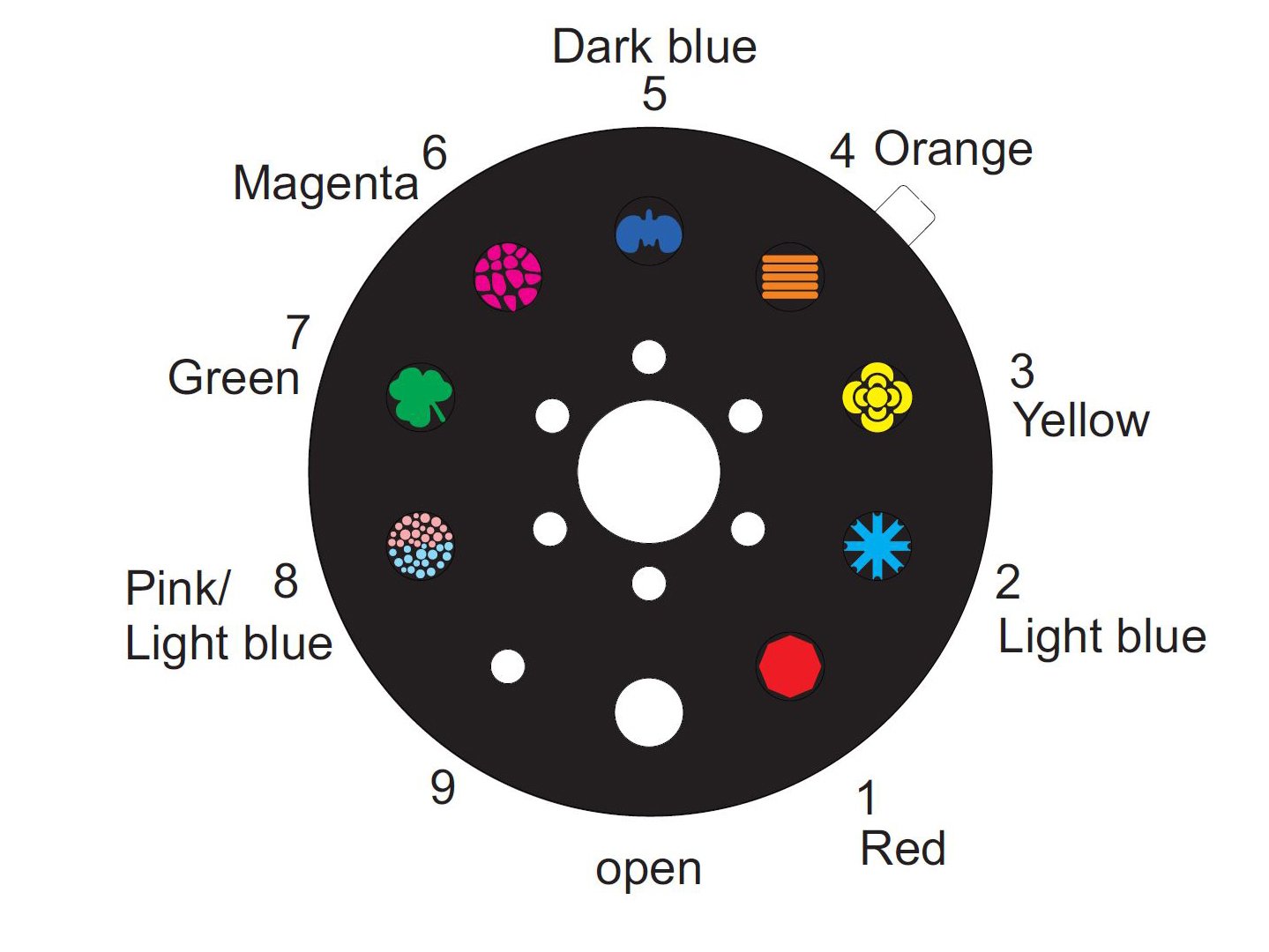

• Gobos: Gobo wheel with static gobos, 9 color gobos and open
• DMX channels: 7

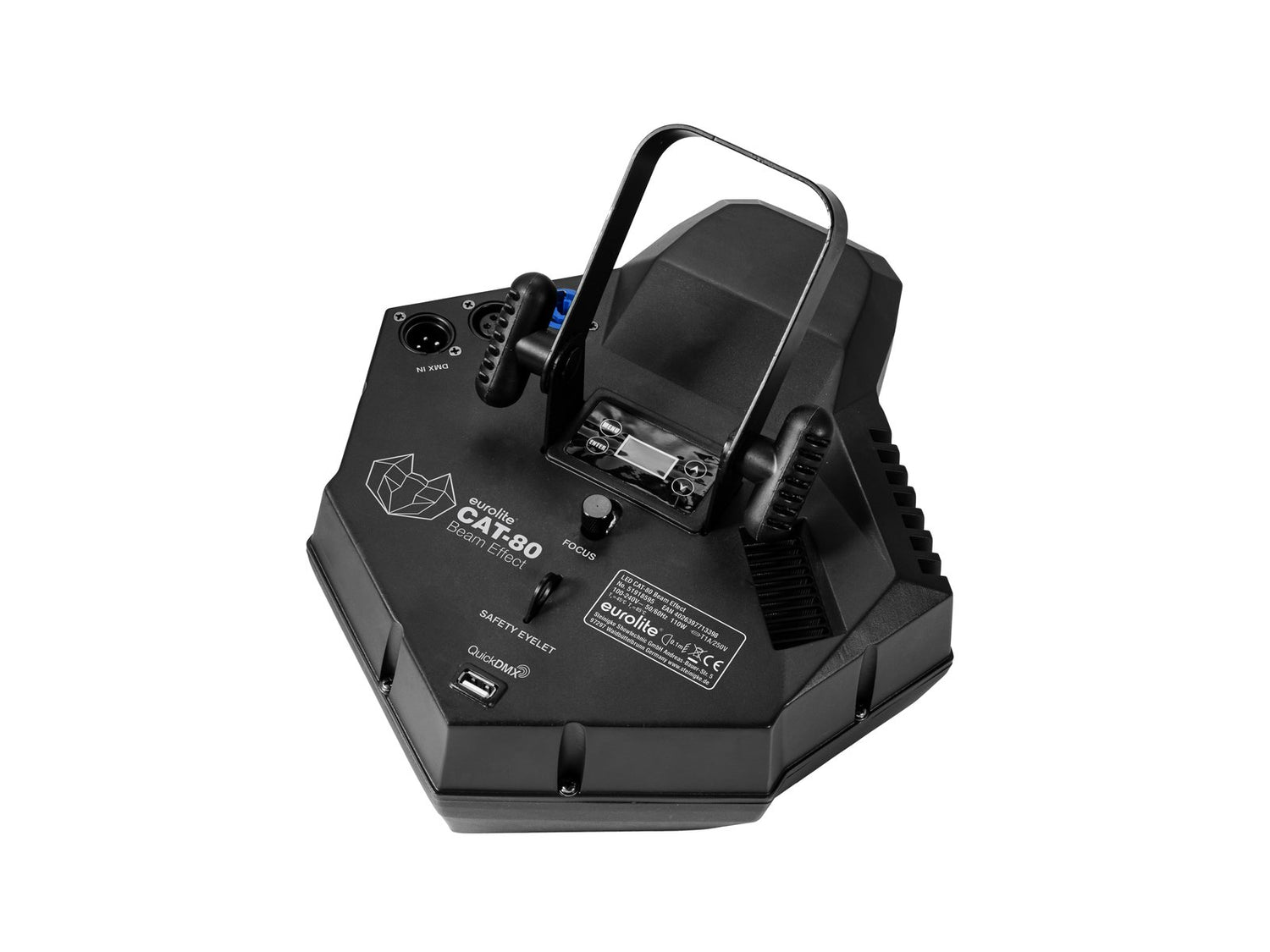

• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: Stand-alone; Master/slave function; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in: Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
• Projection: Flicker-free
• Housing color: Black
• Display type: OLED display

Dimensions:

• Width: 29,0 cm
• Depth: 18,5 cm
• Height: 31,5 cm
• Weight: 3,08 kg
• Noise classification: Class 3 (clearly perceptible sounds)

Legal specifications:

• Special product: Not designed for household room illumination
• Intended use: Show effect lighting

Downloads:

• Manual
