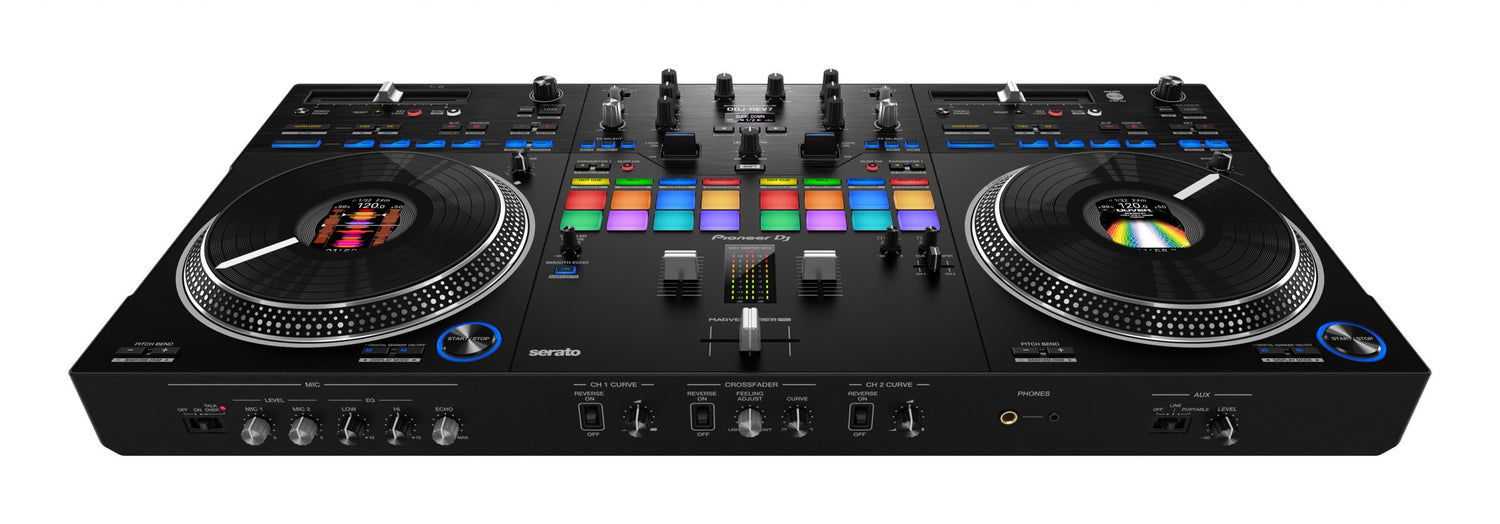

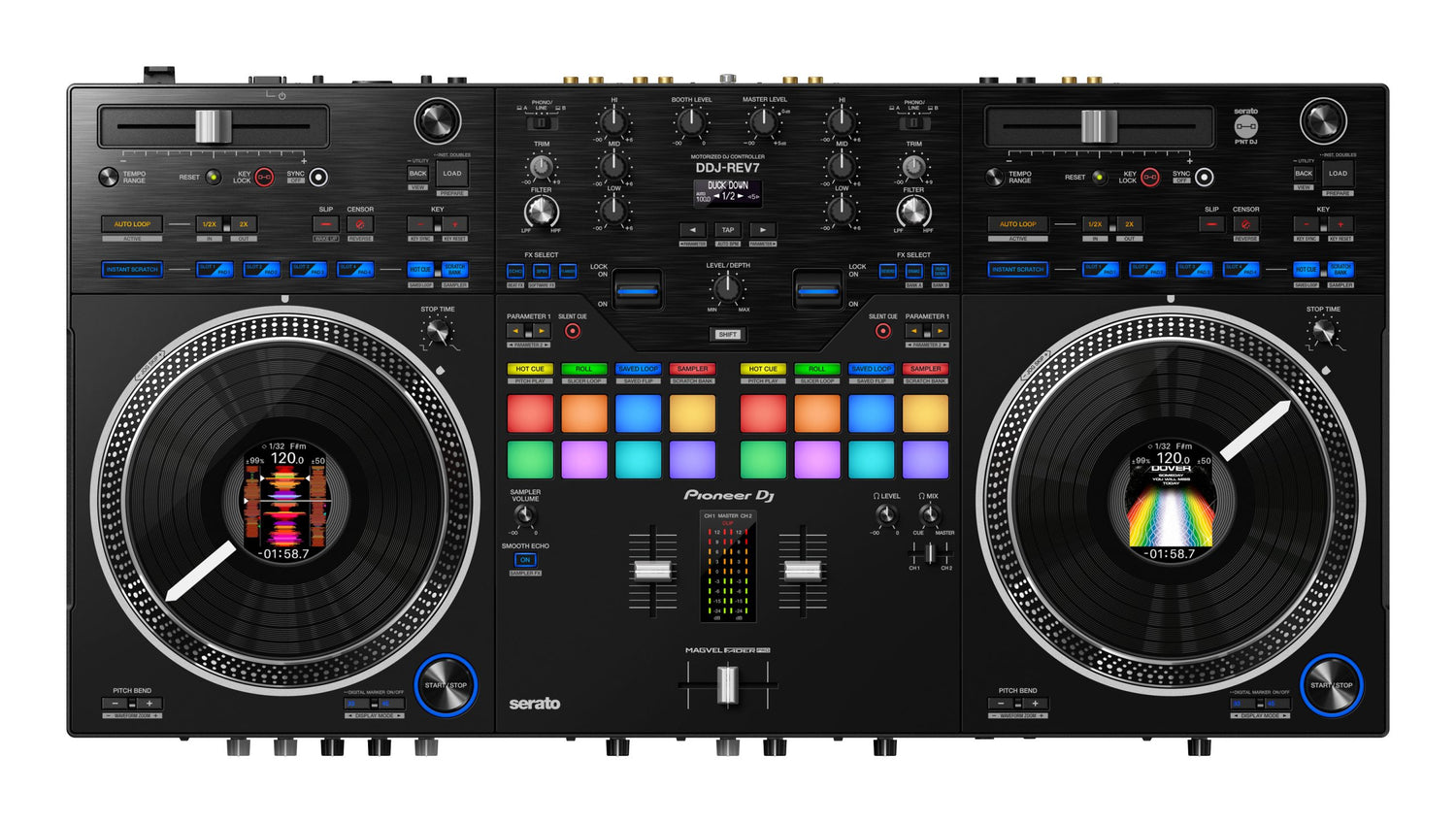

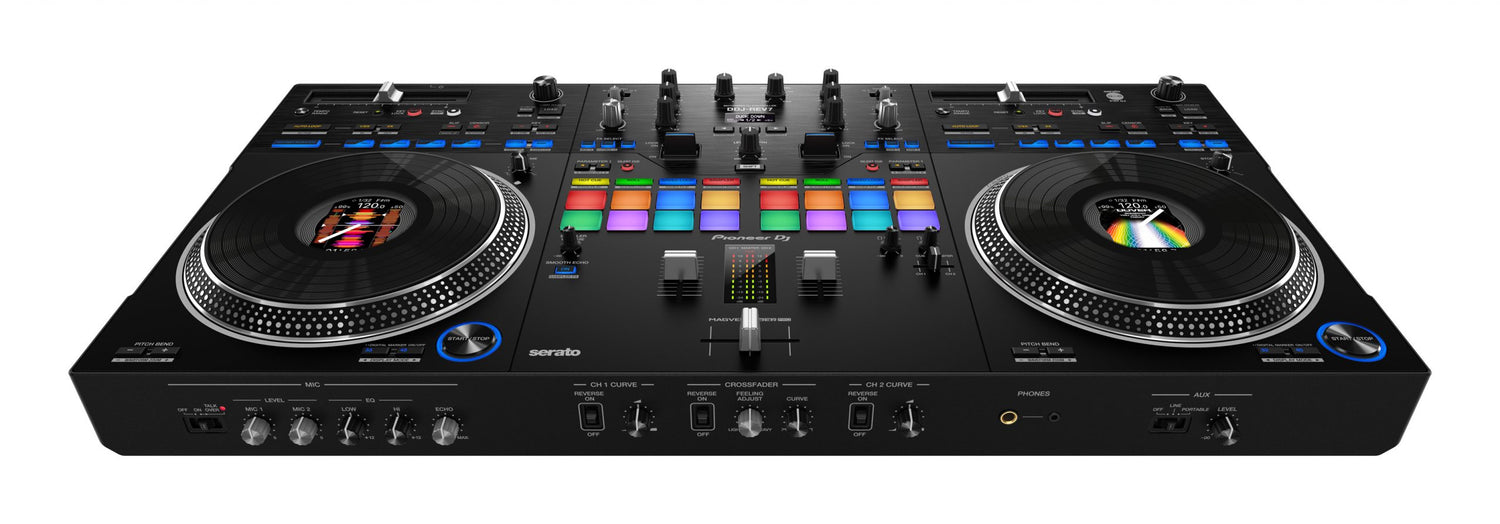

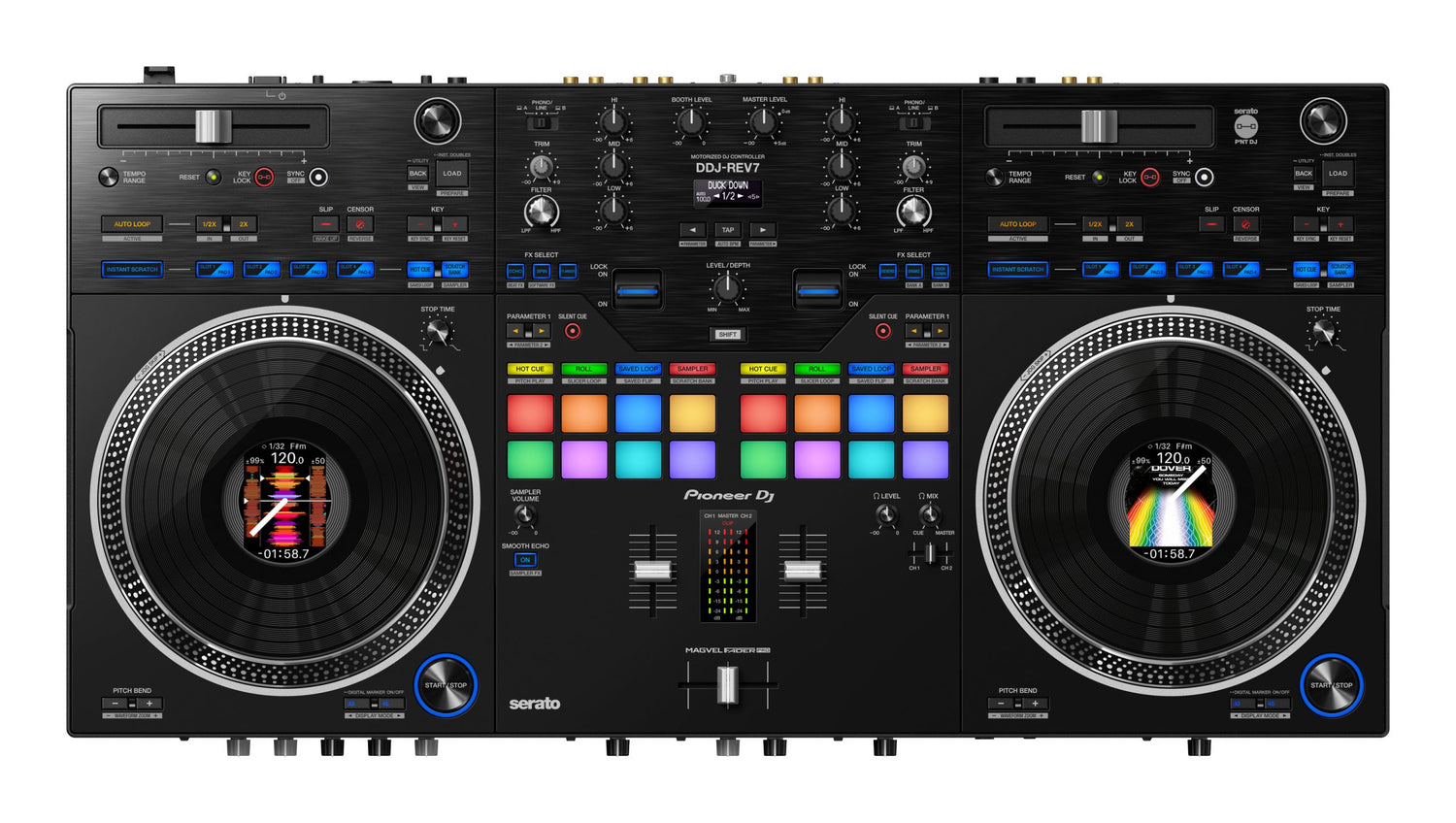

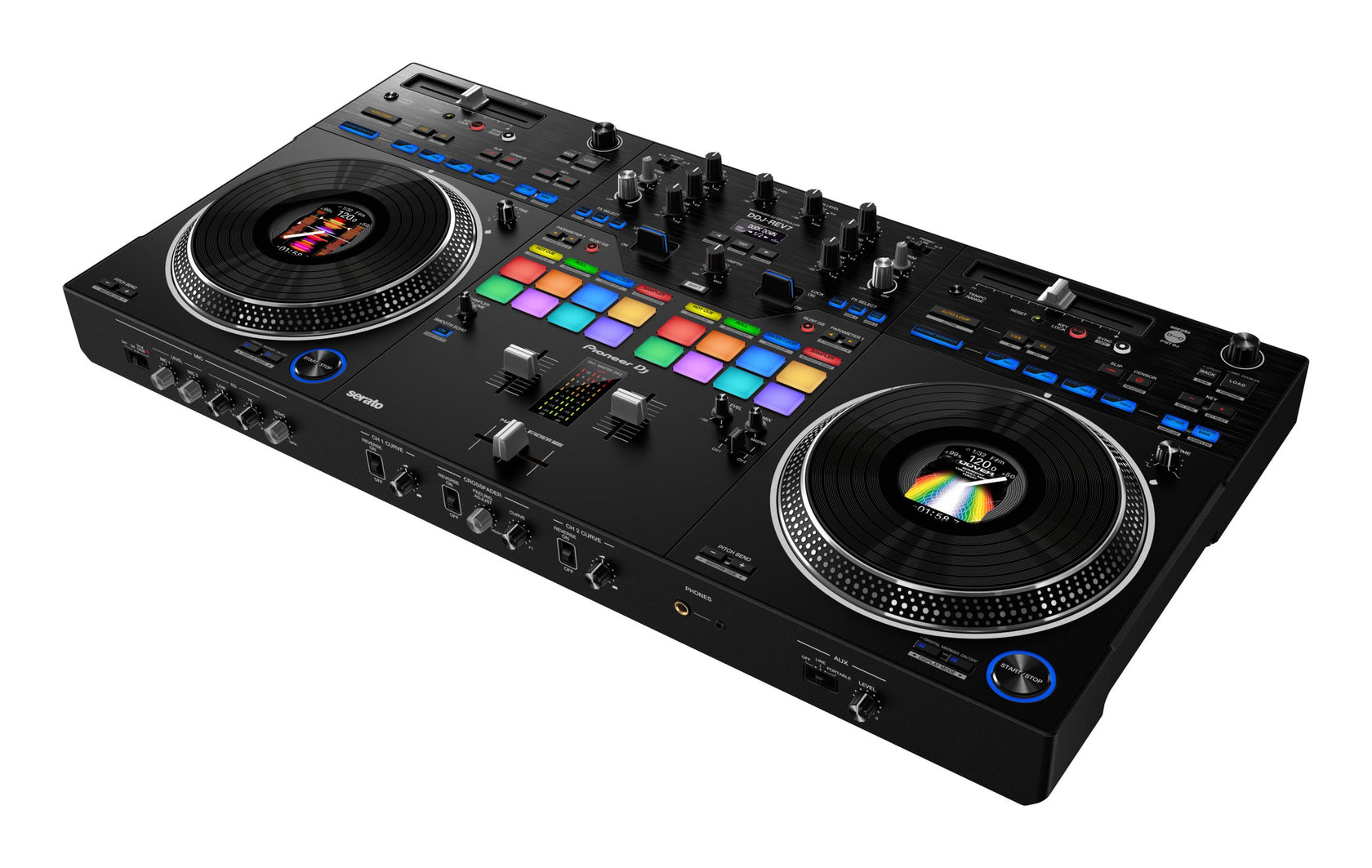

• 2-channel DJ "vinyl" controller with built-in sound card
• MAGVEL FADER PRO
• Adjustable Vinyl-Style Jog Wheels
• Plug'n'play
• Silent Cue
• Smooth Echo
• Lightweight design
• Unique Jog Display
• Instant Scratch
• 2 x Vinyl jog-wheels + mixer-section
• 16 multi-coloured performance pads
• 22 built-in Beat FX and Lever FX
• Compatible with Serato DJ Pro
• ESS Technologies digital-to-analog converter

• 2-channel DJ "vinyl" controller with built-in sound card
• With revolutionary and motorized VINYLIZED JOGS.
• Get an authentic vinyl desk experience without compromising modern controller functionality.
• Topped with vinyl-like material, you can switch between 33 1/3 and 45 RPM speeds, or adjust the friction amount for the perfect scratching experience.
• With unique screen displays built into the jog wheels: here you focus on the important information without having to look away.
• Ready for action - straight from the box: with the included Serato DJ Pro software and USB connection, it's pure plug'n'play.
• With the 4 dedicated Instant Scratch buttons, you can play 4 original scratch samples (or add your own from the Scratch Bank) at any time - even when the controller is not connected.
• MAGVEL FADER PRO The fader can be adjusted for effect as required.
• Add cool transition effects with the 22 built-in Beat FX's controlled by the dedicated Beat FX buttons
• Pioneer's unique Lever FX Paddles buttons let you add automatic Serato DJ Pro sound effects, leaving you free to scratch or browse the next track.
• Despite the solid build quality, the aluminium top plate makes the controller lightweight and easy to transport.
• Turn on the Silent Cue feature and avoid the music speeding up when the turntable starts to spin.
• With the new Smooth Echo effect, you can add echo to a number of the controller's buttons, e.g. fader or pads.
• With a top quality digital to analogue converter, you can be sure that the sound quality is top notch.

Compatible DJ Software

• Serato DJ Pro
• rekordbox

DVS Control

• Serato DVS (Paid upgrade)

Software System Requirements

• Visit serato.com for its specifications.
• Visit rekordbox.com for its specifications.

Accessories

• DDJ-REV7
• AC adaptor
• Power cord
• USB cable
• Warranty (for some regions)
• Quick Start Guide
• Precautions for use
• Serato DJ Pro Expansion Pack Voucher (Serato Pitch 'n Time DJ)
• Marking Sticker

Specifications

• Width: 732 mm
• Height: 82.4 mm
• Weight: 10.7 kg
• Depth:382.2 mm
• Soundcard: 24 bit/48 kHz
• Signal-to-Noise Ratio: 110 dB (USB), 95 dB (LINE), 84 dB (PHONO)
• Distortion: < 0.003 % (USB), < 0.005 % (LINE), < 0.017 % (PHONO)
• Power Consumption: DC 24 V, 1 000 mA
• Frequency Range: 20 - 20000 Hz

Performance Control

• Channels: 2
• Deck Control: 2
• Trim knob: Yes
• Jog Wheel: 175 mm (Top plate), 207 mm (Platter)
• Color on jog display: Yes
• Beat FX: Echo, Time Sweep Echo, Ducking Echo, Echo Out, Fill Out, Spiral, Helix, Helix Out, Delay, Reverb, One-shot Spin, One-shot Brake, Duck Down, Flanger, Phaser, HP Filter, LP Filter, TransRoll, Fader Synth Sine, Fader Synth Saw, Fader Synth Square
• Sound Color FX: Filter, Noise, Pitch, Dub Echo, Wide Filter
• Sampler: 8slot x 4bank
• Hot Cues: 8
• Pad Modes rekordbox: Hot Cue, Pad FX 1, Beat Jump, SamplerKeyboard, Pad FX 2Beat Loop, Sample Scratch (rekordbox)
• Pad Modes Serato: Hot Cue, Roll, Saved Loop, Sampler, Pitch Play, Slicer Loop, Saved Flip, Scratch Bank
• Deck Pads: Hot Cue, Scratch Bank, Saved Loop, SamplerStems
• Manual Loop: Yes
• Auto Loop/Auto Beat Loop: Yes
• Slip Mode: Yes
• Talkover Function: Yes
• EQ Isolator: Yes

Fader

• Crossfader Feeling Adjust: Yes
• Crossfader Curve Adjust: Yes

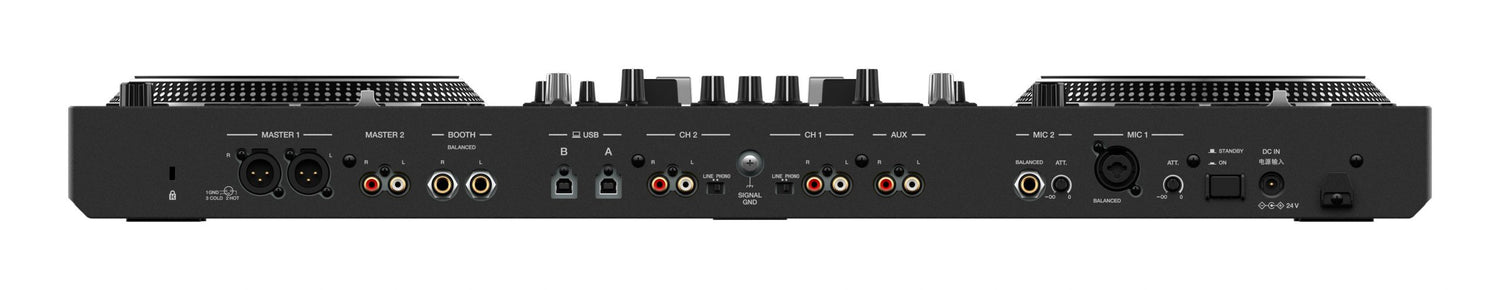

Terminals

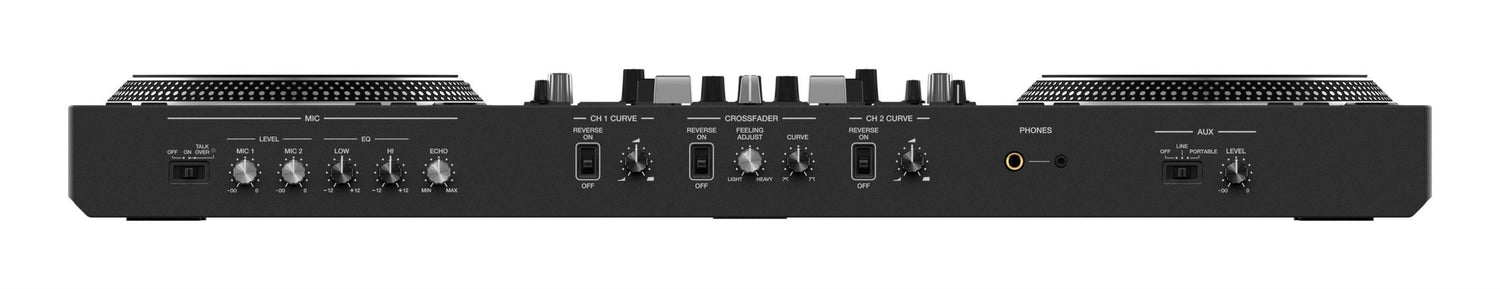

• Inputs: 2 PHONO/LINE (RCA), 2 MIC (XLR & 1/4 inch TRS Jack, 1/4 inch TRS Jack), 1 AUX (RCA)
• Outputs: 2 MASTER (XLR, RCA), 1 BOOTH (1/4 inch TRS Jack), 2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)
• USB: 2 USB B ports

Manual

• DDJ-REV7 manual EN
