• Delicious Fuzz Pedal from Boss
• Two sound settings
• Modern mode
• Vintage mode
• Tone knob
• Top quality buffer
• Complete analog transistor wiring

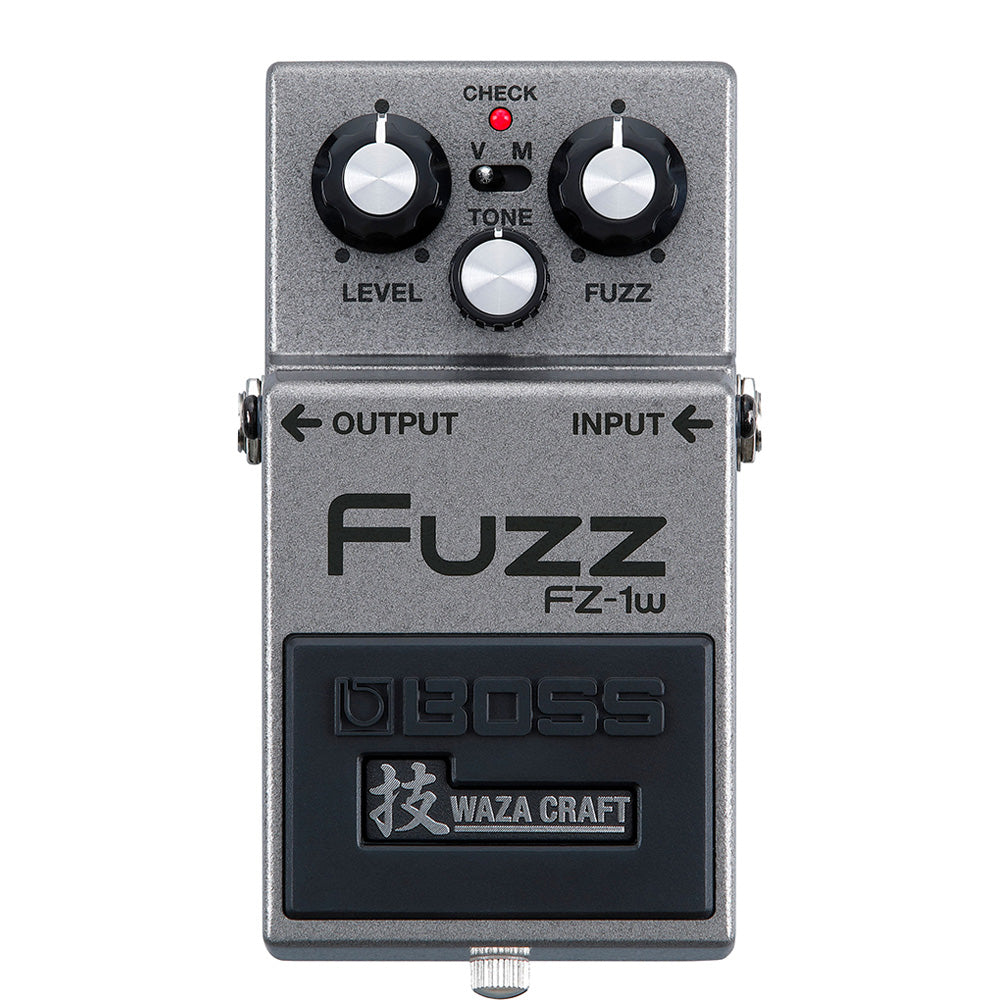

Boss FZ-1W Fuzz Pedal

• Get the ultimate BOSS FUZZ sound experience with this premium distortion pedal from the Waza Craft series.
• Retro meets modern - classic FUZZ tone in a modern pedal with Waza technology that delivers great stability and versatility.
• Switch between the two distinct sound settings: modern and Vintage.
• Vintage setting delivers a classic retro fuzz with an aggressive tone, dynamic touch response and high volume sensitivity.
• The Modern setting delivers a fuller sound with more focused midtones that suit more diverse and contemporary genres.
• The flexible tone knob lets you find the ideal fuzz in either setting.
• Top-quality buffer ensures an ultra-clean tone during bypass.
• Built on complete analog silicone transistor wiring, the FZ-1W is incredibly stable and delivers a consistent sound experience.
• Can also be used as a powerful boost pedal.
• BOSS five-year warranty.

SPECIFICATIONS

Nominal Input Level

-20 dBu

Input Impedance

1 M ohms (Effect Off)
22 k ohms (Effect On)

Nominal Output Level

-20 dBu

Output Impedance

1 k ohms

Recommended Load Impedance

10 k ohms or greater

Controls

Pedal switch
Mode switch
FUZZ knob
TONE knob
LEVEL knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power supply

Alkaline battery (9 V, 6LR61 or 6LF22) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)

Current Draw

16 mA

Expected battery life under continuous use

Alkaline: Approx. 33 hours
Carbon: Approx. 14 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61 or 6LF22)

Options (sold separately)

AC adaptor: PSA series

SIZE AND WEIGHT

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

430 g
1 lb
