• DJ controller with built-in sound card
• All-in-one dj station with 2 x jog-wheels + mixer section
• 10,1" full color LCD screen
• Display in jog wheel
• 8 multi-coloured performance pads
• Compatible with rekordbox or Serato DJ Pro (Start 2022)
• Playlist Bank
• Touch Preview
• Phrase Display
• 3 Band Waveform
• Color On Jog Display
• 14 Beat FX and 6 Sound Color FX
• Release FX
• Natural audio

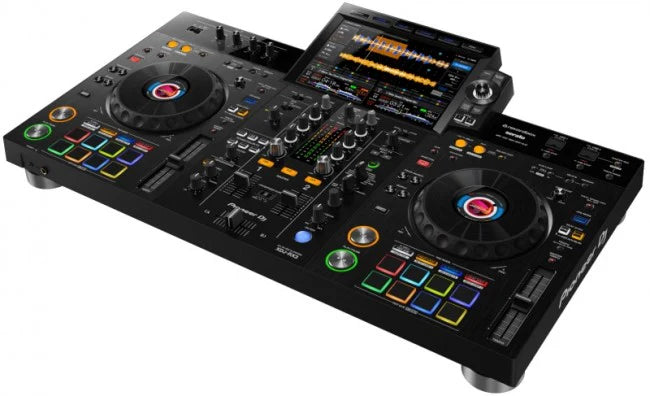

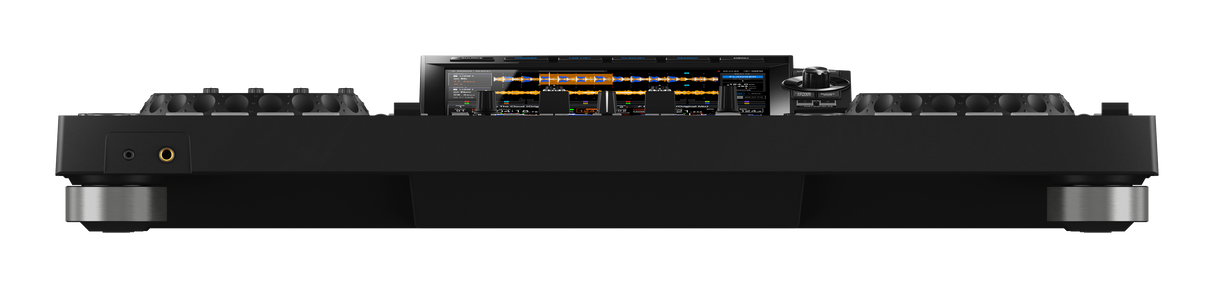

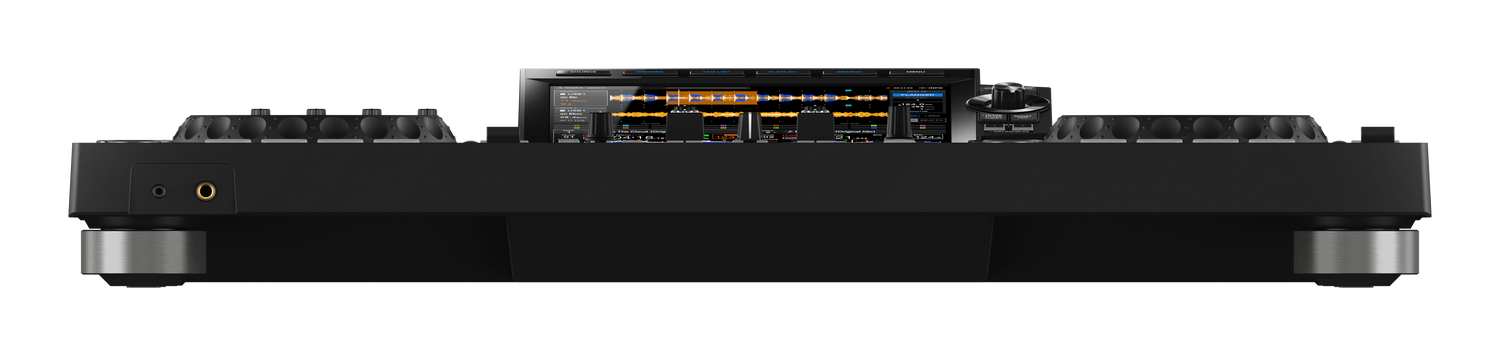

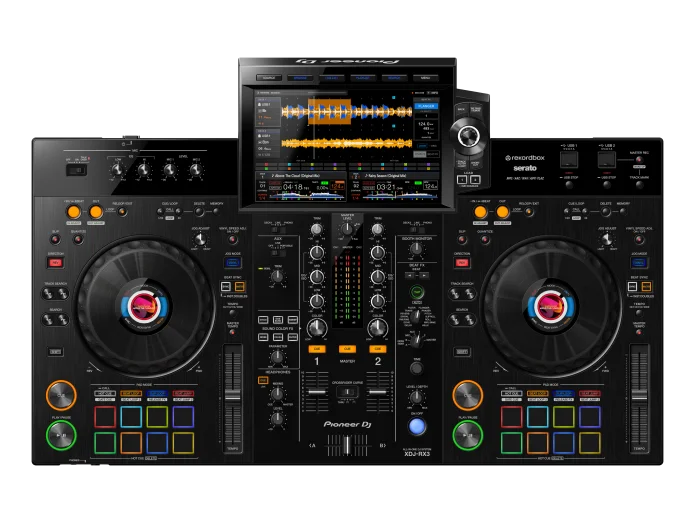

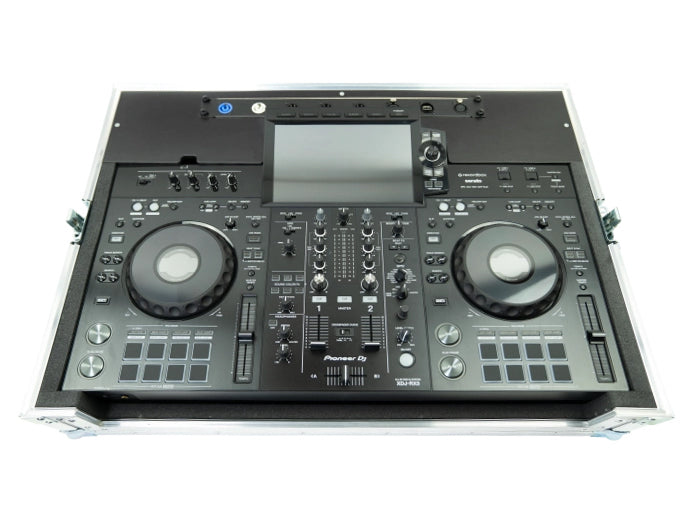

Pioneer XDJ-RX3

• Successor to the popular XDJ-RX2 controller.
• Lots of new upgrades, including more features from the CDJ-3000 and DJM-900NXS2.
• 10.1" touch screen with higher frame rate and resolution than RX2.
• New gUI that makes it super easy to navigate the manus.
• Playlist bank where you can store up to 4 playlists for quick retrieval.
• Touch Preview lets you tap on a part of the waveform of a track and preview the audio file without loading it.

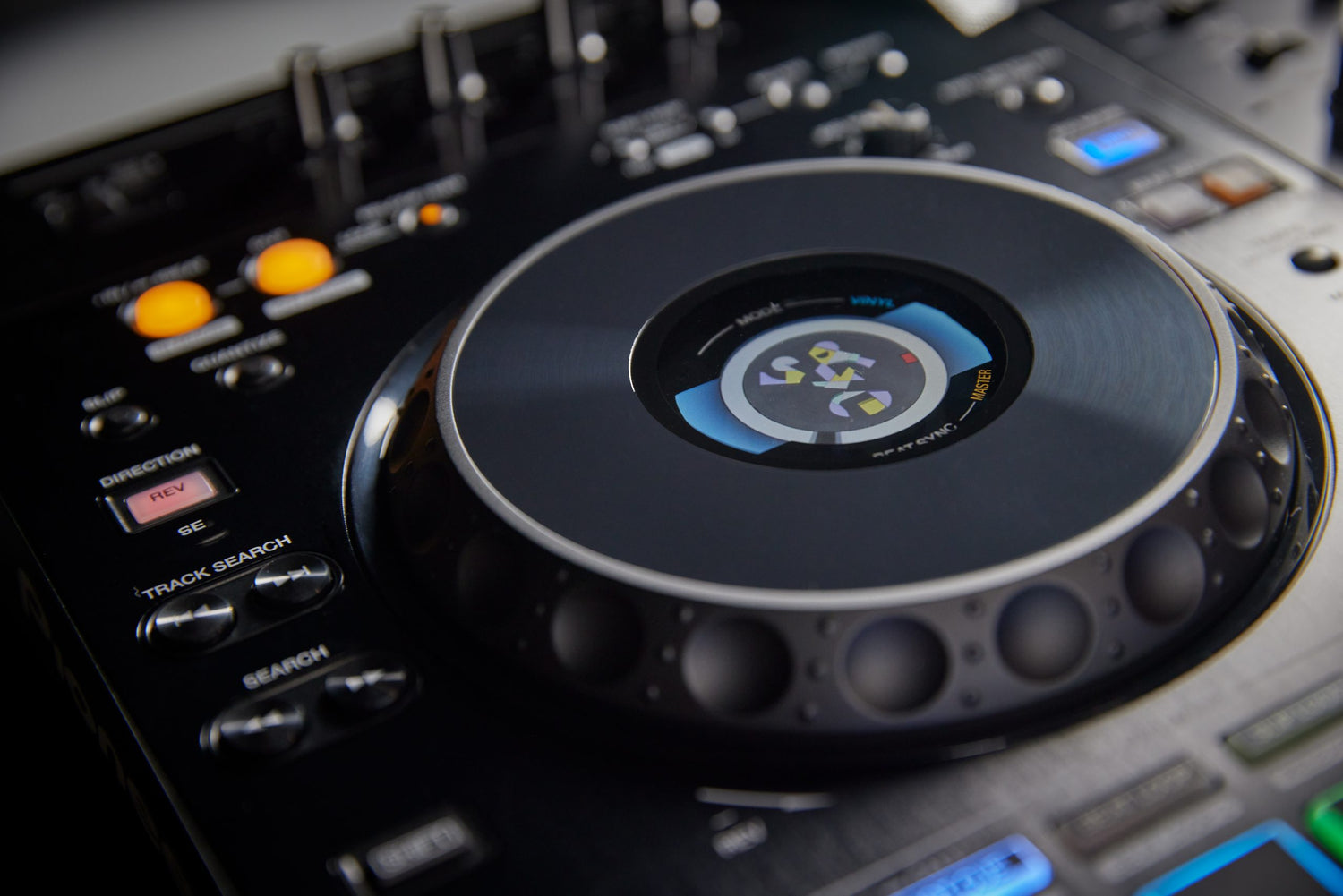

• New Jog Wheel, where you can change the weight and colour of the display.

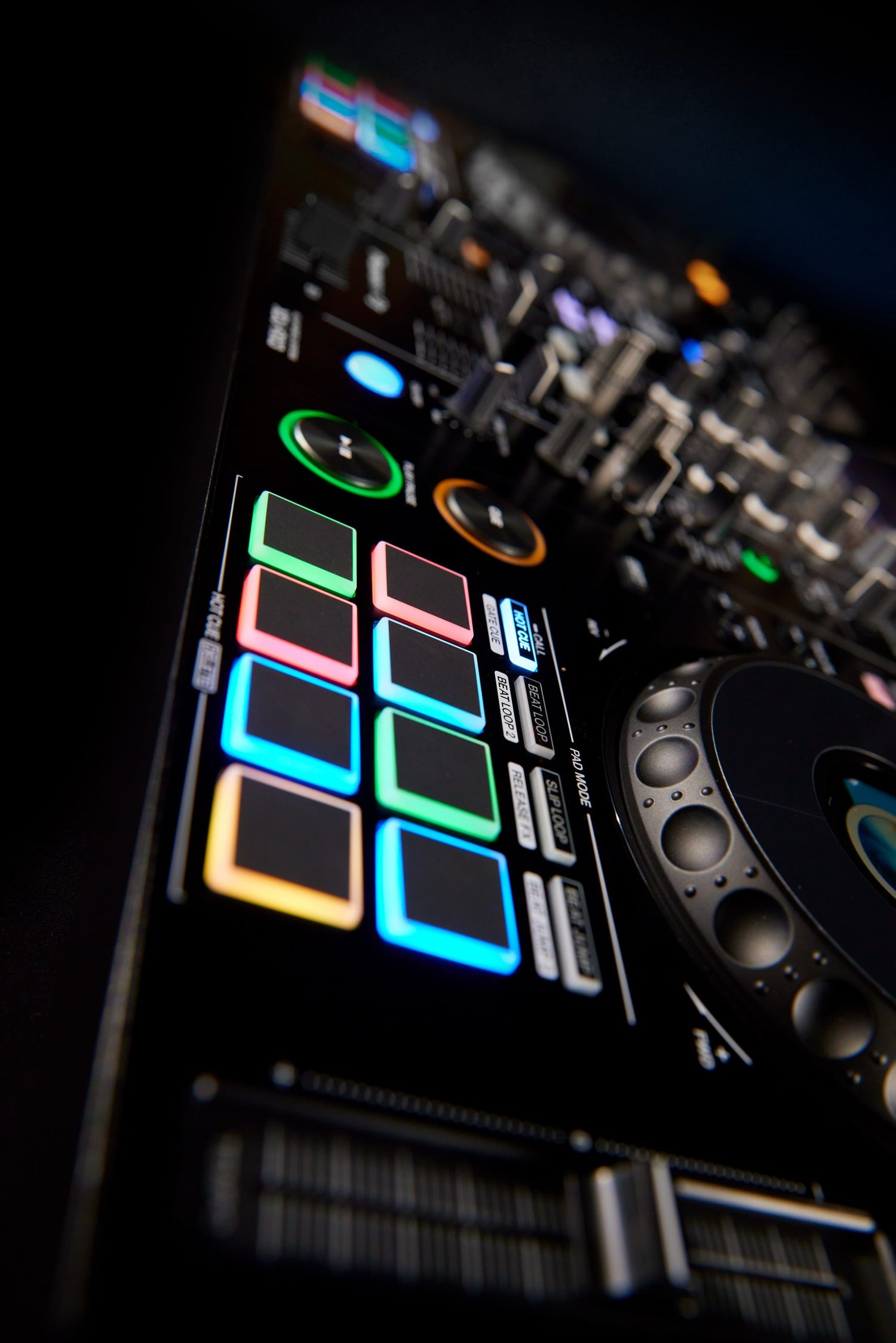

• Performance Pads let you change the energy of your set with Release FX'.
• Works with Rekordbox and Serato DJ Pro (Serato support coming from early 2022).

Supported music file formats

• MP3
• AAC
• WAV
• AIFF
• FLAC

File systems

• FAT16
• FAT32
• exFAT
• HFS+

Compatible DJ Software

• rekordbox
• Serato DJ Pro

Accessories

• Power cable
• USB cable
• Quick Start Guide
• Software license notice
• Precautions for Use
• Warranty (for some regions)

Specifications

• Width: 728.1 mm
• Height: 118.4 mm
• Depth: 469.5 mm
• Weight: 9.3 kg
• A/D Converter: 24 bit
• Signal-to-Noise Ratio: 110 dB USB
• Power Supply: AC 100-240 V, 50 Hz / 60Hz
• Distortion: < 0.003 % (USB)
• Sampling Rate: 44.1 kHz
• Frequency Range: 20 - 20000 Hz

Performance Control

• Channels: 2

Sound Color FX:

• Space
• Dub Echo
• Sweep
• Noise
• Crush
• Filter
• Beat FX
• Delay
• Echo
• Ping Pong
• Spiral
• Reverb
• Trans
• Filter
• Flanger
• Phaser
• Pitch
• Slip Roll
• Roll
• Vinyl Brake
• Helix

Mic

• Mic Connection: XLR / 1/4-inch Combo Jack
• Mic EQ: 2 band

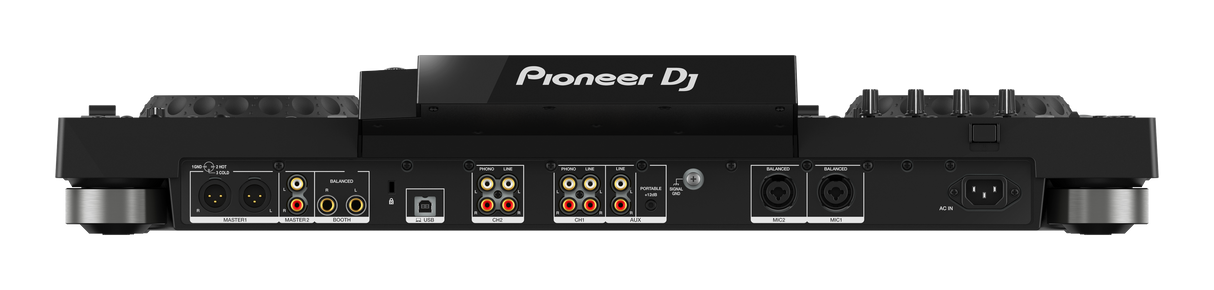

Terminals
Inputs:

• 2 LINE (RCA)
• 2 PHONO (RCA)
• 2 MIC (XLR & 1/4 inch TRS Jack)
• 3.5 mm stereo mini jack x 1 (Unbalanced input)
• 1 AUX (RCA)

Outputs:

• 1 MASTER (XLR)
• 1 MASTER (RCA)
• 1 BOOTH (1/4 inch TRS Jack)
• 1 PHONES (1/4 inch stereo phone Jack)
• 1 PHONES (3.5-mm stereo mini jack)
• USB:
• 2 USB A ports
• 1 USB B port

Manual

• XDJ-RX3 manual EN
