Beschreibung
Beschreibung
- Compact and loud 10" ELX200 speaker
- 10" EVS-10M LF and 1" HF titanium drivers
- 1200W Class-D amplifier
- QuickSmart DSP system
- Fire preset, 5 custom
- QuickSmart mobile app access
- M10 mounting thread

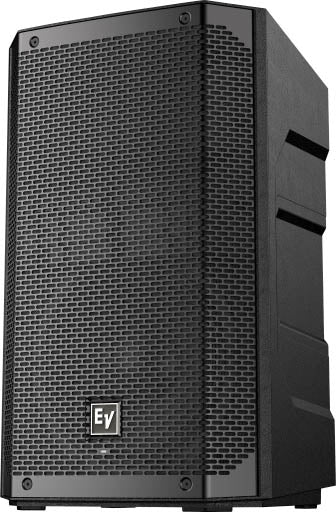

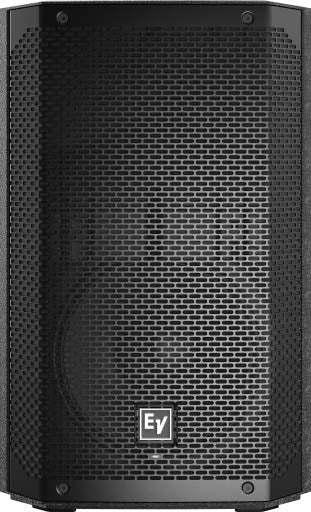

Electro-Voice ELX200-10P Active 10" Speaker
- Easily portable lightweight loudspeaker packed with features normally only found in larger speakers.
- Massive and beautiful sound from the efficient 1200W Class D amplifier with a 10" LF Driver and a 1" Titanium horn.
- EV's proprietary QuickSmart DSP solution provides best-in-class signal processing with streamlined single-knob DSP design.
- Clear and intuitive LCD on-screen menu provides easy access to fire yd presets that adapt the sound to the situation (Music, Speech, Live and Club).
- Create up to 5 of your own presets or connect to the QuickSmartMobile app for additional settings and to connect up to 6 ELX200 speakers.

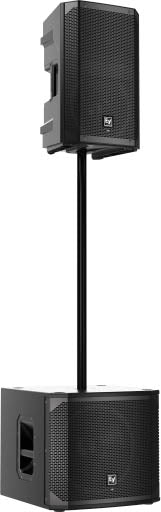

- Integrated M10 mounting threads for hanging the speaker on a stand/pole.
Spezifikationen
Spezifikationen
-
ColorBlack
-
Weight (kg)
Weitere Spezifikationen
Weitere Spezifikationen
Frequency response (-3 dB) | 59 Hz -18 kHz¹ |
Frequency range (-10 dB) | 53 Hz - 20 kHz¹ |
Maximum SPL | 130 dB2 |
Coverage (H x V) | 90Ë x 60Ë |
Power rating | 1200 W |
LF transducer | EVS-10M 254 mm (10 in) |
HF transducer | DH-1L 1-inch titanium compression driver |
Crossover frequency | 1800 Hz |

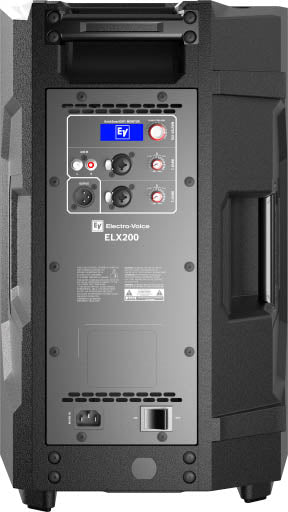

Connectors | (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR |
Enclosure | Polypropylene |
Grille | 18 AWG steel with powdercoat |
Suspension | (3) M10 suspension points |
Color | Black or White |
Dimensions (H x W x D) | 531 mm x 330 mm x 319 mm (21.0 in x 13.0 in x 12.6 in) |
Net weight | 13.5 kg (29.9 lb) |
Shipping weight | 15.6 kg (34.4 lb) |
Power consumption | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³ |
