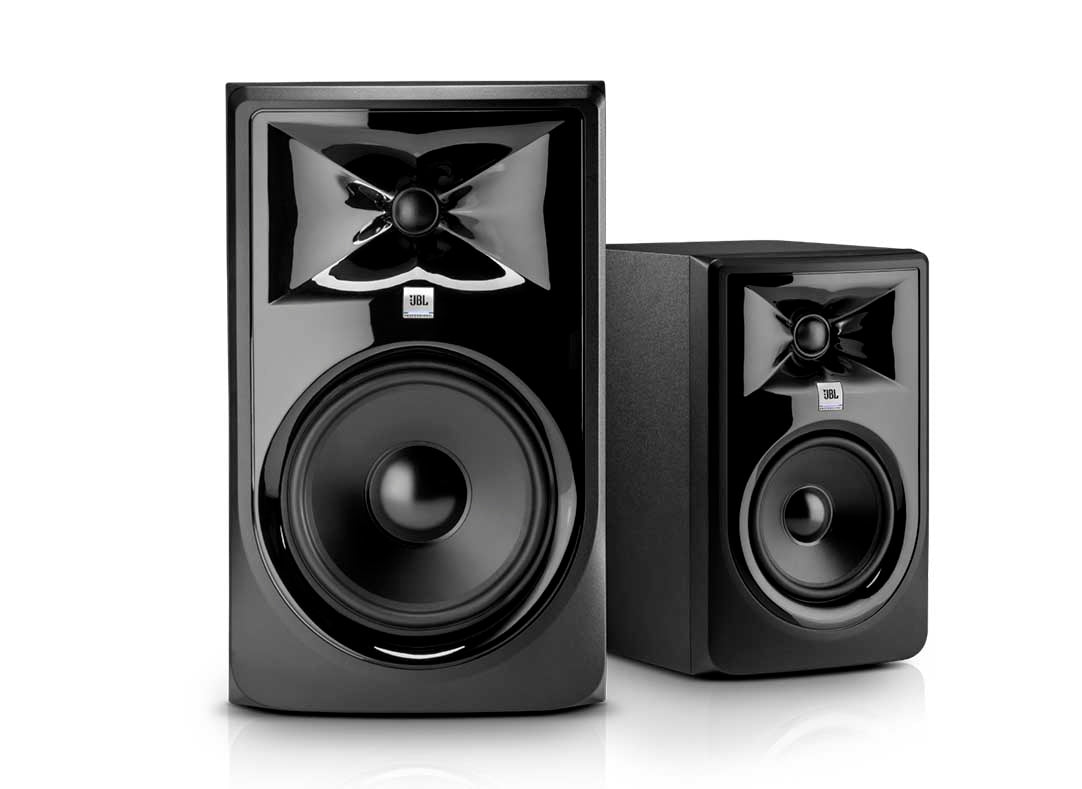

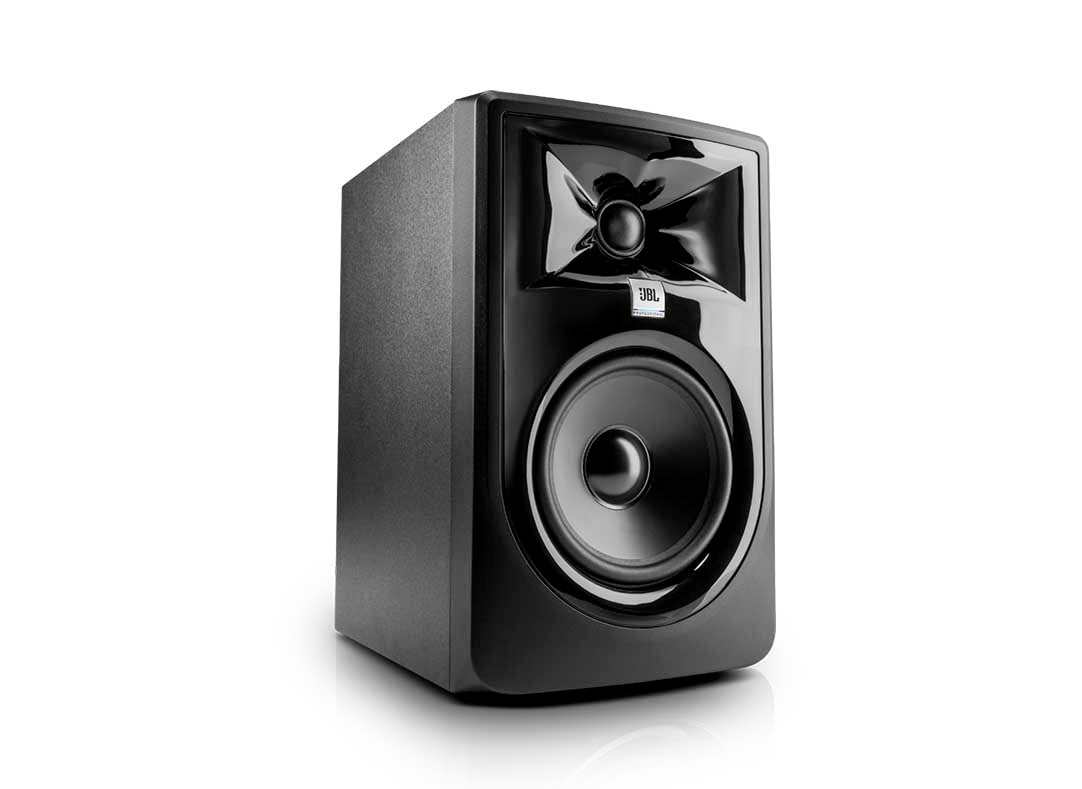

JBL LSR306P MkII Active Studio Monitor
€187,54
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung
- Unglaublich großer Klang aus kleinem Gehäuse
- 6,5" Basslautsprecher + Hochtöner
- JBLs Wellenleiter-Technologie
JBL LSR306 MkII

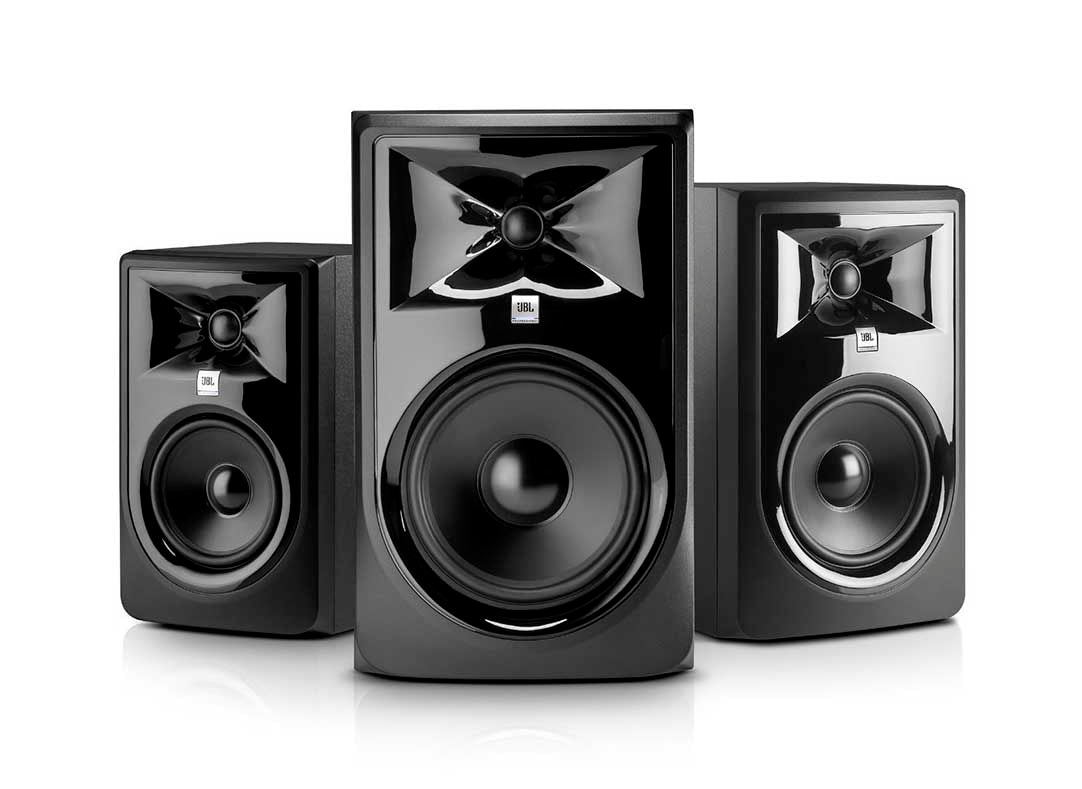

- Neuestes Mitglied der LSR3-Familie.
- 6,5" Basslautsprecher + Hochtöner.
- Angetrieben von zwei 56W Klasse D Verstärkern.
- Frequenzgang von 47 Hz 20 kHz (+/- 3 dB) und max. SPL 110 dB.

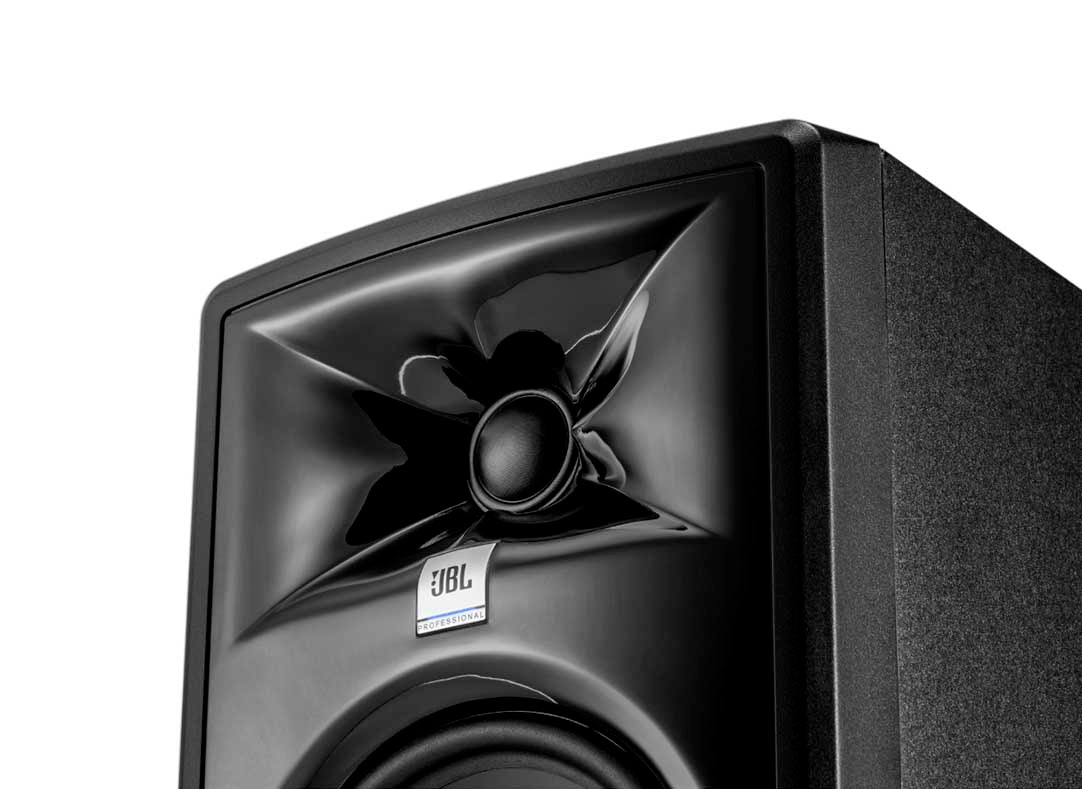

- JBLs Waveguide-Technologie (Image Control Wave Guide), die von dem Flaggschiffmodell M2 stammt - siehe mehr über Waveguide im Video unten.

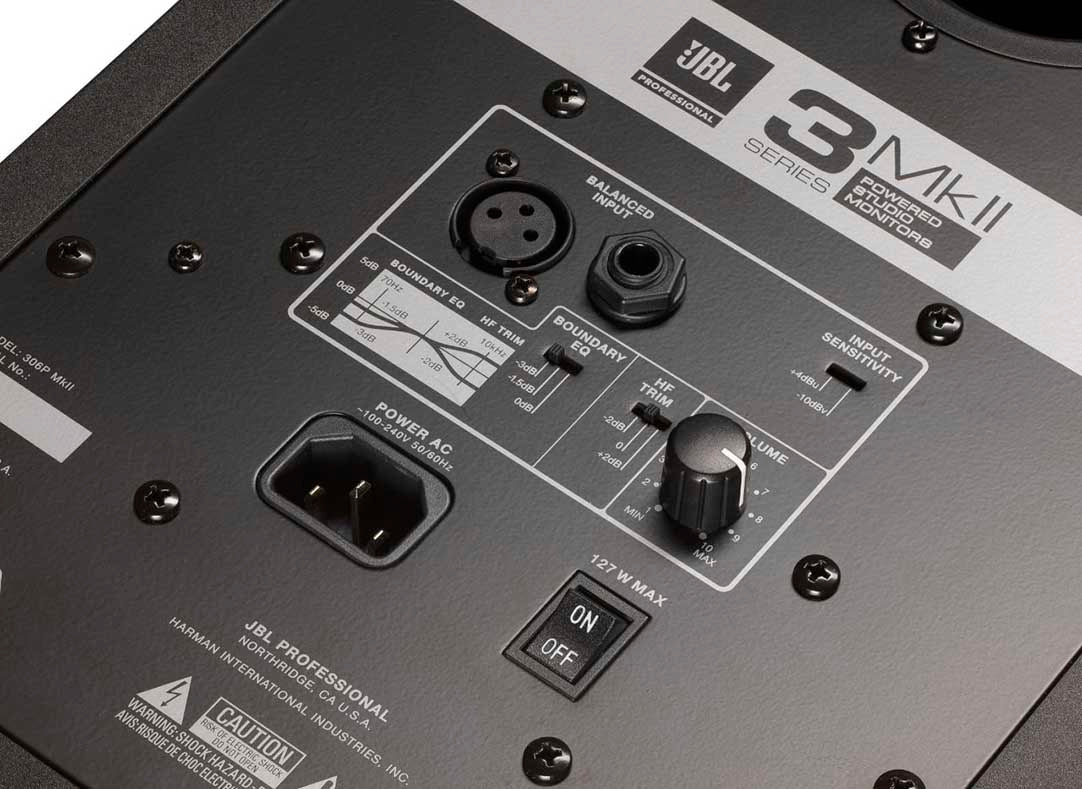

- Eingang über XLR und TRS Klinke

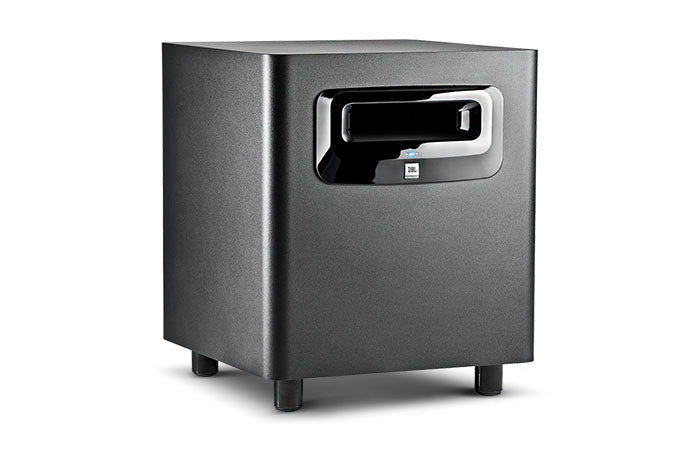

- Die Serie wird durch den Subwoofer LSR310 ergänzt.
Spezifikationen
Spezifikationen
-
Weight (kg)
Weitere Spezifikationen
Weitere Spezifikationen
| LF DRIVER SIZE | 165mm (6.5") | |
| HF DRIVER SIZE | 25mm (1") | |
| HF DRIVER TYPE | Soft dome | |
| CROSSOVER | 1425Hz 4th order acoustic Linkwitz-Riley | |
| OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT | Yes | |
| INPUT SENSITIVITY (-10dBV INPUT) | 92dB / 1m | |
| POWER CONFIGURATION | Bi-amplified | |
| HF DRIVER POWER AMP | 56W, Class-D | |
| LF DRIVER POWER AMP | 56W, Class-D | |
| FREQUENCY RESPONSE (±3dB) | 47Hz - 20kHz | |
| FREQUENCY RANGE (-10dB) | 39Hz - 24kHz | |
| LOW FREQUENCY EXTENSION (-10dB) | 39Hz | |
| MAXIMUM CONTINUOUS SPL | 92dB | |
| MAXIMUM PEAK SPL | 110dB | |
| MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) | +6dBV / +20.3dBu | |
| SYSTEM DISTORTION CRITERIA | <10% THD at maximum output with full compressor / limiter engagement | |
| ELECTRICAL DISTORTION CRITERIA | 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output | |
| SIGNAL TO NOISE RATIO | 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output | |
| COVERAGE HORIZONTAL x VERTICAL | 120° x 90° | |
| ANALOG INPUT TYPES | 1 x XLR female, 1 x TRS female, balanced | |
| HF TRIM CONTROL | -2dB, 0dB, +2dB | |
| BOUNDARY EQ | LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB | |
| AC INPUT VOLTAGE | 100 - 240VAC (±10%), 50 / 60Hz | |
| ENCLOSURE TYPE | Ported | |
| ENCLOSURE CONSTRUCTION | 15mm MDF | |
| ENCLOSURE FINISH | Matte black PVC | |
| BAFFLE CONSTRUCTION | Injection-molded structural ABS | |
| CABINET DIMENSIONS (H x W x D) | 361 x 224 x 282mm (14.2" x 8.8" x 11.1") | |
| DISPLAY CARTON (H x W x D) | 408 x 285 x 328mm (16.1" x 11.2" x 12.9") | |
| SHIPPING CARTON (H x W x D) | 418 x 292 x 338mm (16.5" x 11.5" x 13.3") | |
| NET WEIGHT | 6.1 kg (13.42 lbs) | |
| SHIPPING GROSS WEIGHT | 7.25 kg (15.95 lbs) |
Brand: JBL
SKU: JBL-LSR306P-MKII
