Beschreibung
Beschreibung
- Leistungsstark 40 Watt warmweißes LED
- Plano-konvexe Linse
- Kontinuierlich variable manuelle Zoom für 14 ° - 38 ° Strahlwinkel
- RDM-Ständer
- 18.000 Lux @ 1 m
- 3.200 K Farbtemperatur
- CRI> 90
- Flickerfreie Bedienung
- Robustes Metallgehäuse mit Konvektionskühlung
- Inklusive drehbare Barn Doors und Filterrahmen
- DMX Ein/Aus

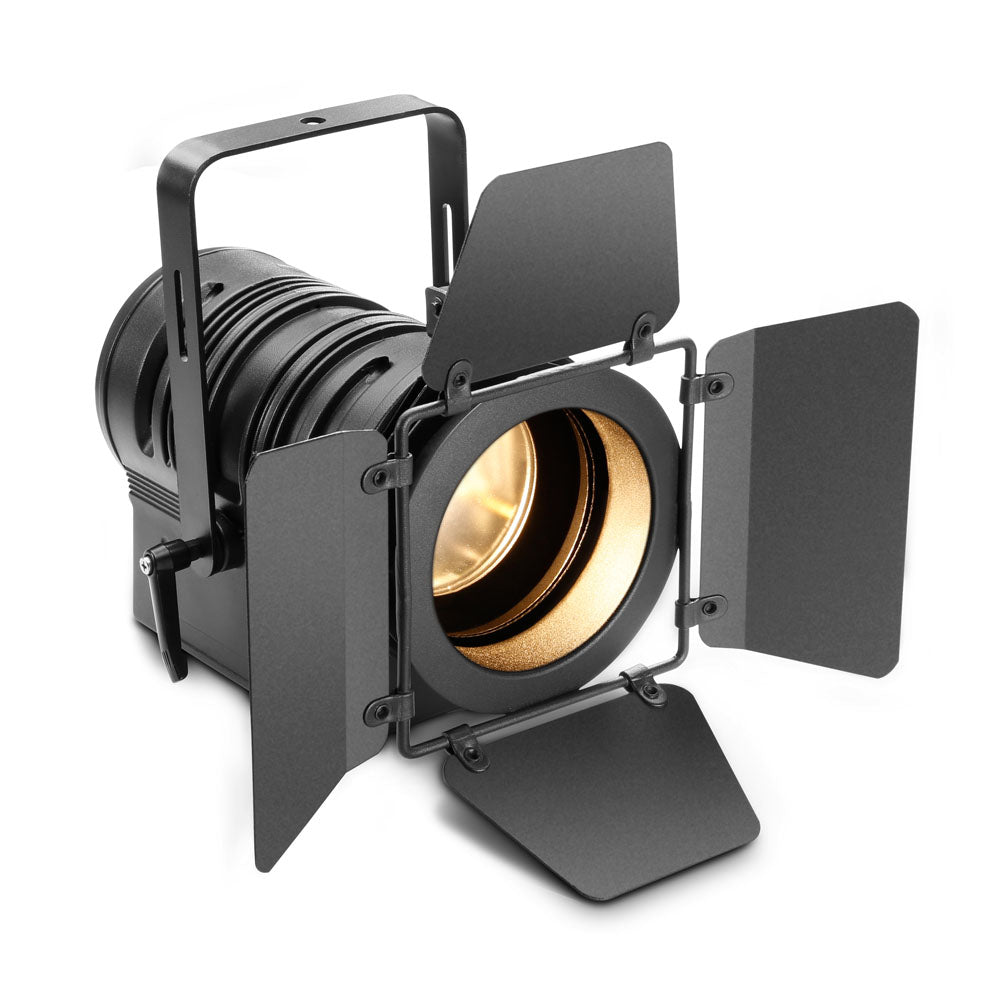

Cameo TS 40 WW Theater Spot
Cameo TS 40 WW ist ein vielseitiger Theater Spot mit plano-konvexer Linse und manuellem Zoom für eine einfache Anpassung des Spot-to-Flood-Fokus. Cameo TS 40 WW liefert einen sanften Strahl mit kontinuierlich variabler 14 ° bis 38 ° Winkel. Das RDM-kompatible Gerät wird von einer einzelnen 40 Watt warmweißen LED betrieben. Es hat eine Farbtemperatur von 3.200 K und eine Beleuchtungsstärke von 18.000 Lux in 1 Meter Entfernung.
Die DMX-Funktionen des Spots umfassen einen Hochgeschwindigkeits-Strobe mit einstellbarer Blitzgeschwindigkeit von 1 bis 20 Hz und eine Auswahl an Dimmkurven. Eine Aktualisierungsrate von 1.200 Hz sorgt für flimmerfreie Leistung. TS 40 WW kommt in einem robusten Metallgehäuse mit effizienter Konvektionskühlung. Es bietet ein 4-Tasten-Display für eine einfache Konfiguration, 3-polige DMX-Buchsen und einen IEC-Stromanschluss. Eine drehbare Barndoor und eine Farbfilterrahmen sind im Lieferumfang enthalten.
Spezifikationen
Spezifikationen
-
ColorBlack
-
Weight (kg)
Weitere Spezifikationen
Weitere Spezifikationen
Specifications
Product type
LED PAR Lighting
Type
Indoor
Colour spectrum
warm white
Number of LEDs
1
Colour temperature
3200 K
CRI
>90
LED type
warm white 40 W
Refresh rate
1200M Hz
Dispersion
(Beam) 14° - 38° / (Field) 20° - 48 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
Protocols
USITT DMX 512 protocol
DMX mode
3-channel
DMX Functions
Dimmer , Dimmer Curve , strobe
Wireless DMX
no
Flash Rate Strobe
1 - 20 Hz
Standalone modes
Static
Controls
down , Enter , mode , up
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Indicators
LC display
Power consumption
40 W
Power connector
Power cord with safety plug (Type E / CEE 7/7)
Housing material
die cast metal
Cabinet colour
Black
Cooling
Convection
Operating Temperature
0 - 40 °C
Illuminance
18000lx @ 1m
Luminous flux
1570 lm
Width
145 mm
Height
205 mm
Depth
240 mm
Weight
3,6 kg
Accessories (included)
barndoor
