• Fully featured RGBW LED IP 65 rated yoke wash fixture with zoom and RGB LED ring
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• 7 RGBW LEDs, 45 W each
• 12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities
• Prebuilt programs for outer LED ring with the ability to easily control dimming, rate, foreground and background colors
• 5-pin DMX input/output connections
• Unique lens design for excellent color blending and tight beam effects
• Extremely fast, smooth pan and tilt movement
• RDM enabled for remote addressing and trouble shooting
• Selectable PWM settings for camera operation
• Zoom Range: 3.9° to 55.3° for maximum coverage
• User selectable calibrated white for 7500 K at full output
• 6 distinct dimming modes for advanced control
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software

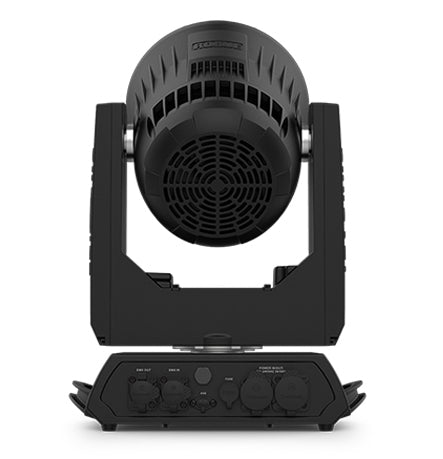

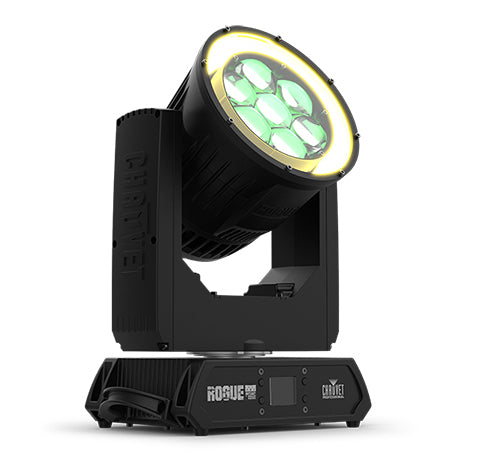

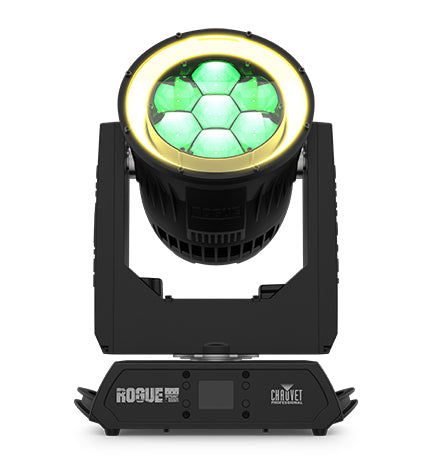

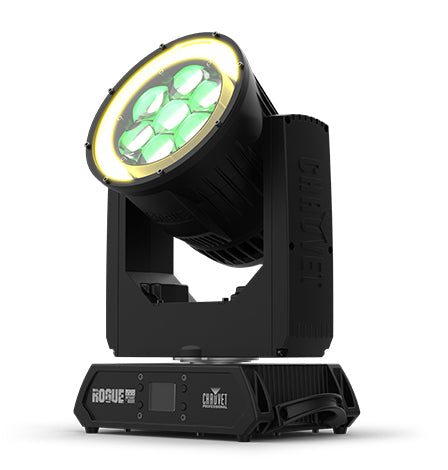

• Rogue Outcast 1 BeamWash is a lightweight, IP65 rated, LED Beam & Wash fixture enhanced with a pixel-mappable LED ring around it’s face.
• A unique lens design developed for tight beam effects allows for a wide zoom range of 3.9° to 55.3° for maximum coverage.
• Seven 45W RGBW LED’s combine excellent color mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control.
• The outer ring comprises of 12 pixel-mappable RGB LED zones underneath a smoked stealth filter.
• Easily create eye-catching effects with prebuilt programs for the ring with the ability to control dimming, rate, foreground and background colors.
• This compact fixture weighs only 20lbs and features a rugged IP65 casing that is proven to withstand all of the harshest elements.
• Control as you see fit with multiple profiles with simple and advanced control modes compatible with DMX & RDM protocols.
• Update software easily with an onboard USB-C port.

OPTICAL

• Field Angle: 5.9° to 49.8°
• Cutoff Angle: 6.7° to 55.3°
• Zoom Range: 3.9° to 55.3°
• Lumens – Source: 5,900
• Lumens – Output: 4,073
• Illuminance (3.9°): 15,308 lux @ 5 m
• Illuminance (55.3°): 473 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/260°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 260° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: yes
• Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

• Dimensions: 11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)
• Weight: 20.2 lb (9.16 kg)
• Exterior Color: Black
• Housing Material: Magnesium aluminum diecast, high impact, flame-retardant polymer

CONNECTIONS

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 15, 24, 30, 64, 111 or 135
• Modes/Personalities: 6 personalities (15, 24, 30, 64, 111, 135)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
• Power and Current: 372 W, 1.69 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC, UKCA
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
• Maximum Ambient Temperature (ta) 45° C / 113° F

WHAT'S INCLUDED

• Rogue Outcast 1 BeamWash

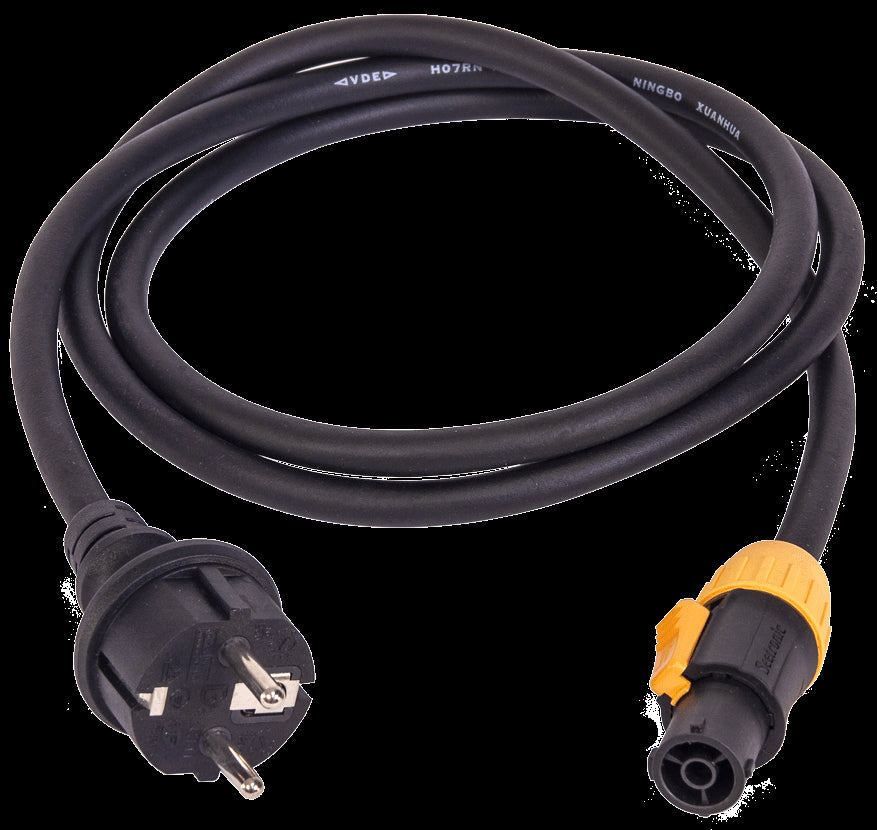

• Seetronic Powerkon IP65 power cord
• (2) Omega brackets with mounting hardware

DOWNLOADS

• Rogue Outcast 1 Beam Wash - Quick Reference Guide
• Rogue Outcast 1 BeamWash User Manual
• Rogue Outcast 1 BeamWash 2D CAD Drawing
• Rogue Outcast 1 BeamWash 3D CAD Drawing
• Rogue Outcast 1 BeamWash DMX Chart
• Rogue Outcast 1 BeamWash IES Files
• Rogue Outcast 1 BeamWash - Photometrics Report
