• 5 x 5 LED Matrix Panel with single pixel control
• 25 x 3 W warm white LEDs
• 4 DMX modes, sound activation
• Master, slave and standalone capability
• Blinder, chase and strobe effects
• Alphabetic character and numeral mapping
• 4 selectable dimming curves
• Noiseless and flicker-free operation
• Ultra flat enclosure

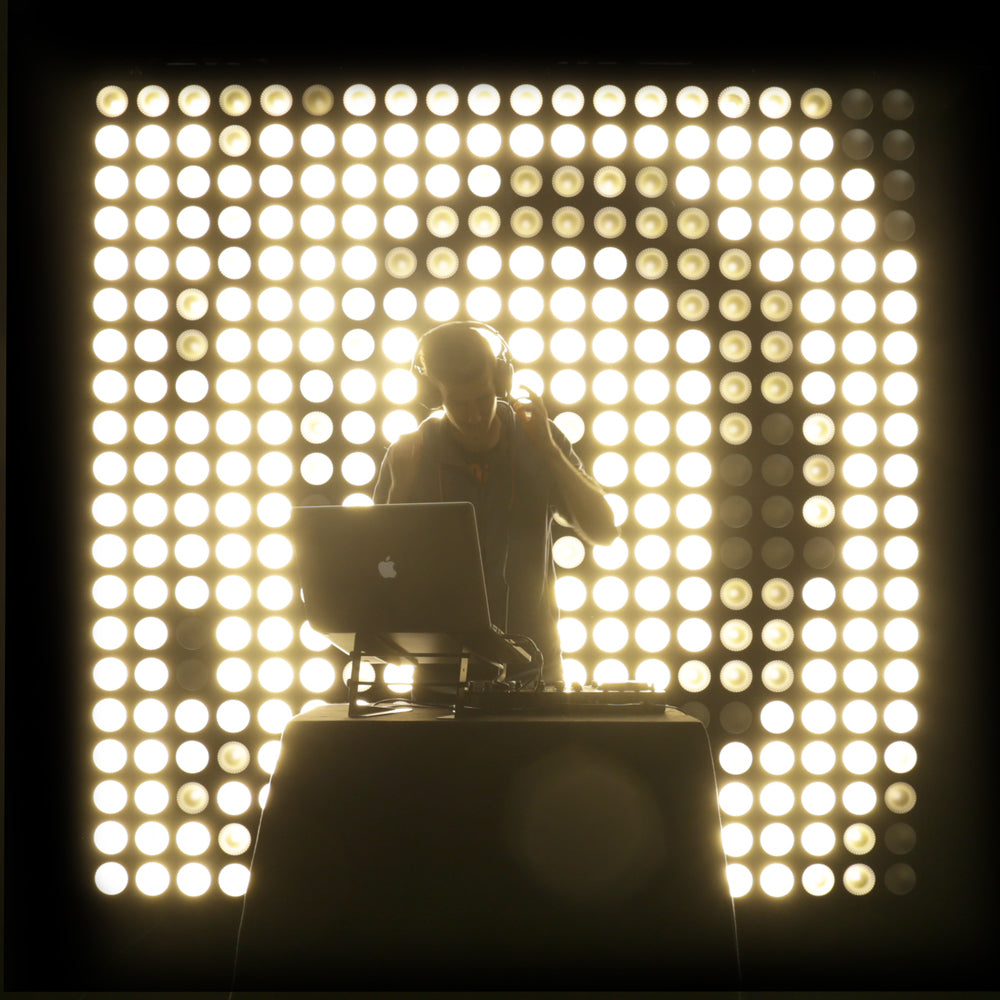

• Even more impressive in multiples

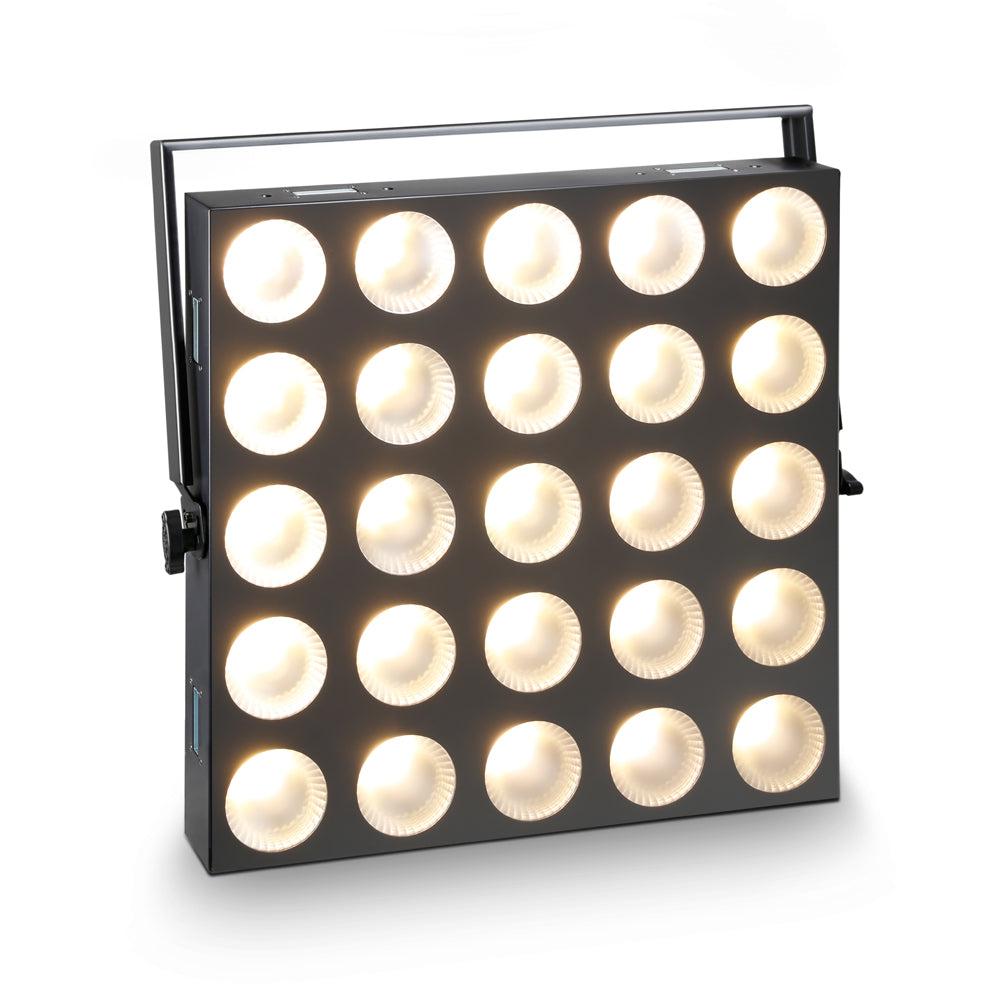

5 x 5 LED Matrix Panel

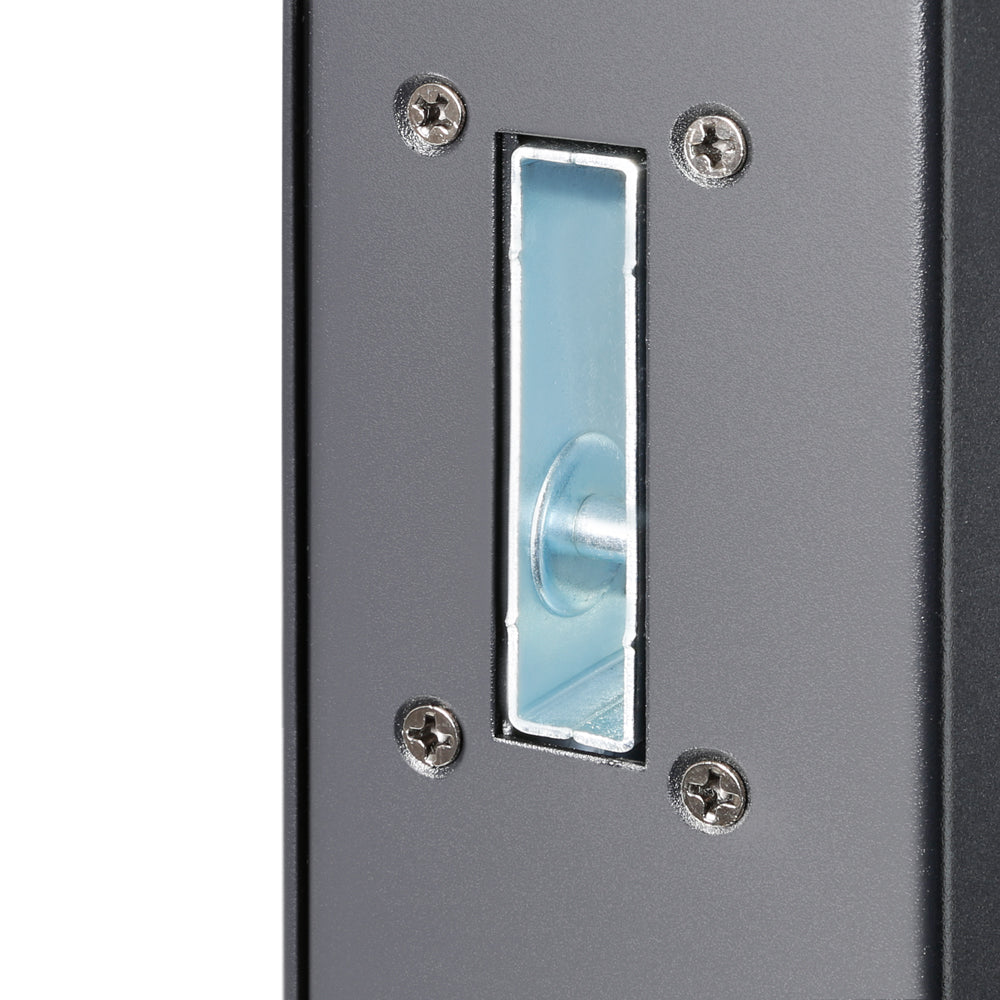

With a 5 x 5 array of warm white 3 watt LEDs and flicker-free performance the Cameo Matrix Panel creates exciting blinder, chase and strobe effects. Featuring powerful single pixel control it is the perfect choice for mapping alphabetic characters, numerals and complete messages. Recessed latches on all sides enable connecting multiple panels for large, impressive backdrops.

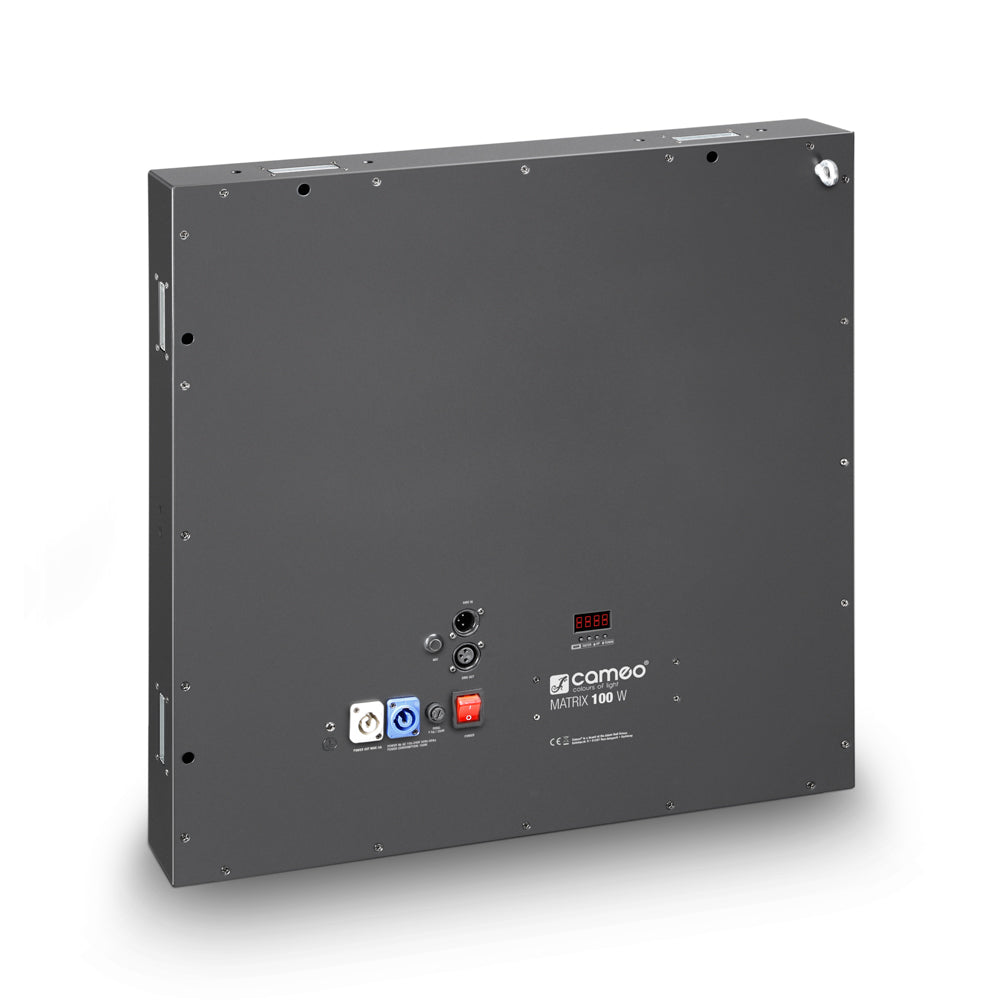

The Matrix Panel includes four modes of DMX control, sound activation and 4 selectable dimming curves. It sports master, slave and standalone capability plus highly efficient convection cooling for noiseless operation. The ultra flat all-metal enclosure provides 3-pin DMX input and output, blue and white power connectors, a bright 4-button display and safety eye. The Matrix Panel comes with a mounting bracket and runs on all voltages from 100 - 240 volts AC.

• Product Type: LED MATRIX PANEL
• Type: 5 X 5 Matrix
• Colour Spectrum: warm white
• Colour temperature: 3300 K
• Number of LEDs: 25
• LED Type: 3 W Single LED
• Refresh Rate: 3400 Hz
• Beam Angle: 40°
• DMX Input: 3-pin XLR male
• DMX Output: 3-pin XLR female
• DMX Mode: 2-channel, 5-channel, 10-channel, 28-channel
• DMX Functions: Master Dimmer, Dimmer Fine, Auto programs, Sound programs, Stroboscope
• Standalone Functions: Music Control, Master/Slave
• Control: DMX512
• Controls: Mode, Enter, Up, Down
• Display Elements: 4-digit LED display
• Power Connector: blue power input socket, white power output socket
• Operating Voltage: 100 V - 240 V AC, 50 - 60 Hz
• Power Consumption: 100 W
• Illuminance ( 1 m): 6100 lx
• Fuse: F5A / 250 V
• Operating Temperature: 10°C - 40°C
• Relative Humidity: <85% non-condensing
• Housing Material: metal
• Housing Colour: black
• Housing Cooling: convection
• Dimensions (W x H x D, excluding bracket): 580 x 580 x 67 mm
• Weight (excluding bracket): 8 kg

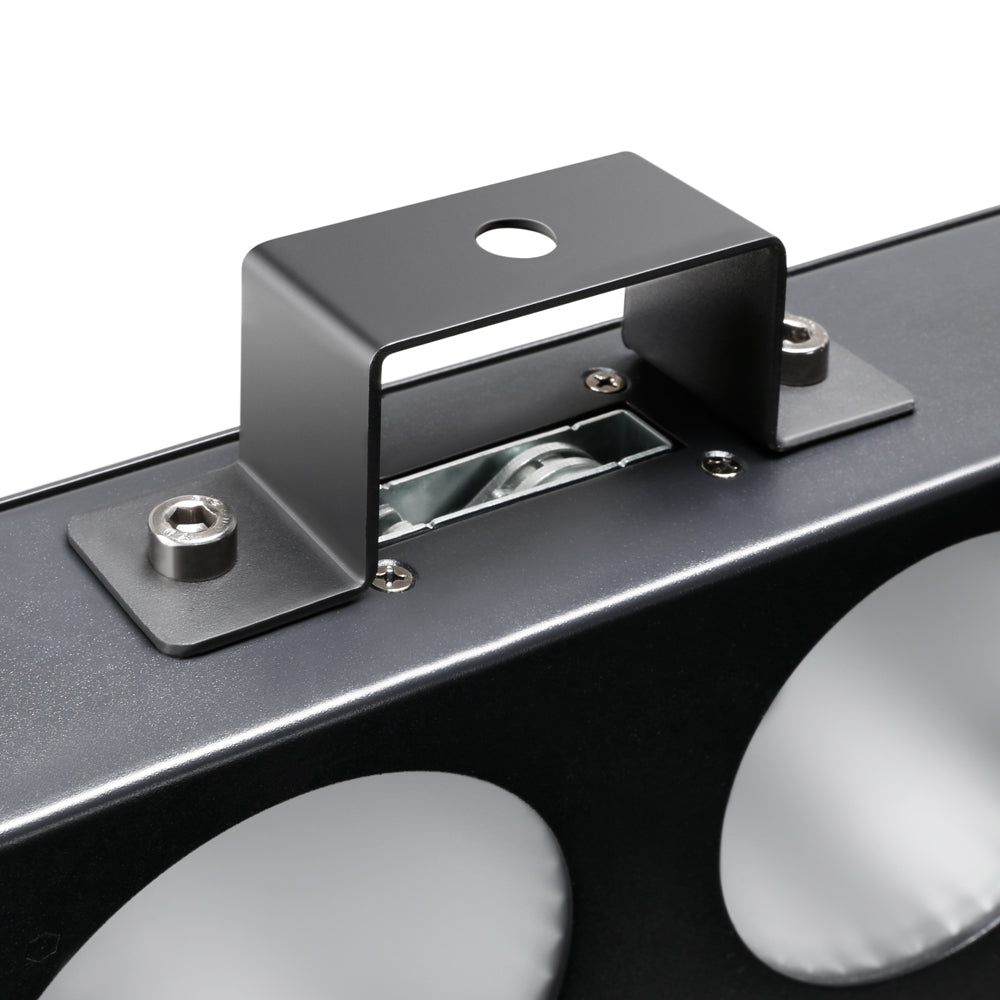

• Other Features: swivel bracket included, 2 omega brackets, safety eyeletintegrated connection system for the installation of an unlimited numberof units in the horizontal plane and vertical installation of up to 5 units.
