• 9 pads with Roland's advanced trigger technology
• Horizontal and vertical LED light units
• 4.3" color display
• 1 stereo output and 4 mono outputs
• 8 trigger inputs
• 32 GB internal memory
• Up to 200 kit patches
• Built-in effects (delay, reverb, sidechain and more)
• The ultimate sampling pad
• Solid quality tripod stand
• Easy to adjust to any position
• Works with Roland SPD and HandSonic instruments.
• Heavy-duty softbag for optimal protection of your SPD-SX
• 600D polyester and thick fleece lining inside
• High quality audio cable
• 2x 6.3 mm jack cable at both ends
• Cable length: 6 meters
• Color: black

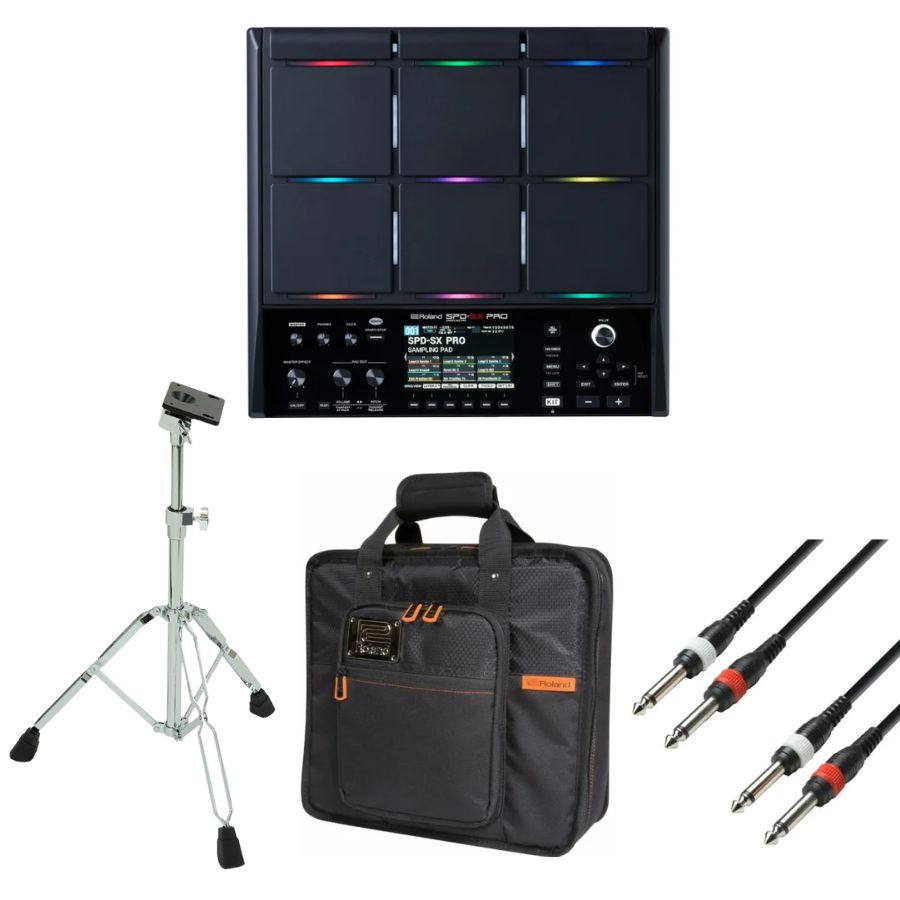

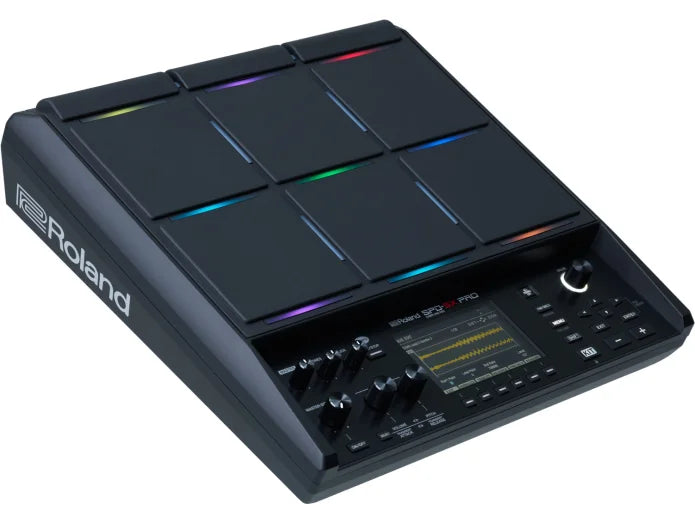

Roland SPD-SX Pro Sampling Pad

With this package you get everything you know from the SPD SX, only bigger, faster and better - Roland's new flagship has arrived. You also get a tripod stand, bag and cables.

• Nine of Roland's advanced pads with improved dynamics/velocity on the three shoulder pads
• With the new horizontal and vertical LED units, no more not being able to see the SPD's pads on dark scenes.
• 4.3" color screen with intuitive interface.
• Stereo output and 4 balanced mono outputs.
• Connect up to 8 external trigger pads (4 stereo or 8 mono with split cable).
• Importing and editing samples is easier than ever with the new SPD-SX PRO app for Windows/Mac.
• 32 GB internal memory.
• New input dedicated to footswitch expression control or hihat.
• Up to 200 kit patches (43 erasable preset kits and 157 user kits).
• Comes with over 1550 high-quality sounds and samples.
• New 16-step pad sequencer function.
• With built-in effects like delay, reverb and sidechain, you have numerous processing options.
• The ultimate sampling pad for the most demanding jobs.

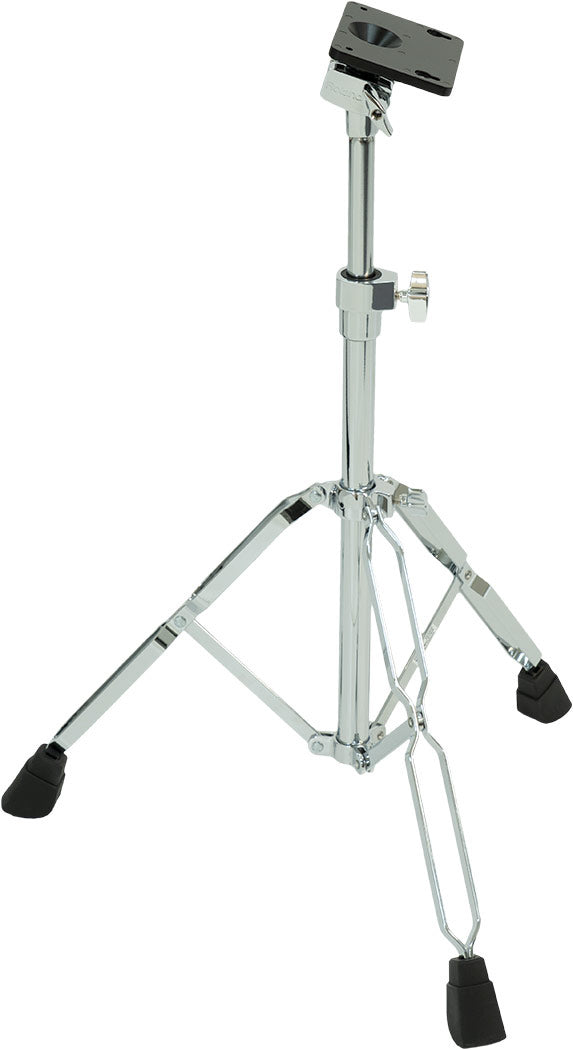

Roland PDS-20

• Tripod stand with double-reinforced steel legs in chrome finish
• Stable rubber feet.
• Wide and sturdy mounting plate.
• New clamp design for a flexible setup.
• Easy to adjust to standing or sitting position.
• Works with Roland SPD and HandSonic percussion instruments.

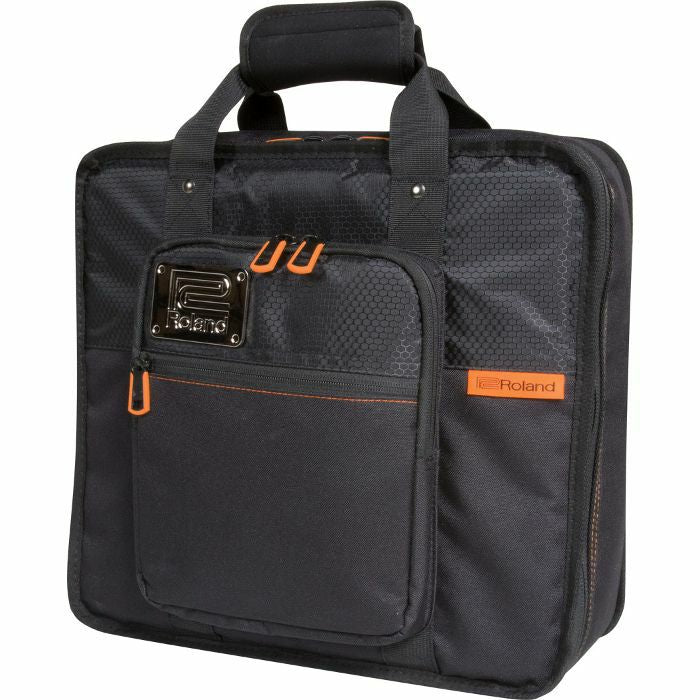

Roland CB-BSPD-SX Bag

• With outer pocket for accessories. Carrying handle and shoulder carrying strap.
• Dimensions: 40 x 36.88 cm x 8 (top), 12.5 cm (bottom)

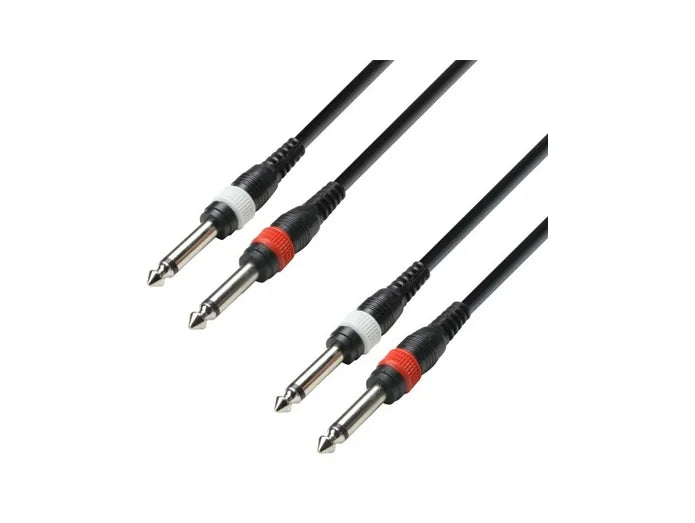

Jack cable 2x 6.3mm jack to 2x 6.3mm jack (6m)

Solid audio cable with 2x 6.3mm jack on both ends.

Pads

Built-in pads: 9
(with PAD LED, Vertical LED)
* Four external trigger inputs are provided, allowing you to connect up to eight pads with Y cable.

Maximum Polyphony

32 voices (included click voices)

Number of Recordable Wave Data

20,000
*Including preload data

Internal storage Size

32 GB *Including preload data

Sampling Time

Sampling from AUDIO IN : 60 minutes per sample
Resampling : 10 minutes per sample

Data Format

16-bit linear

Sampling Frequency

48 kHz

Import Format

WAV, AIFF, MP3

Kits

200

Preload wave

Factory preloaded samples: 1,550 or more

Setlist

32 (32 steps per SET LIST)

Kit Effects

Layer Equalizer : each pad (Layer A/B independently)
Layer Transient : each pad (Layer A/B independently)
Multi-Effects (53 types) : 4 systems
Side Chain Compressor : 1 system

System Effects

Master Effects (53 types)
Master Compressor
Master Equalizer

Number of USB Audio Record/Playback Channels

Sampling Rate (Original): 48 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 44.1 kHz
Record: 8 channels
Playback: 12 channels

Display

Graphic color LCD 4.3 inch

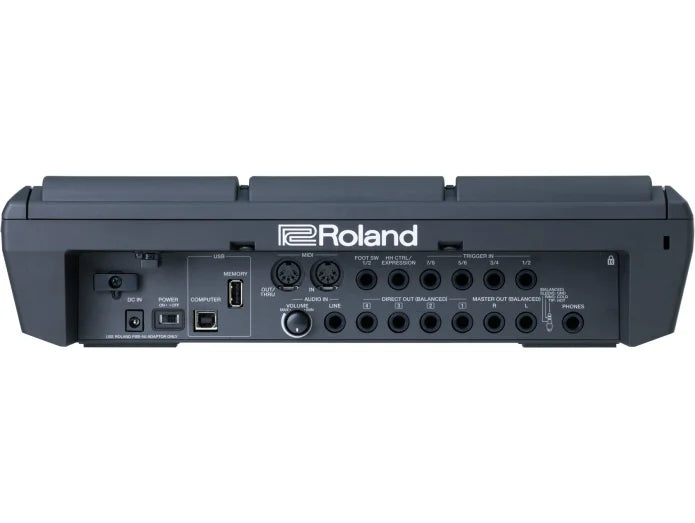

Connectors

PHONES jack : Stereo 1/4-inch phone type
MASTER OUT (L, R)jacks (BALANCED) : 1/4-inch TRS phone type
DIRECT OUT jack x 4 (BALANCED) : 1/4-inch TRS phone type
AUDIO IN jack : Stereo 1/4-inch phone type (with Volume control)
TRIG IN jack x 4 (1/2, 3/4, 5/6, 7/8) : 1/4-inch TRS phone type
FOOT SW jack x 1 (1/2) : 1/4-inch TRS phone type
HH CTRL/EXPRESSION jack x 1 : 1/4-inch TRS phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port : USB B (High-Speed USB, USB-AUDIO, USB-MIDI, App)
USB MEMORY port : USB A (High-Speed USB, Backup Save/Load, Sample Import/Export)
DC IN jack

Power Supply

DC 12V (AC Adaptor)

Current Draw

1,500 mA

Accessories

Quick Start
Leaflet "Read Me First"
Leaflet "USING THE UNIT SAFELY/IMPORTANT NOTES"
AC Adaptor

Options (sold separately)

Pads (PD series, PDX series, BT-1)
Cymbals (CY series) Hi-Hat (VH-10, VH-11)
Kick Triggers (KD series, KT series)
Pad Stand (PDS-20, PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30K, RT-30HR, RT-30H)
Hi-Hat Pedal(FD-8, FD-9, VH-10, HV-11)
Expression Pedal(BOSS EV-30)
Pedal Switch(DP-2)
Foot Switch (BOSS FS-5U, FS-6, FS-7)
Y cable (PCS-31L)
USB Flash Memory

Width

360 mm 14-3/16 inches

Depth

330.3 mm 13-1/16 inches

Height

92.9 mm 3-11/16 inches

Weight

3.0 kg 6 lbs 10 oz (excluding AC Adaptor)
