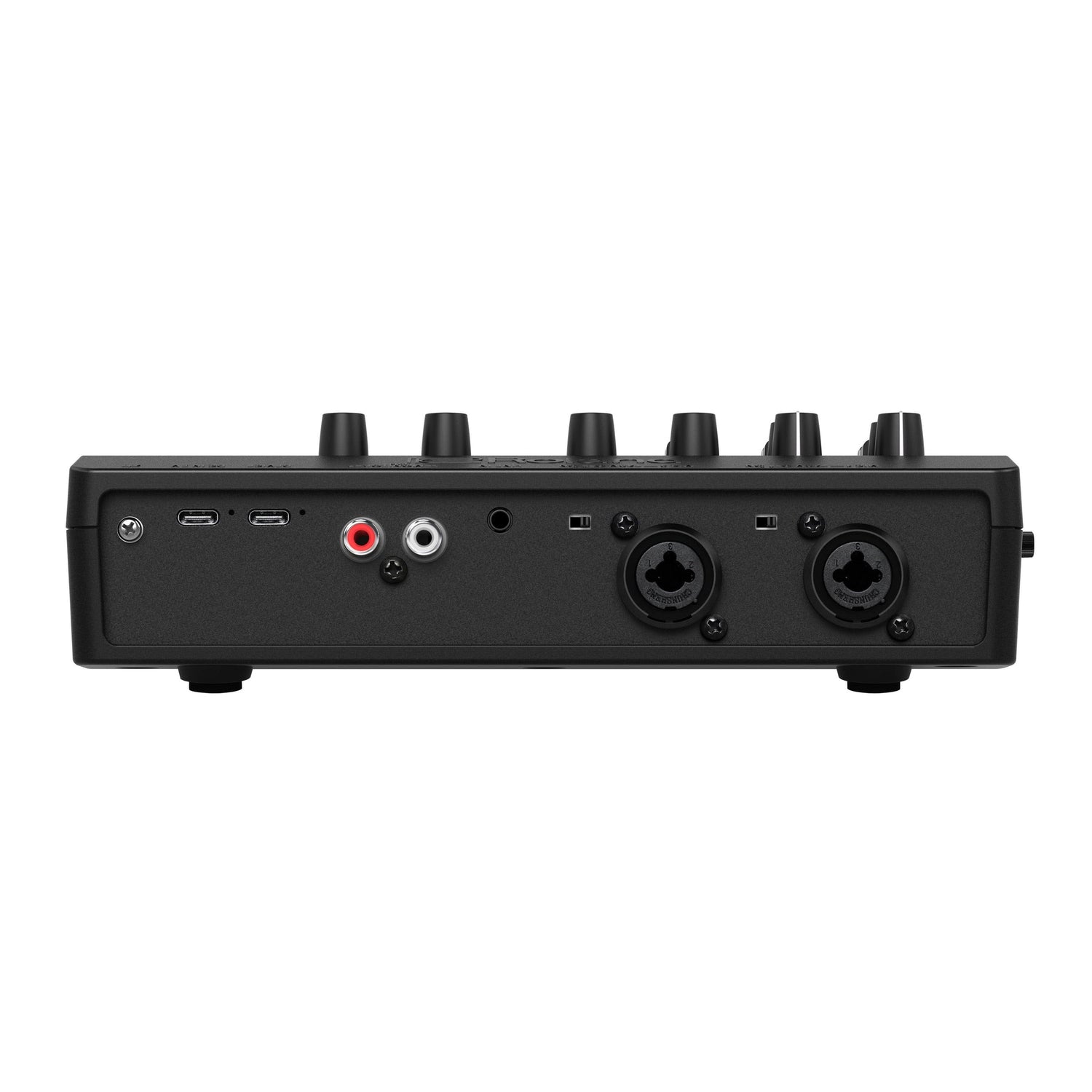

- MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max)
LINE IN jack: Stereo miniature type
MONITOR OUT jack: RCA phono type

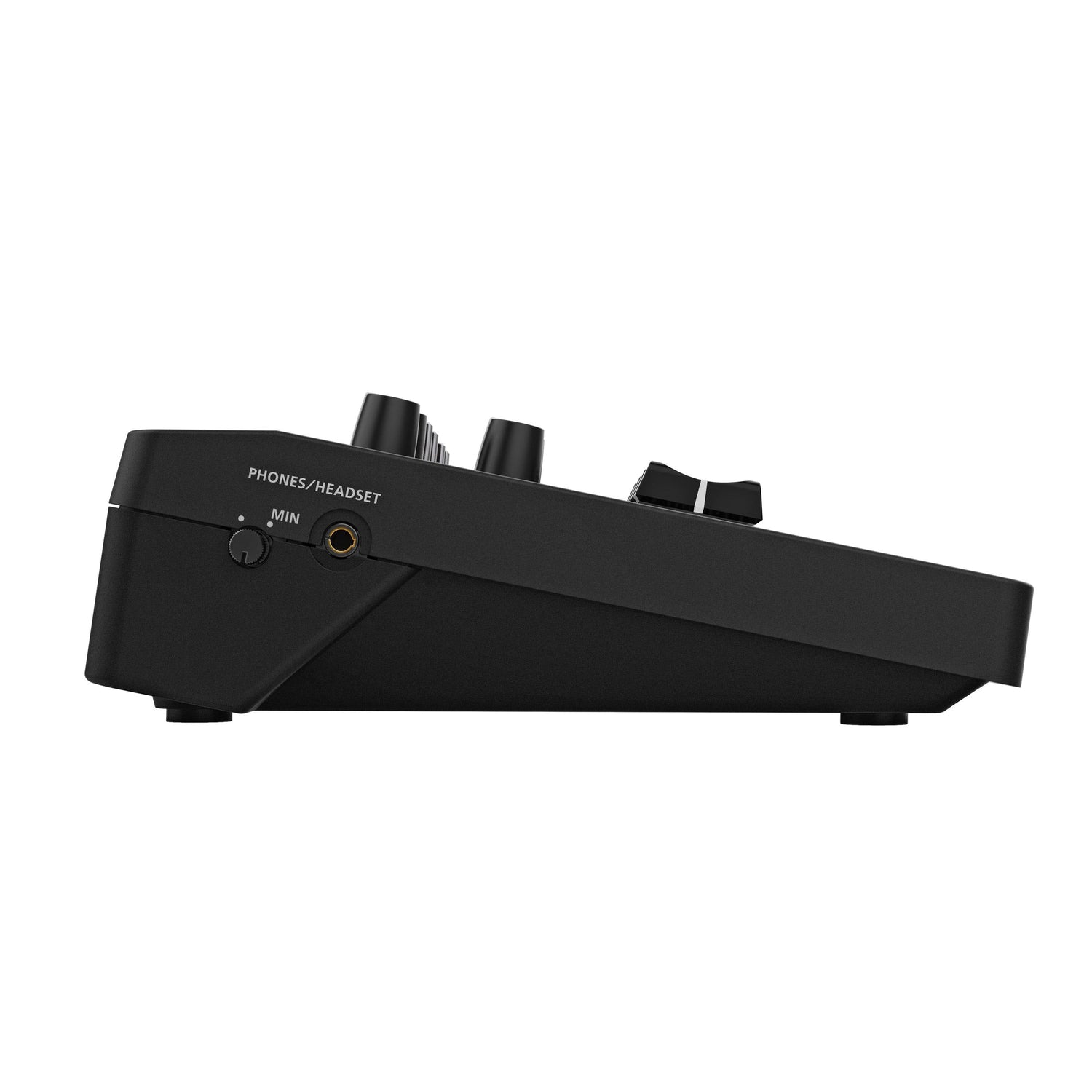

PHONES/HEADSET jack: Stereo miniature type
DC IN 5V port: USB Type-C (R)
DEVICE port: USB Type-C (R) - Controller

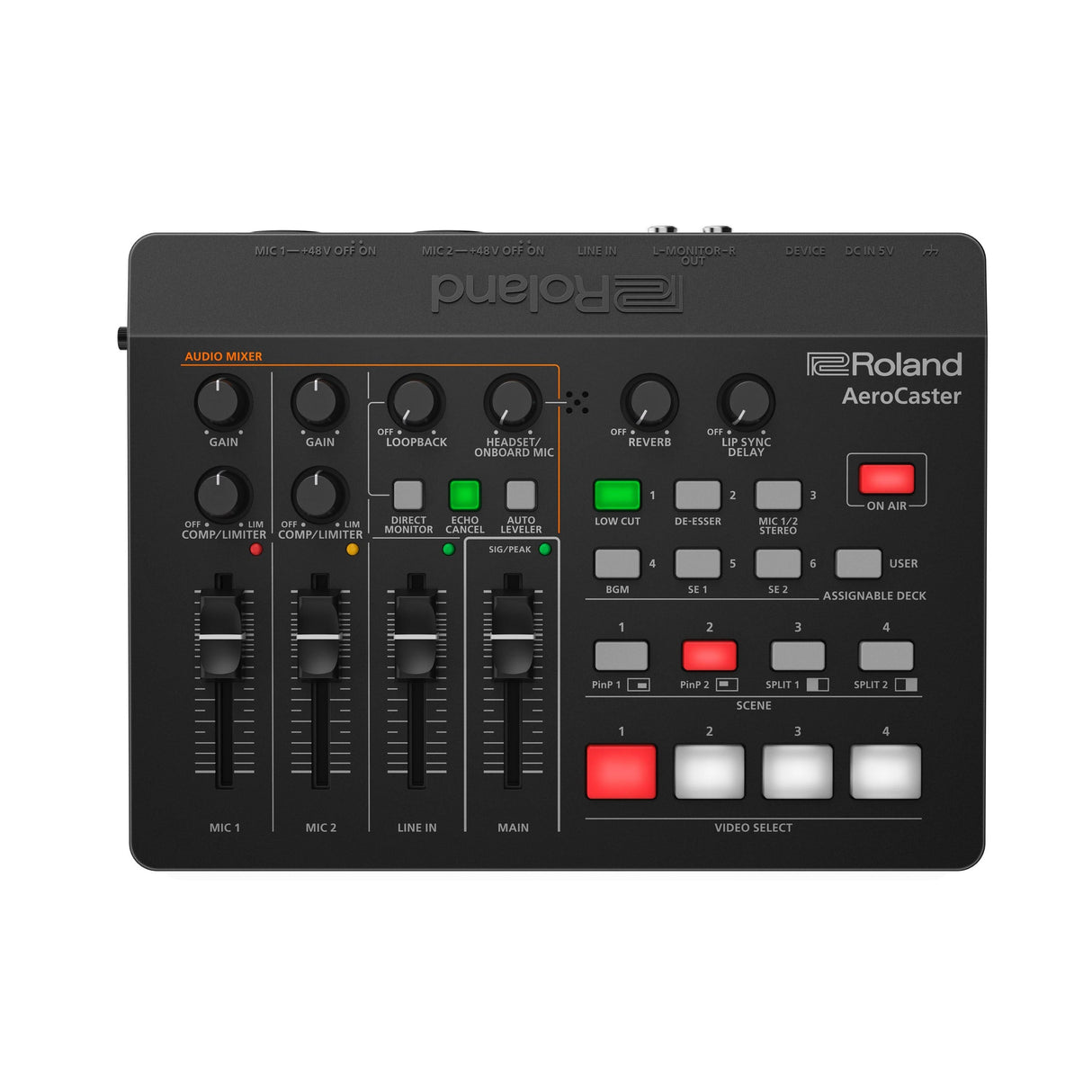

- MIC 1 LEVEL fader
MIC 2 LEVEL fader
LINE IN LEVEL fader
MAIN LEVEL fader
MIC 1 COMP/LIMITER knob
MIC 2 COMP/LIMITER knob
MIC 1 GAIN knob
MIC 2 GAIN knob
LOOP BACK knob
HEADSET/ONBOARD MIC knob
REVERB knob
LIP SYNC DELAY knob
PHONES/HEADSET knob
MIC 1 +48V switch
MIC 2 +48V switch - Indicator
- POWER
DEVICE
SIG/PEAK - Nominal Input Level
- MIC 1, 2 jacks: -64 to +4 dBu (Maximum input level: +24 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +10 dBu) - Input Impedance
- MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN < 24 dBu)
LINE IN jacks: 15 k ohms - Nominal Output Level
- MONITOR OUT jacks: -10 dBu (Maximum output level: +10 dBu)
PHONES/HEADSET jack: 15 mW + 15 mW (32 ohms load) - Output Impedance
- MONITOR OUT jacks: 1 k ohms
- Audio Effects
- Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter
- Power Supply
- USB AC adaptor (commercially available)
* Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more.
USB Bus power - Current Draw
- 700 mA (AC adaptor)
500 mA (USB bus power) - Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit - Dimensions
- 220(W) x 166(D) x 60(H) mm
8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches - Weight (without cables)
- 600 g
1 lb 6 oz - Accessories
- Leaflet "Read Me First"
USB Type-C to Lightning cable
USB Type-C to USB Type-A cable - * 0 dBu = 0.775 Vrms
* Switching between 3 or more camera lenses is supported only for Xperia and Google Pixel series
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
