• Fully featured RGBW LED yoke effect beam fixture with pixel mapping
• 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
• Built in color and tilt macros for quick design possibilities
• Continuous movement of pan and tilt functions
• Individual control of all five heads for movement and output
• Quiet operation for a wide range of installation situations
• DMX, sACN, Art-Net, and Kling-Net control for full flexibility
• 6.2° beam angle to create crisp and defined areal beam effects
• User selectable PWM frequencies to eliminate camera roll
• Battery backup display with auto rotate depending on fixture orientation

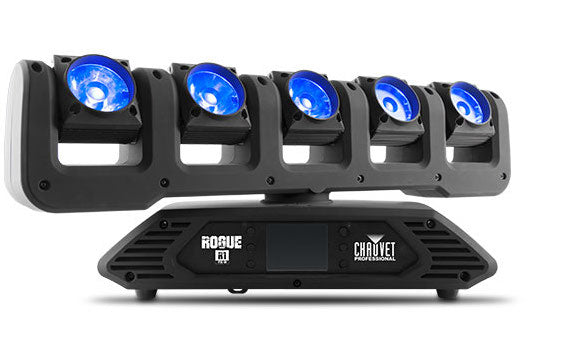

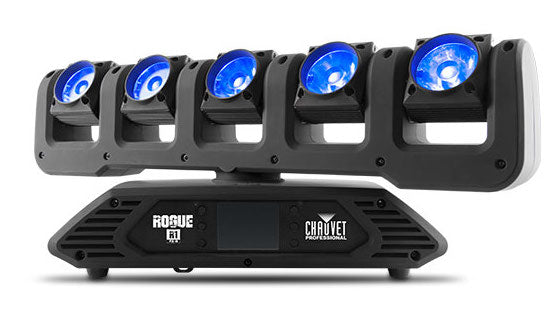

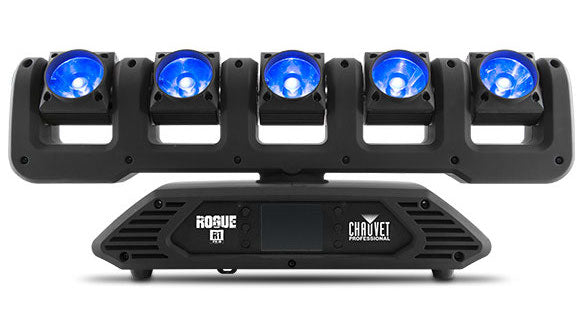

• Rogue R1 FX-B shakes things up, five times over.
• It orchestrates an infinite rotation of both pan and tilt for its five individually controlled heads, powered by five pixel mappable 15 W RGBW LEDs.
• Crisp beams, a sizzling output and rocket quick movements create amazing aerial effects.
• Control is achieved with DMX, Art-Net, sACN, or Kling-Net.

OPTICAL

• Light Source: 5 LEDs (quad-color RGBW) 15 W, (4 A), 50,000 hours life expectancy
• Installed Optics: 5°
• Beam Angle: 6.2°
• Field Angle: 10.1°
• Cutoff Angle: 12.7°
• Lumens - Source: 2,500
• Lumens - Output: 5,020
• Illuminance : 6,008 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/540°
• Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite, 540°, 270°, 180° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: No
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 25.19 x 7.05 x 9.72 in (640 x 179 x 247 mm)
• Weight: 24.2 lb (11 kg)
• Exterior Color: BLACK
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, Kling-Net, DMX, sACN
• DMX Channels Single Mode: 18, 25, 47 or 52
• DMX Channels Dual Mode – Function: 9, 17, 23
• DMX Channels Dual Mode – Pixel: 15 or 20
• Art-Net Channels Single Mode: 18, 25, 47 or 52
• Art-Net Channels Dual Mode – Function: 9, 17, 23
• Art-Net Channels Dual Mode – Pixel: 15 or 20

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V
• Power and Current: 176 W, 1.48 A @ 120 V, 60 Hz
• Power and Current: 171 W, 0.796 A @ 208 V, 60 Hz
• Power and Current: 167 W, 0.757 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, UKCA
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• Rogue RX1
• Edison (Local) plug to Neutrik powerCON
• Omega bracket with mounting hardware

DOWNLOADS

• Rogue R1 FX-B Quick Reference Guide
• Rogue R1 FX-B User Manual
• Rogue R1 FX-B CAD file
• Rogue R1 FX-B DMX Chart
• Rogue R1 FX-B ShowXpress
• Rogue R1 FX-B 3D .DWG file
