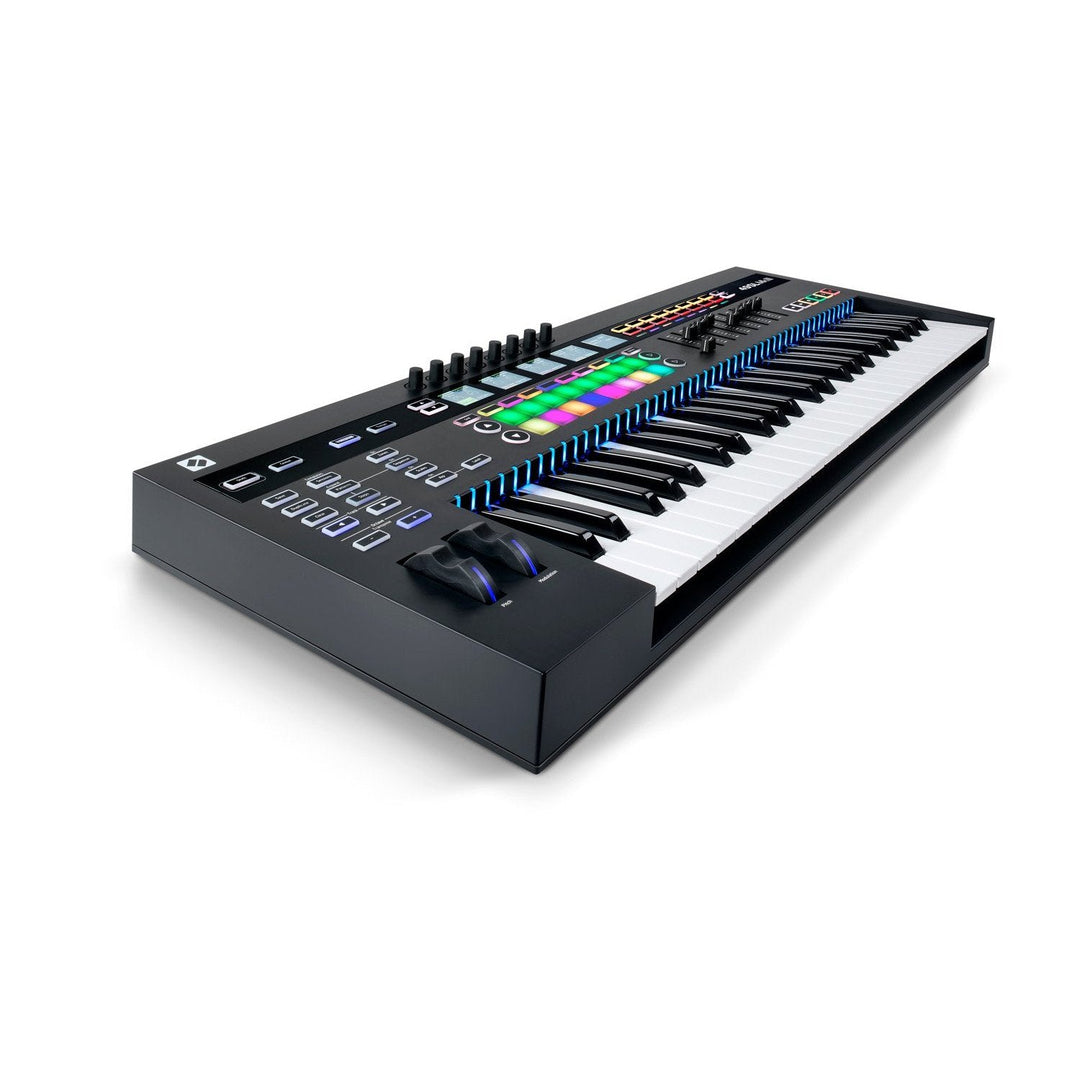

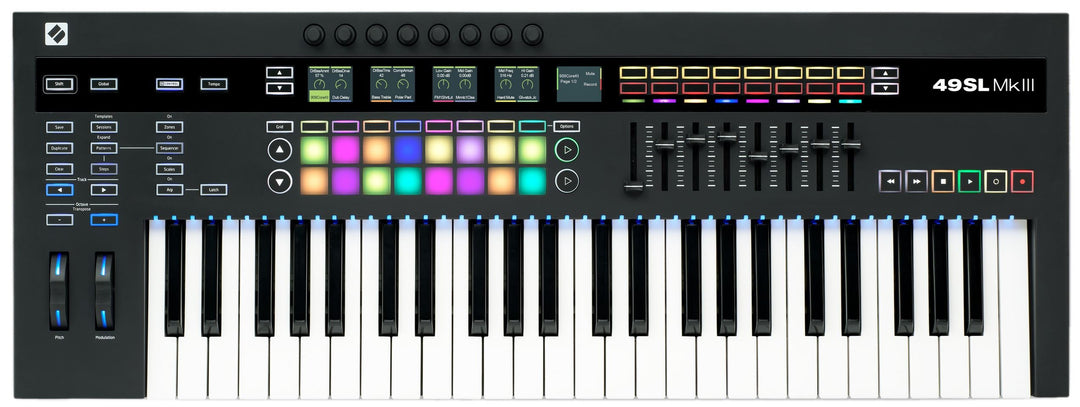

Novation 49SL MKIII

Product Hardware Specifications

• 49 note velocity sensitive, individually sprung, synth style, semi-weighted keyboard 16 full-colour RGB backlit velocity sensitive drum pads
• 2 Page and 2 scene launch buttons
• 8 continuous rotary knobs
• 8 sliders
• 6 dedicated transport controls
• RGB backlit pitch bend and modulation wheels
• 2 octave / transpose buttons
• 2 Track buttons
• 5x RGB TFT LCD screens
• 59 Backlit buttons with tact switches
• 49 keybed RGB LEDs
• 16 Assignable buttons x 2 pages (32 assignable buttons)
• Assignable grid x 2 pages | (32 assignable pads)
• Backlit RGB Mode switching buttons including InControl

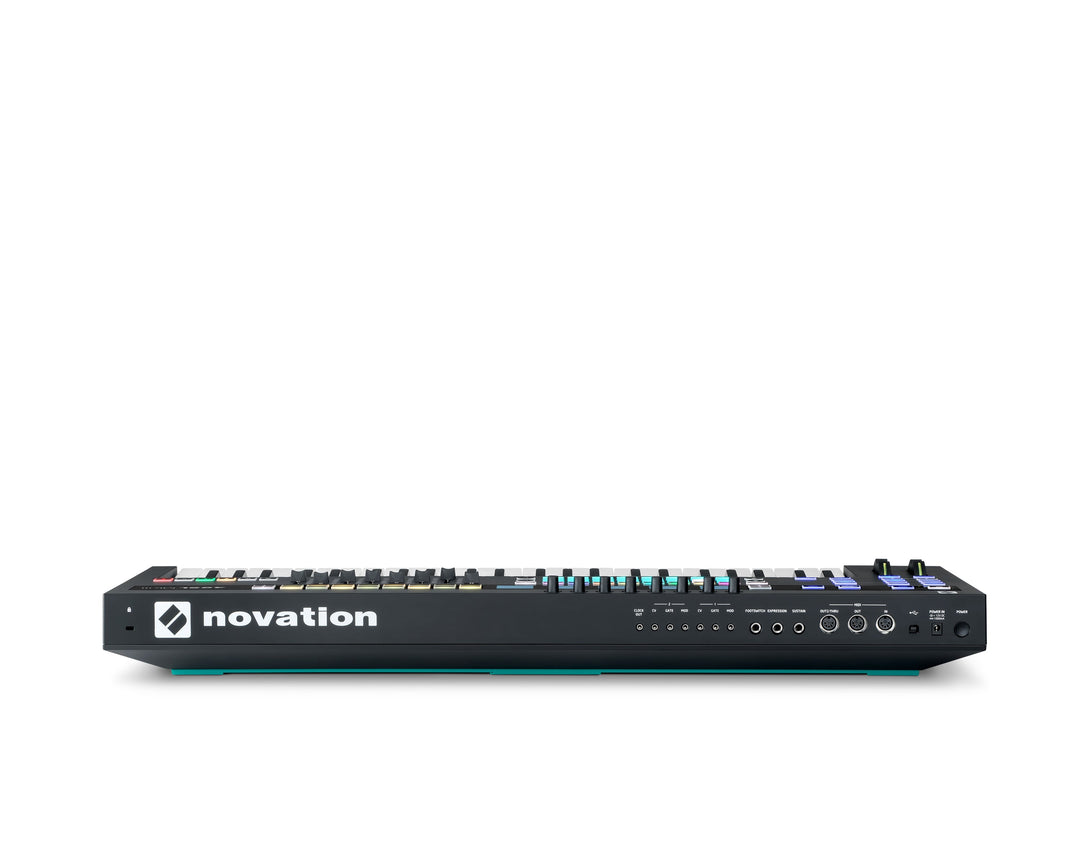

Rear Panel & Connectors

• Power switch
• DC power socket
• USB socket
• MIDI IN, OUT, OUT2 / THRU - 3x 5-pin DIN sockets
• Sustain and Expression pedal 1/4" TRS jack inputs
• Footswitch pedal 1/4" TS jack input
• CV, Gate, Modulation -1- on 3.5mm jack sockets
• CV, Gate, Modulation -2- on 3.5mm jack sockets
• Clock out
• Kensington security slot

Sequencer

• 64 Sessions
• 8 Tracks per session
• 8 Patterns per track (16 steps per Pattern for a total of 128 steps per track)
• Real time record (notes, with velocity and automation)
• Auto-quantise notes to steps and automation to 6 events per step
• All assignable controls can be automated (8 maximum automation lanes)
• Internal tempo range 40 - 240
• Swing 20 - 80%

Real Time Performance

• 16 Scale types and chromatic transposition
• Split the keys into 8 playable zones
• Pattern expand view - flip the grid
• Pattern start and end, direction incl. random
• Configurable pattern chain
• Session instant switching and queued switch

Editing

• Velocity and gate per step
• Multiple gate lengths per step (via real time record)
• Automation edit per step
• Clear step, automation parameter per pattern, pattern, session
• Duplicate step, pattern

Dimensions

• 817mm length x 300mm depth x 100mm height
