Novation Bass Station II

• 25 anschlagsdynamische Tasten
• Fantastischer Bass-Synthesizer für das Geld
• Analoge monophone Synthesizer
• Der Nachfolger der ikonischen Bass Station
• 2 x VCO-Oszillator und 1 x Sub-Oszillator.
• 2 x Hüllkurve und 2 x LFO

Novation Bass Sation II

Novation hat sich entschieden, den Nachfolger des ikonischen Synthesizers von 1993 zu entwickeln. Der Synthesizer kommt in einem aktualisierten Design und mit einer benutzerfreundlichen Funktionalität, die perfekt für Live-Gigs oder das Heimstudio geeignet ist.

Mit der Novation Bass Station II erhältst du einen Synthesizer, der einen einzigartigen und spannenden Klang liefert und dir die Möglichkeit gibt, unzählige Klänge zu einem günstigen Preis zu kreieren.

• Mono 6.3 Klinkenausgang und -eingang
• 64 Presets und 64 Benutzer-Presets
• Stereo 6.3 Klinken-Kopfhörerausgang
• USB-Eingang
• Abmessungen 45,5 x 27 x 8,3 cm

Specifications

• 25 note synth-action keyboard
• Aftertouch can be assigned to modulate:
  • Filter frequency
  • LFO 1to Osc pitch
  • Osc 2 speed
• Pitch wheel
• Modulation wheel can be assigned to:
  • LFO 2 to filter frequency
  • LFO 1 to Osc pitch
  • Osc 2 pitch
• Octave up/ down buttons
• 64 factory presets
• 64 slots for user patches (and patch dump facility for storing more)
• Master volume dial

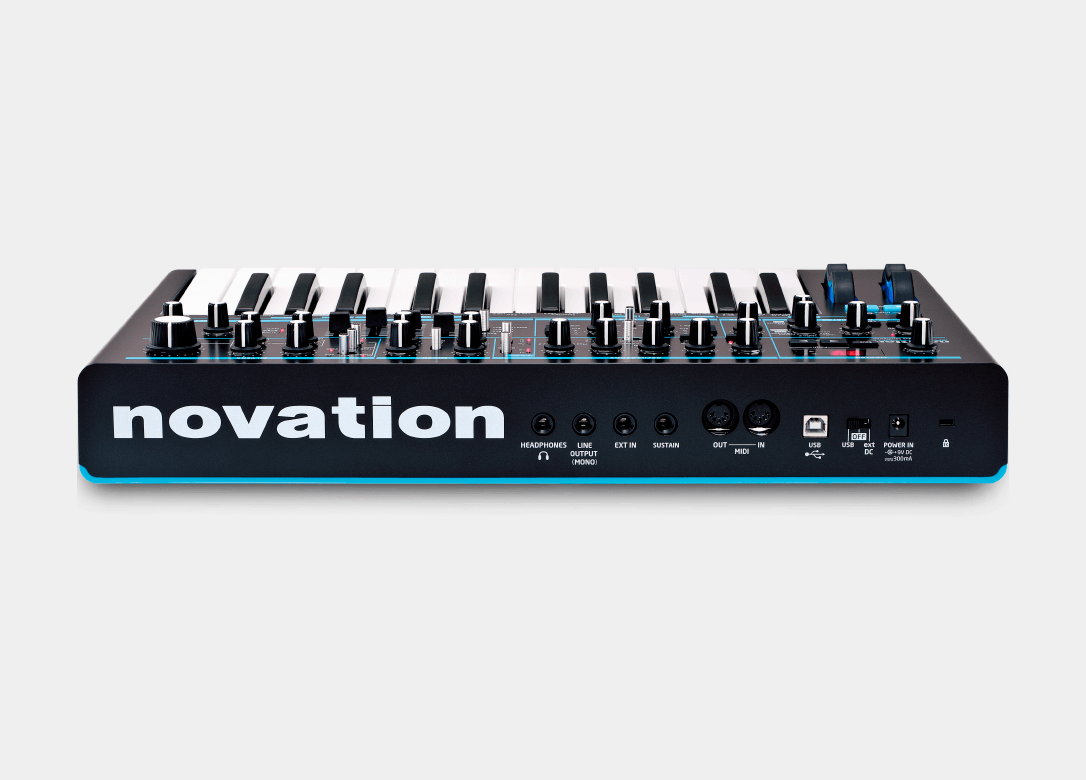

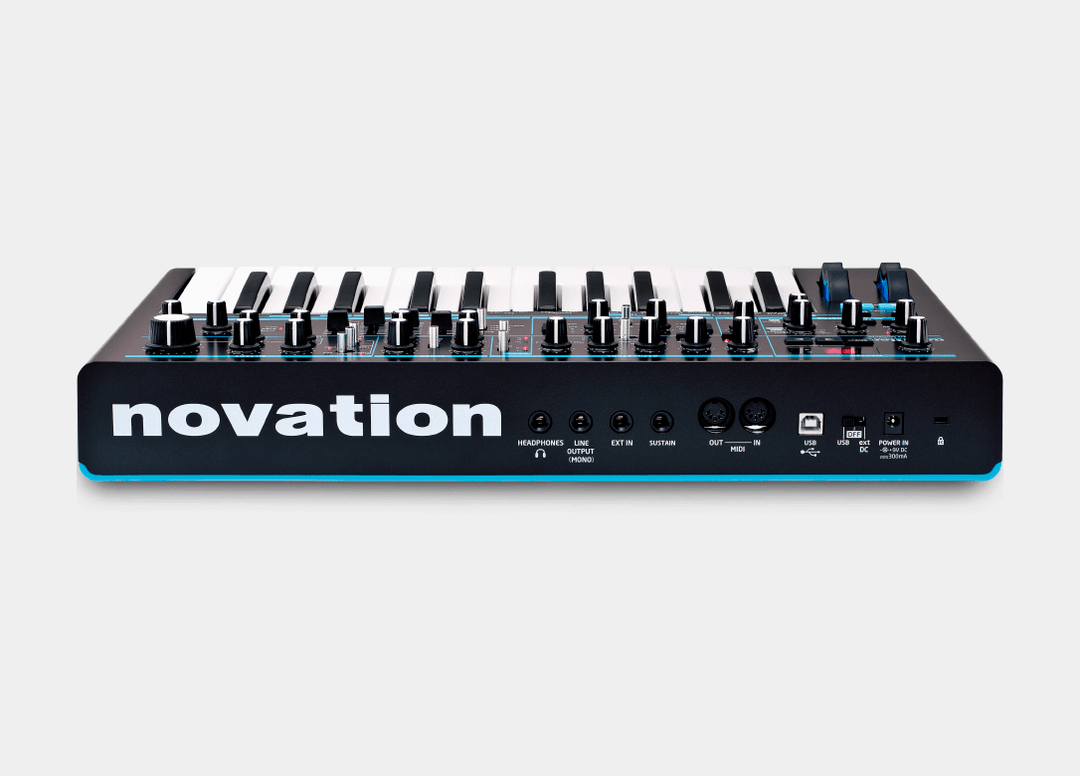

Inputs and Outputs

• USB MIDI (for connecting & powering Bass Station II via host computer)
• Mono output on 1/4" TRS jack
• Headphone output on 1/4" TRS jack
• External input on 1/4" TRS jack
• Sustain pedal input on 1/4" TS jack
• MIDI IN / MIDI OUT ports on 5 pin din
• DC power input
• Switch between power off / DC powered / bus powered

 Synth Engine Oscillators

• Osc 1
• Osc 2
• Sub Osc (3)
• Noise generator

Osc 1 & 2 Select between waveforms:

• sine
• triangle
• sawtooth
• square/variable pulse width

Features

• Sync 1 & 2
• Detune
• Octave range
• Pitch bend
• Pitch modulation from Mod Envelope and/or LFO 1
• Pulse width modulation from Mod Envelope and/or LFO 2

Sub Osc (3) which is tracked to Osc 1 Select independently between waveforms:

• Sine
• Square
• Narrow pulse

Features

• All modulation and tuning tracked to Osc 1
• Independent octave select

Mixer

• Osc 1 level
• Osc 2 level
• Sub Osc level
• Noise generator level
• Ring modulation depth
• External signal level

Filter Two filter types

• Acid type (diode ladder filter design)
• Classic type (derived from original Bass Station)

Features

• Cutoff
• Resonance
• Overdrive
• Filter frequency to Mod Envelope depth
• Filter frequency to LFO 2 depth

Select 'Classic' filter between:

• Low pass
• Band pass
• High pass
• 12dB slope
• 24dB slope

Envelopes Two ADSR Envelopes (Attack/Decay/Sustain/Release)

• Amp Envelope
• Mod Envelope
• Combined control of both Envelopes

Select triggering mode between:

• Single trigger (holds envelope state when new note is played)
• Multi trigger (re-triggers with every new note played)
• Autoglide (engages portamento)
  There is also a VCA limiter

LFO Two LFOs each selectable between:

• Triangle
• Sawtooth
• Square
• Sample and hold
• Both LFOs independently adjustable between rate and delay time
• Key sync LFO 1 & 2
• LFO slew on LFO 1& 2 (low pass filter on the LFO waveform)

Effects

• Distortion send
• Oscillator filter mod amount (FM effect created by Oscillator 2 modulating filter freq)

Step Sequencer/Arpeggiator Arpeggiator

• Up to 32 different patterns
• Select between 1-4 octave range
• Swing function
• Select direction:
  • up
  • down
  • up / down 1
  • up / down 2
  • As played
  • Random
• Latch (hold the arpeggiator)

Step Sequencer

• Up to four sequences
• Assign one of 32 preset rhythms or create your own
• insert rests or legato (slide)
• Sequencer re-trigger function

Portamento

• Adjust glide time
• Single trigger or re-trigger modes
• Integrate into step sequencer and arpeggiator

 Power Requirements

• USB bus powered
• 9V DC power supply included
• Maximum power consumption 9V DC 300mA

Product Dimensions

• 457mm (18") width x 273mm (10.75") depth x 76mm (3") height
