EUROLITE DXT-ME PRO DMX merger
1
von
5
Lade...
€129,95
Stückpreis
/
Nicht verfügbar
Inkl. MwSt. • B2B zzgl. MwSt.
Versand 10 € (kostenlos ab €199)
Beschreibung
Beschreibung

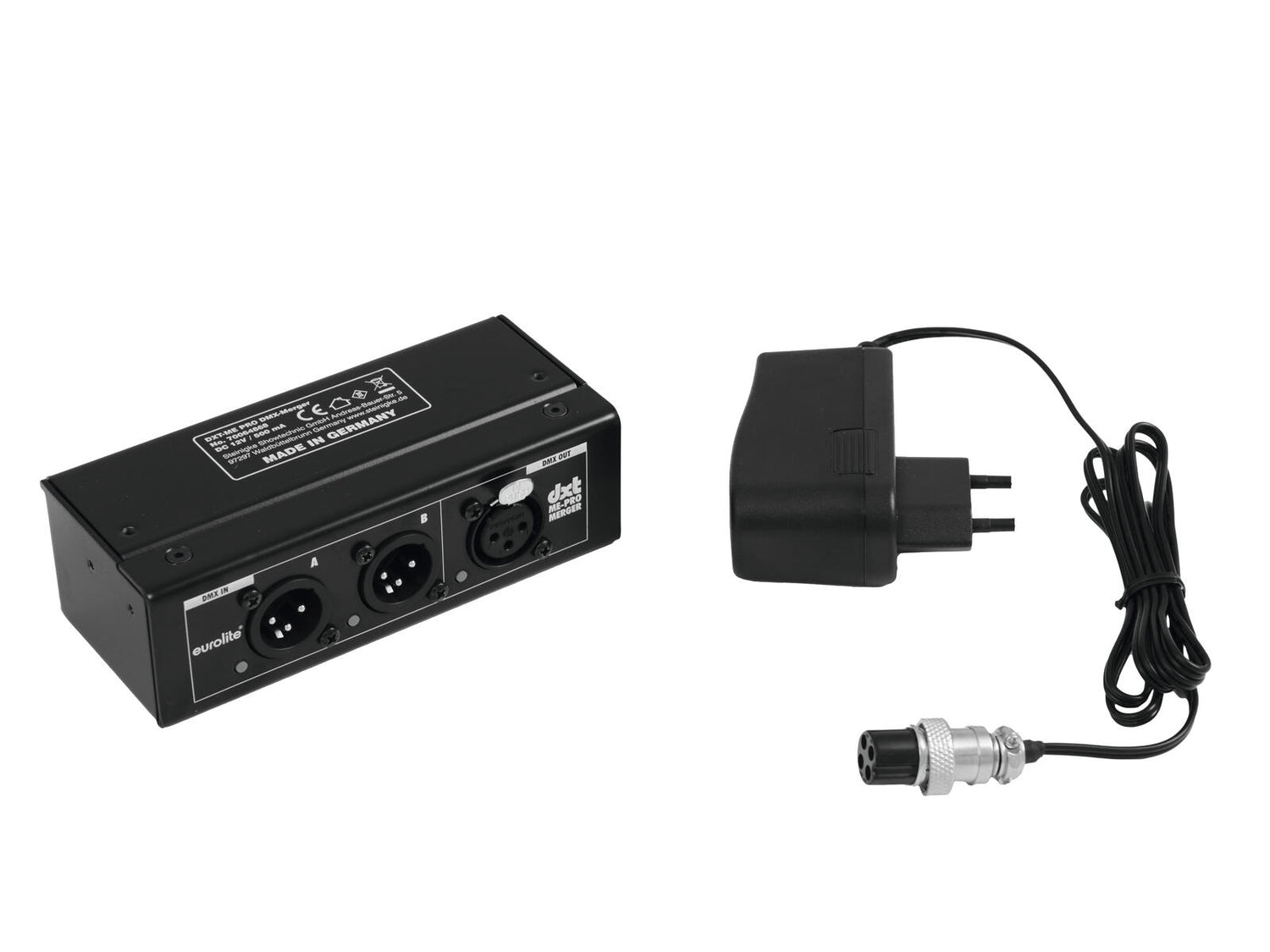

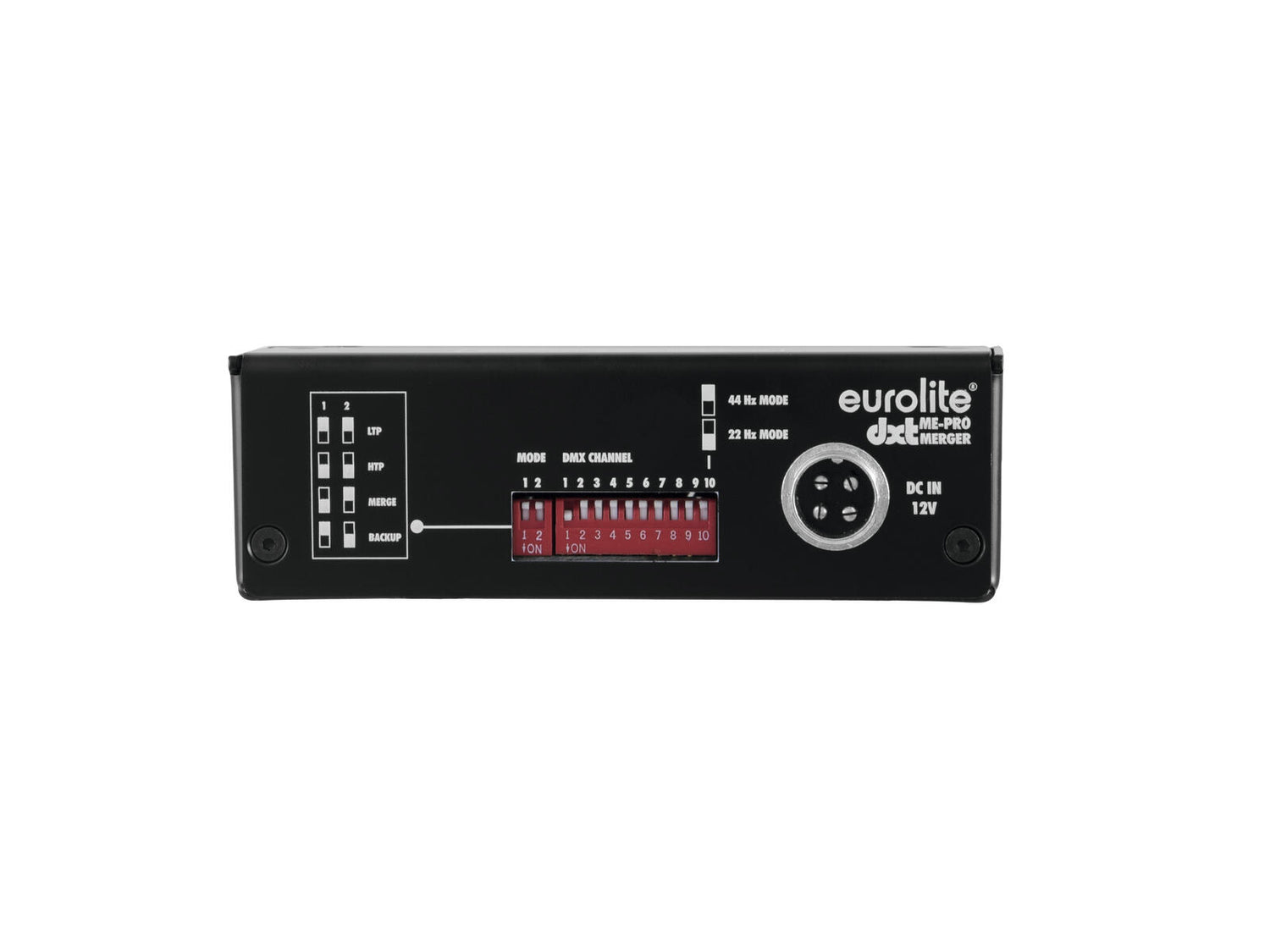

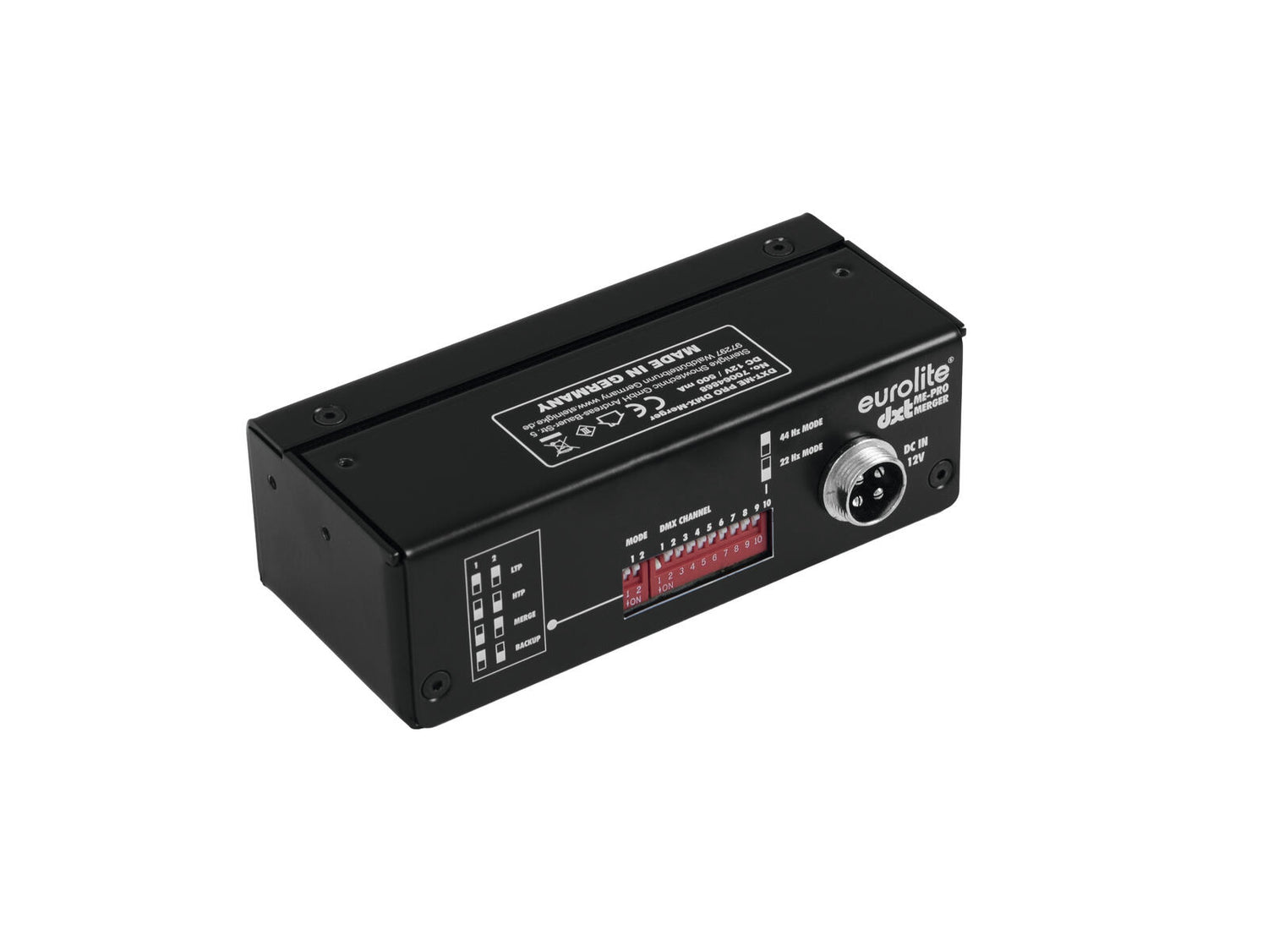

PRO DMX merger to combine 2 DMX signals into 1
- Pro DMX merger with 2 DMX inputs and 1 DMX output
- Enables two separate consoles to control one DMX system
- DMX modes: LTP, HTP, merge or backup
- Input B can be set to a start address (offset)
- LED indicator for valid DMX signals
- Selectable output frequency 22 Hz/44 Hz
- Built with NEUTRIK connector
- Made in Germany
- For application areas such as: Stage
Scope of delivery
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA |
| Power consumption: | 1 W |

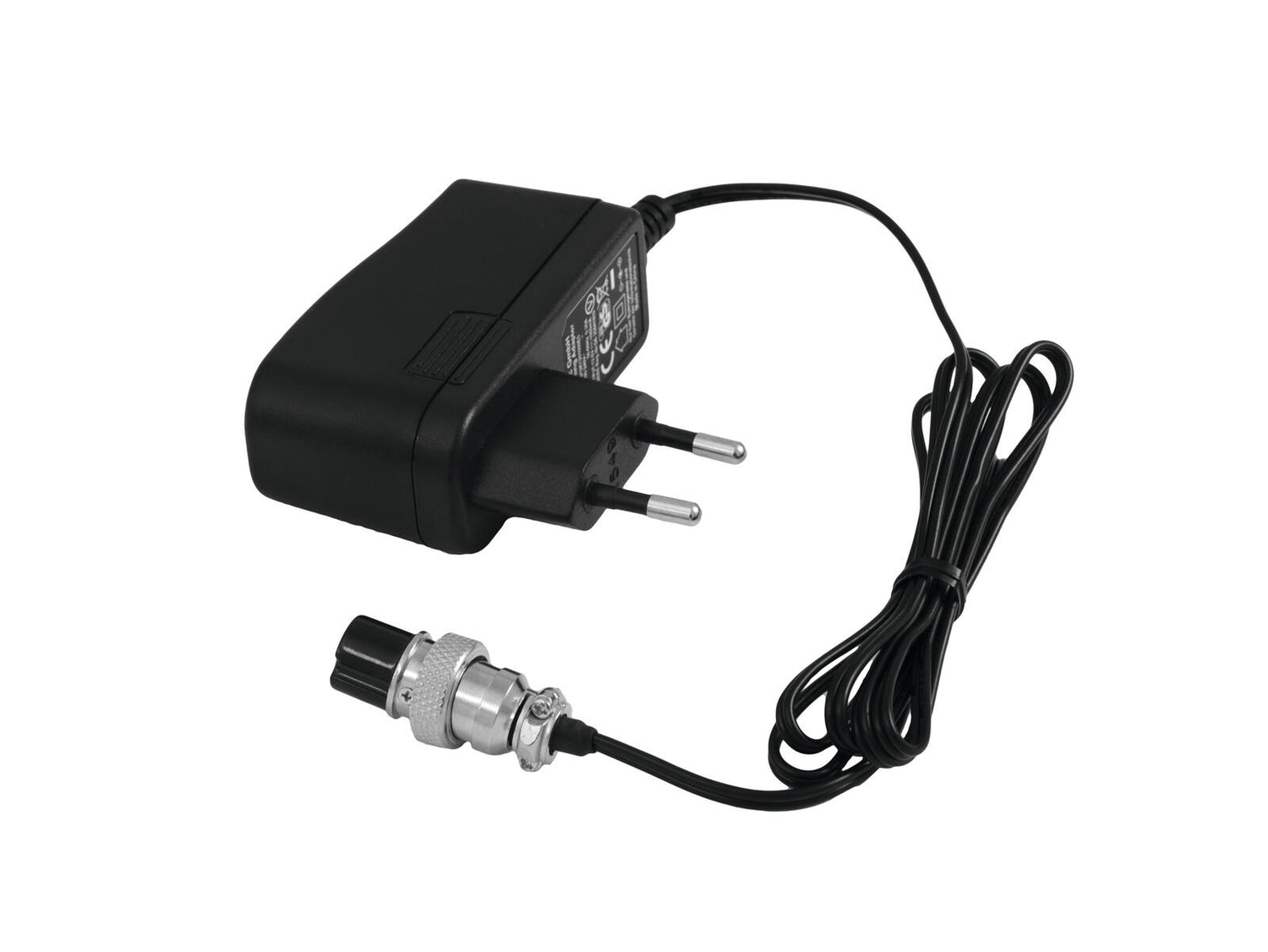

| Power connection: | Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided) |

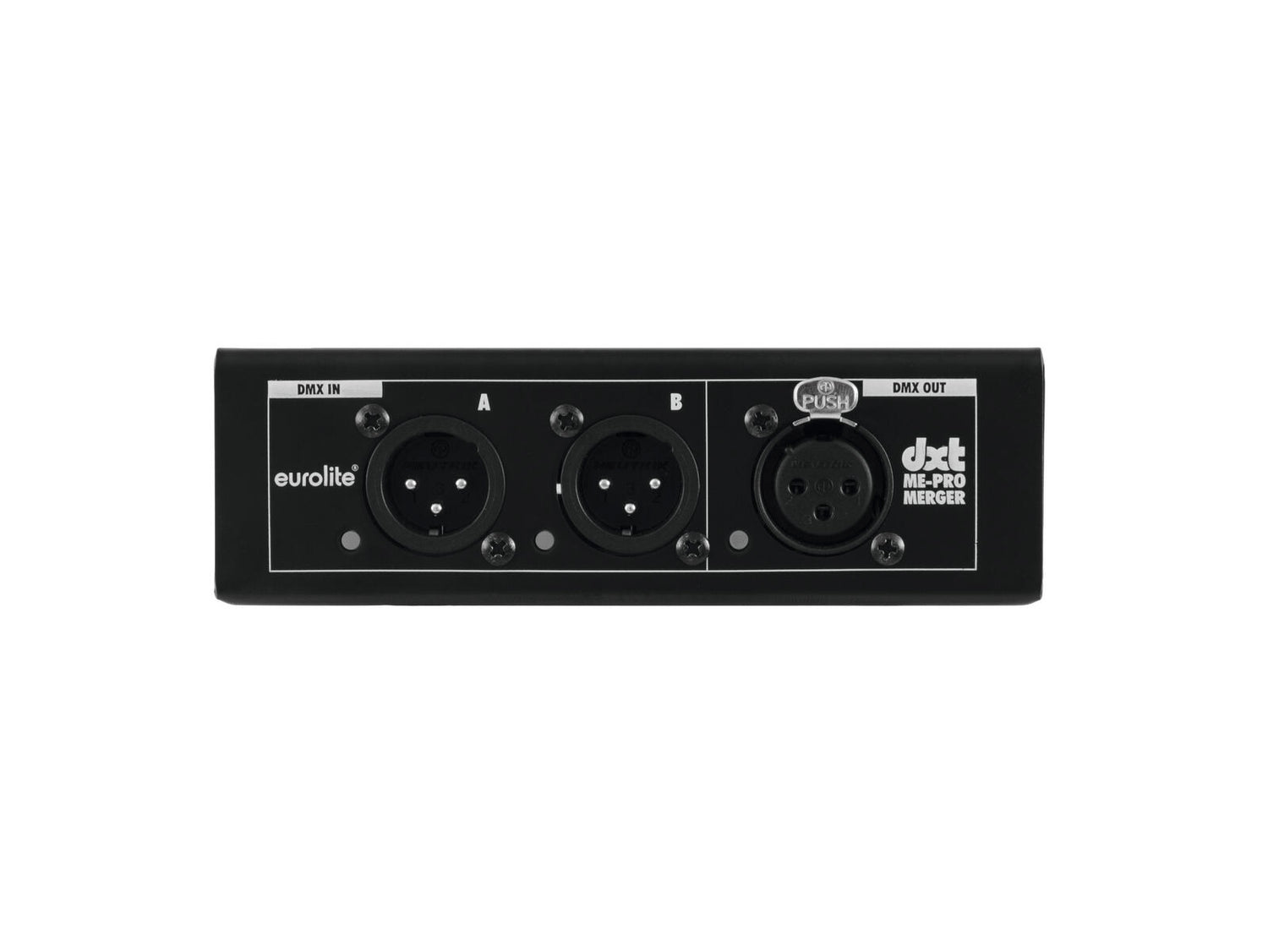

| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Use of brands: | Built with NEUTRIK connector |
| Dimensions: | Width: 13 cm Depth: 7 cm Height: 4.1 cm |
| Weight: | 0.50 kg |
