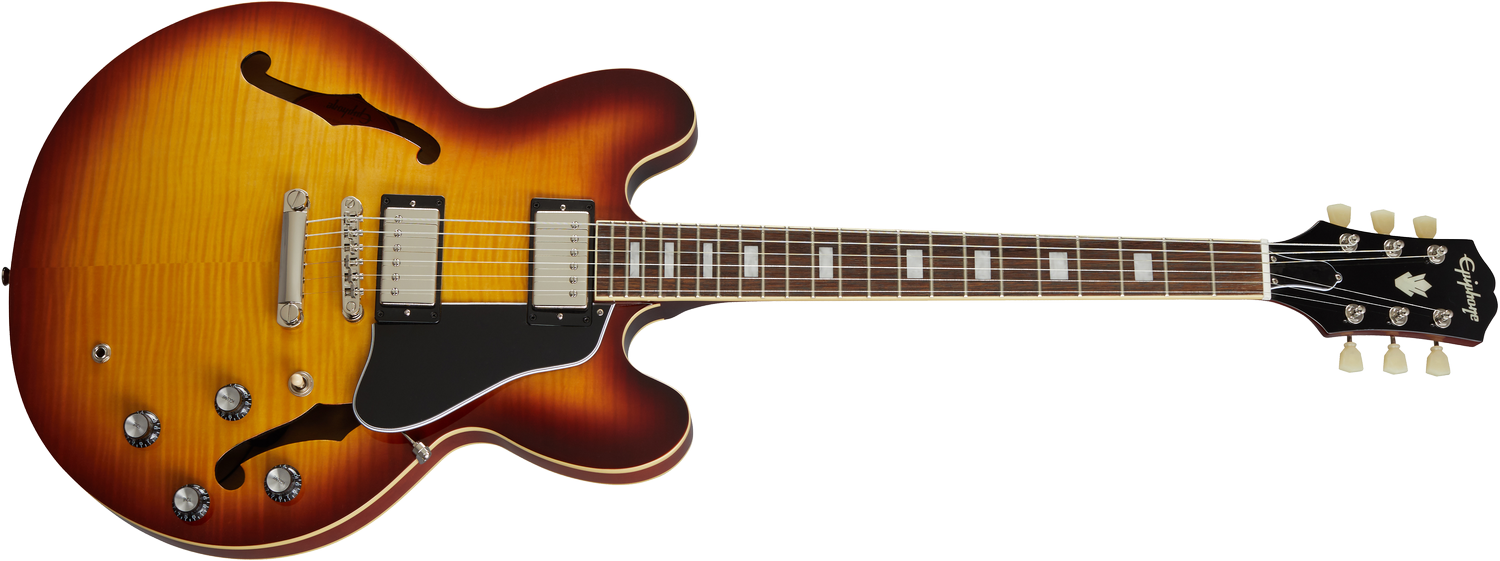

Epiphone ES-335 Figured E-Gitarre (Raspberry Tea Burst)

Body

• Body shape: ES-335

• Body Material: layered maple, AAA flame veneer

• Top: layered maple, AAA flame veneer

• Back: layered maple, AAA flame veneer

• Side: Layered maple

• Center block: Maple

• Binding: Single layer cream - top, back and fingerboard

• Body finish: Gloss

Neck

• Material: Mahogany

• Profile: rounded "C"

• Scale length: 628 mm / 24.72 in.

• Fingerboard Material: Indian Laurel

• Fingerboard radius: 305 mm / 12.01 in

• Number of frets: 22

• Frets: Medium Jumbo

• Nut material: Graph Tech® NuBone

• Nut width: 43 mm / 1.69 in

• Board width at end: 56.88 mm / 2.24 in

• Insert: Small block

• Joint: Glued, set neck

Hardware

• Finish: Nickel

• Bridge: Epiphone LockTone Tune-O-Matic

• Tail: Epiphone LockTone Stop Bar

• Tuning Machines: Epiphone Deluxe

• Pickguard: Gibson ES-335 Shape, Black, 5-ply

• Truss rod: Dual Action

• Truss rod Cover: 2-ply Bell

• Controls: Black top hat buttons with metal inserts

• Switch Tip: Cream

• Switchwasher: No

• Jack Plate Cover: None

• Stop Buttons: 2 - Bottom and Heel

• Mounting Rings: Black

• Pickup Covers: Nickel

•

Electronics

• Neck Pickup: Alnico Classic PRO Neck

• Bridge Pickup: Alnico Classic PRO Bridge

• Adjustment: 2 Volume, 2 Tone, CTS® potentiometers

• Pickup Selector: 3-way Epiphone toggle

• Output Jack: Heavy Duty Epiphone 1/4" output jack
