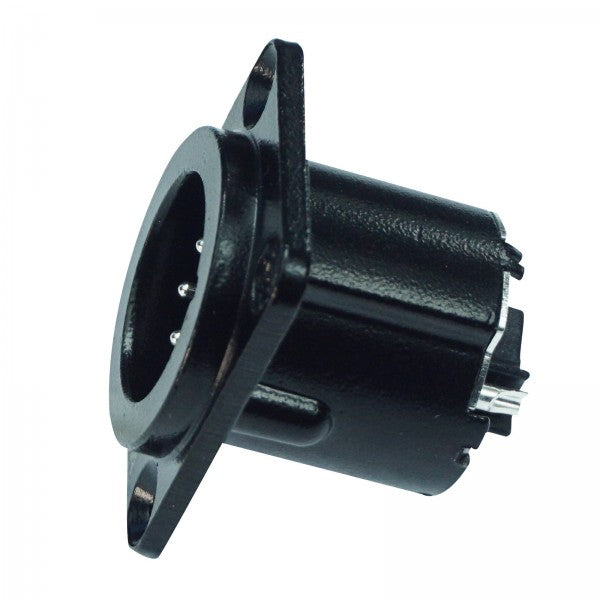

Enova 5-Pin XLR han chassis stik, sort

ENOVA 5 POL HAN XLR CHASSIS STIK, SORT

ENOVA er en ny schweizisk producent af stik og kabler i høj kvalitet. ENOVA tilbyder et sortiment af de mest efterspurgte stik og kabler i Live- og AV-industrien og vil løbende udvide deres sortiment.
ENOVA bestræber sig på at tilbyde Live- og AV-industrien et fuldt ud alternativ.

Brand:ENOVA
Series:XL-Serie
Version (Plug / Chassis):Chassis version
Connector type:XLR, XLR male 5 pol
Number of contacts:5
Gender (M / F):Female connector
Connector housing color:Black
Wiring mode:Solder contact

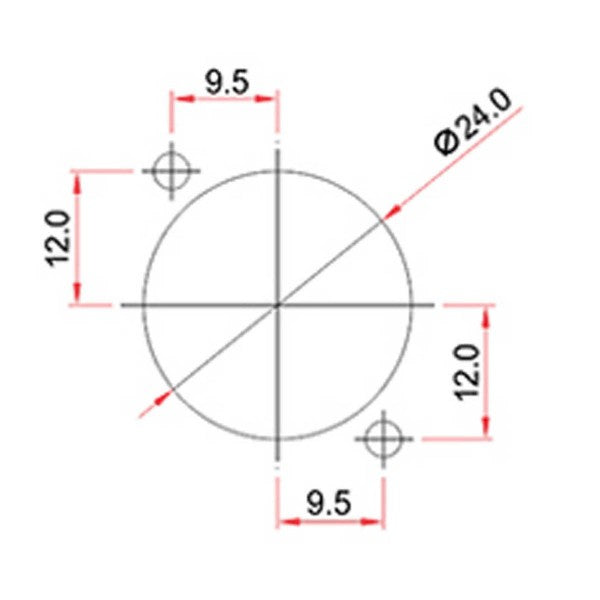

Installation diameter in mm:Ø 24.00 mm

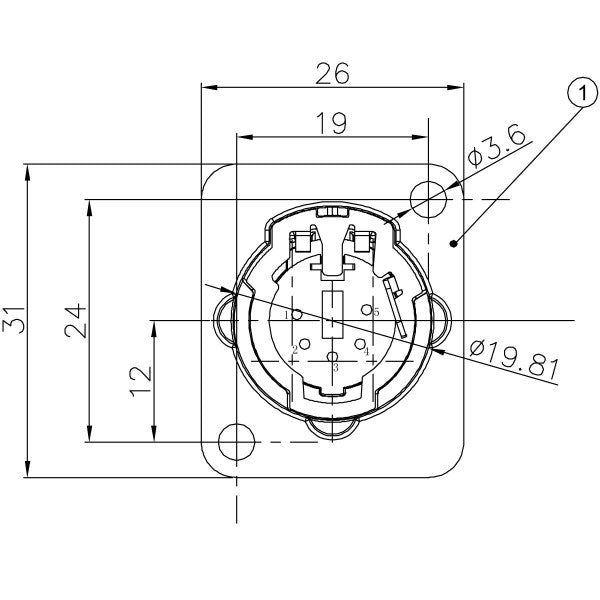

Installation fixing height x width in mm:24.00 mm x 19.00 mm
Number of mounting holes:2
Mounting hole diameter mm:3.6 mm
Material connector housing:ZZNAL4-1
Material contact:H59-1
Working temperature minimum:-30°
Working temperature maximum:+80°
Classification flammability of plastics:UL94HB
ROHS according to EN62321-1:Ja
Country of origin:China
Operating voltage (VAC.RMS):Insulation resistance:> 10 GOhm
Contact resistance:<3 mOhm
Applications:DJ, Keyboard player, Lighting technician, Singer, Sound engineer
Märkte:Event Production, Industrie, Medical technology, Mechanical engineering, Gerätebau, Anlagenbau, Multimedia Installation, Digital Signage, Cable Assembly, Beleuchtung, Broadcast, Recording studio

NC5MDLX-BAG
