- 1300W DSP amplifier
- Compact and ideal for live/studio sound on the go
- True 2 Ohm stability
- FIR Driver Technology
- One-button DSP setting

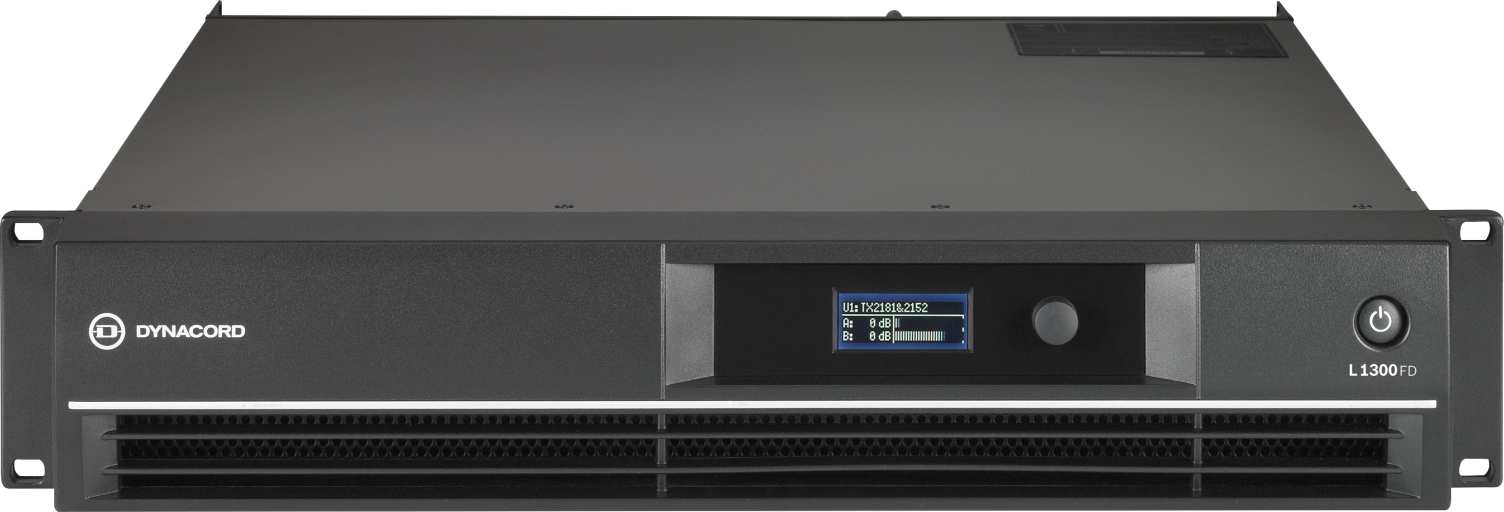

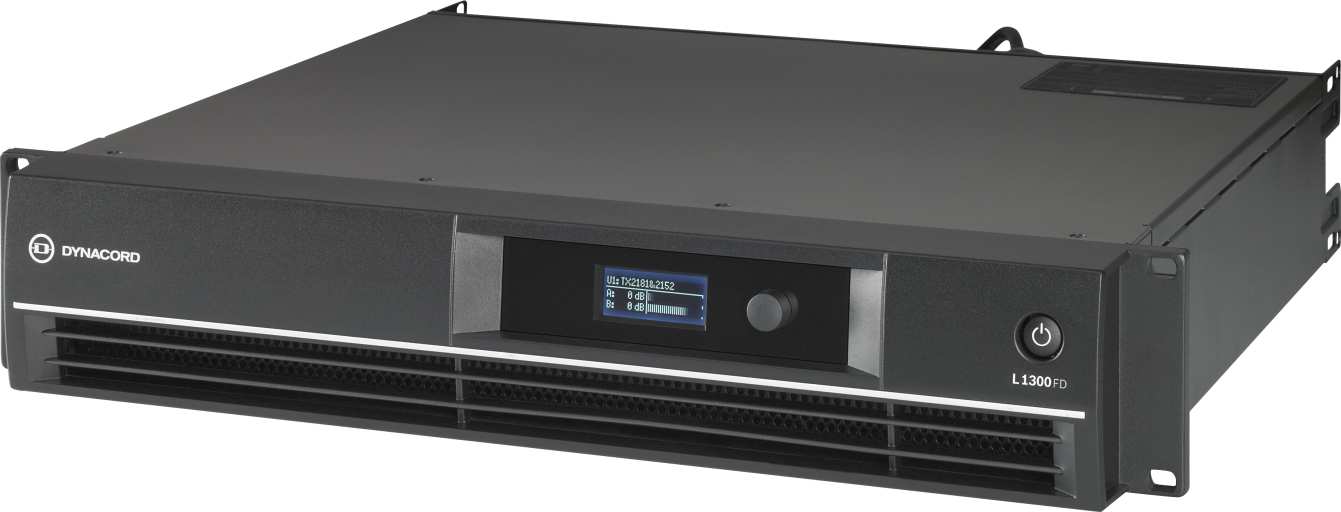

Dynacord L1300FD Amplifier 2x650W and DSP
- Professional DSP amplifier ideal for live, studio and on the road.
- Huge 1300W power with amazing sound performance.
- Fully integrated Speaker rocessing with FIR driver technology.
- Consistent and stable performance even at 2 ohms.
- Easy and intuitive 'one-button' DSP setting.

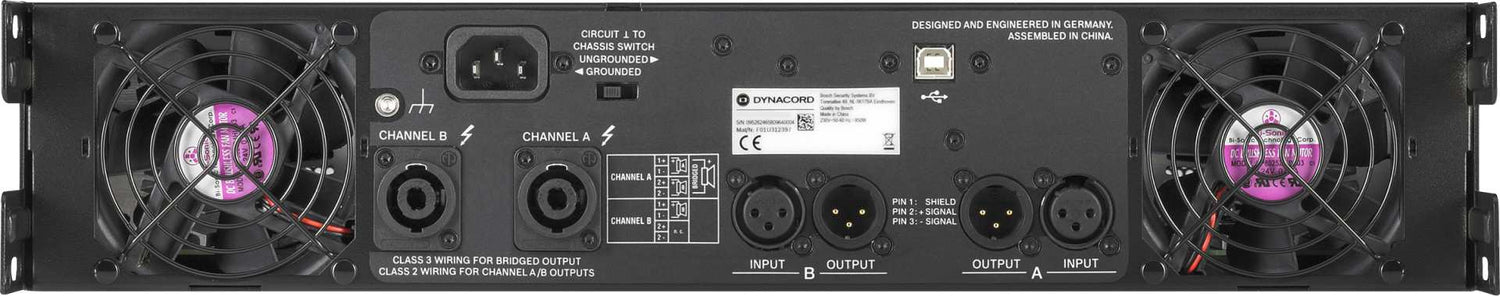

- With both balanced XLR in and out.
- Measures: 483 x 88 x 462.4 mm
- Weight: 12.9 kg
Spezifikationen
Spezifikationen
-
Weight (kg)
Weitere Spezifikationen
Weitere Spezifikationen
Load Impedance | 2 | 2.6 | 4 | 8 |
Maximum Output Power, Single Channel | 1100 W | 950 W | 660 W | 350 W |
Maximum Output Power, Dual Channel | 1000 W | 850 W | 600 W | 320 W |
Maximum Output Power, Bridged | - | - | 2000 W | 1200 W |
Maximum RMS Voltage Swing THD = 1%, 1 kHz | 55.3 V | |||
Voltage Gain Ref.1 kHz | 32.0 dB | |||
THD at 450 W/4 MBW = 80 kHz, 1kHz | < 0.05% | |||
IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% | |||
DIM30, 3.15 kHz, 15 kHz | < 0.05% | |||
Maximum Input Level | +21 dBu | |||
Crosstalk ref. 1 kHz, at 100W/4 | < -80 dB | |||
Frequency Response, ref. 1 kHz | 10 Hz to 21 kHz (±1 dB) | |||
Input Impedance, Active Balanced | 20 k | |||
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 | >104 Db | |||
Output Noise, A-weighted | < -68 dBu | |||
Output Stage Topology | Class AB | |||
Power Requirements | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | |||
Power Consumption MaximumOutput Power @ 4 | 550 W | |||
Mains Fuse | 240 V/230 V: T10AH; 120 V/100 V: T20AH | |||
Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, In rush current limiters, Turn on delay | |||
Cooling | Front-to-rear, 3-stage fans | |||
Ambient Temperature Limits | +5°C to +40°C (40°F to +105°F) | |||
Safety Class | I | |||
Color | Black | |||
Dimensions (W x H x D), mm | 483 x 88 x 462.4 | |||
Weight | 12.9 kg (28.4 lb) | |||
Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | |||
Remote Control | SONICUE sound system software ** | |||
Accessories | RMK15 (rear rack mount kit) |
