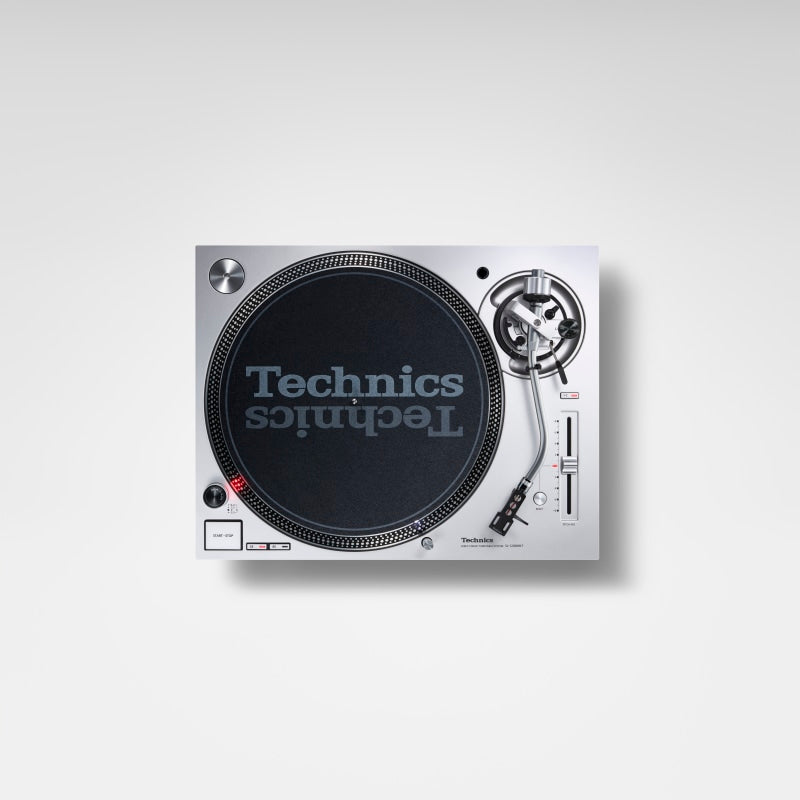

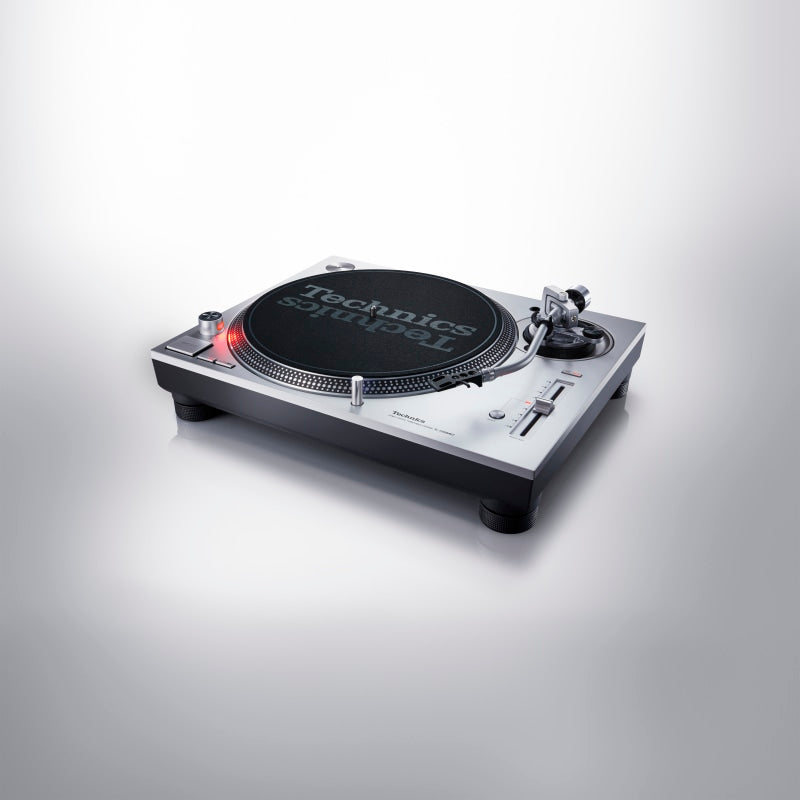

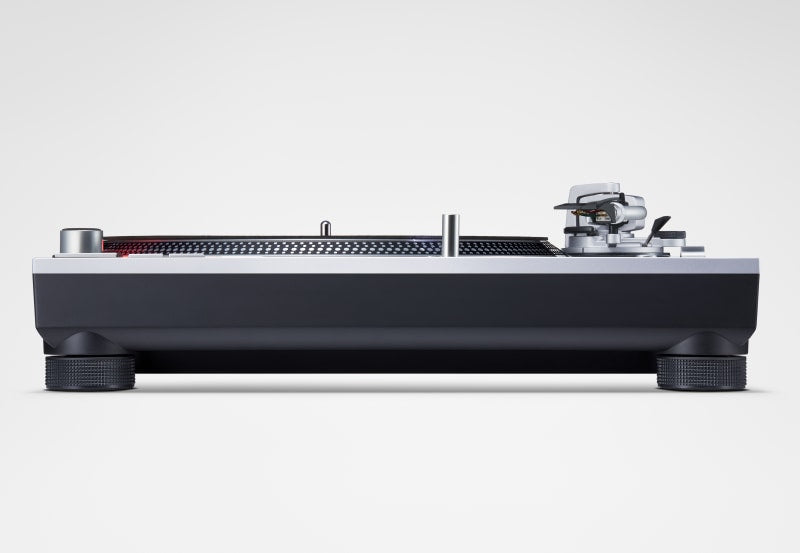

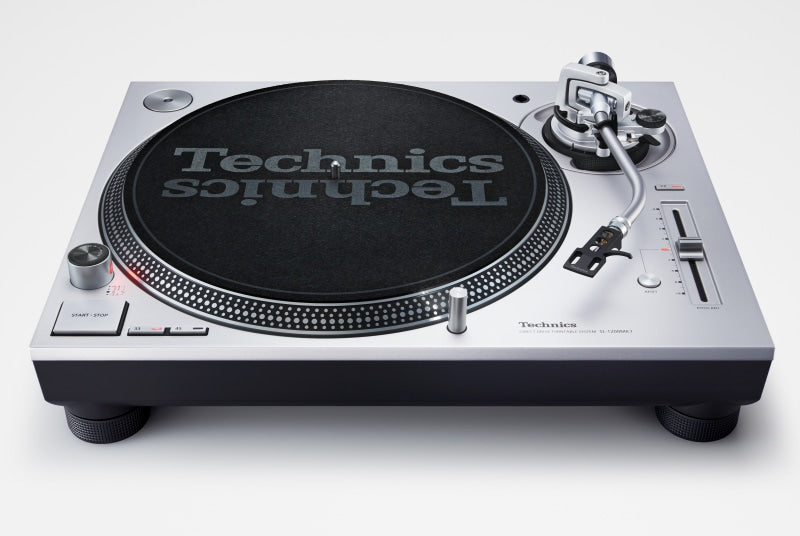

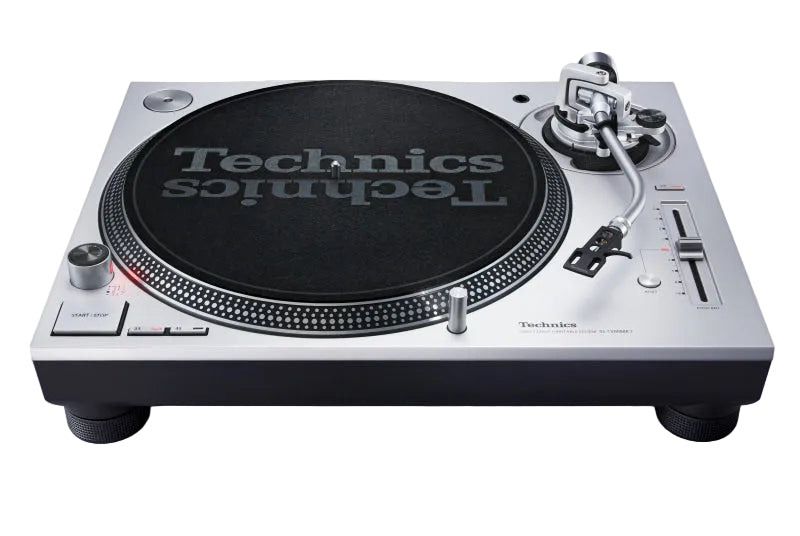

Technics SL-1200 MK7 Plattenspieler (Silber)

• Type

  • Direct Drive Manual Turntable

• Turntable Speeds

  • 33-1/3, 45 rpm (with switch 78 rpm)

• Starting Torque

  • 0.18 N・m / 1.8 kg･cm

• Build-up Characteristics

  • 0.7 s. from standstill to 33 1/3 rpm

• Wow And Flutter

  • 0.025 %　W.R.M.S.

• Turntable Platter

  • Aluminium diecast
    Diameter: 332 mm (13-5/64 inch)
    Weight: Approx. 1.8 kg (4.0 lbs)
    (including slipmat and slipsheet)

Tonearm Section

• Type

  • Universal Static Balance

• Effective Length

  • 230 mm (9-1/16")

• Overhang

  • 15 mm (19/32")

• Tracking Error Angle

  • Within 2° 32' (at the outer groove of 30 cm record)
    Within 0° 32' (at the inner groove of 30 cm record)

• Offset Angle

  • 22°

• Arm-height Adjustment Range

  • 0 - 6 mm

• Stylus Pressure Adjustment Range

  • 0 - 4 g (Direct Reading)

• Head Shell Weight

  • Approx. 7.6 g

• Applicable Cartridge Weight Range

  • (without auxiliary weight)
    5.6 - 12.0 g
    14.3 - 20.7 g (including head shell)

• Head Shell Terminal Lug

  • 1.2 mmφ 4-pin terminal lug

Terminals

• Audio Output

  • PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

General

• Power Supply

  • AC 110-240 V, 60 Hz

• Power Consumption

  • 8 W
    Approx. 0.2 W (Standby)

• Dimensions (W x H x D)

  • 453 x 169 x 353 mm
    17-27/32 × 6-21/32 × 13-29/32 inch

• Weight

  • Approx. 9.6 kg / 21.2 lbs

• Accessories

  • Turntable, Slipmat, Slipsheet, Dust cover, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
