Synco trådløst mikrofonsæt til DSLR UHF frekv 572 - 586 MHz

SYNCO T1 trådløst mikrofon sæt

Kompakt og letvægt sæt fremstillet i hårdfør ABS plast.

God lydkvalitet og stabil i drift.

LCD display

Rækkevidde op til 50 meter

16 valgfrie kanaler i frekvens området 572 til 586 MHz (godkendt til brug i Danmark)

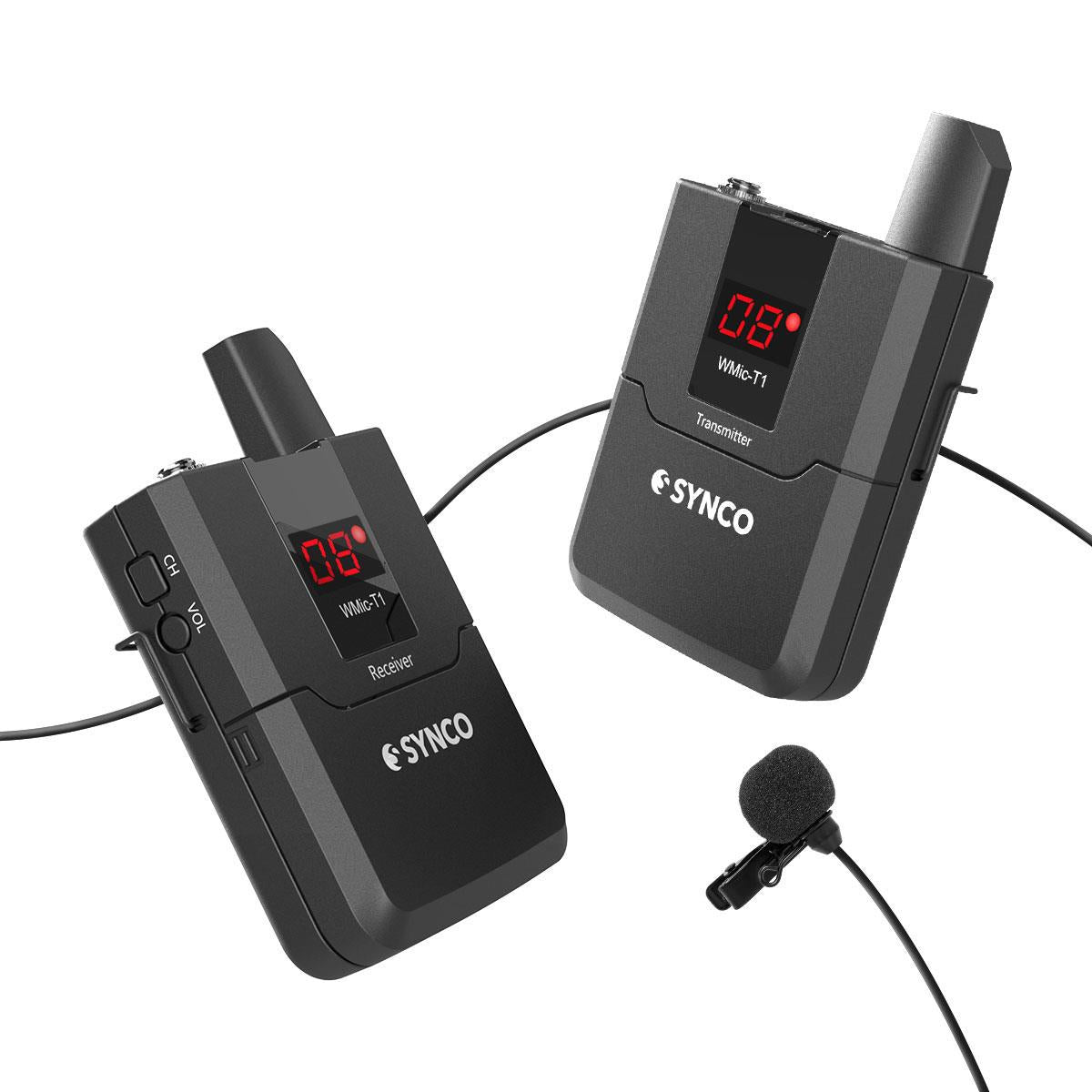

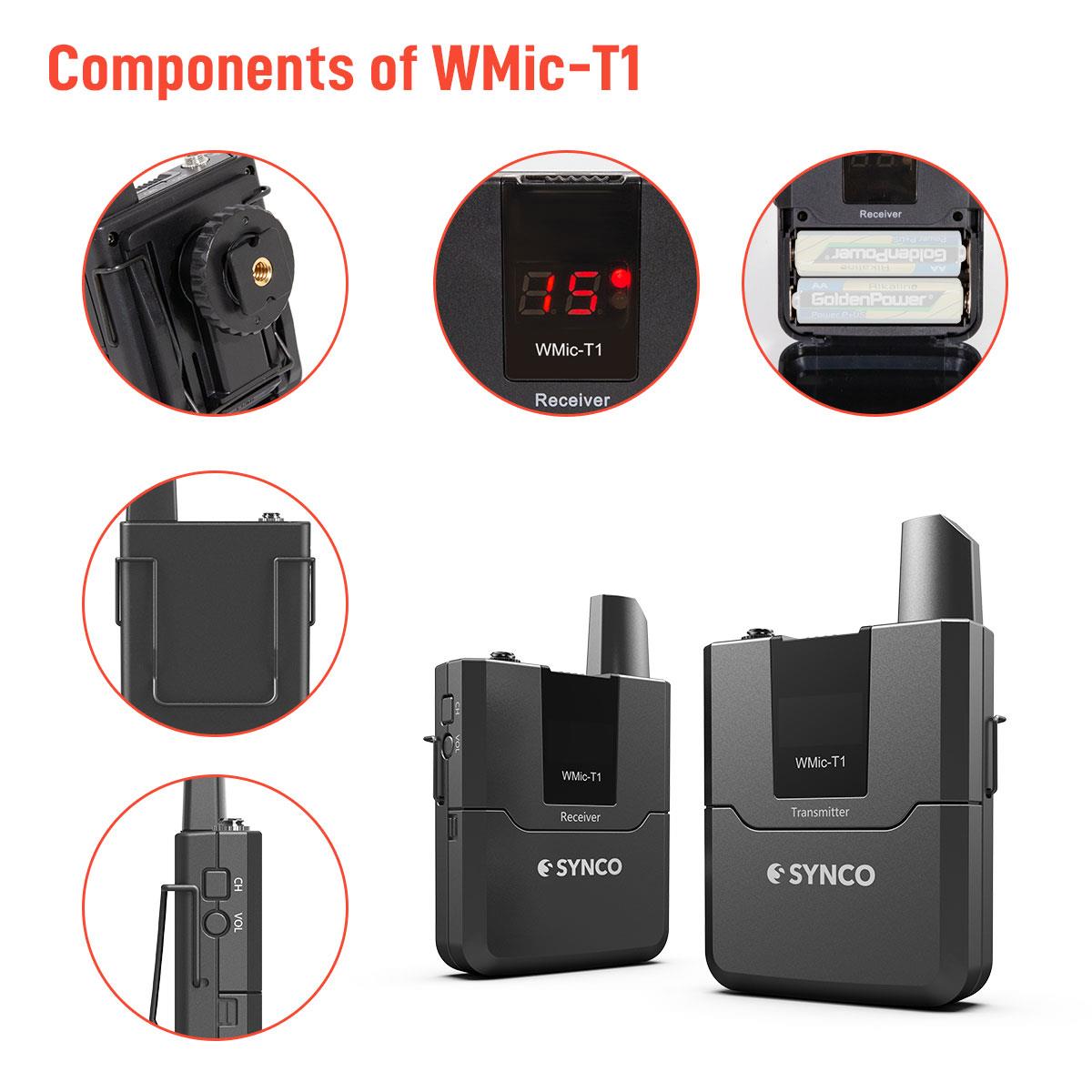

Består af:

1 x sender (TX) med bælte clips

1 x modtager (RX) med bælte clips

1 x 3,5 mm TRS output kabel

1 x 3,5 mm TRRS output kabel

1 x Lavalier mikrofon

1 x kamera-sko adapter

1 x opbevaring softbox

1 x brugermanuarl

Transmitter (TX)

Channel16

Frequency Range 572MHz-586MHz

Oscillation Mode PLL Frequency Synthesis

Working Distance >50m

Transmit Power 13.5dBm

Carrier Frequency Error 0.01%

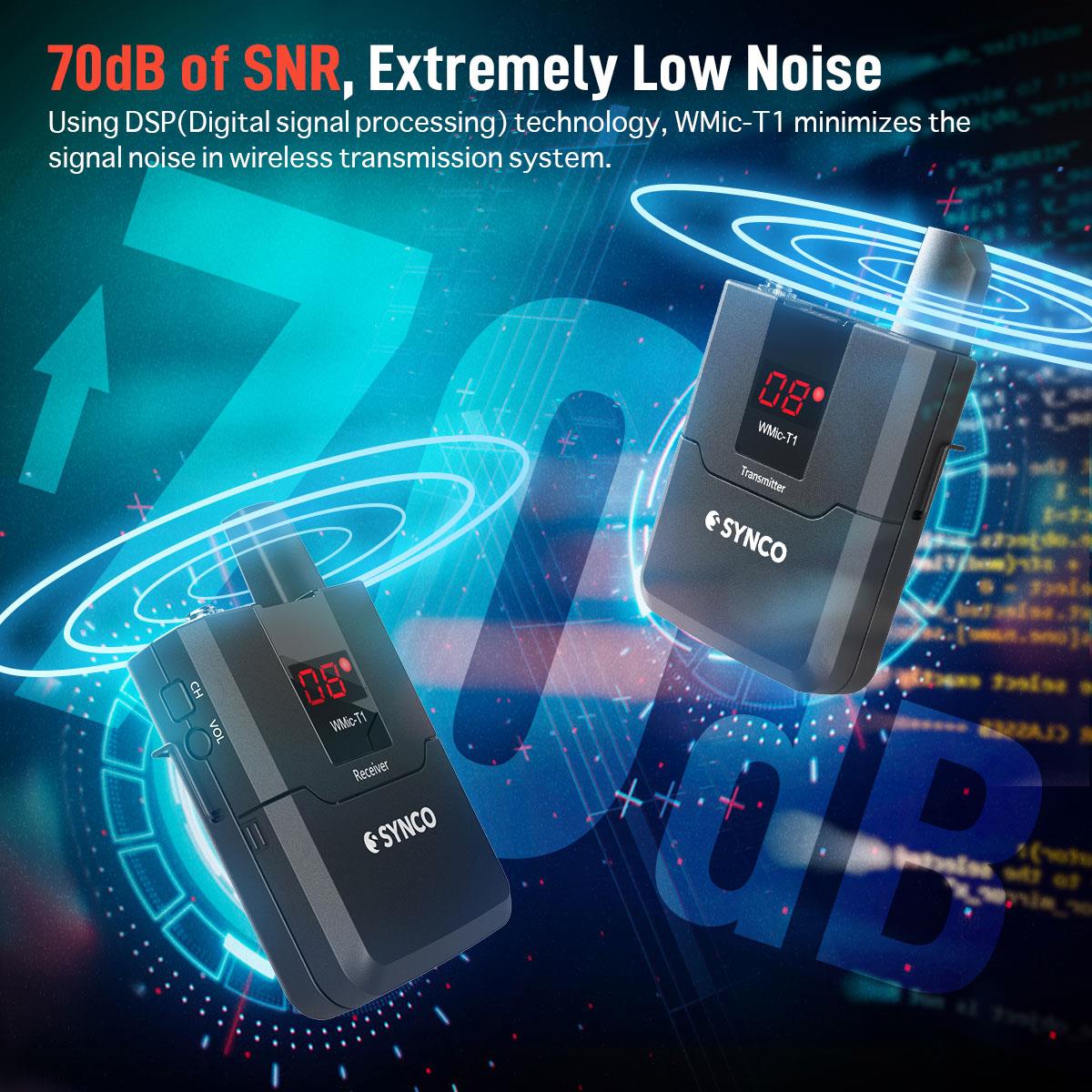

Signal/Noise >70dB

Harmonic Radiation -32dBm

Modulation Mode FSK

Max. Frequency Deviation ± 65KHz

Dynamic Range 92dB

Antenna1/4 Wavelength Wire Antenna

Max Input Level250mV

Input Impedance2.2 KOhm

Input Gain Adjustment1-5 levels adjustable

Audio Output3.5mm

BatteryAA 1.5V x 2, 120mA

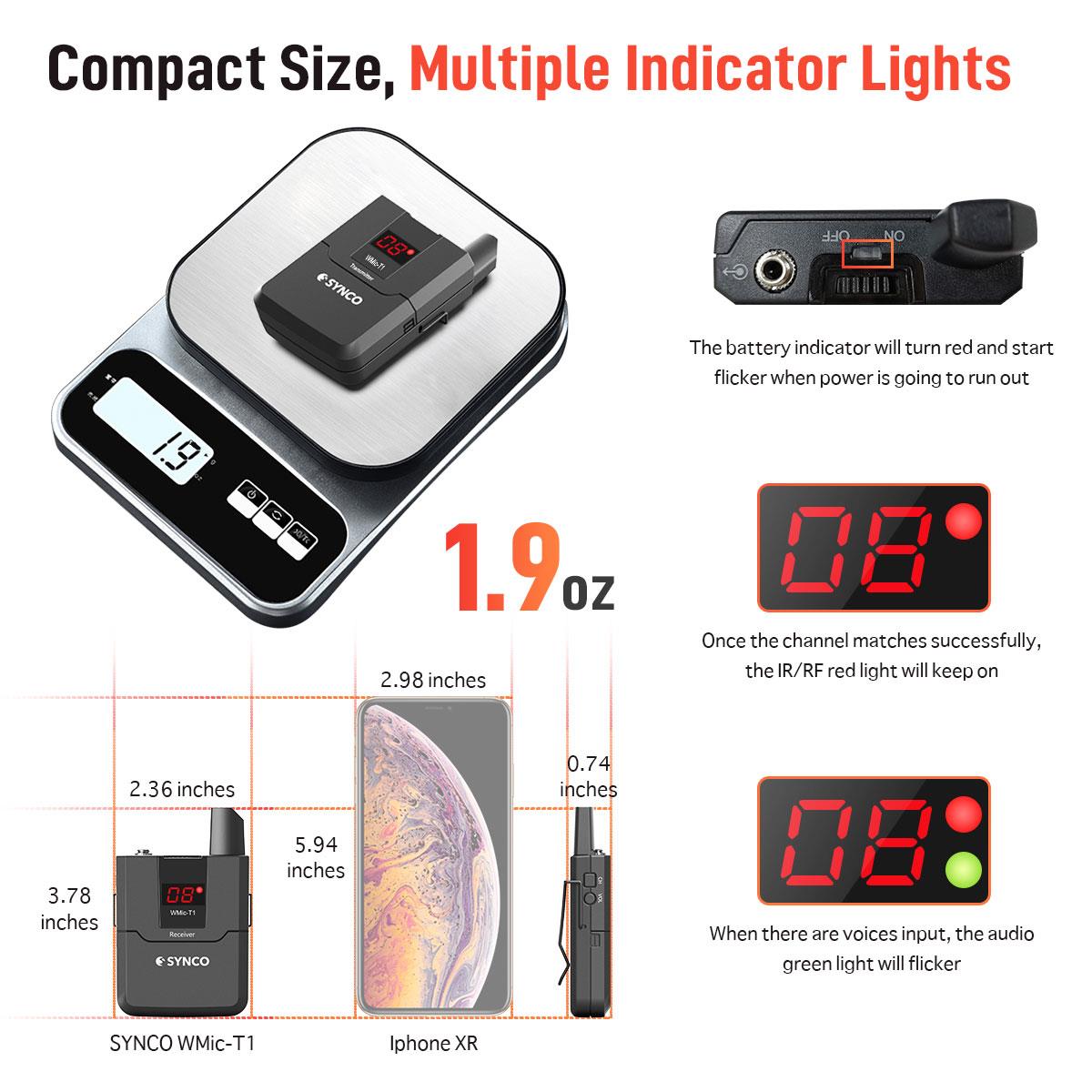

Dimensions96x60x18.8 (mm)

Net Weight 55g (without battery)

Working Temp.0C ~ +50C

Storage Temp.-20C ~ 60C

Receiver (RX)

Channel16

Frequency Range 572MHz-586MHz

Oscillation Mode PLL Frequency Synthesis

Receiving Mode Superheterodyne

Working Distance >50m

Signal/Noise>70dB

Dynamic Range 92 dB

Received Power 13.5dBm

Image Rejection 45dBm

Antenna1/4 Wavelength Wire Antenna

Noise Control Built-in Setting Parameters

RF Sensitivity When inputting 10dBu, S/N > 45dB

Output Level Range1-5 levels adjustable

Frequency SettingManual IR Sync

Audio Output3.5mm

Output Impedance400 Ohm

BatteryAA 1.5V x 2

Dimensions96x60x18.8 (mm)

Net Weight55g (without battery)

Working Temp.0C ~ +50C

Storage Temp.-20C ~ 60C
