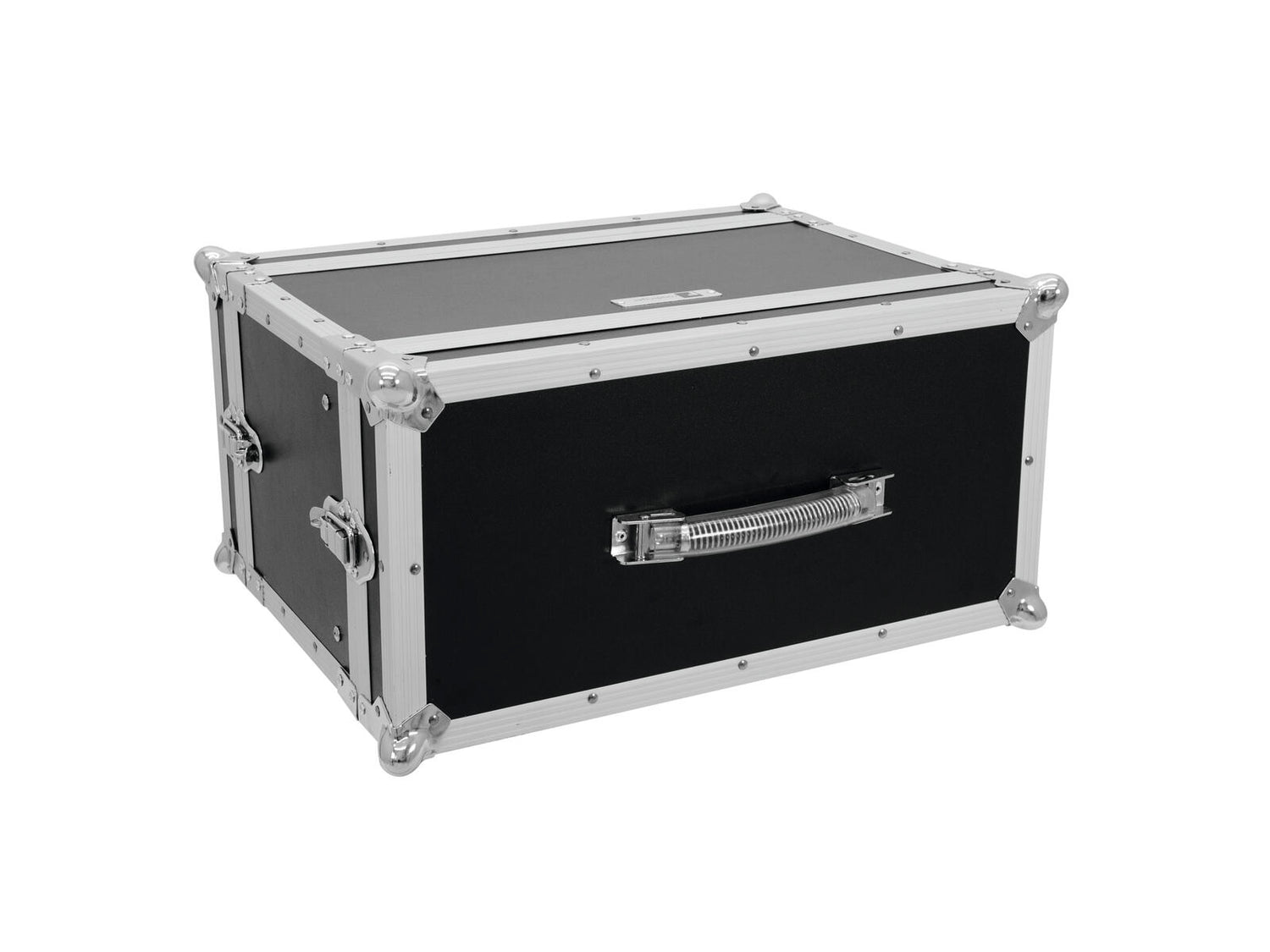

ROADINGER Effect Rack CO DD, 5U, 24cm deep, black

Flightcase for 483 mm units (19")Transport your 483 mm control and effect units (19") easily and safely with the ROADINGER effect rack CO DD. Two removable lids (double-door version), four large, steel-reinforced rubber feet and built-in rack rails make handling with the flightcase easy and comfortable.Multi-layered glued wood, the stable aluminium profile frame with rounded corners and three-legged, medium-sized steel ball corners give the case stability.The flight case is equipped with four snap locks with eyelets for locking, built-in rack rails and a handle. The maximum load is 25 kg.

Rack case

• 5 U
• High-quality workmanship with plywood multi-layer glued 6 mm, black, laminated

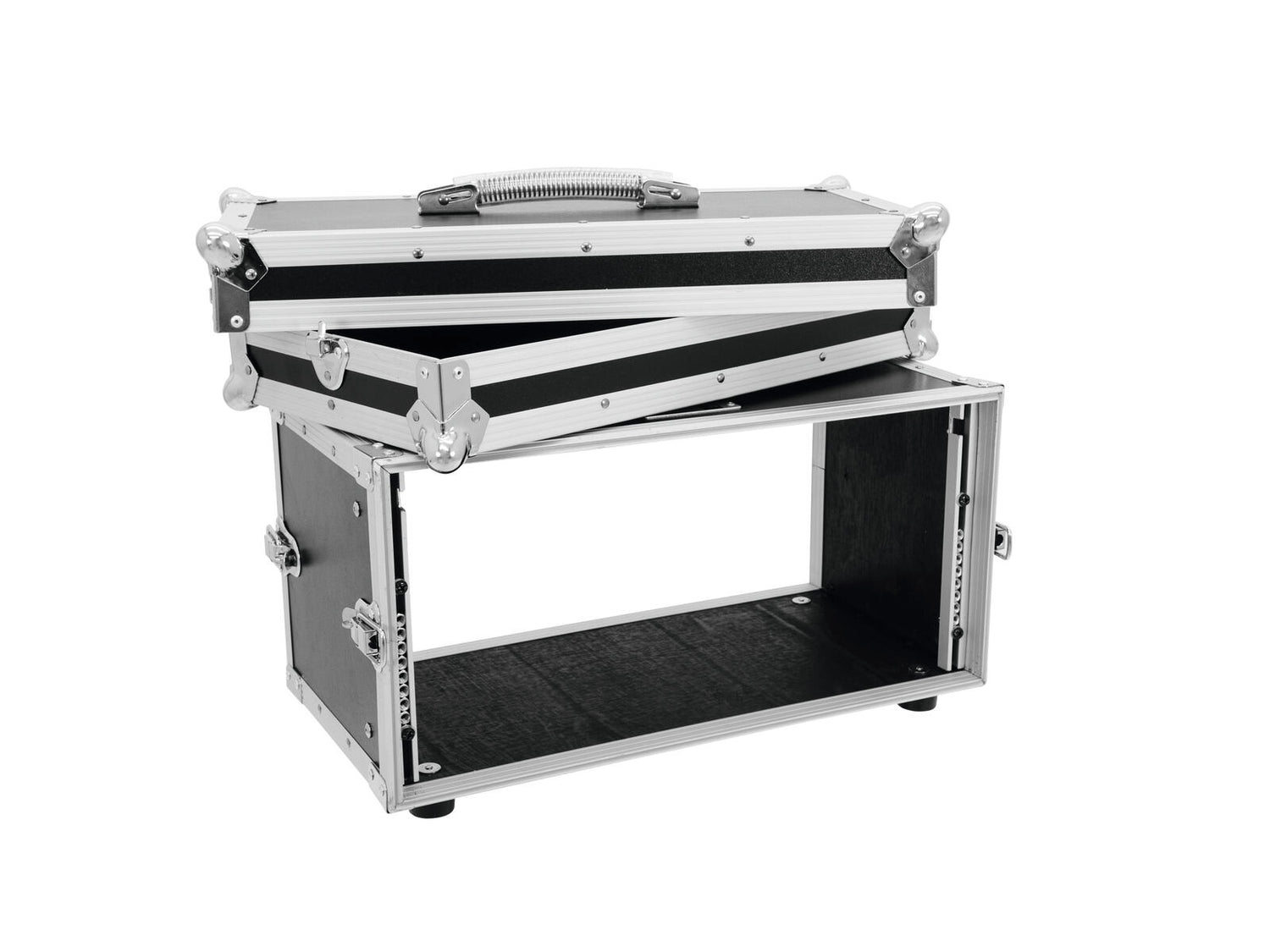

• 2 removable covers (double-Door-Version)
• Aluminum profile frames 22mm with rounded edges
• Rugged carrying handle
• 4 high-quality spring locks with shut-off function

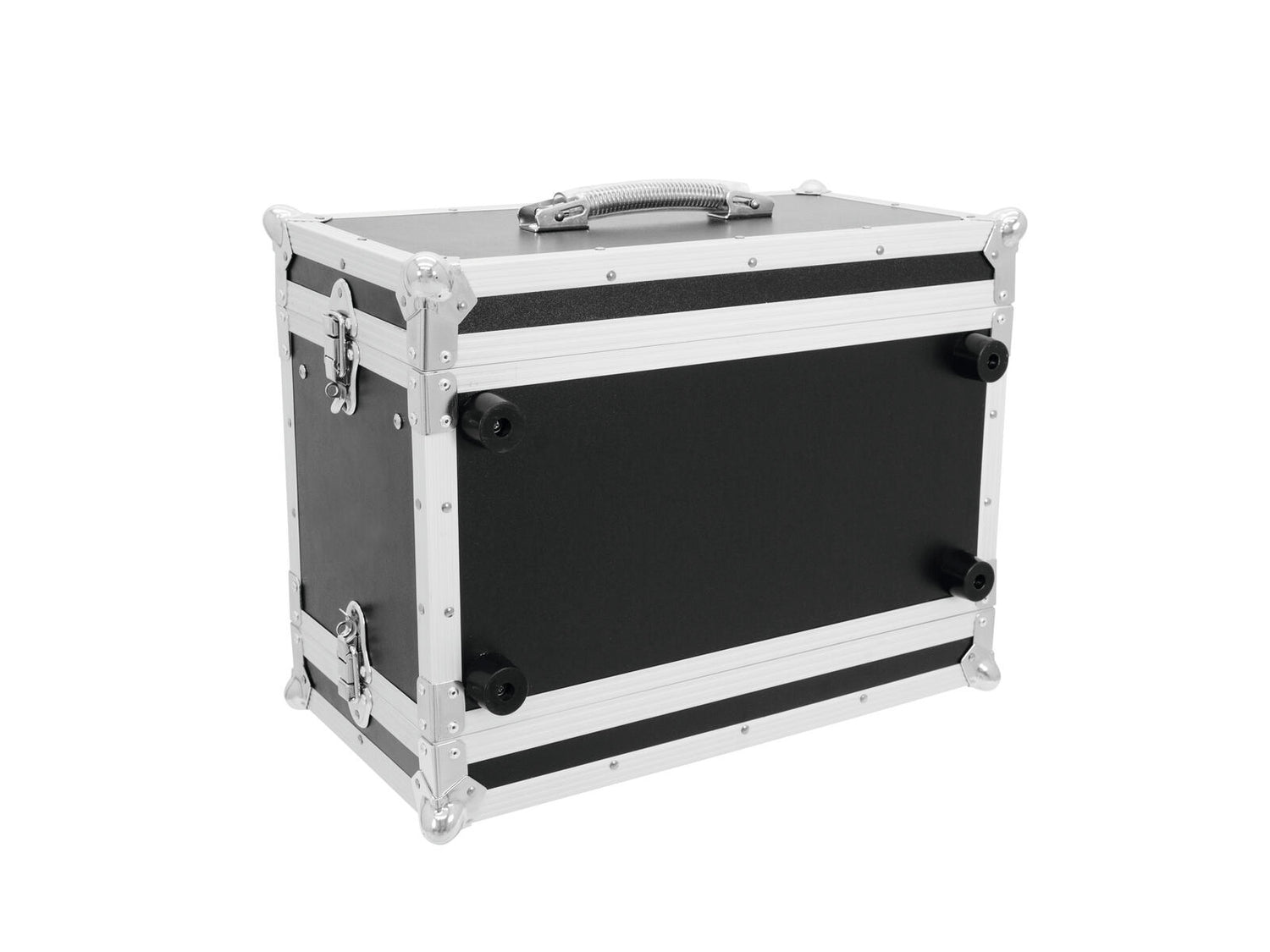

• Rubber feet
• Available in different height units (1 U = 44 mm)
• With profile rails suitable for 19" units
• For further information about this product, please refer to the Data Sheet under "Downloads"

Scope of delivery

Maximum load:	25 kg
Removable covers:	2 pc/pcs
Aluminum profile frames:	22 mm
Carrying handle:	1 pc/pcs
Lock:	Spring lock: 4 pc/pcs with shut-off function
Transport aid:	Rubber feet
Material:	Plywood multi-layer glued, 6 mm
Color:	Black, laminated
Front panel width:	19"
Mounting height:	Approx. 22.5 cm (5 U)
Mounting depth:	250 mm
Housing design:	5 U

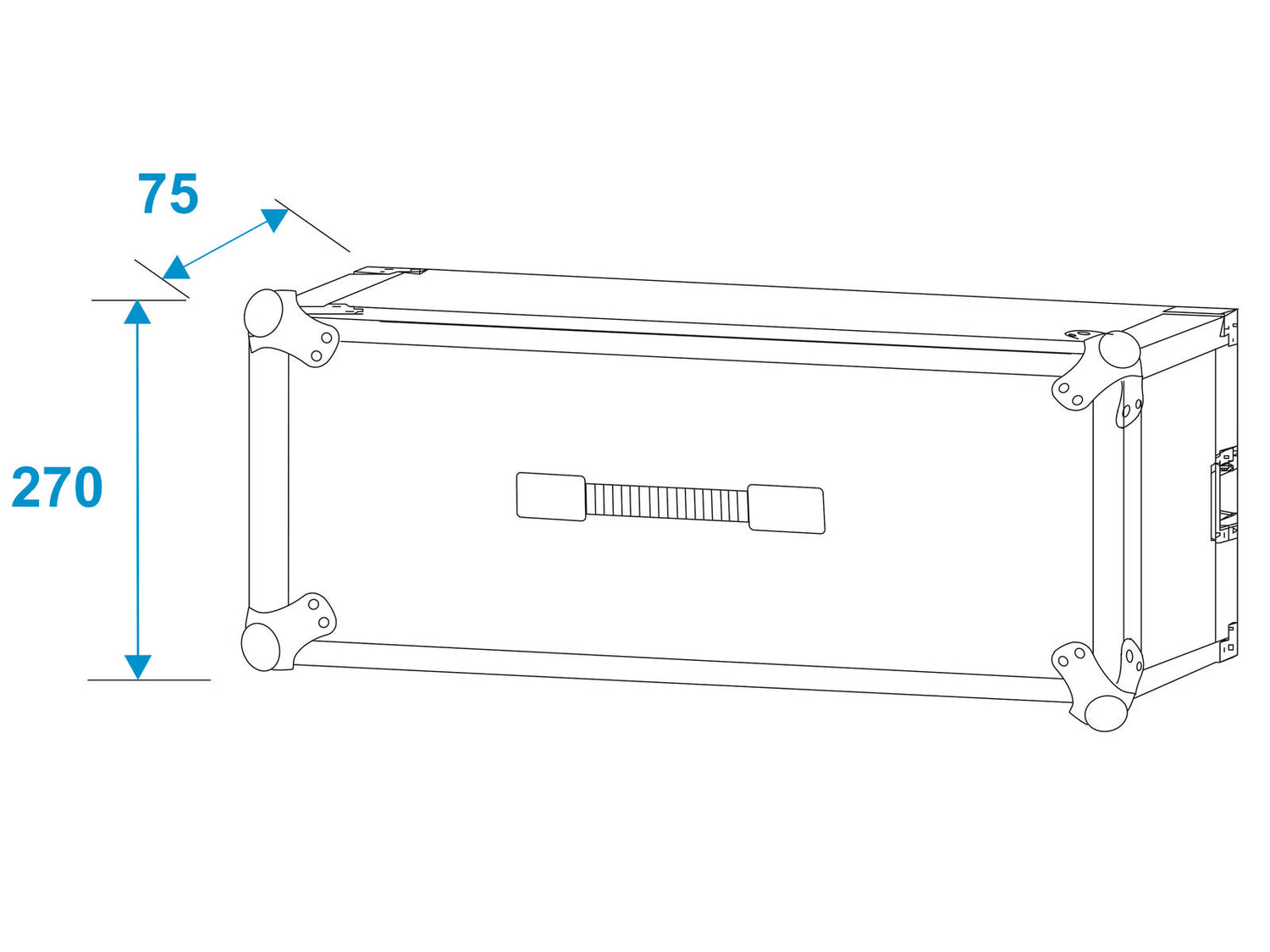

Dimensions:	Width: 52.5 cm Depth: 40 cm Height: 27 cm
Weight:	6.10 kg
