ROADINGER Amplifier Rack PR-1, 2U, 47cm deep

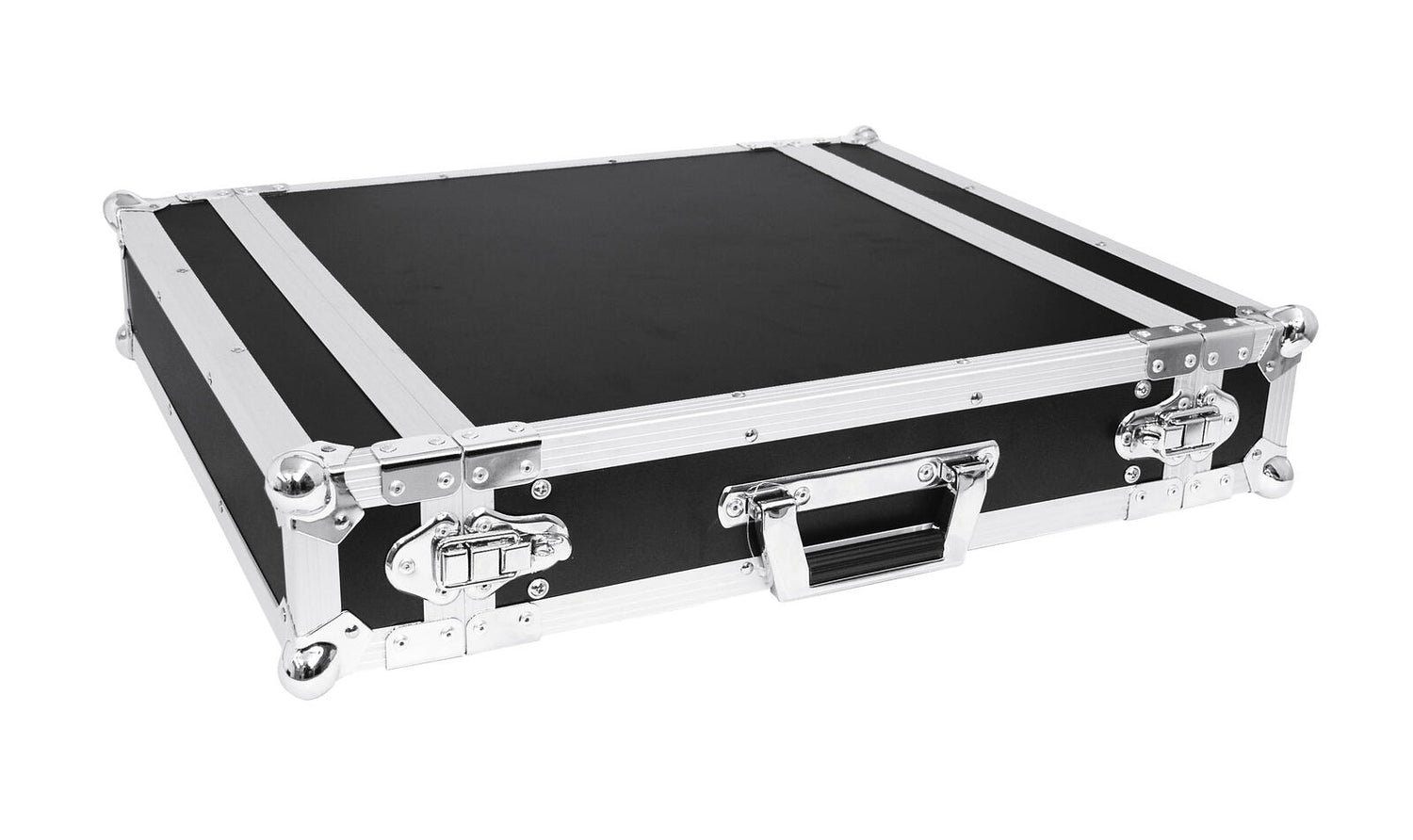

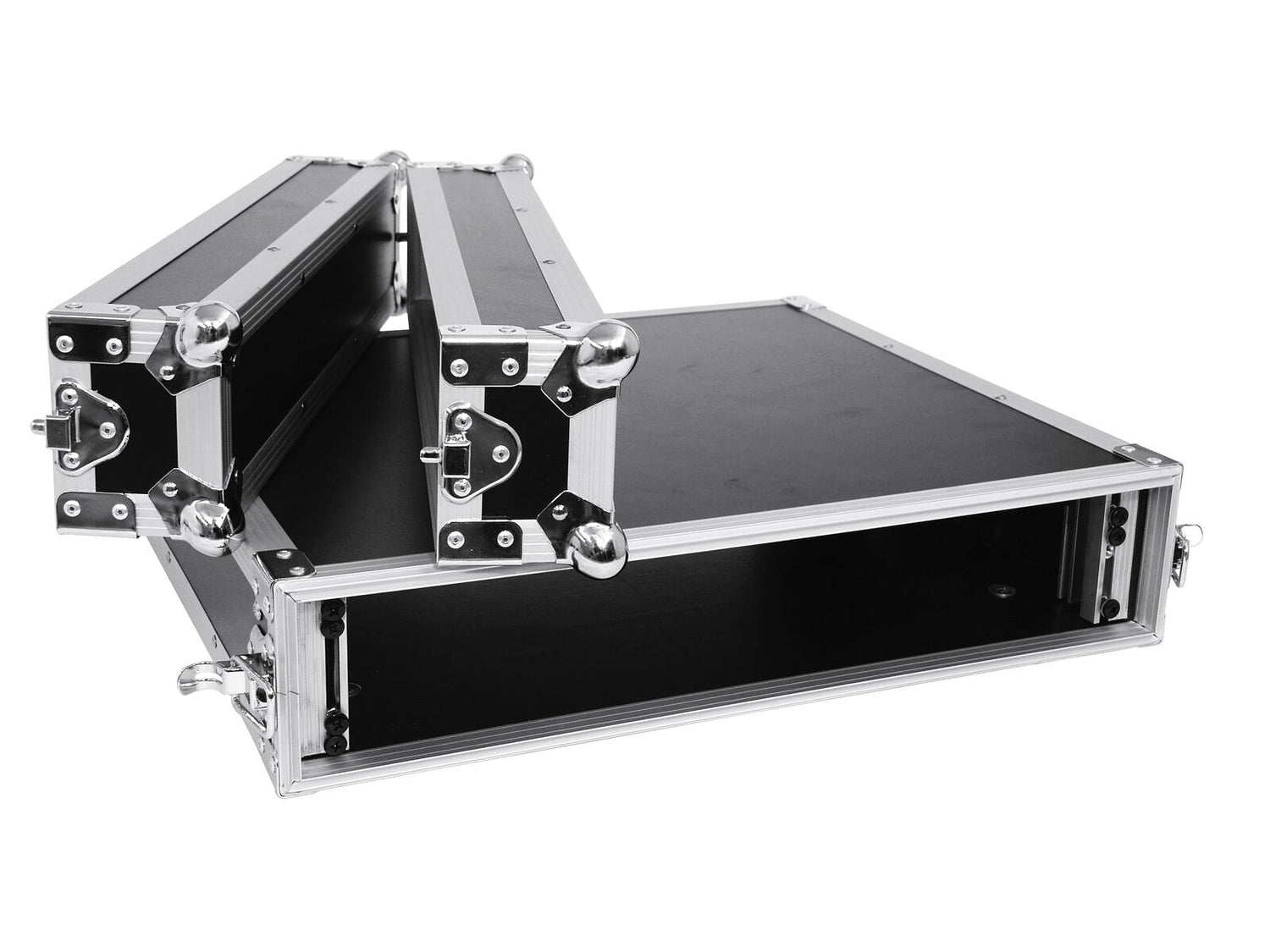

Flightcase for 483 mm devices (19")The ROADINGER amplifier rack PR-1 with 2 U is optimally suited for your 19" equipment such as power amplifiers and other accessories. The maximum installation depth is 420 mm plus 90 mm per cover. The high-quality workmanship with a wall thickness of 7 mm and the aluminium profile frame with rounded corners as well as the three-legged, medium-sized steel ball corners give the case stability. The amplifier rack is equipped with four snap locks, a robust carrying handle and two wooden slide rails on the bottom. Both lids are removable (double door version).The maximum load is 25 kg.

Rack case

• 2 U
• High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
• Aluminum profile frames 30mm with rounded edges
• Rugged carrying handle
• 4 high-quality spring locks
• Wooden slide rails on the bottom
• Available in different height units (1 U = 44 mm)
• With profile rails suitable for 19" units
• For further information about this product, please refer to the Data Sheet under "Downloads"

Scope of delivery

Maximum load:	25 kg
Aluminum profile frames:	30 mm
Carrying handle:	1 pc/pcs
Lock:	Spring lock: 4 pc/pcs
Transport aid:	Wooden slide rails on the bottom
Material:	Plywood multi-layer glued, 7 mm
Color:	Black, laminated
Front panel width:	19"
Mounting height:	Approx. 9 cm (2 U)
Mounting depth:	420 mm
Housing design:	2 U

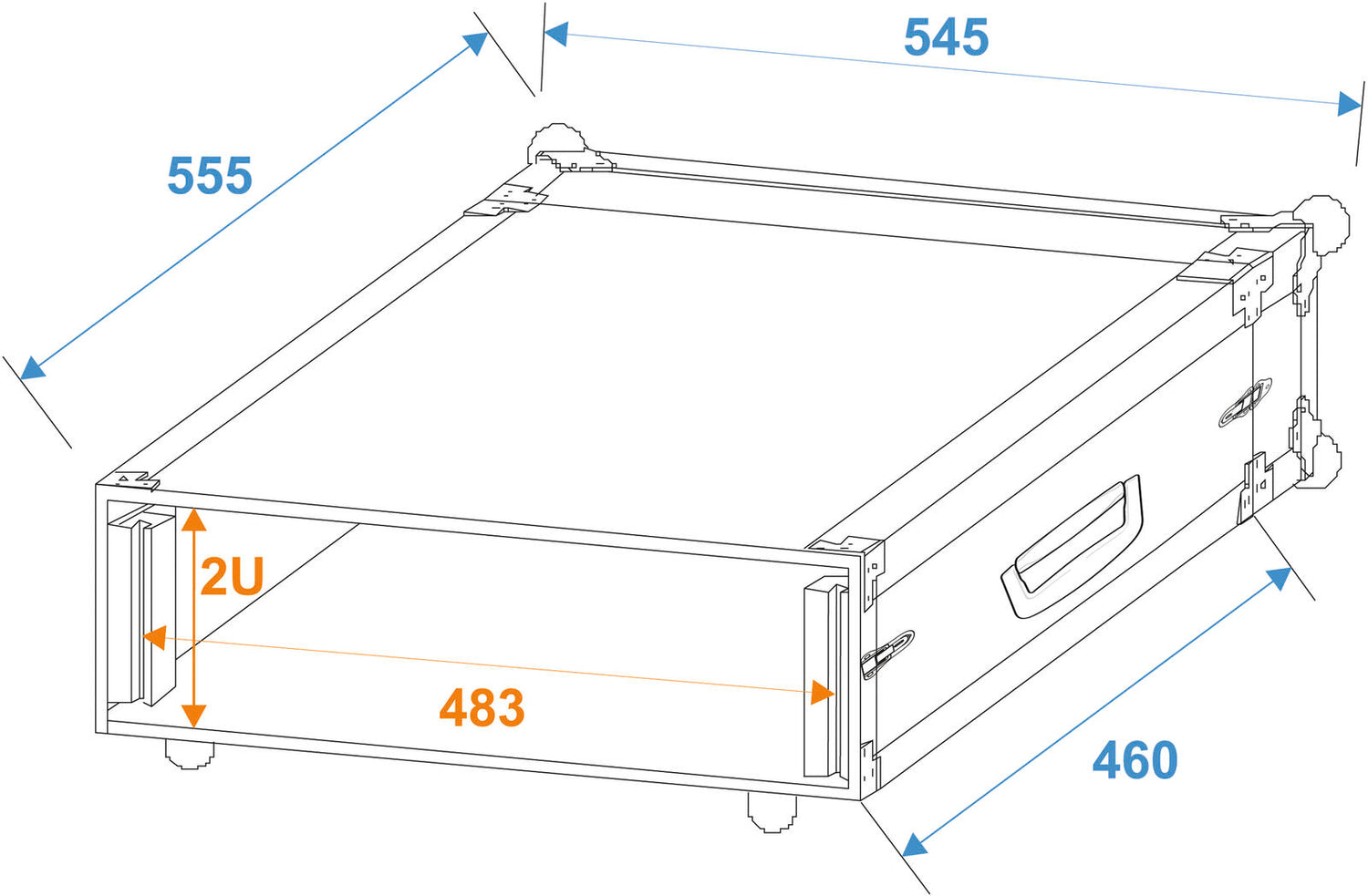

Dimensions:	Width: 54.5 cm Depth: 65 cm Height: 13.5 cm
Weight:	6.80 kg
