OMNITRONIC PA Set AZX active M
1
von
4
Lade...
€1.536,95
Stückpreis
/
Nicht verfügbar
Inkl. MwSt. • B2B zzgl. MwSt.
Versand €199
Beschreibung
Beschreibung

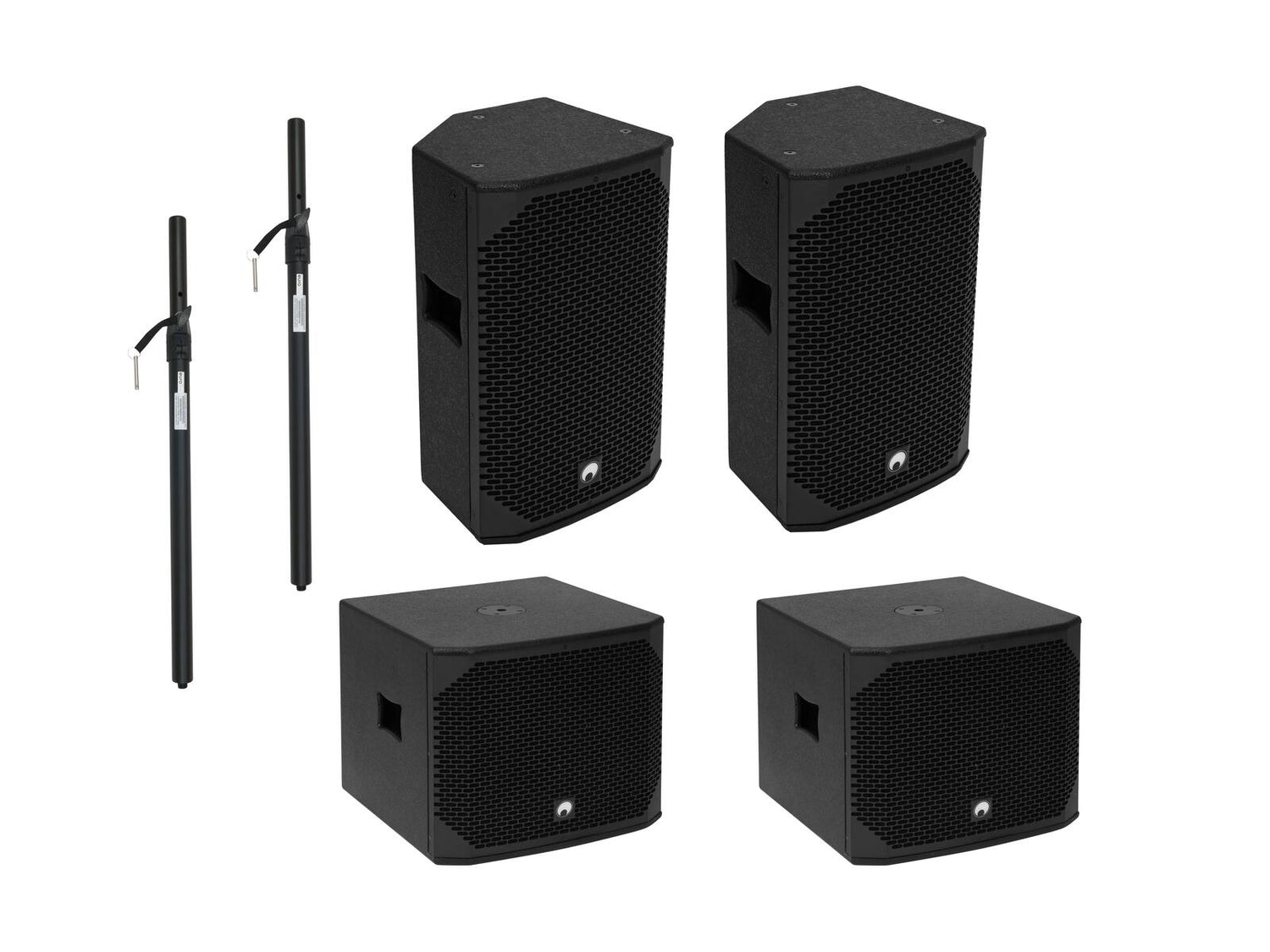

2x AZX-115A PA Subwoofer active 400W, 2x AZX-212A 2-way Top active 250W and 2x Distance Tube

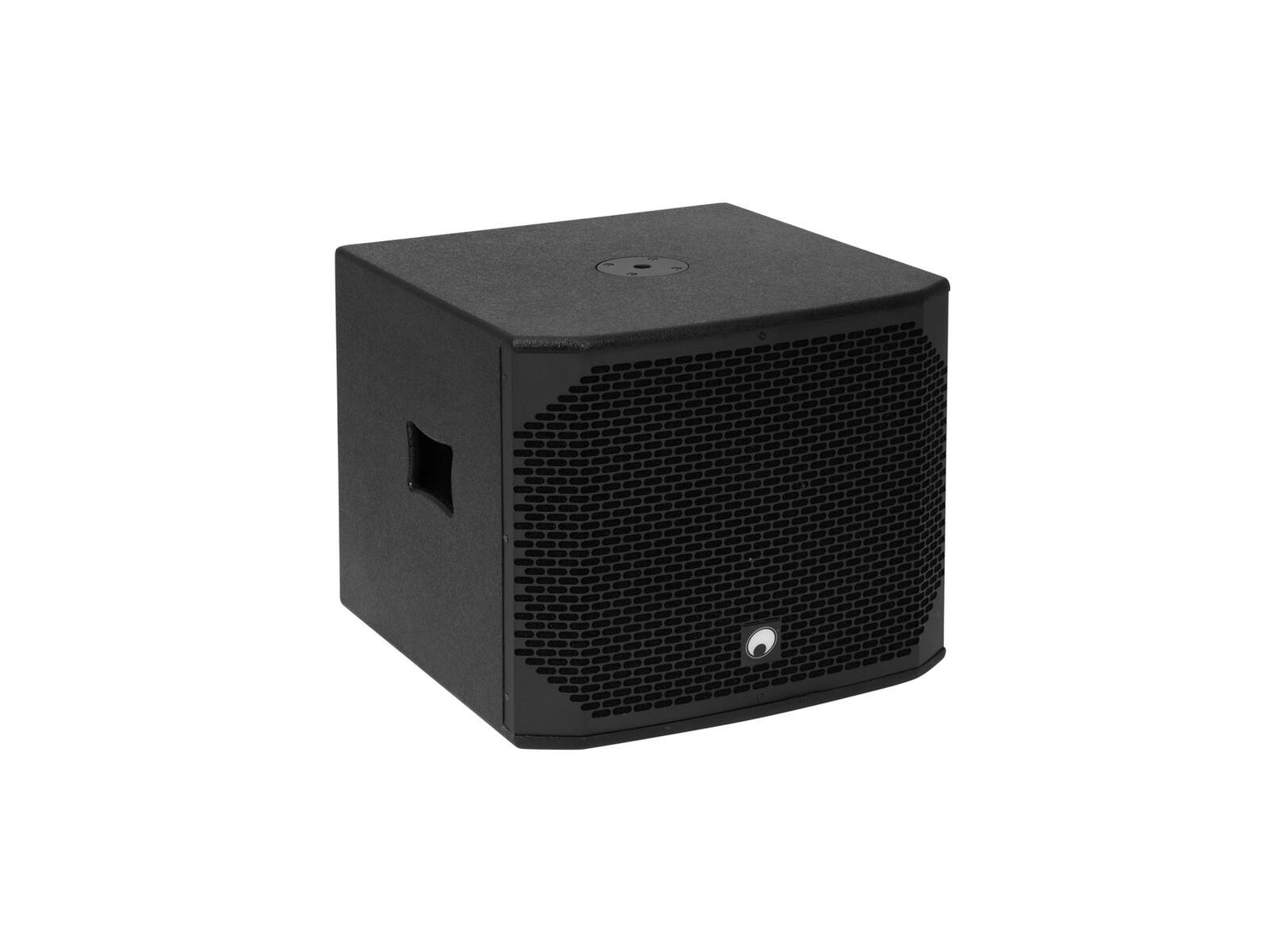

OMNITRONIC AZX-115A PA Subwoofer active 400W
Active 15" PA bassreflex subwoofer, 400 W RMS
- 38 cm (15") bass speaker with 63 mm voice coil
- Class D amplifier with 400 W
- XLR inputs and parallel outputs L/R
- XLR output L/R with high-pass filter
- Adjustable crossover frequency 80-200 Hz
- Black metal grille with acoustic foam
- Rugged carrying handle
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; rental

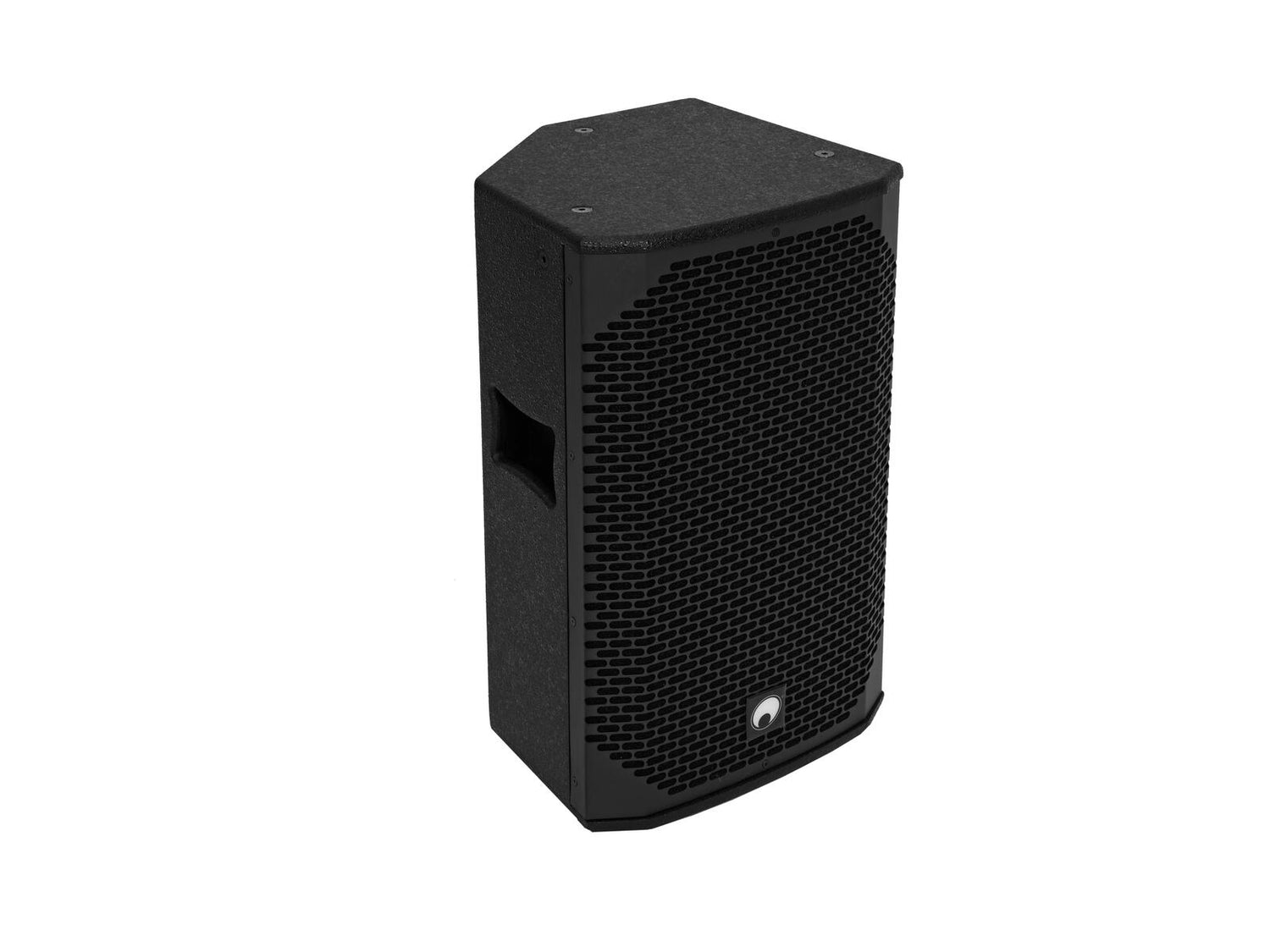

OMNITRONIC AZX-212A 2-way Top active 250W
Active speaker with 12" woofer, 1.35" driver, 200 W RMS LF, 50 W RMS HF
- 2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- HF adjustment -4 dB, -2 dB, 0 dB
- Dual flange
- With rigging points
- Black metal grille with acoustic foam
- Rugged carrying handle
- Application possibility: Standing; suspended; monitoring; on stand
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; rental

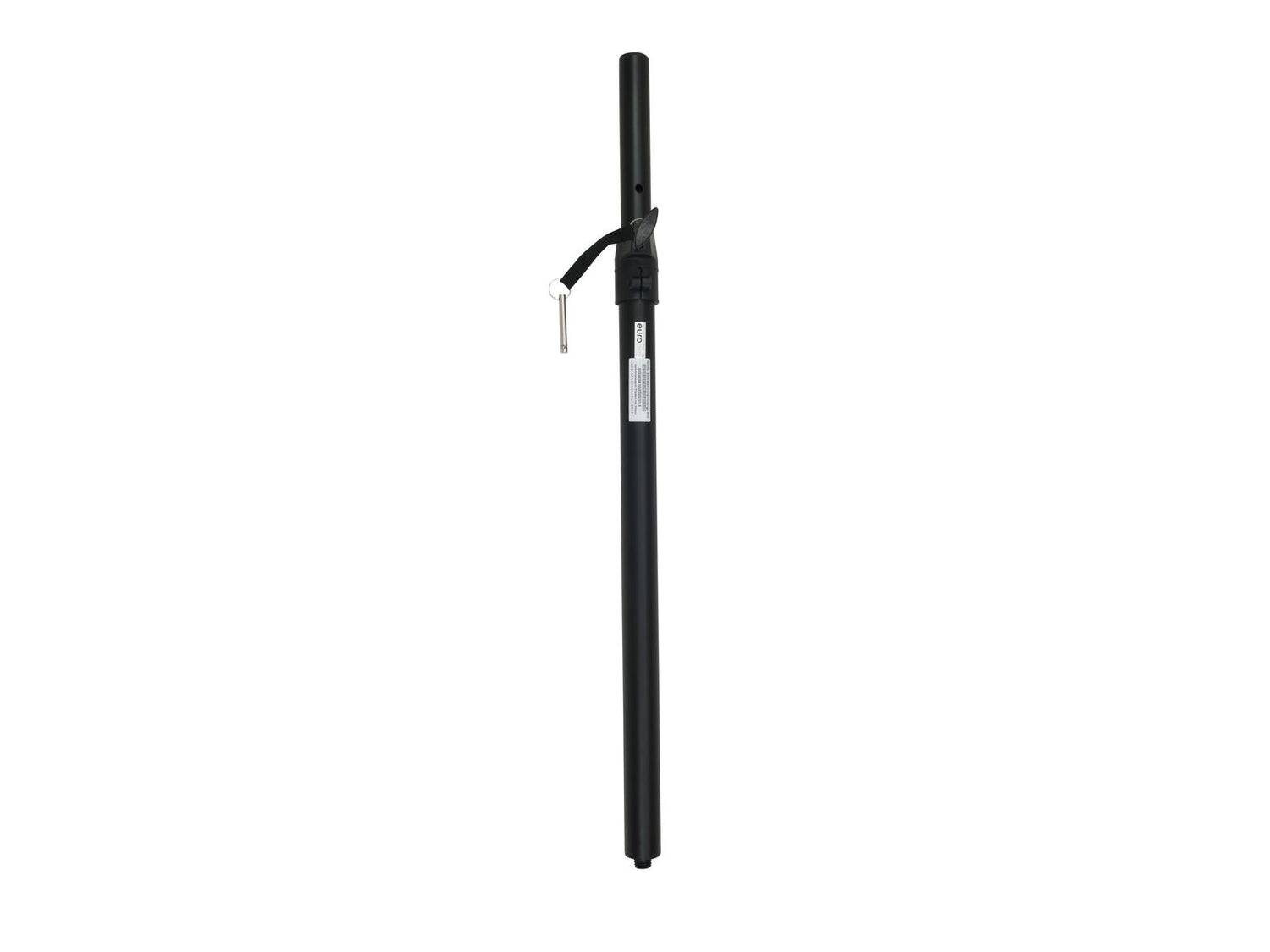

OMNITRONIC Distance Tube Subwoofer/Satellite M20
Variable distance tube, M20 thread, height adjustable 75-130 cm, max. load 30 kg
- Connecting tube for satellite systems
- Locking screw and bolt
- Powder-coated steel version
- Adjustable height
- M20 thread
Scope of delivery
2 x OMNITRONIC AZX-115A PA Subwoofer active 400W
- 1 x bass
- 1 x user manual
- 1 x power cord
2 x OMNITRONIC AZX-212A 2-way Top active 250W
- 1 x user manual
- 1 x power cord
- 1 x compact cabinet speaker
2 x OMNITRONIC Distance Tube Subwoofer/Satellite M20
- 1 x distance tube
- 1 x user manual
| Weight: | 92.40 kg |
| OMNITRONIC AZX-115A PA Subwoofer active 400W | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 3.15 A fuse replaceable |
| Power: | Rated: 400W RMS |
| Frequency range: | 40 - 250 Hz |
| Sensitivity: | 94 dB (1W/1m) |
| Attachment system: | M20 thread |
| Circuitry: | Class D |
| Control elements: | Phase reversal switch |
| Controls: | Limiter |
| Status LED: | Limit, power, signal |
| Connections: | Input: line via 2 x 3-pin XLR Output: line via 2 x 3-pin XLR Output: high-pass via 2 x 3-pin XLR |
| Crossover frequency: | 80-200 Hz |
| Speaker: | 1 x woofer 15" Basket material: steel Voice coil lows 2.5" |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Carrying handle: | 1 pc/pcs |
| Material: | MDF (medium density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 53 cm Depth: 55 cm Height: 47 cm |
| Weight: | 26.15 kg |
| OMNITRONIC AZX-212A 2-way Top active 250W | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power: | Rated: 200W RMS LF Rated: 50W RMS HF |
| Frequency range: | 55 - 20000 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Attachment system: | Dual flange: Ø 35mm (0° / 5°) |
| Flying points: | 7 x M10 thread |
| Circuitry: | Class D Biamp |
| Control elements: | Power switch, Input sensitivity switch, tone control, level control |
| Controls: | Limiter |
| Status LED: | Limit, power, signal |
| Connections: | Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
| Input channels: | 1 x mono with mic-line switch via Combination socket (XLR/jack), channel control via rotary dial |
| Equalizer: | Master: 1 x 2-band tone control |
| Speaker: | Woofer 12" with ferrit magnet Basket material: steel Conematerial: cardboard/paper Voice coil lows 2" Voice coil compression tweeter highs 1.35" |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 1 pc/pcs |
| Material: | MDF (medium density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 37 cm Depth: 35.2 cm Height: 62.2 cm |
| Weight: | 19.15 kg |
| OMNITRONIC Distance Tube Subwoofer/Satellite M20 | |
| Maximum carrying capacity: | 30 kg |
| Tube diameter sector: | 41 - 35 mm |
| Height: | Maximum: 130 cm Minimum: 75 cm |
| Attachment system: | Ø 35mm |
| Type (general stands): | Distance tube |
| Color: | Black |
| Thread: | M20 thread |
| Weight: | 0.90 kg |
