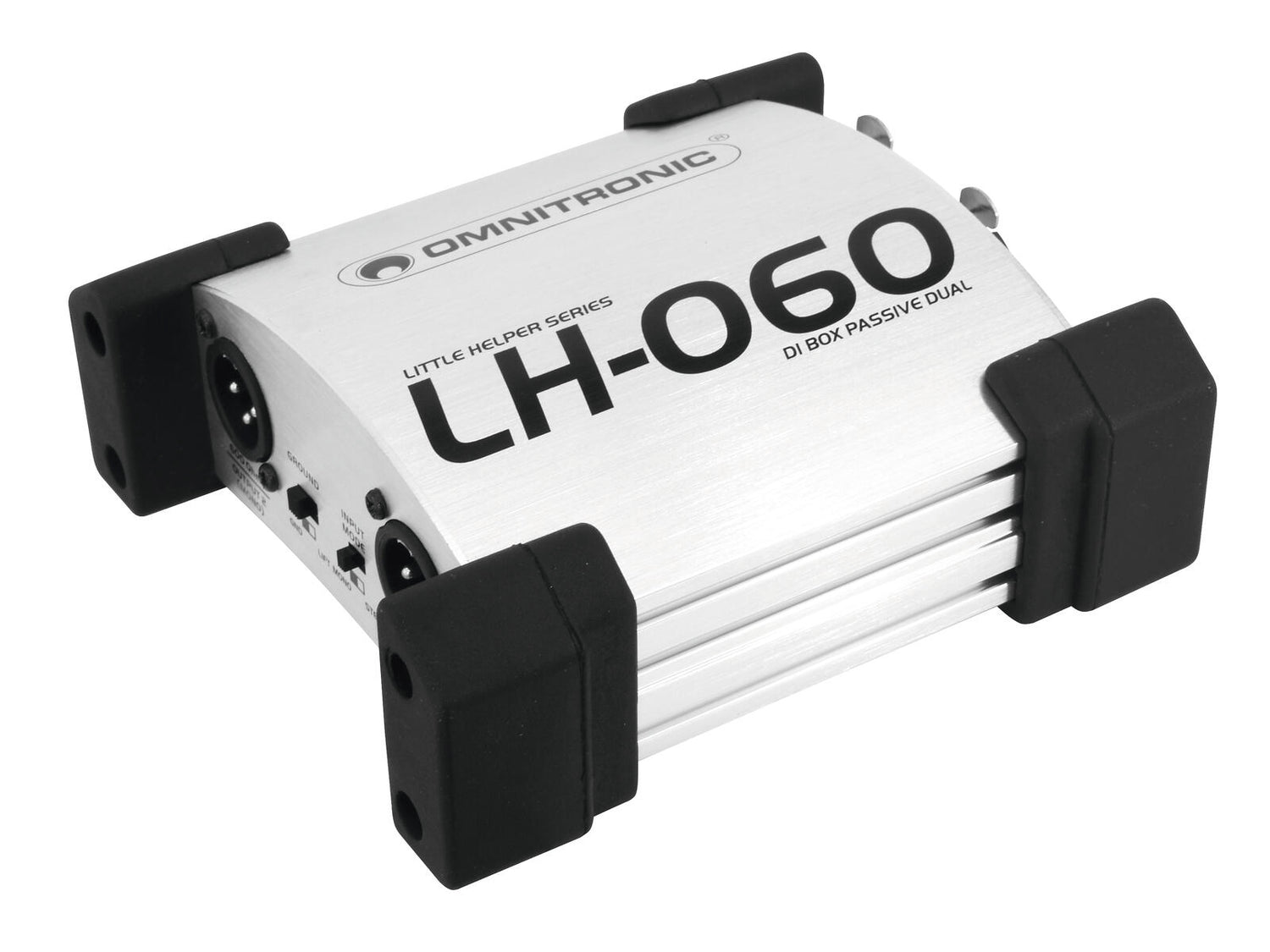

OMNITRONIC LH-060 PRO Dual DI Box passive
1
von
4
Lade...
€76,95
Stückpreis
/
Nicht verfügbar
Inkl. MwSt. • B2B zzgl. MwSt.
Versand 10 € (kostenlos ab €199)
Beschreibung
Beschreibung
Passive 2-channel DI box/splitter, silver

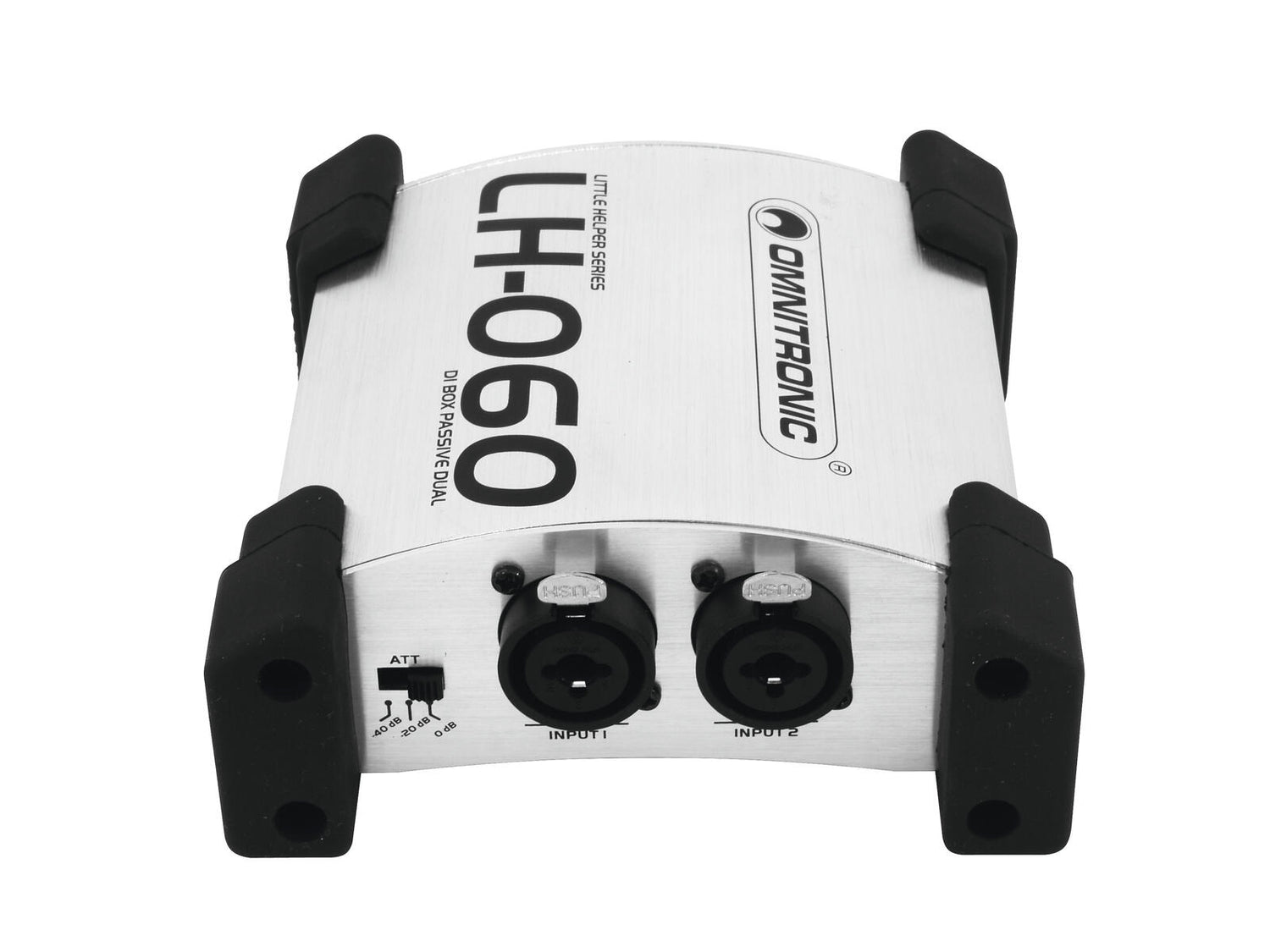

- 2 high-impedance signal inputs via combo connectors (XLR/6.3 mm jack)

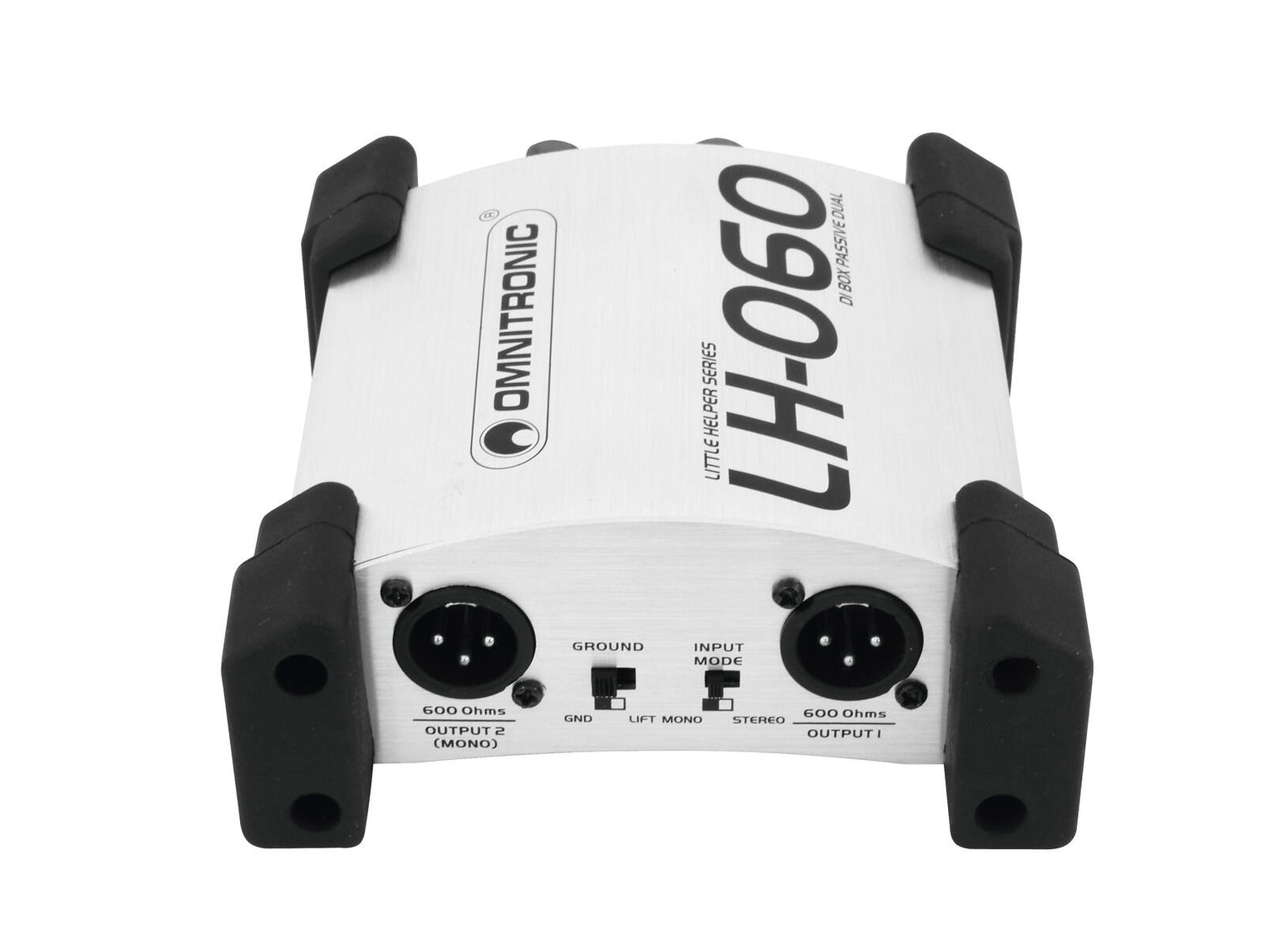

- 2 low-impedance XLR outputs
- Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs, for connecting a mixer
- Switchable to split mode (input 2 routes the signal to both outputs)
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Cables can be routed under the housing
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Scope of delivery
- 1 x device
- 1 x user manual
| Frequency range: | 15 - 30000 Hz |
| Impedance: | Input: 50 kOhm Output: 600 Ohm |
| Input attenuation: | 0 dB, -20 dB, -40 dB; switchable |
| Housing color: | Silver |
| Control elements: | Groundlift selector |
| Connections: | Input: 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 3-pin XLR |
| Max. level: | Output: +6 dBu |
| Dimensions: | Width: 15 cm Depth: 13 cm Height: 6 cm |
| Weight: | 0.65 kg |
