3-channel microphone mixer
- Compact mixer to mix 3 microphones to 1 line output, with individual level control
- 3 microphone input channels with separate level controls, switchable phantom power and low cut
- 1 master output with line level, clip LED
- 1 headphones output (6.3 mm jack)
- Inputs and output via balanced XLR connectors
- Desktop console housing
Scope of delivery
- 1 x user manual

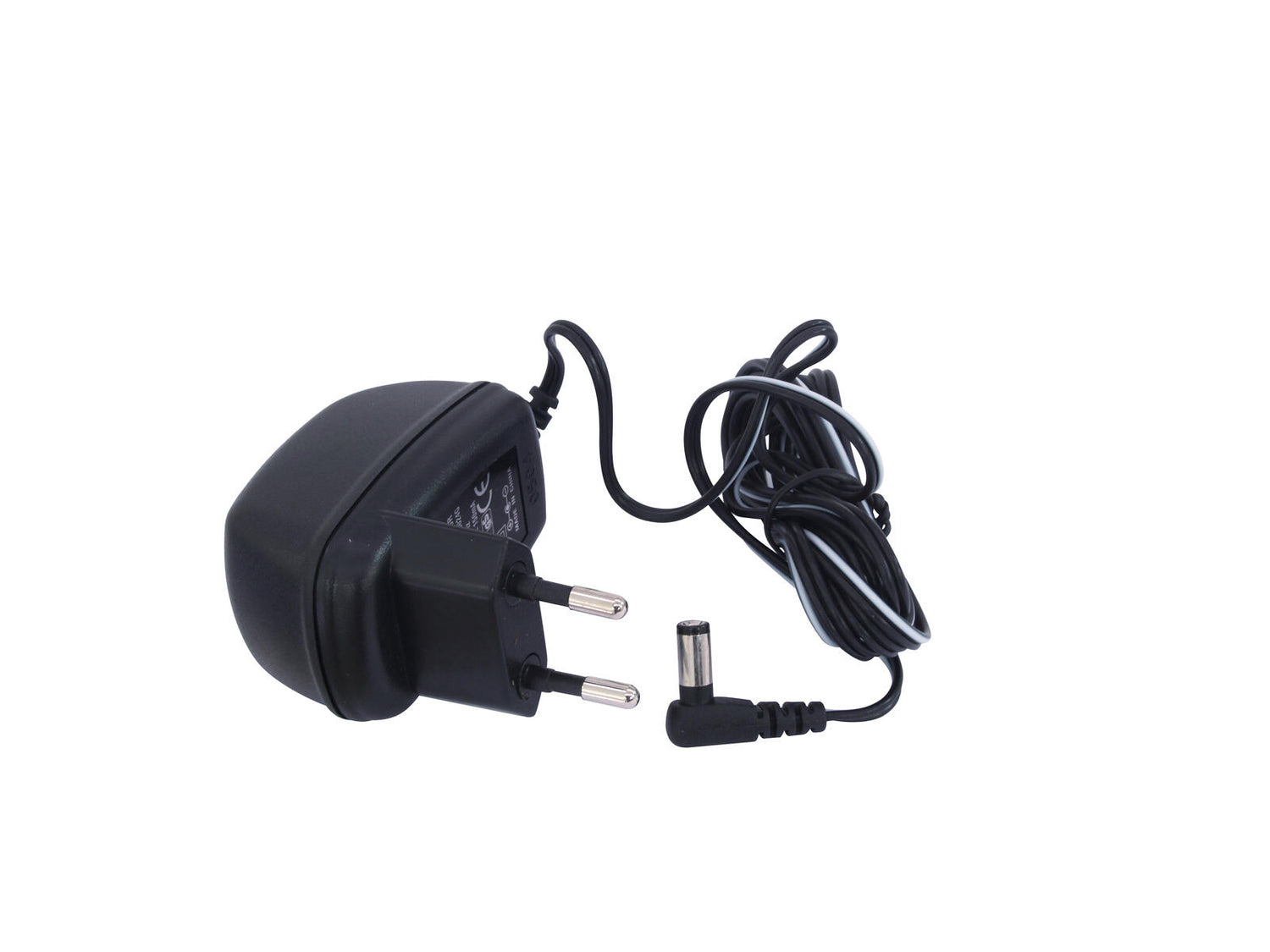

- 1 x external mains adapter
- 4 x foot
- 1 x mixer
| Power supply: | 12V DC 150 mA Or 18V DC |
| Pin configuration: | Inside - / outside + |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) Battery/battery pack |

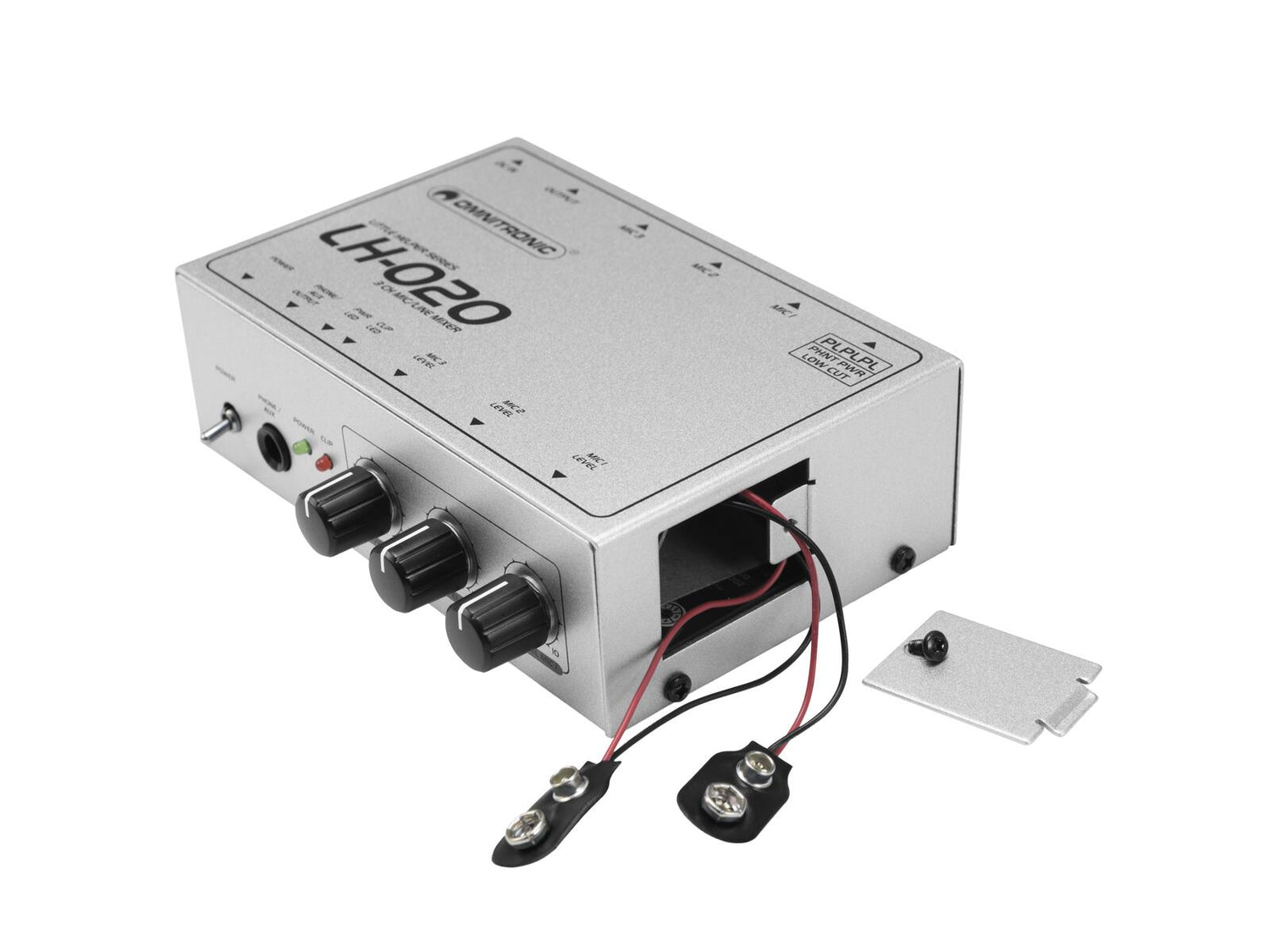

| Battery: | 2 x 9.0 V E block (not included) |
| Frequency range: | 25 - 16000 Hz |
| S/N ratio: | >75 dB |
| THD: | <0.02 % at 1 kHz |
| Phantom power: | 18 V DC |
| Impedance: | Input: 600 Ohm 600 Ohm |
| Gain: | 60 dB |
| Housing color: | Silver |

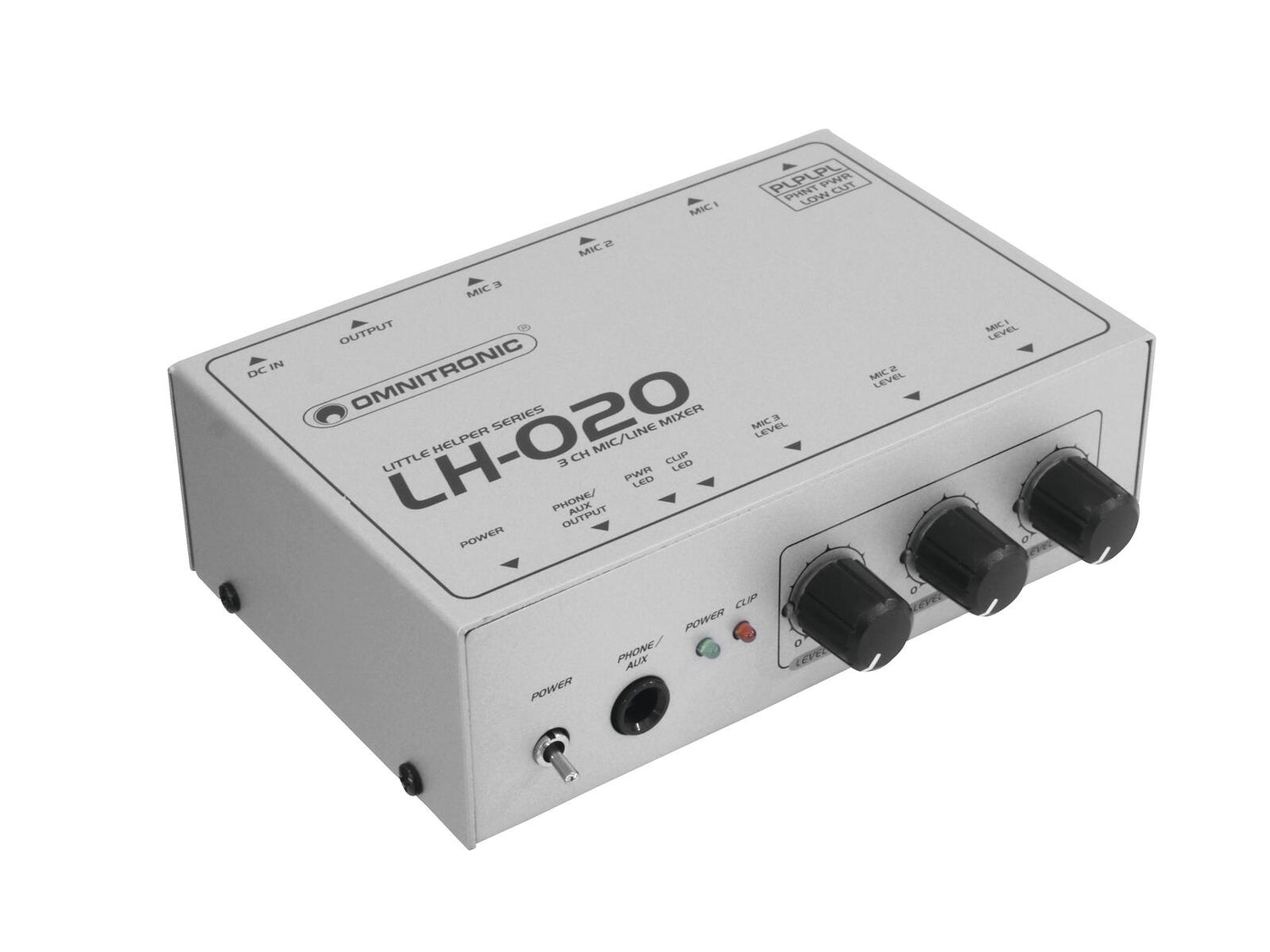

| Control elements: | Power switch, low cut switch, phantom power switch, level control per channel |
| Status LED: | Power, clip |

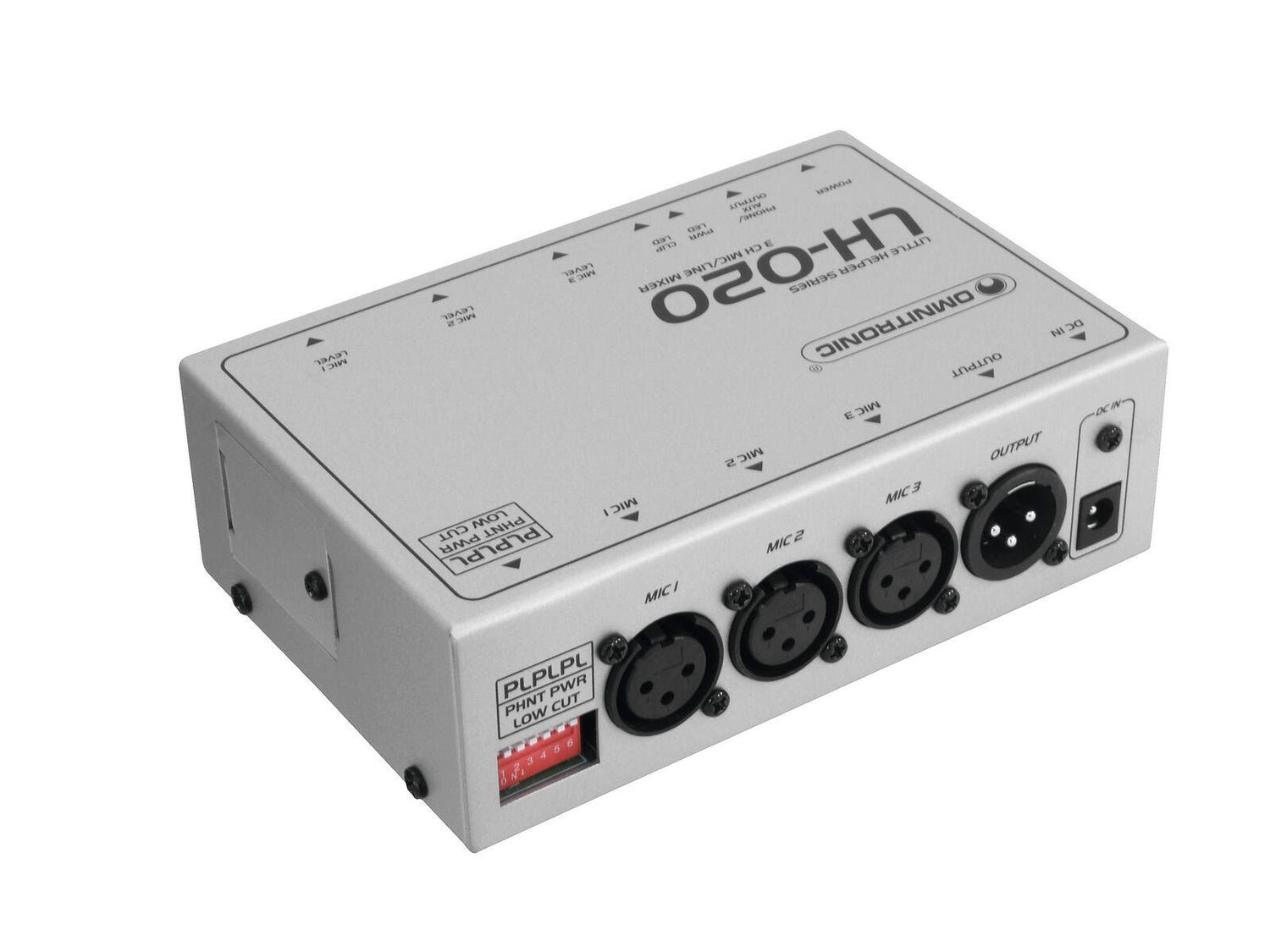

| Connections: | Input: microphone via 3 x 3-pin XLR Output: microphone via 1 x 3-pin XLR Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Input channels: | 3 x mono via XLR, channel control via rotary dial |
| Max. level: | Input: -14 dB Output: +14 dB |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 14.3 cm Depth: 9.3 cm Height: 4.5 cm |
| Weight: | 0.76 kg |
