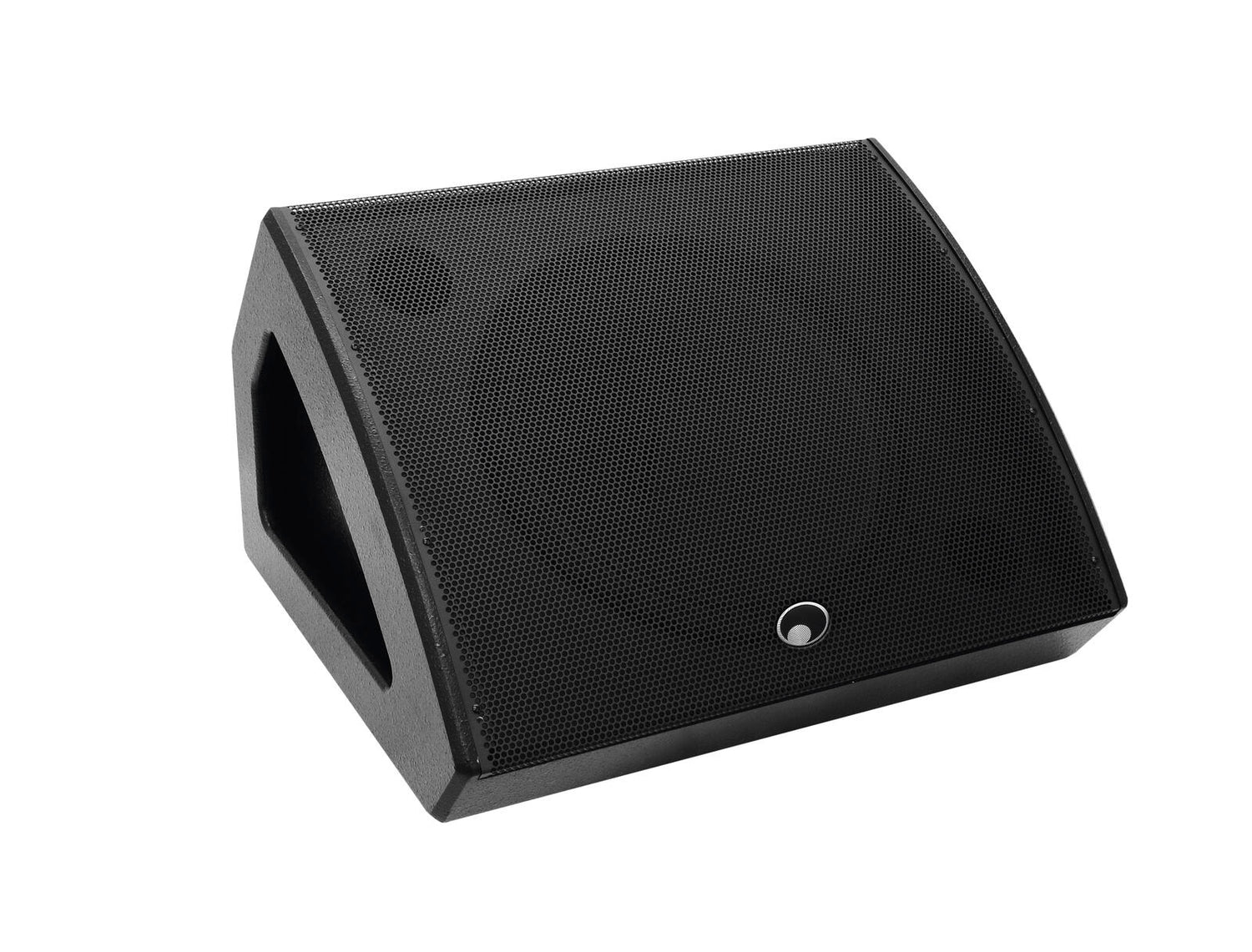

OMNITRONIC KM-115A Active Stage Monitor coaxial
1
von
5
Lade...
€409,95
Stückpreis
/
Nicht verfügbar
Inkl. MwSt. • B2B zzgl. MwSt.
Versand €10
Beschreibung
Beschreibung
Monitor, 15" woofer, 1.35" driver, 250 W RMS LF, 50 W RMS HF
- Active 2-way coaxial stage monitor for live and playback applications
- Class D/AB biamp power amplifier
- 38 cm bass speaker (15") and 3.5 cm compression driver (1.35")
- Bassreflex cabinet provides deep bass and high SPL
- Low cut, volume control
- Black metal grille
- Application possibility: Standing; monitoring; on stand
- For application areas such as: Band/rehearsal room; mobile use; stage
Scope of delivery
- 1 x compact cabinet speaker
- 1 x user manual
- 1 x power cord
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 300 W 1/8 power |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Power: | Program: 500W Rated: 50W RMS HF Rated: 250W RMS LF |
| Frequency range: | 45 - 20000 Hz |
| Max. SPL: | 124 dB |
| Dispersion angle: | 60° x 60° |

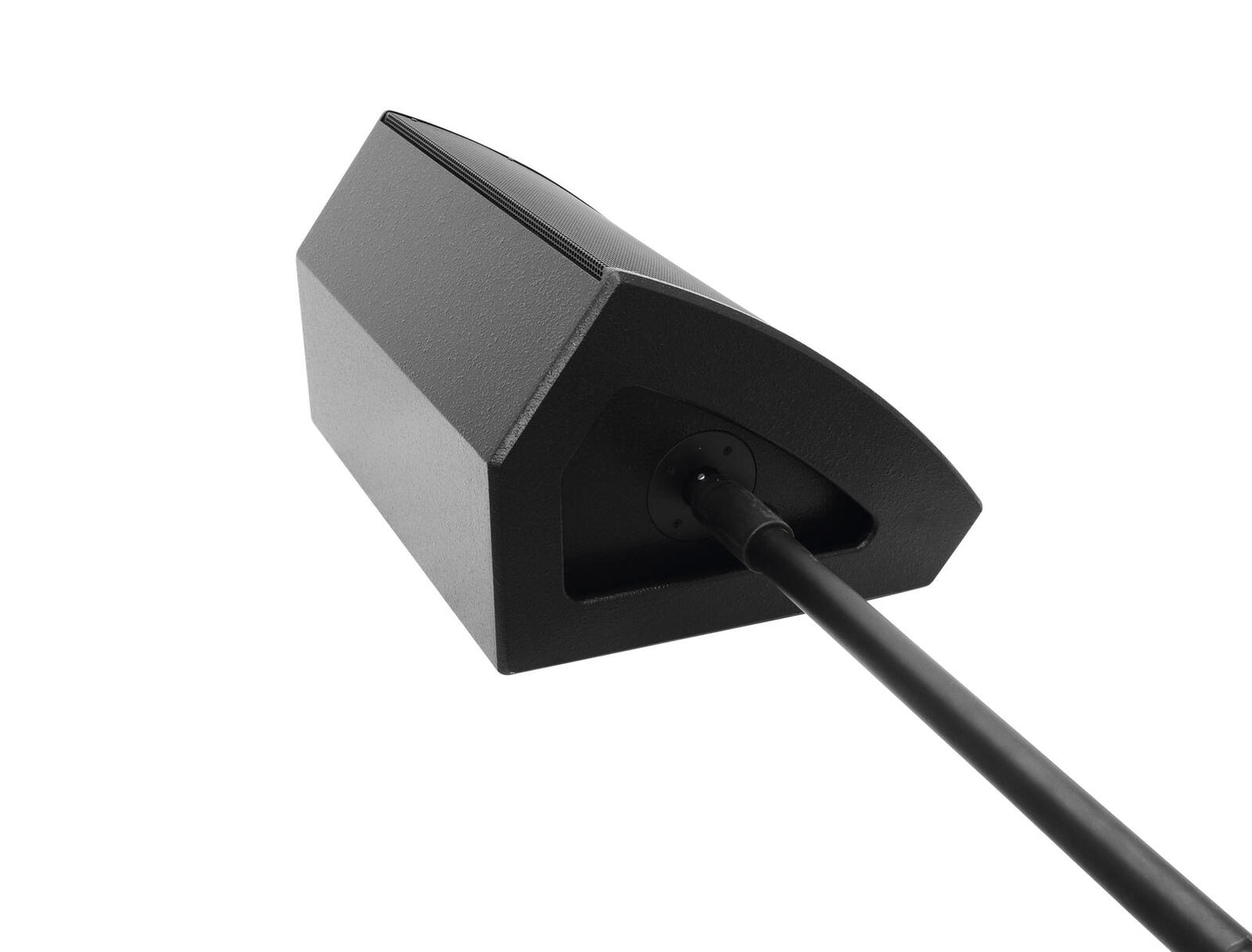

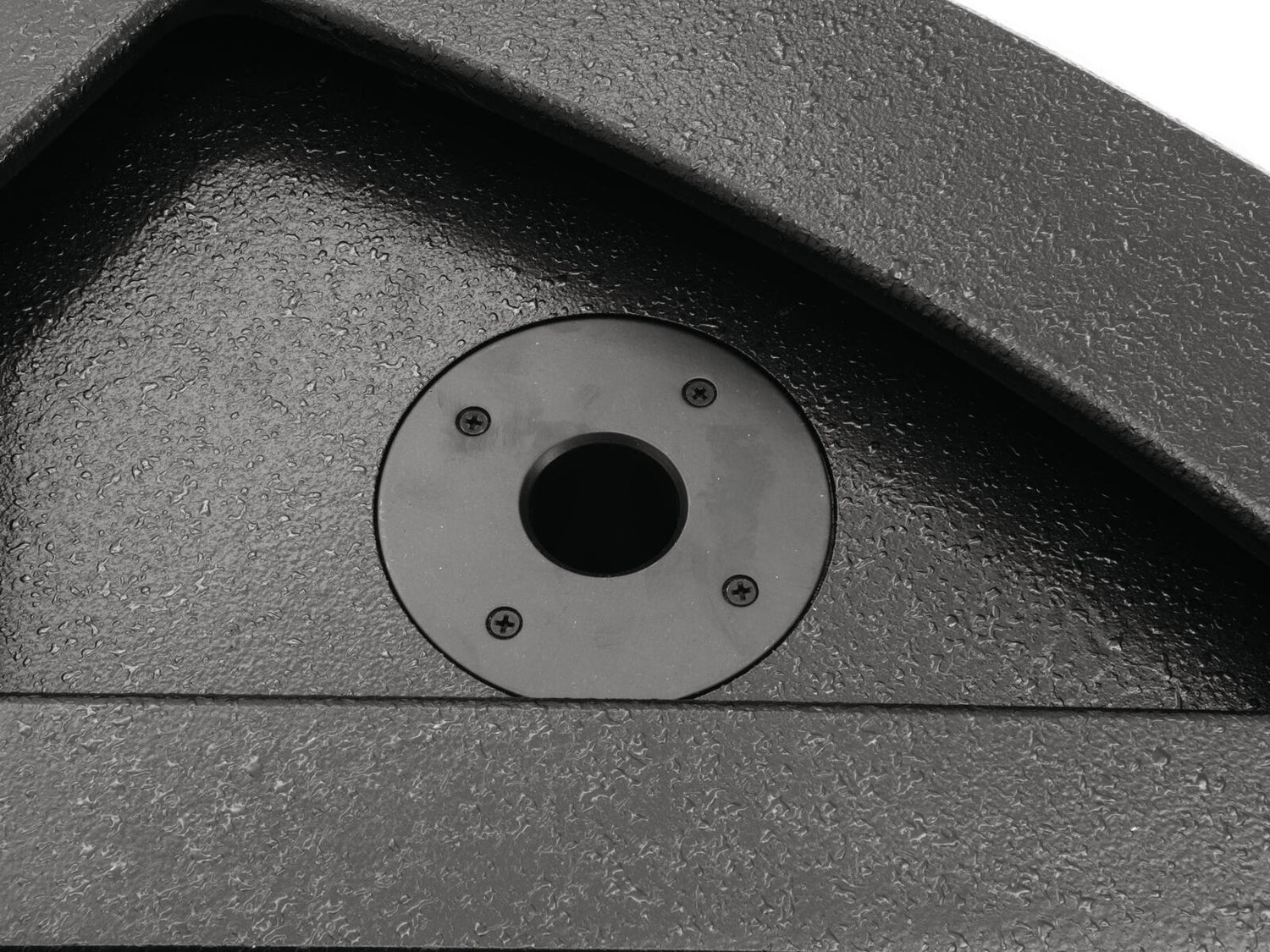

| Attachment system: | Flange: Ø 35mm |

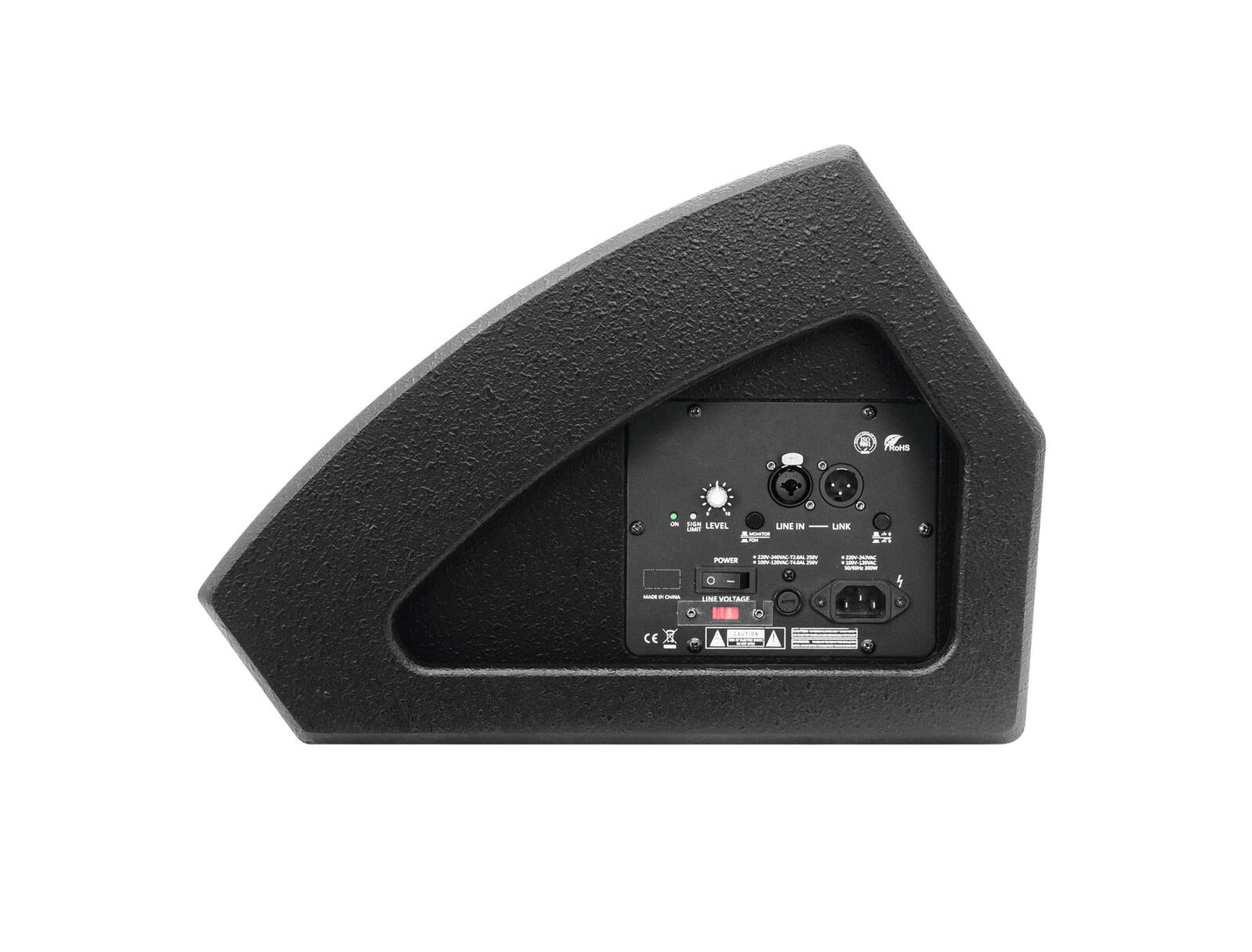

| Control elements: | Power switch, level control, tone control, groundlift selector |
| Controls: | Overload; limiter |
| Status LED: | Power, limit |
| Connections: | Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
| Input channels: | 1 x mono via XLR or jack, channel control via rotary dial |
| Speaker: | 1 x woofer 15" with ferrit magnet Basket material: steel Conematerial: cardboard/paper 1 x voice coil compression tweeter highs 1.35" |
| Type of speaker: | Compact cabinet speaker; coaxial speaker; stage monitor |
| Material: | MDF (medium density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 60 cm Depth: 37 cm Height: 54 cm |
| Weight: | 22.90 kg |
