EUROLITE LED PPC-20 WW Spot
1
von
5
Lade...
€143,95
Stückpreis
/
Nicht verfügbar
Inkl. MwSt. • B2B zzgl. MwSt.
Versand 10 € (kostenlos ab €199)
Beschreibung
Beschreibung
Fanless spotlight with 20 W COB LED, adjustable beam angle, color rendering index (CRI) >95

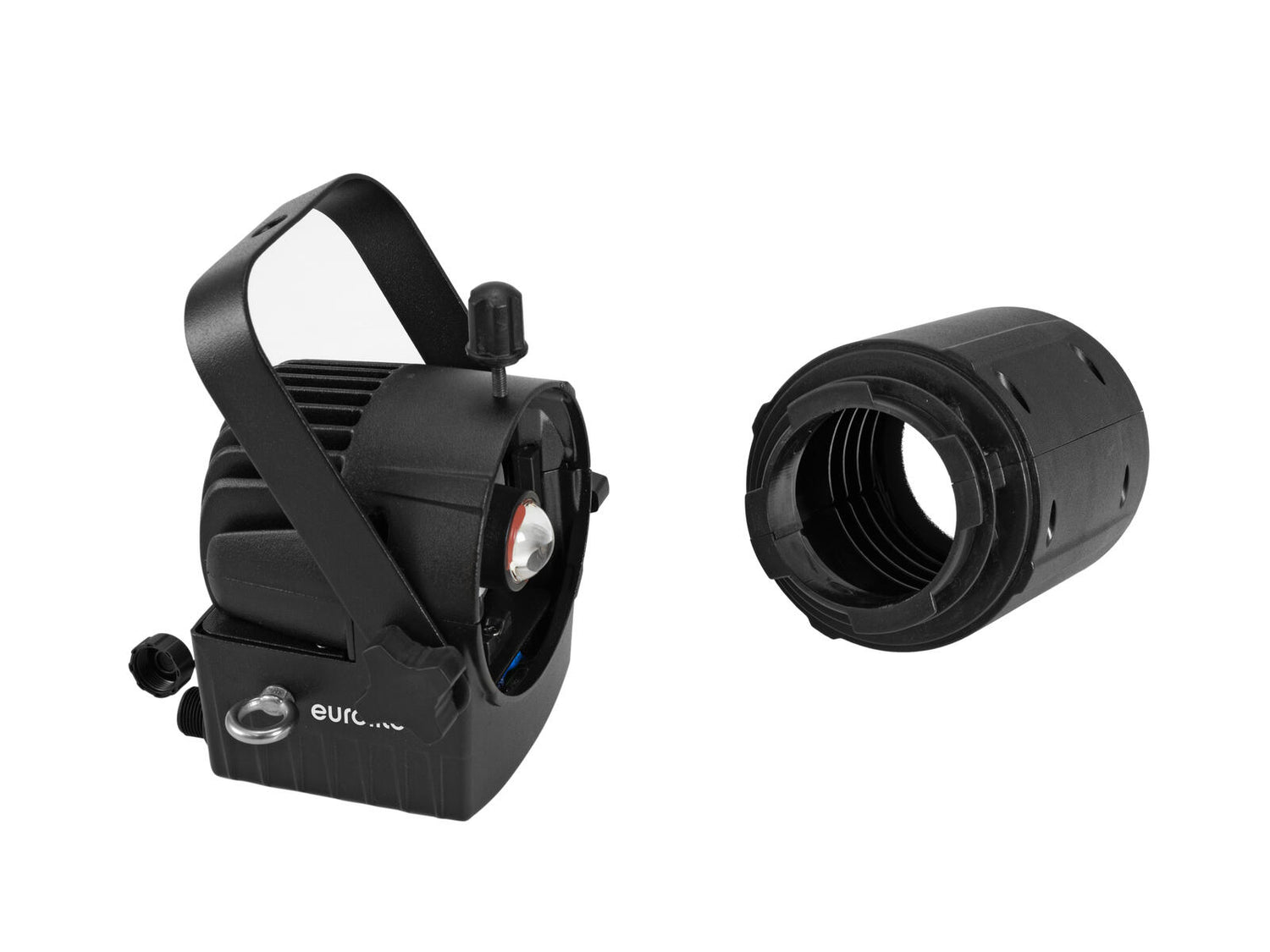

- Four beam angles adjustable via lens settings within the housing
- With plano-convex lens
- 1 LED 20 W COB (chip-on-board) warm white (WW)
- The device is cooled by passive convection cooling
- Control via rotary dial for brightness
- Flicker-free
- With a beam angle of 10°
- Very high color rendering index (CRI)
- For application areas such as: Decoration; Trade fair and shop fitting; restaurants, bars and hotels; video and photography; advertisement/Shop window
- Silent operation
- Application possibility: Suspended; on stand
Scope of delivery
- 1 x spotlight
- 1 x user manual
- 1 x power cord
- 1 x mounting bracket
- 1 x screw
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via 3-pin screw plug connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 0.5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 20 W COB (chip-on-board) warm white (WW) |
| Cooling: | Passive convection cooling |
| Control: | Rotary dial for brightness |
| Projection: | Flicker-free |
| Beam angle (1/2 peak): | 10° 15° 18° 22° |
| Beam angle (1/10 peak): | 19° 27° 30° 34° |
| Color temperature: | 3000K |
| Color rendering index (CRI): | 97 Ra |
| Illuminance in Lux (lx): | Narrow warm white (WW) 1m: 6073 lx, 3m: 742 lx, 6m: 194 lx Wide warm white (WW) 1m: 2718 lx, 3m: 350 lx, 6m: 92 lx |
| Housing color: | Black |
| Dimensions: | Length: 19.5 cm Width: 11.5 cm Height: 16.5 cm |
| Weight: | 1.12 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
