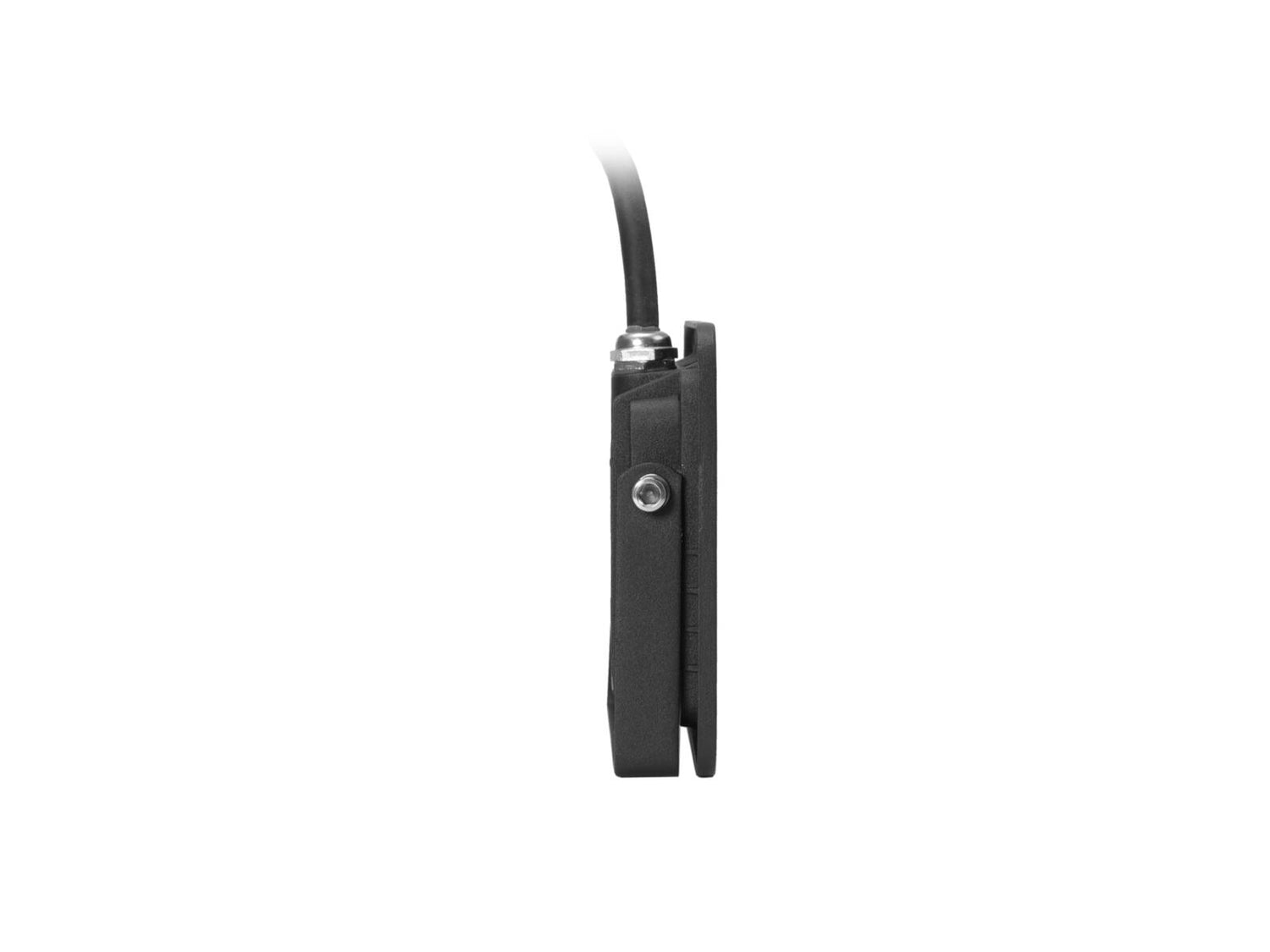

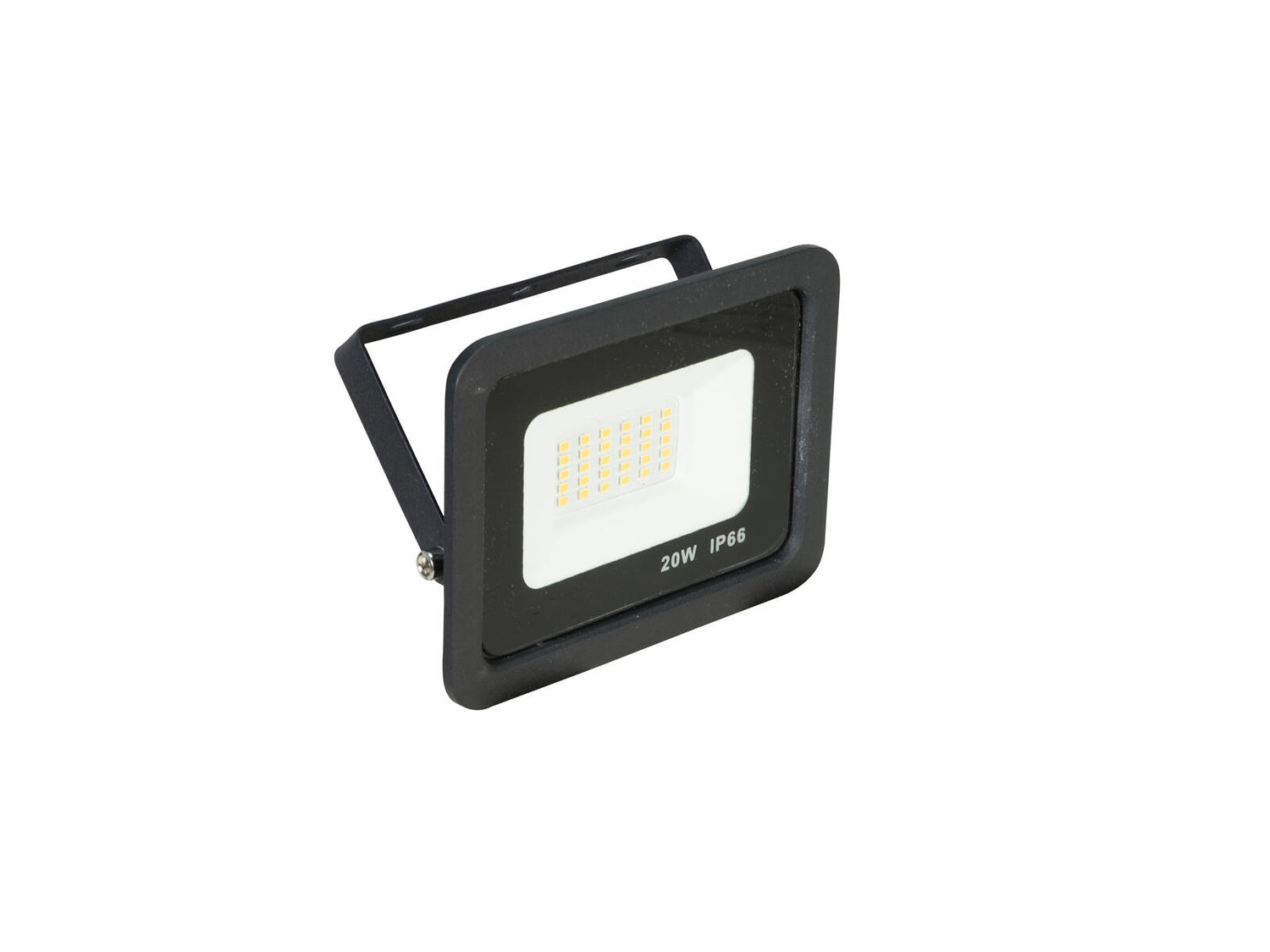

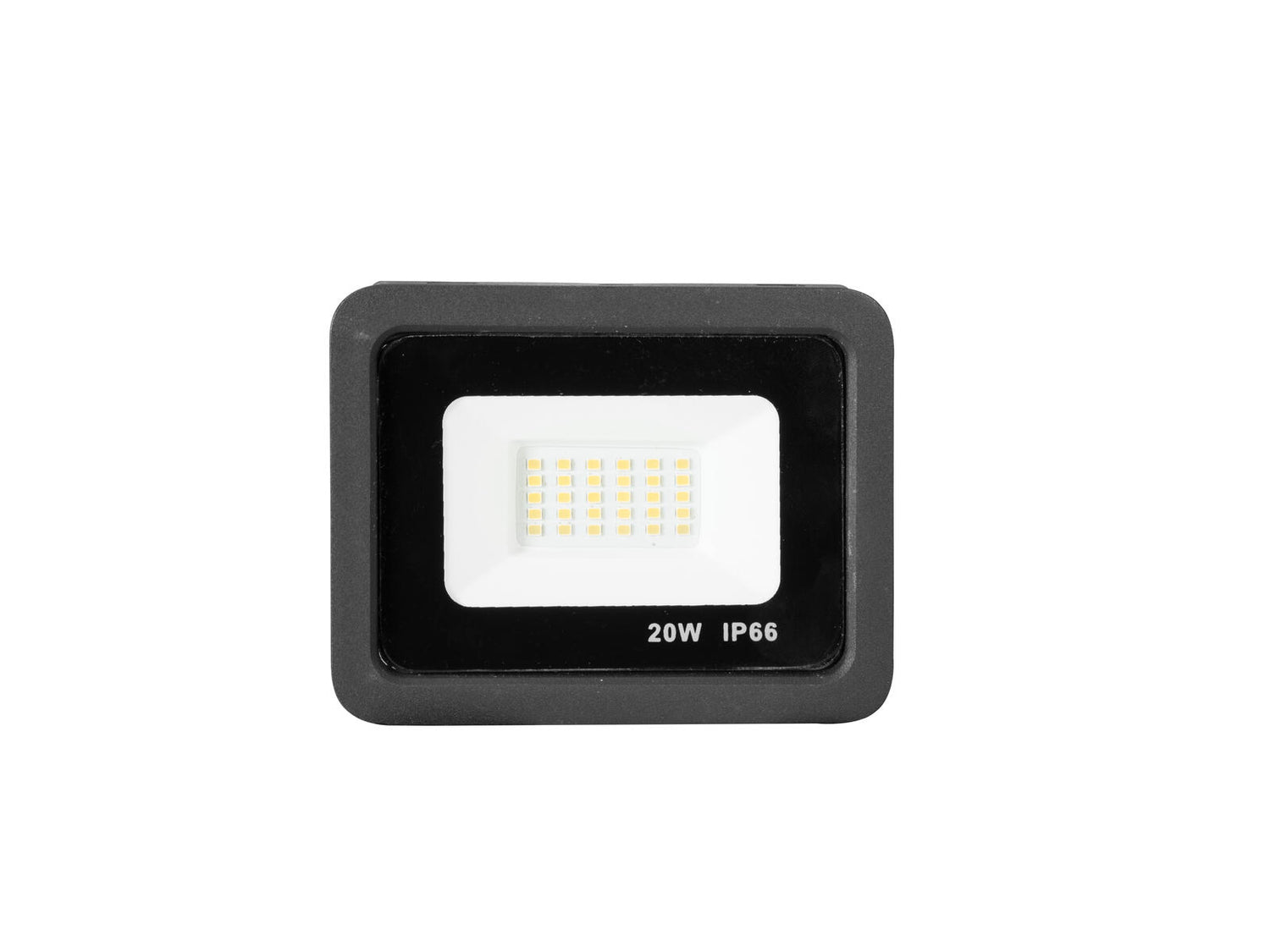

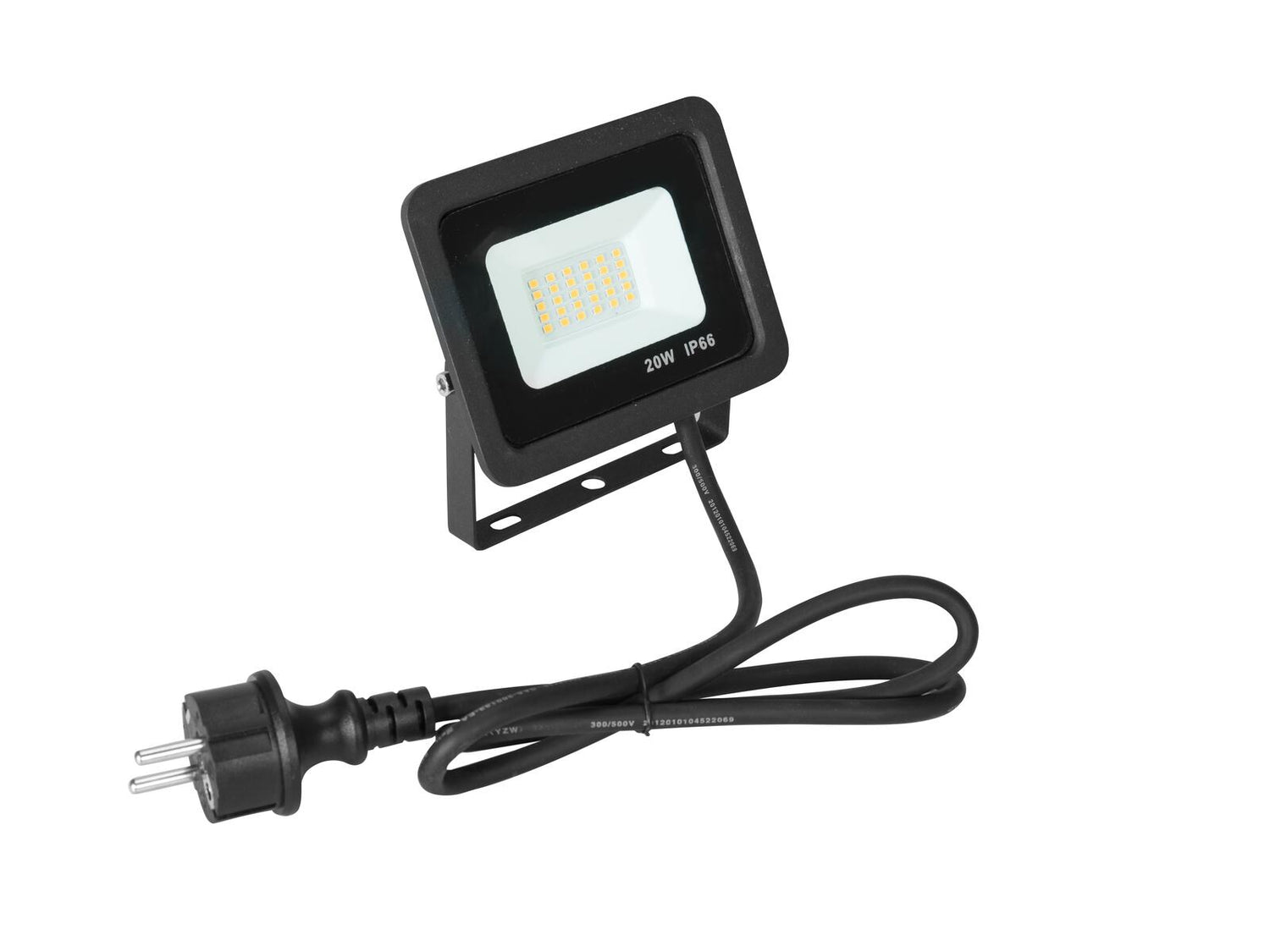

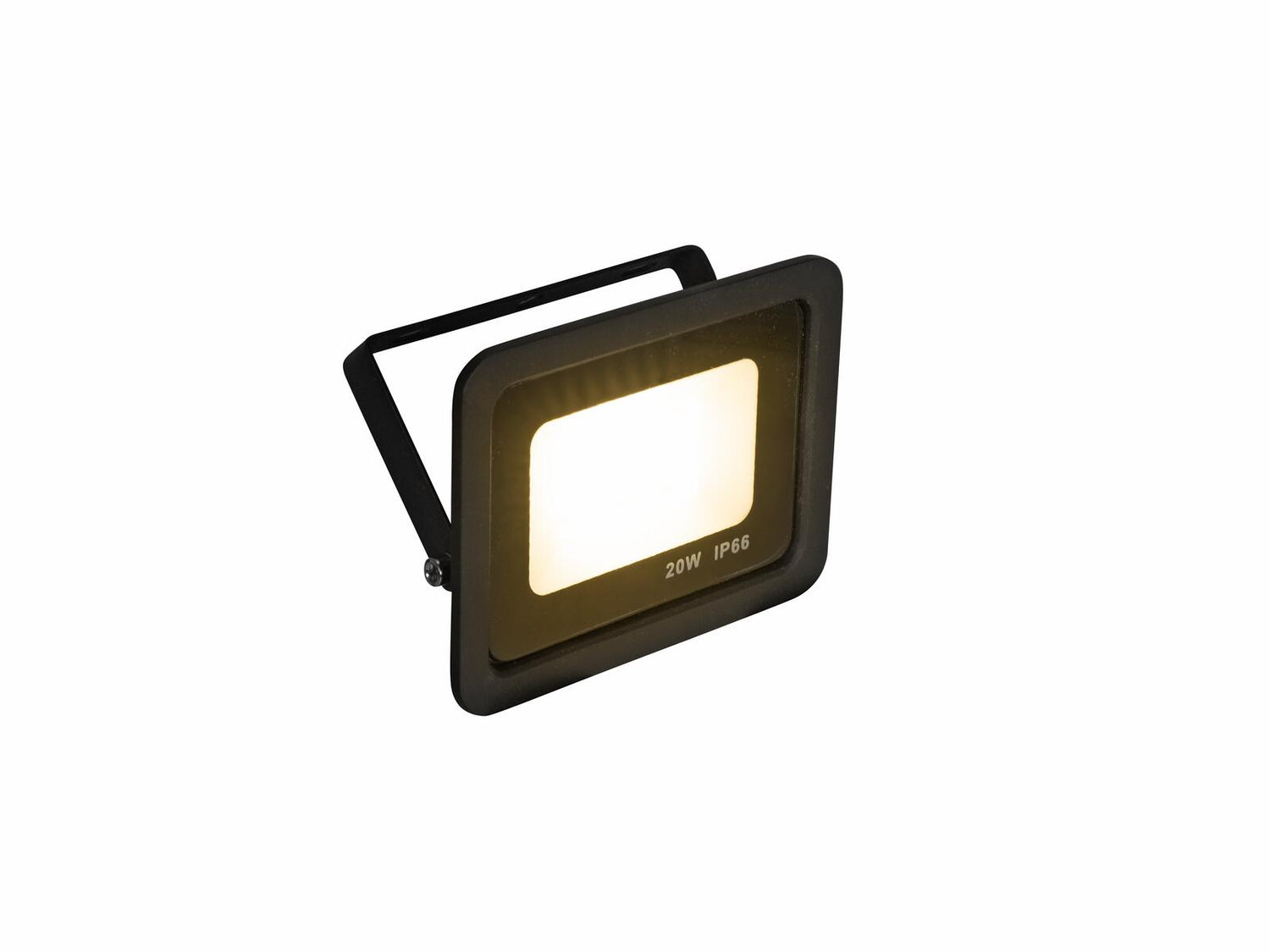

EUROLITE LED IP FL-20 SMD WW
1
von
5
Lade...
€15,95
Stückpreis
/
Nicht verfügbar
Inkl. MwSt. • B2B zzgl. MwSt.
Versand 10 € (kostenlos ab €199)
Beschreibung
Beschreibung
Flat outdoor floodlight (IP66) with white SMD LEDs
- 30 LEDs SMD 2835 warm white (WW)
- The device is cooled by passive convection cooling
- Control via plug and play
- Good color rendering index (CRI)
- With mounting bracket
- Suitable for outdoor use IP66
- Various versions available
- Silent operation
- For application areas such as: Architecture; decoration; restaurants, bars and hotels; advertisement/Shop window
- Application possibility: Suspended
Scope of delivery
- 1 x device
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 22 W |
| IP classification: | IP66 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1.0 mm² H05RN-F |
| Cable length: | Approx. 1 m |
| Lamp type: | LED lamp |
| LED type: | 30 x SMD 2835 warm white (WW) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle (1/2 peak): | 70° |
| Beam angle (1/10 peak): | 120° |
| Color temperature: | 3000K |
| Color rendering index (CRI): | 81 Ra |
| Luminous flux: | 1706 lm |
| Housing color: | Black matte |
| Attachment system: | Mounting bracket |
| Material: | Aluminum casting |
| Dimensions: | Width: 13 cm Depth: 2.3 cm Height: 10 cm |
| Weight: | 0.36 kg |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A - G): | F |
| EPREL-Nr: | 963719 |
| Mounting bracket | |
| Diameter mounting holes: | 2 x Ø6mm; 1 x Ø8mm |
| Material: | Metal, 1.5 mm |
