EUROLITE EC-2 DMX Controller

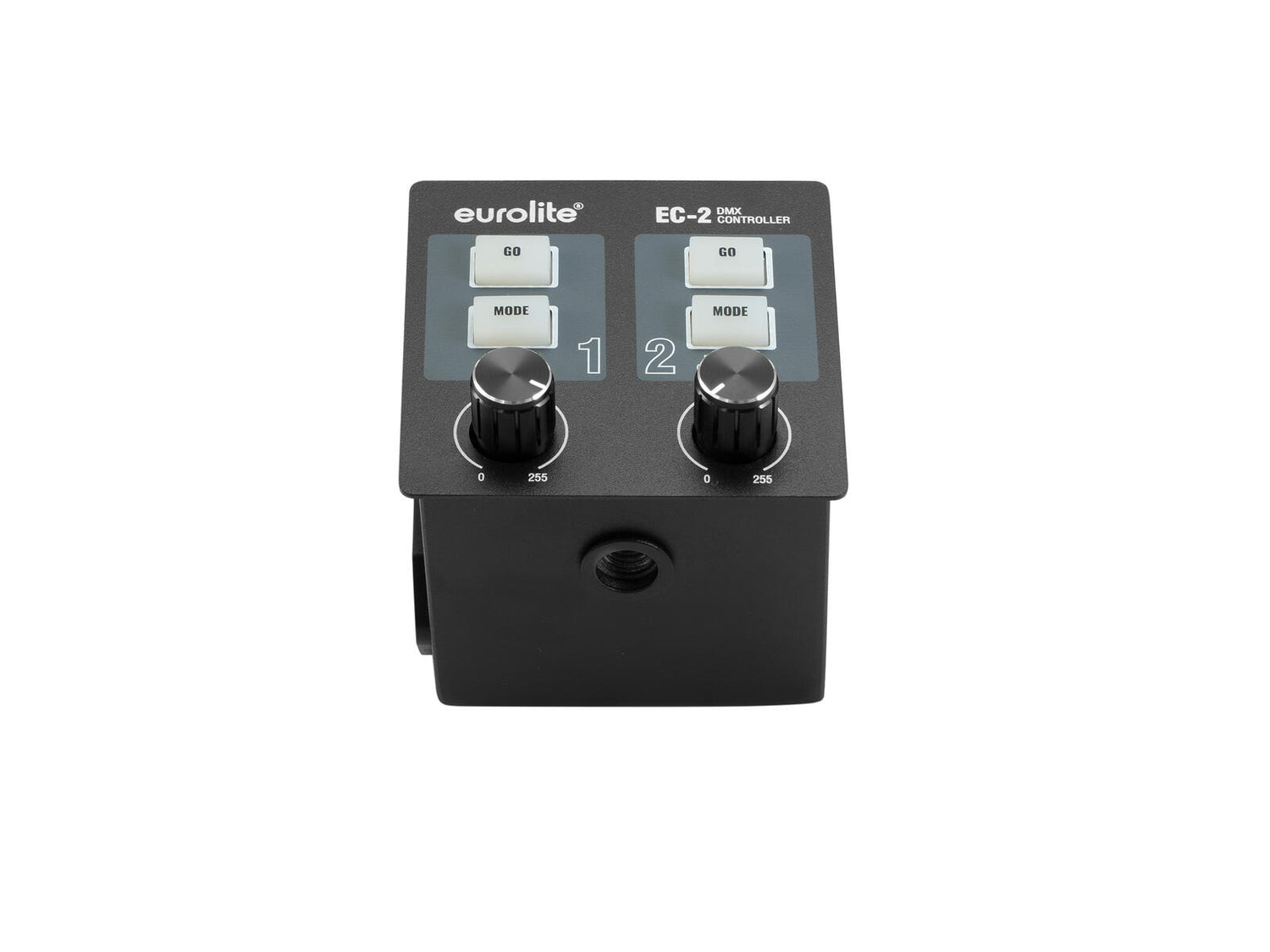

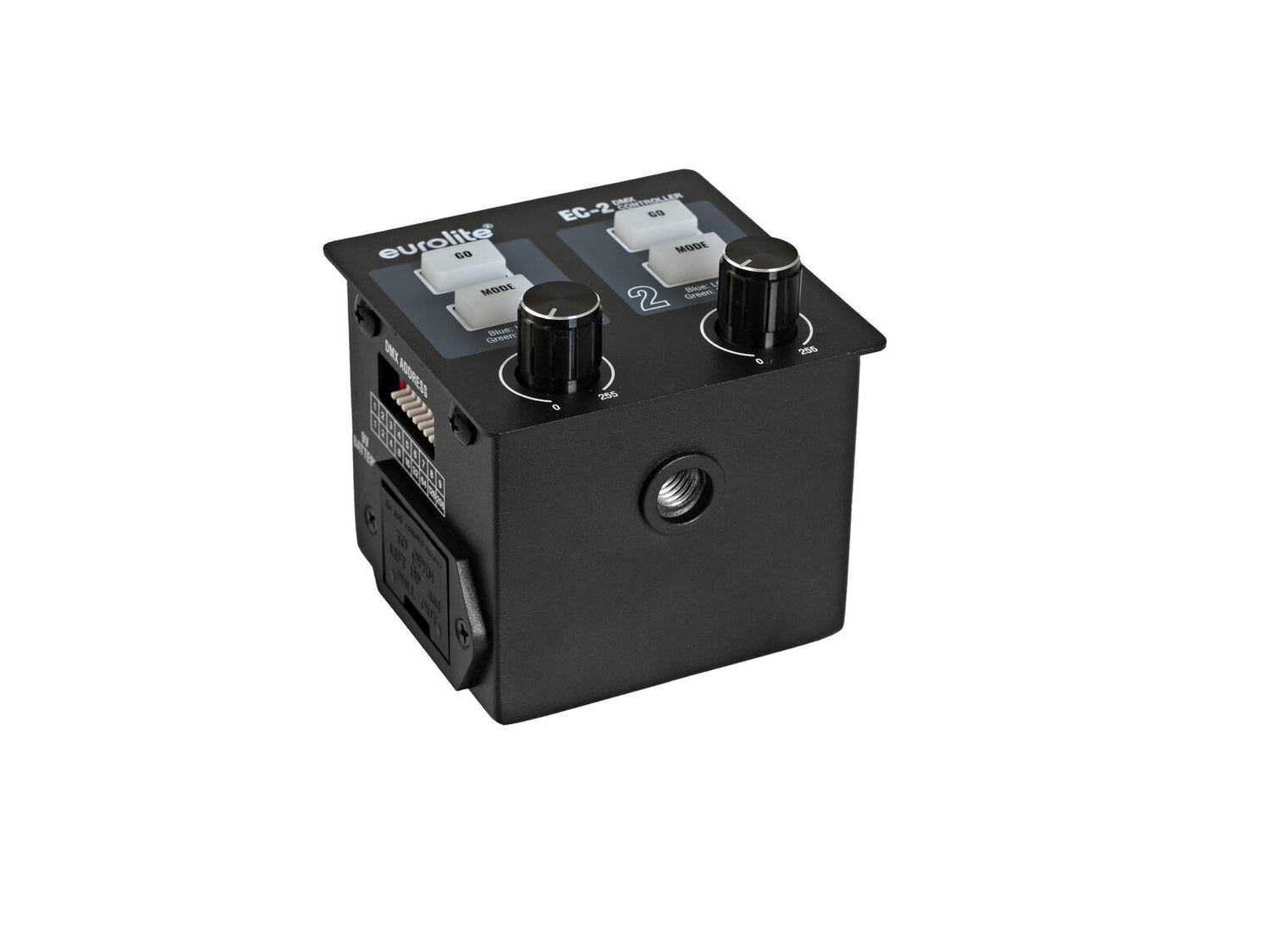

The EC-2 is a compact 2-channel DMX controller with 3-pin XLR output. It is used for easy operation of fog machines, strobes, blinders and other DMX-controlled devices on stage. Each channel has a backlit trigger and mode button as well as a control knob to set the DMX values. An M10 threaded insert enables attachment to a microphone stand, for example. Delivery includes a power adapter. Operation with a 9 V battery is also possible.

Compact 2-channel DMX controller for fog machines, strobes, blinders and other stage lights

• Compact DMX controller for easy application

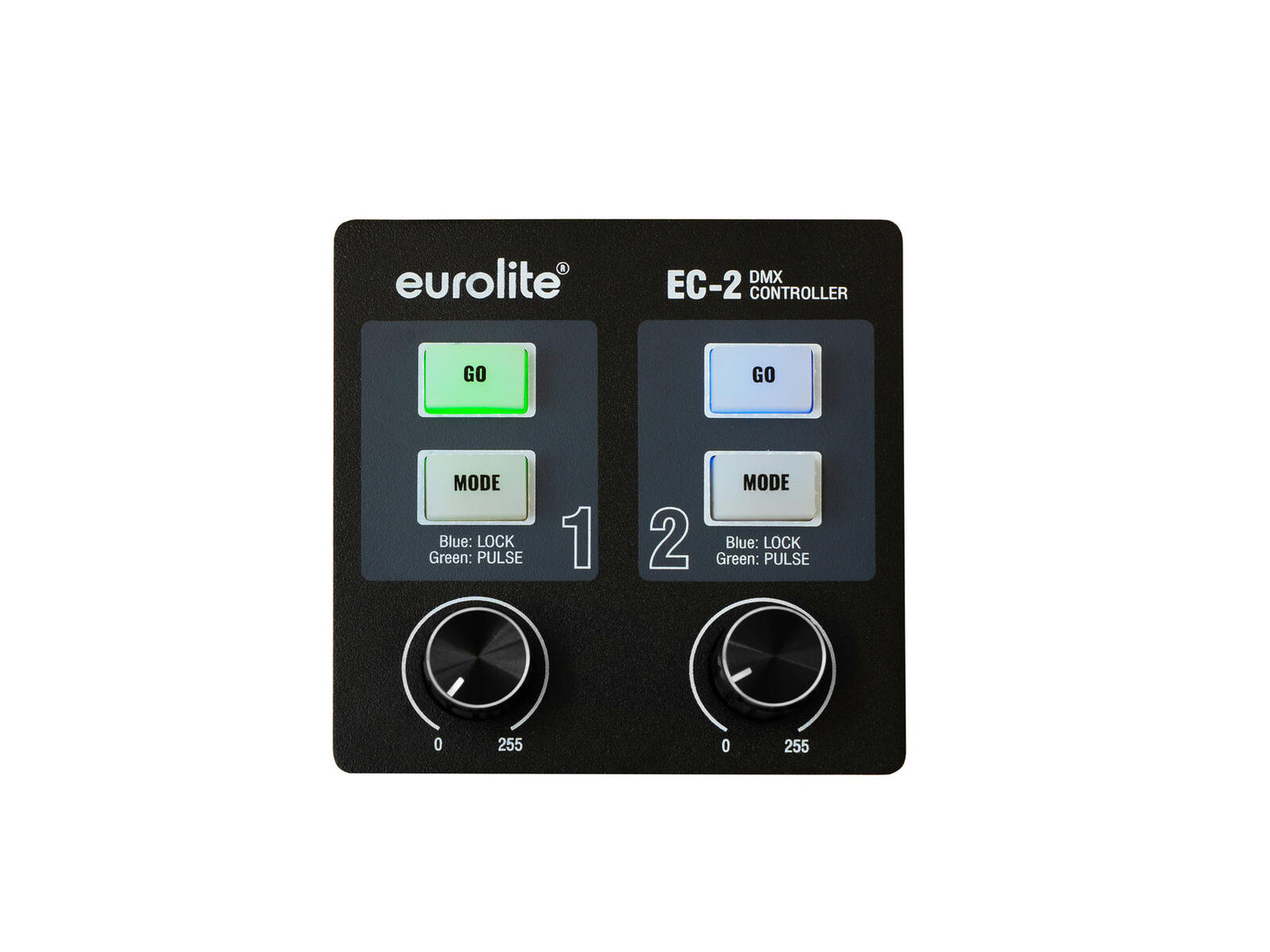

• Backlit trigger and mode button and control knob to set DMX values per channel
• Can transmit up to 2 DMX channels
• Powered by a battery/battery pack
• Desktop console housing

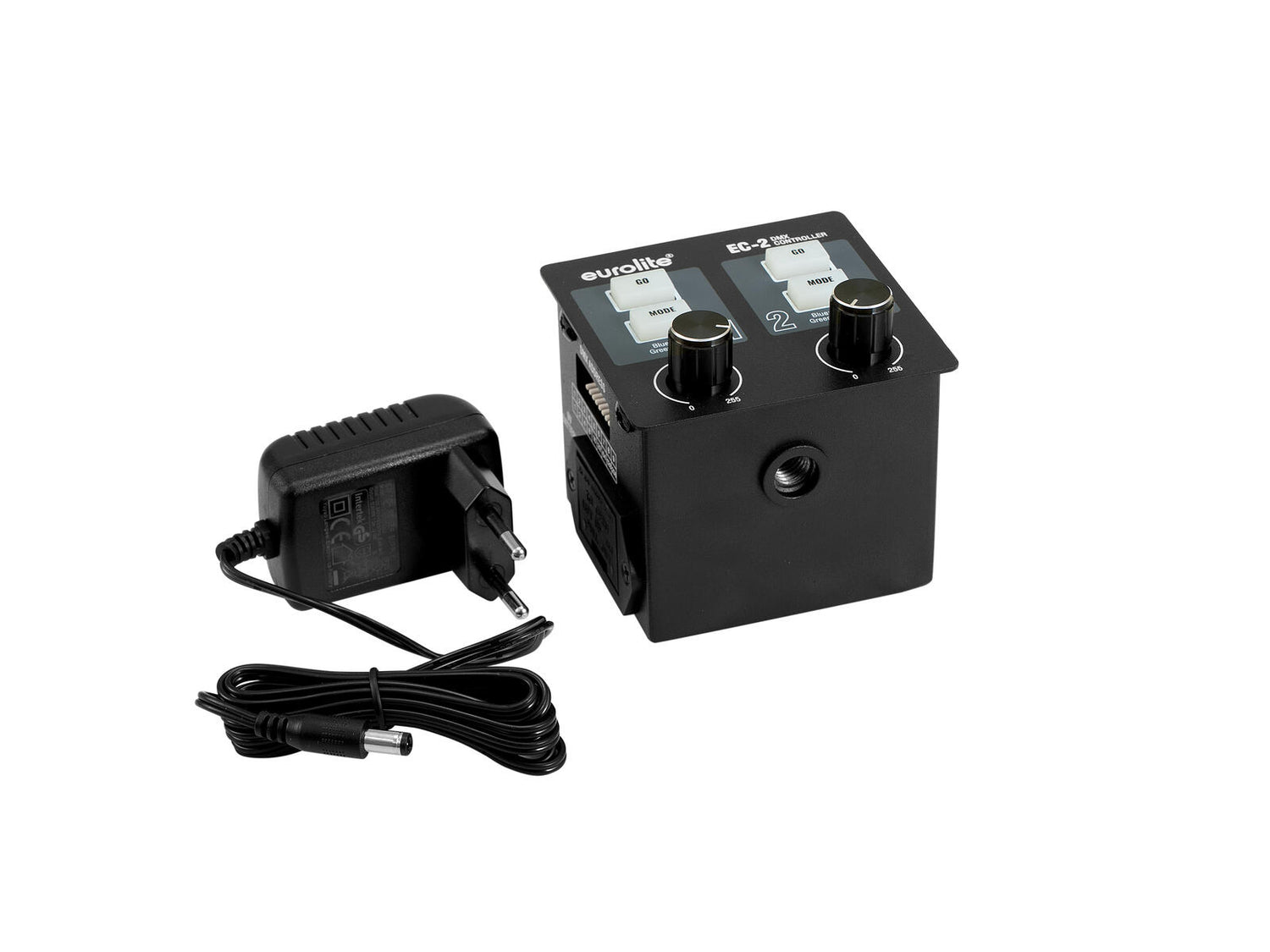

Scope of delivery

• 1 x controller
• 1 x user manual
• 1 x external mains adapter

Power supply:	100-240 V AC, 50/60 Hz 9V DC 50 mA
Pin configuration:	Inside + / outside -
Power consumption:	Approx. 1 W
Protection class:	Protection class III
Power connection:	Mains input via coaxial power connector (M)
Battery:	1 x 9.0 V E block (not included)
DMX channels:	Output 2

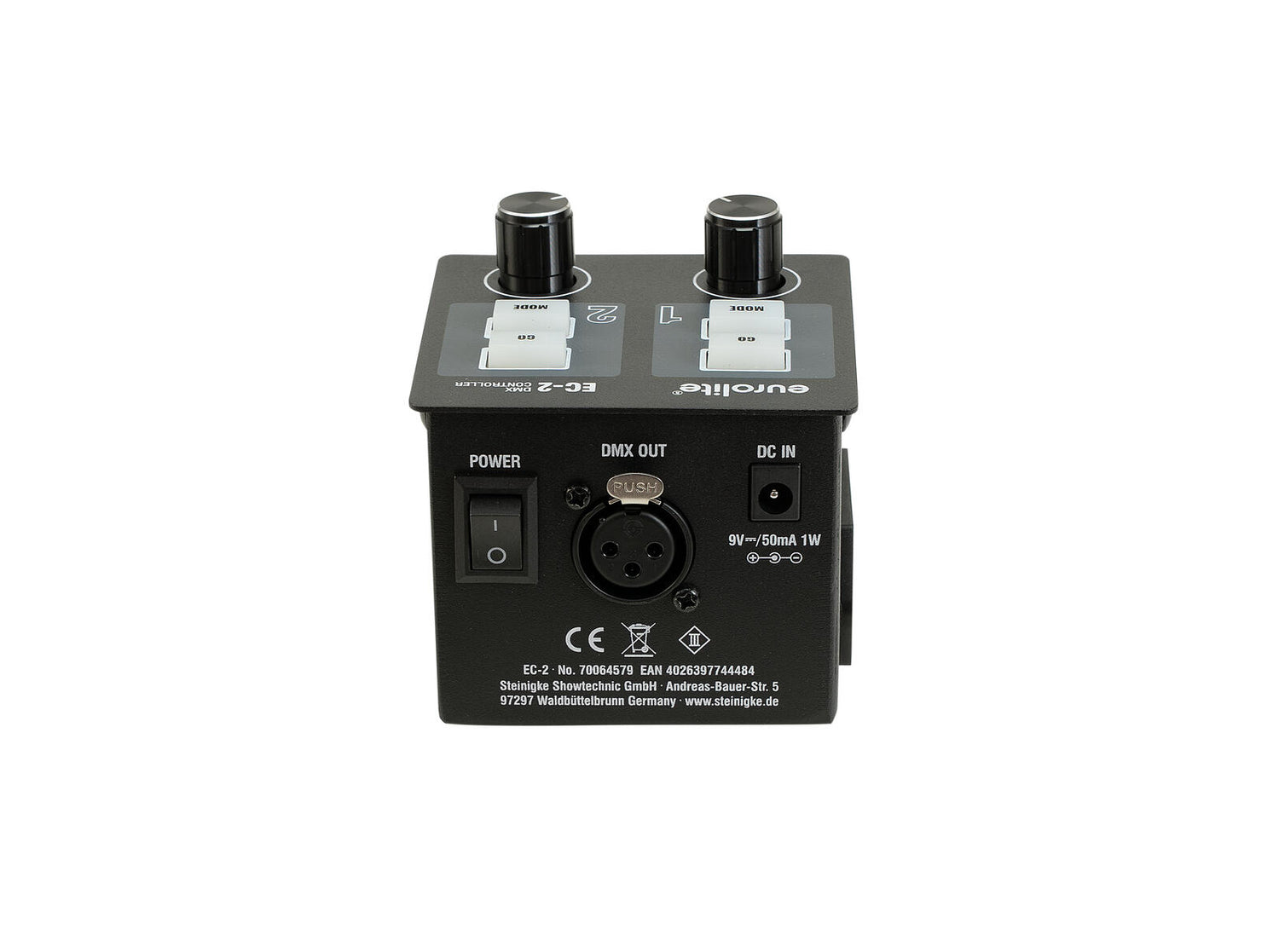

DMX output:	1 x 3-pin XLR (F) mounting version
Housing color:	Black matte
Attachment system:	1x M8 thread
Control elements:	Power switch
Material:	Metal, painted
Housing design:	Desktop console housing
Dimensions:	Length: 8 cm Width: 8 cm Height: 8.2 cm
Weight:	0.42 kg
