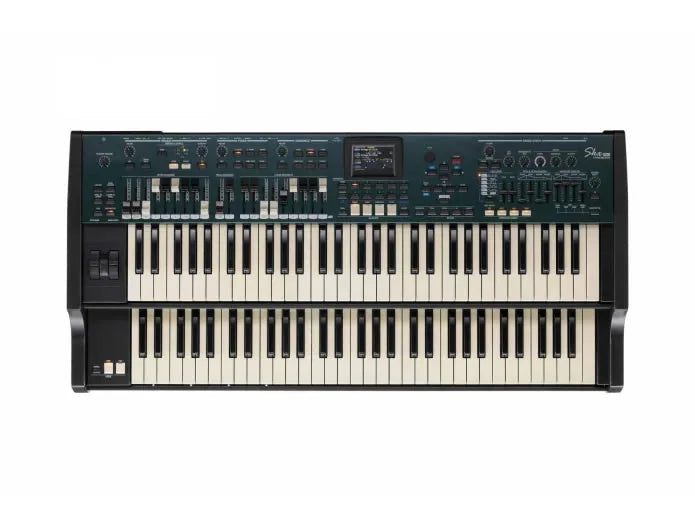

Hammond SKX PRO E-Orgel

■Sound Engine…[Organ Section] MTW1 (Modelled Tone Wheel I), Polyphony: 61 (Tone Wheel Organ) [Piano/Ensemble Section] Sampling Sound Engine,
Polyphony：128 [Mono Synth Section] Analog Modeling Synthesizer, Monophonic ■Keyboard…Double manual 2 x 61-key with velocity, semi-weighted, Square-front

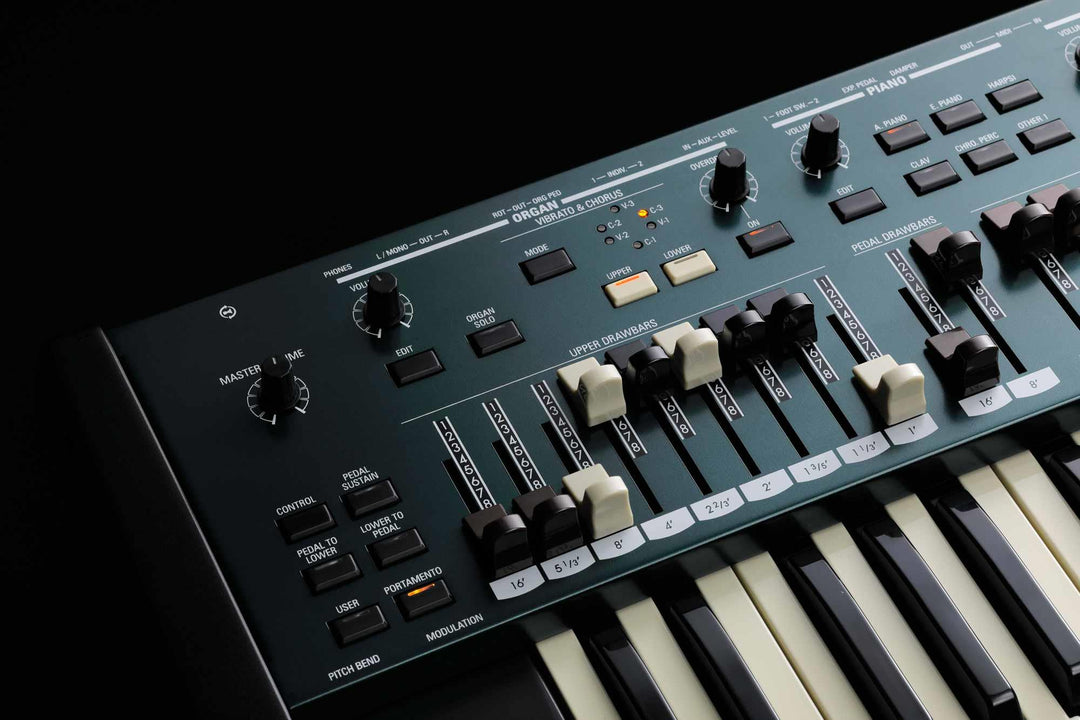

("Waterfall"-style) ■Organ Section…[Parts] 3 (Upper, Lower, Pedal) [Drawbars] Upper9, Lower9, Pedal2 [Voicing] Upper & Lower: 8(A-100, B-3, C-3, Mellow, Vx, Farf, Ace,
Pipe) Pedal: 3 (Normal, Muted, Pipe) [Percussion] Buttons: On, Volume Soft, Decay Fast, Third Harmonic ■Piano/Ensemble Section…Component: 4, LFO: 2 ■Mono Synth

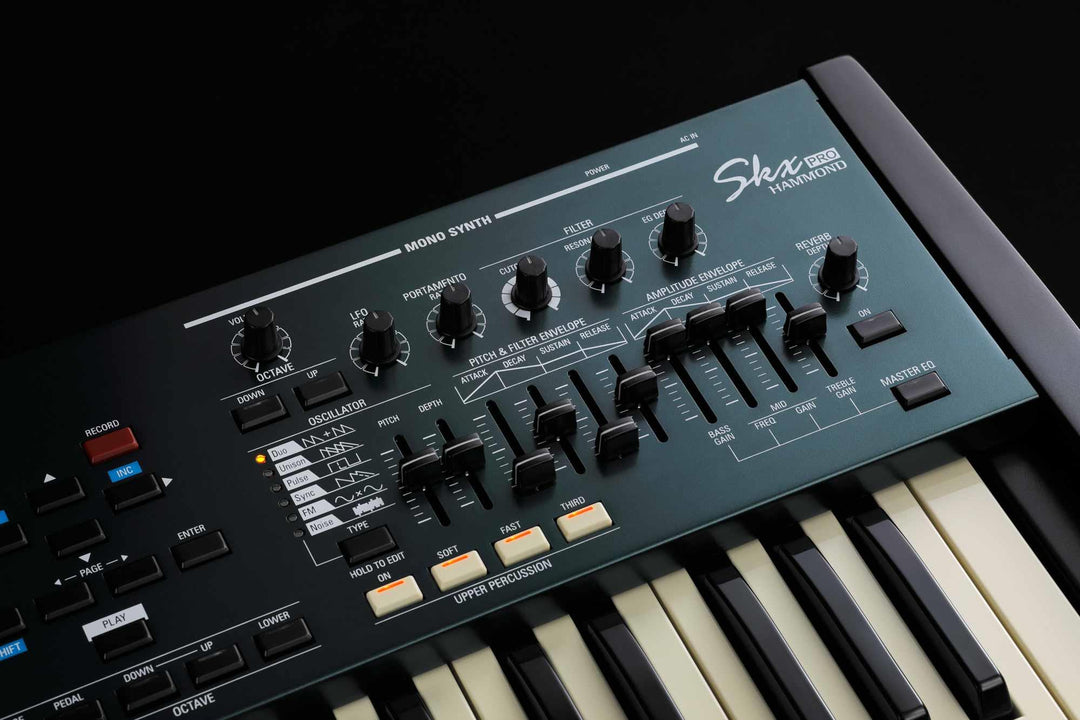

Section…[Oscillator] 6 types (Duo, Unison, Pulse, Sync, FM, Noise) [Filter] 4 types (LP12, LP24, HP12, HP24), Resonance, Drive [Modulator] LFO: 1, EG: 2 (Pitch&Filter,
Amplitude) ■Effects…[Organ Section] Vibrato & Chorus , Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer, Leslie, Equalizer & Tone Control [Piano/Ensemble
Section] For each section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer [Mono Synth Section] Multi Effect 1, Overdrive, Multi Effect 2, Equalizer [Master] Equalizer, Reverb
■Key Map…[Internal Zone] Transpose, Octave, Split, Pedal To Lower, Lower to Pedal, Allocate, Pedal Sustain [External Zones] 3 Zones (assignable to each keyboard ) ■
Controllers…Pitch Bend wheel, Modulation wheel, Portamento, Leslie (Bypass, Stop, Fast) ■Memory…[Favorites]10 banks x 10 numbers (Combination), 10 numbers (Page)
[Combination] Factory: 100, User: 100, Bundle: 100, Manual [Organ Patch] Factory: 100, User: 100, Bundle: 100 [Piano/Ensemble Patch] Factory: 300, User: 400 [Mono Synth
Patch] Factory: 100, User: 100, Bundle: 100 [Custom Tone Wheel] Factory: 4 x 3, User: 4 x 3 [Custom Pedal Registration] Factory: 3, User: 3 [Custom Pipe] Factory: 3, User: 3

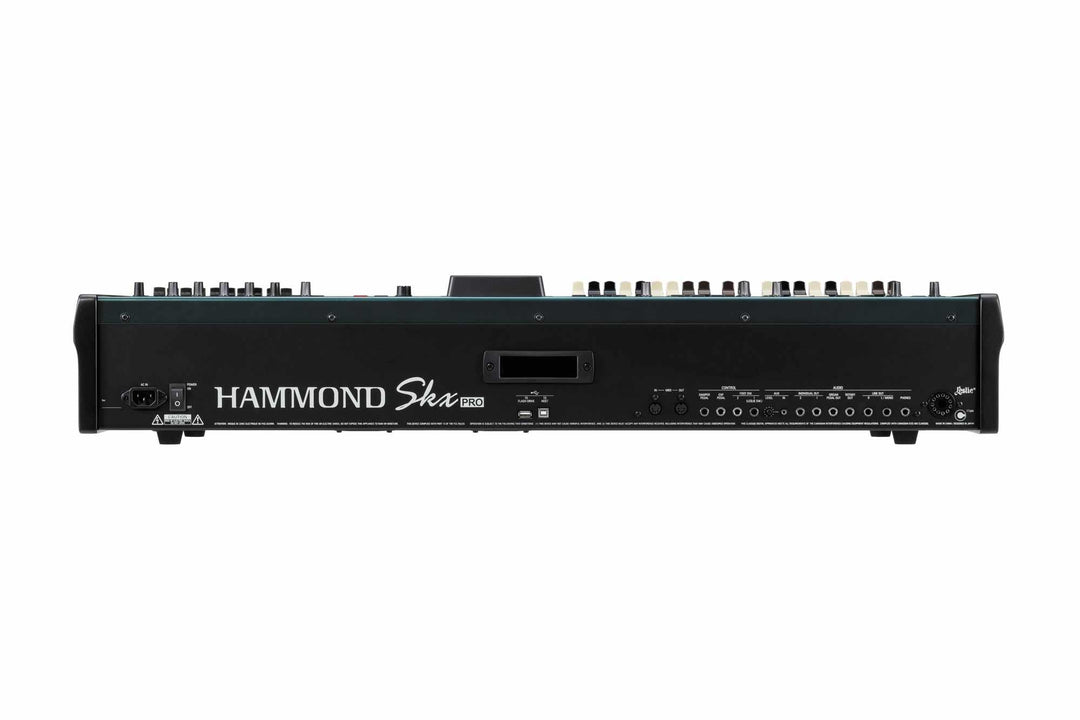

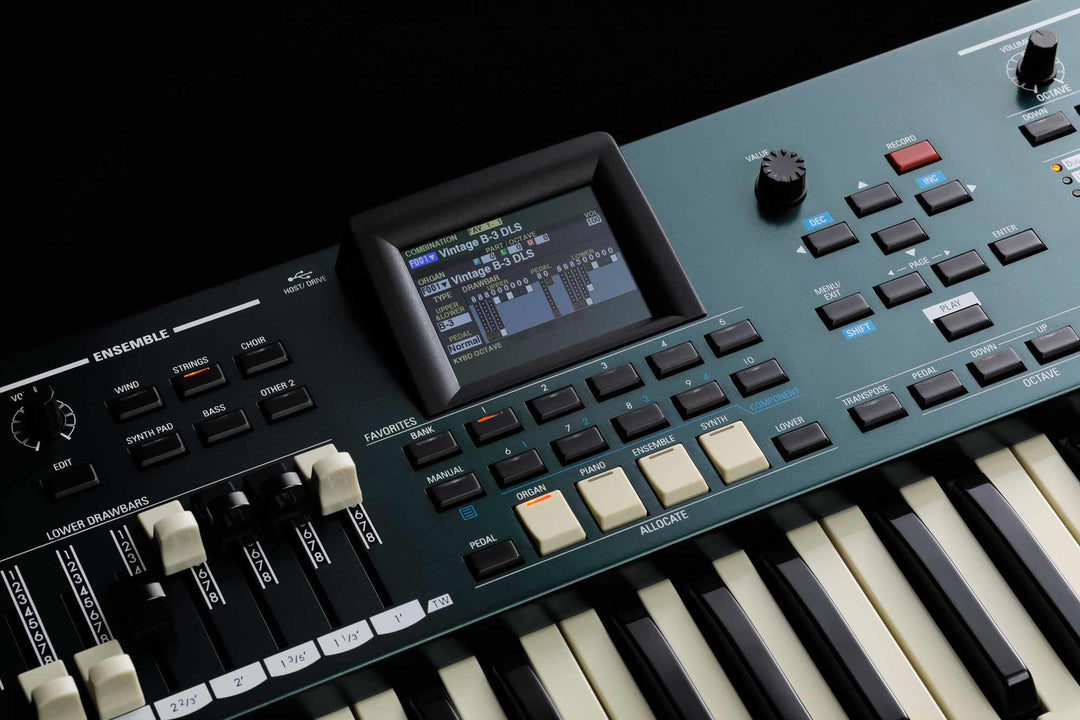

[Custom Cabinet] Factory: 8, User: 8 ■Storage…Internal Memory, USB Flash Drive ■Display…320 x 240 pixel■Connections…[MIDI]IN, OUT [USB] To Host [Audio] Line Out
L, R, Headphones, Individual 1, 2, Rotary Out, Organ Pedal Out, Aux In (with Volume control) [Leslie] 11- pin, 1 and 3 channels available [Others] Foot Switch 1/Leslie Switch,
Foot Switch 2, Damper Pedal, Expression Pedal ■Rated Power Consumption…22W ■Dimensions…1002(W), 474(D), 183(H)mm ■Weight…18kg ■Accessory…AC cord
