Product Specifications
Product Type:
Fog and Wind Machines
Type:
Fog machine with LEDs
Power:
1200 W
Output Volume:
Approx. 500 m³/min
Range of Fog Output:
Approx. 7 m
Warm-up Time:
Approx. 3 min
Fog Duration:
Approx. 10 sec.
Reheating Time:
Approx. 8 sec.

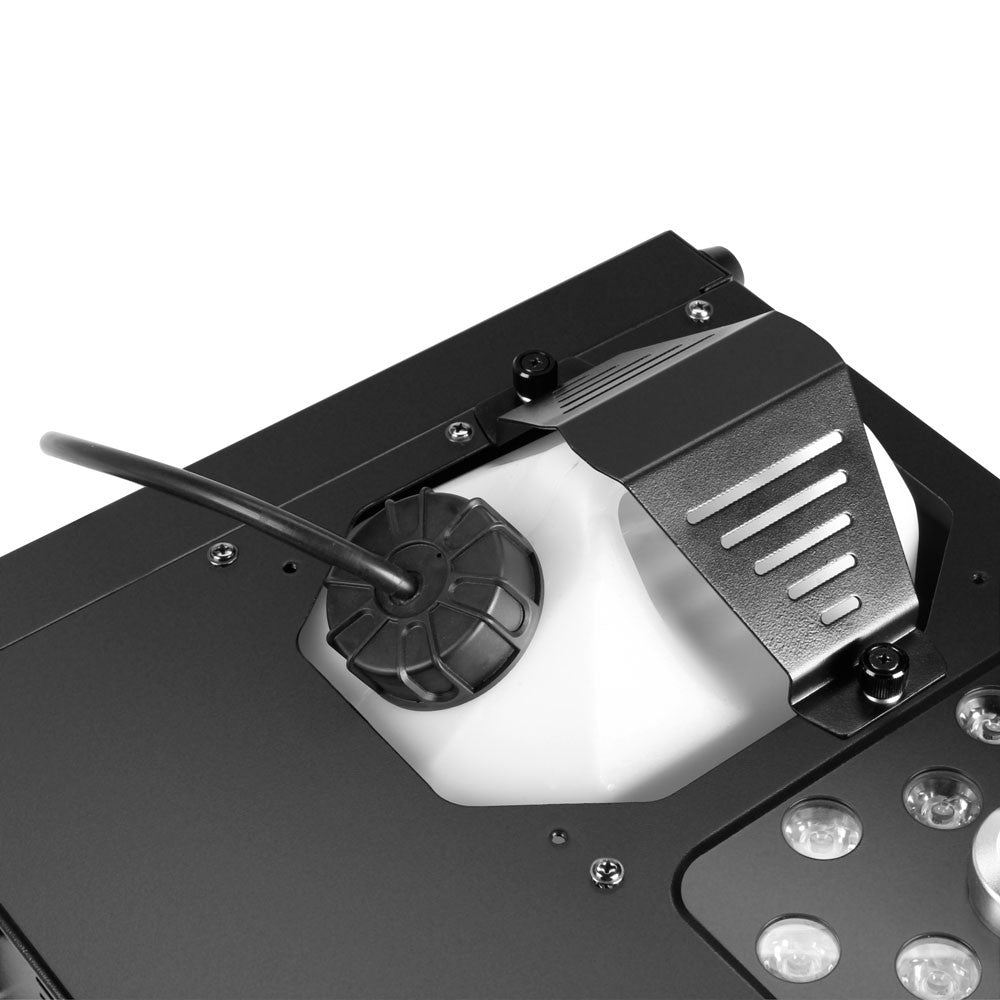

Fluid Tank Capacity:
2.5 l
Fluid Consumption:
Approx. 50 ml/min
Number of LEDs:
12
LED Colour Spectrum:
RGBA
LED Type:
10 W 4 in 1 LED

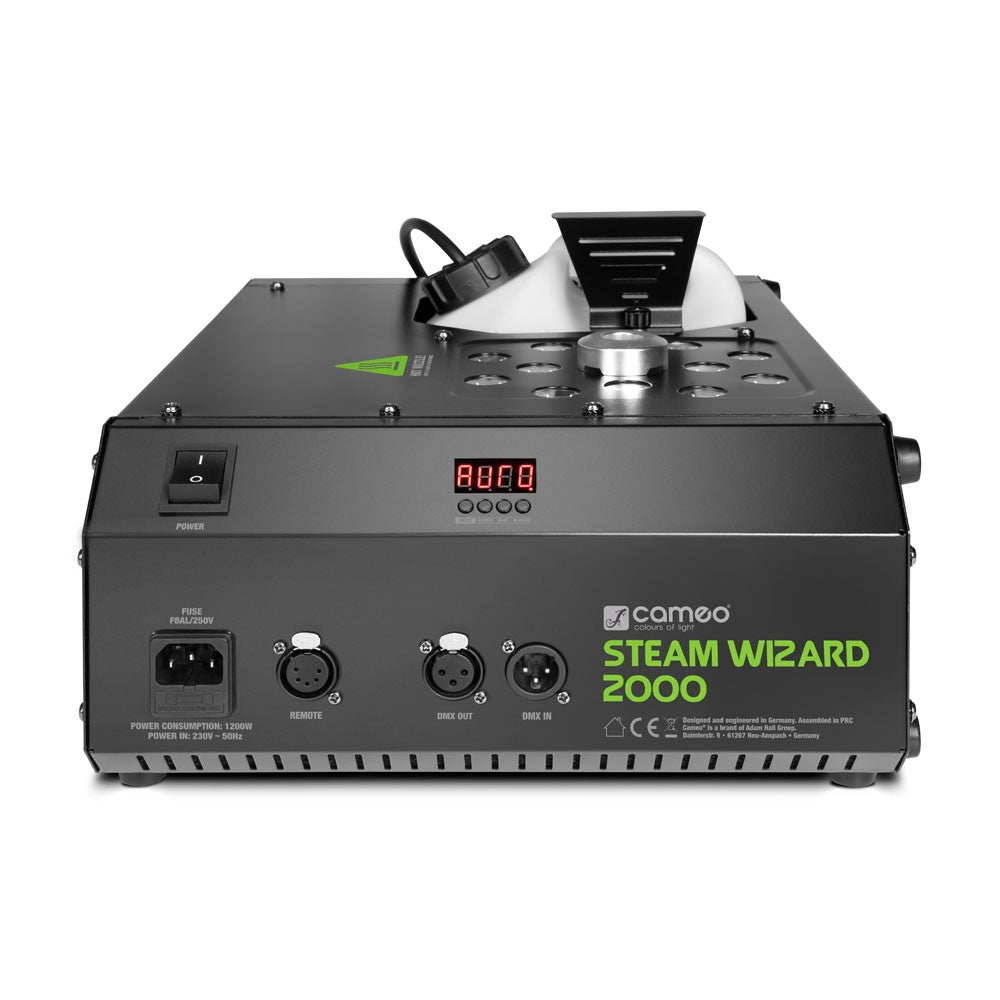

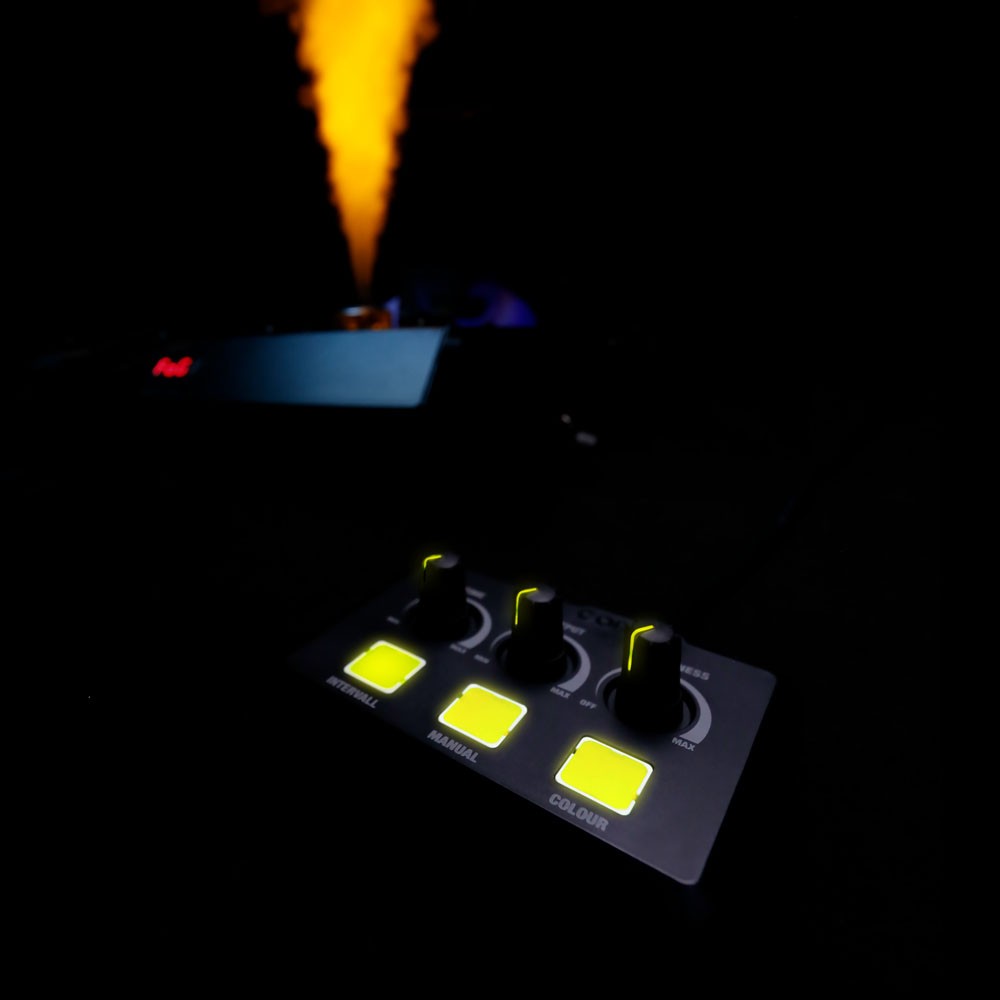

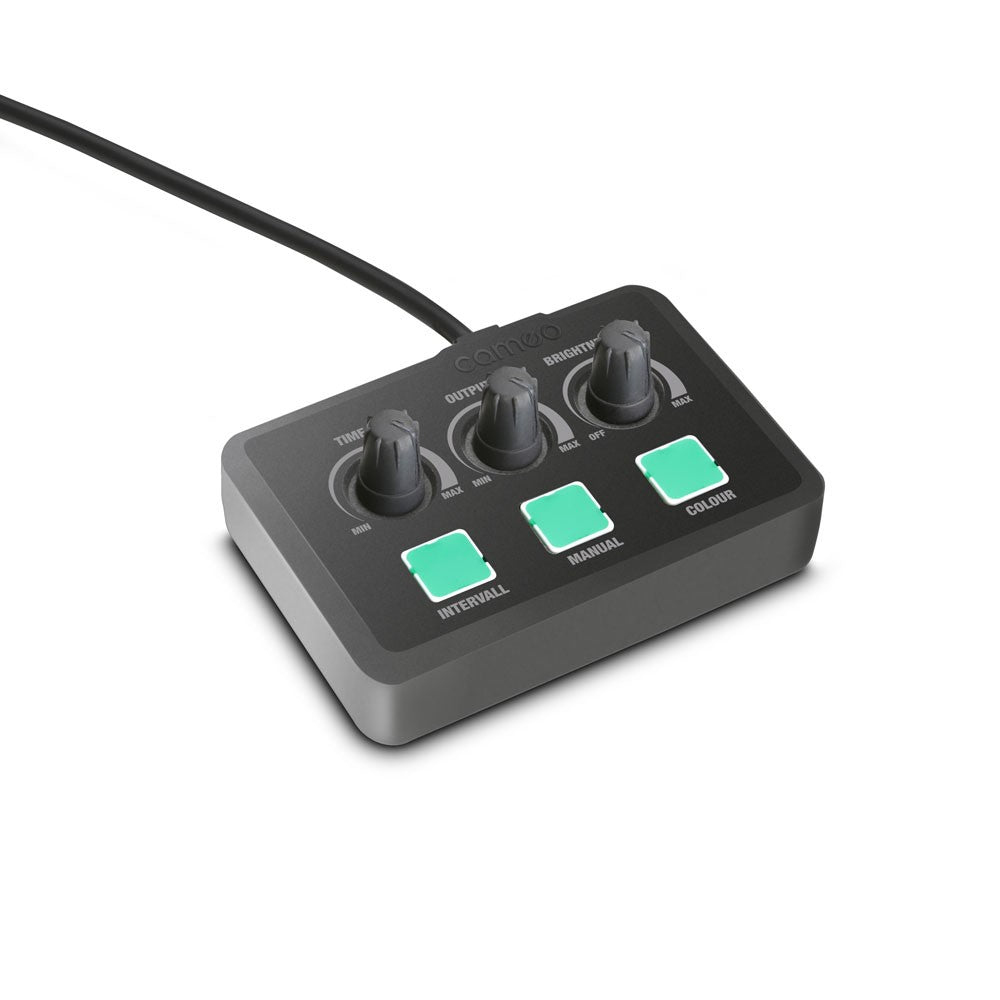

Remote Connection:
XLR 5-pin male
Remote Cable Length:
10 m
Remote Functions:
- Colour change
- Continuous operation
- Duration
- Interval
- LED brightness
- Manual control
- Output level
DMX Input:
XLR 3-pin male
DMX Output:
XLR 3-pin female
DMX Mode:
4-channel
DMX Functions:
- Colour change
- Colour fade
- Colour jump
- Dimmer
- Output level
- Strobe
Controls:
- Enter
- Mode
- Value Down
- Value Up
Indicators:
4-digit LED display
Operating Voltage:
230 V AC, 50 Hz

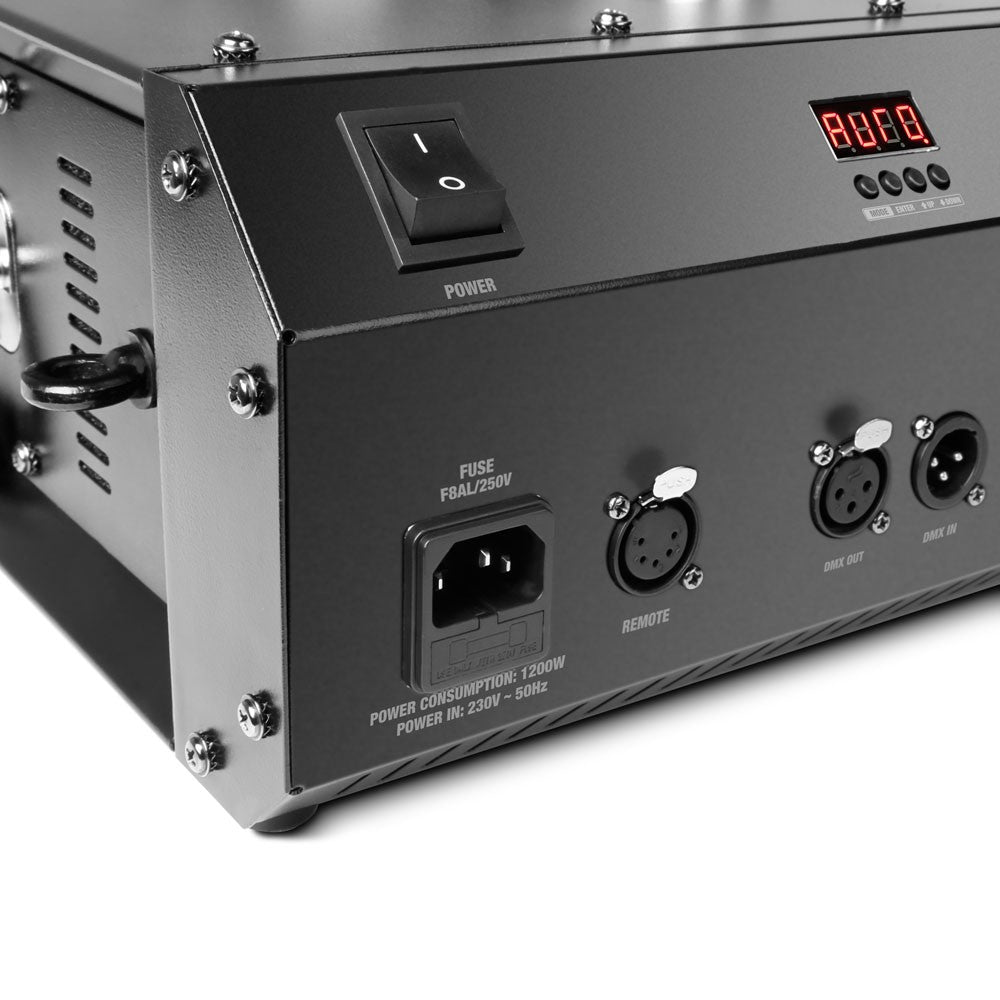

Fuse:
F8AL / 250 V
Power Consumption:
1200 W
Power Connector:
IEC power connector female
Housing Material:
Metal
Cabinet Colour:
Black
Width:
300 mm
Height:
140 mm
Length:
420 mm
Weight:
9 kg
