Package contents

• 1 x bar
• 1 x user manual
• 1 x power cord
• 2 x omega bracket
• 1 x XLR cable

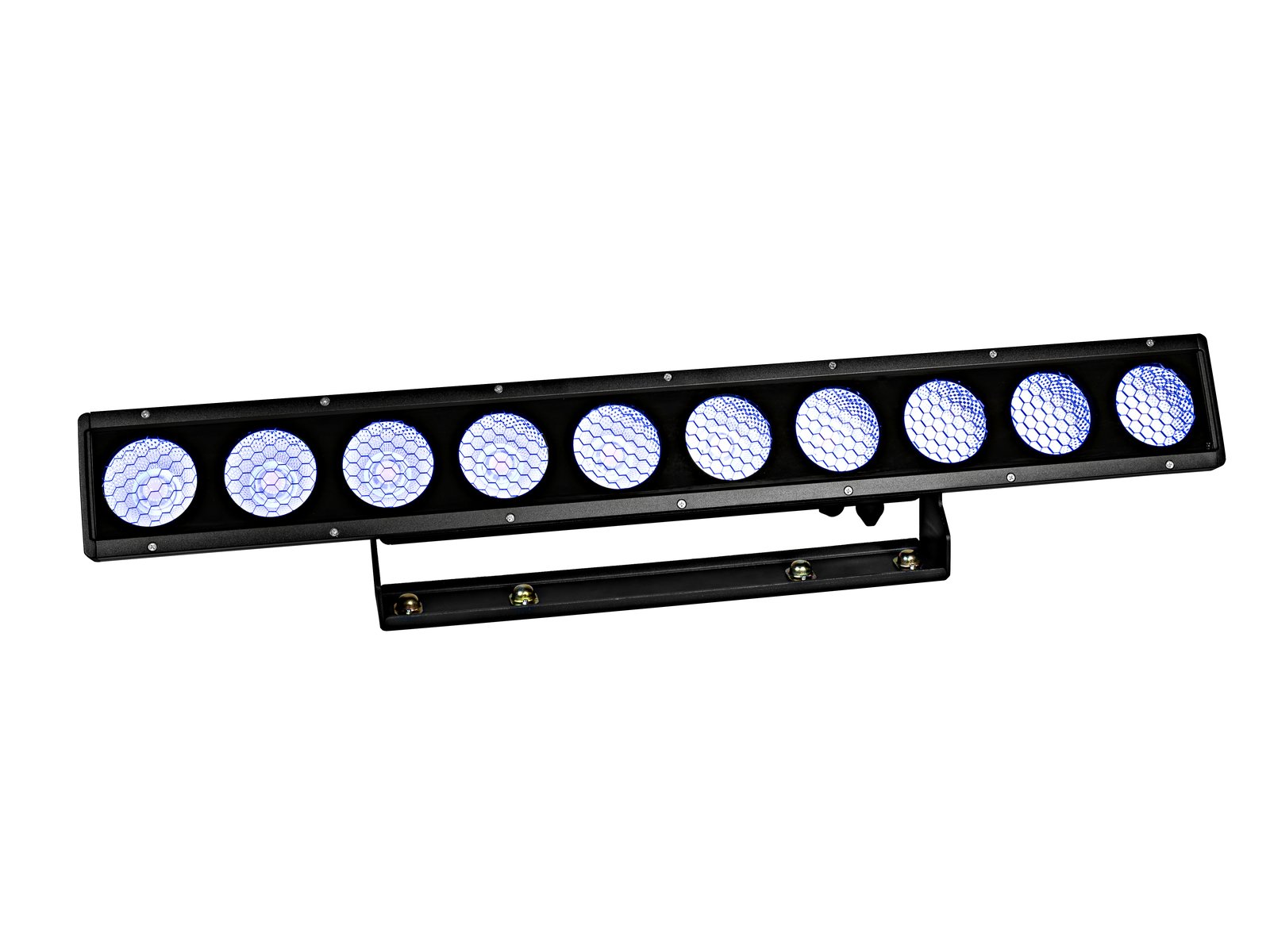

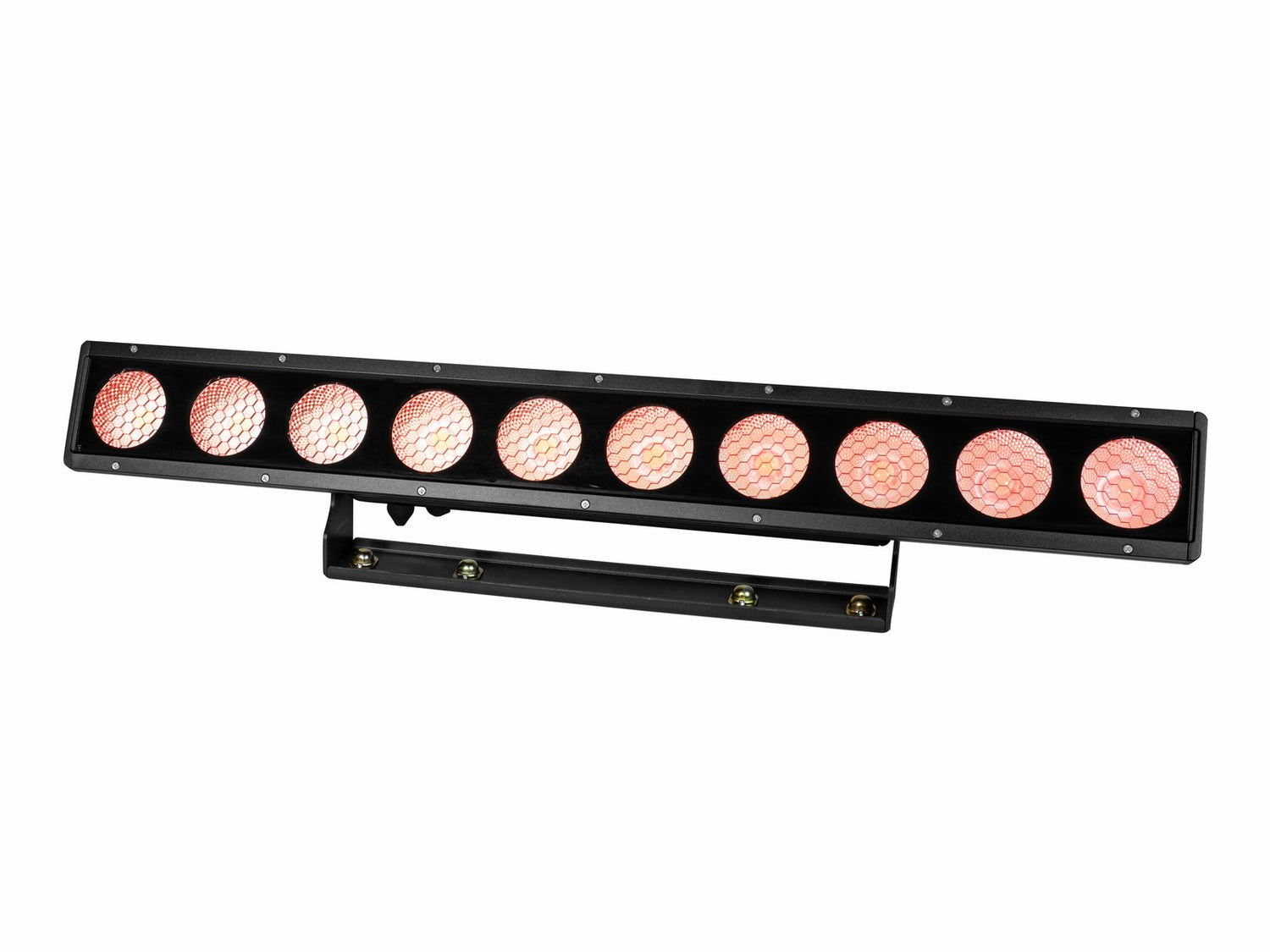

Eurolite LED IP Atmo Bar 10

• Weather-proof blinder bar with pixel control and colored atmospheric light in the reflector.

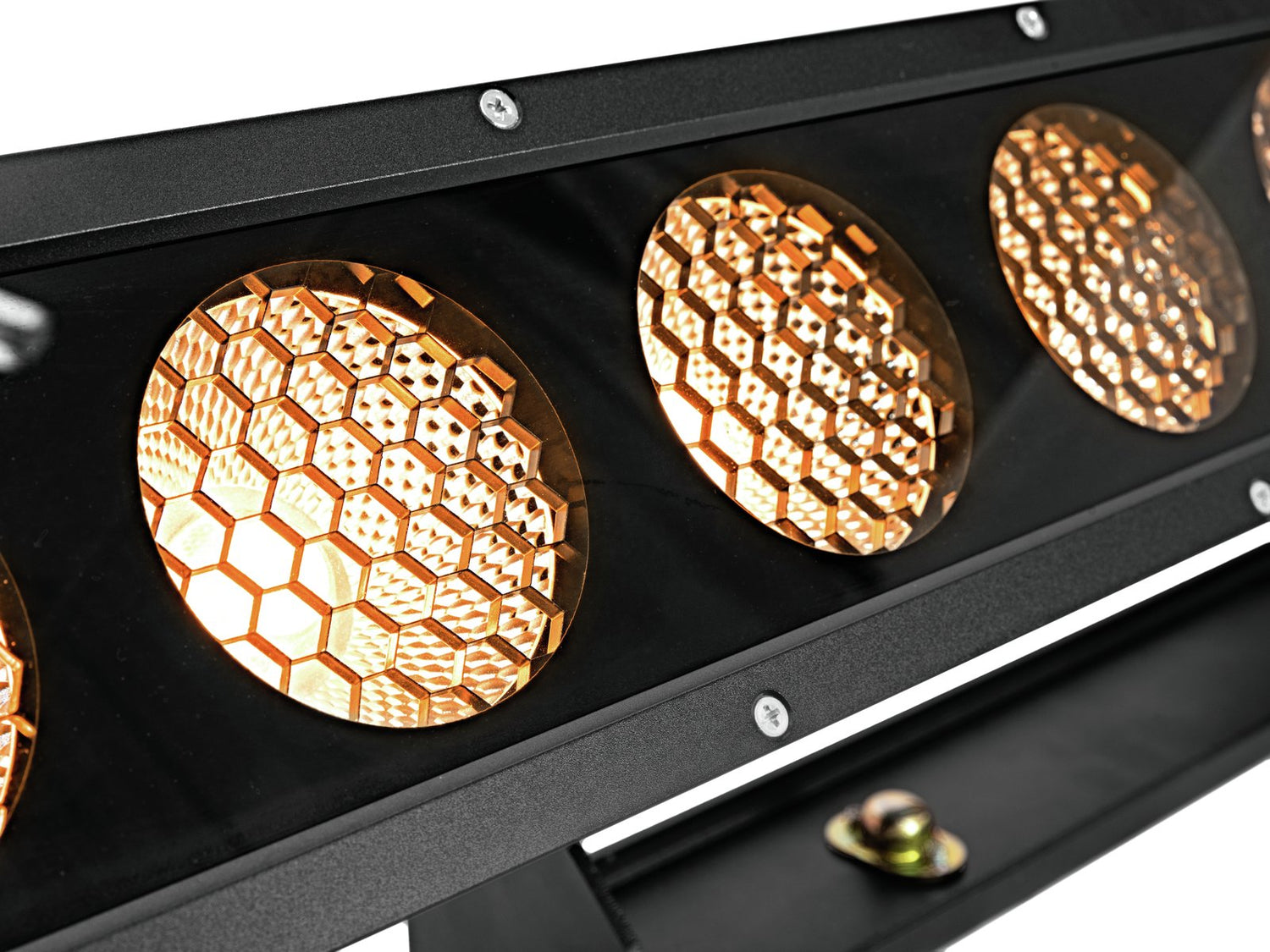

• 10 powerful LEDs 24 W COB (chip-on-board) CW/WW (homogeneous color mix)
• LEDs controlled separately
• 200 powerful LEDs 0.2 W SMD 3528 3in1 TCL RGB (homogeneous color mix)
• 10 segments controlled separately
• Variable color temperature 1800 K - 6000 K
• Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves with adjustable response; white balance adjustable
• Strobe effect
• 10 integrated show programs
• The device is cooled by low-noise cooling fan
• Control via stand-alone; Master/slave function; DMX; ArtNet; RDM
• Preprogrammed in Light Captain; LED PC-Control 512
• Flicker-free
• With a beam angle of 28°

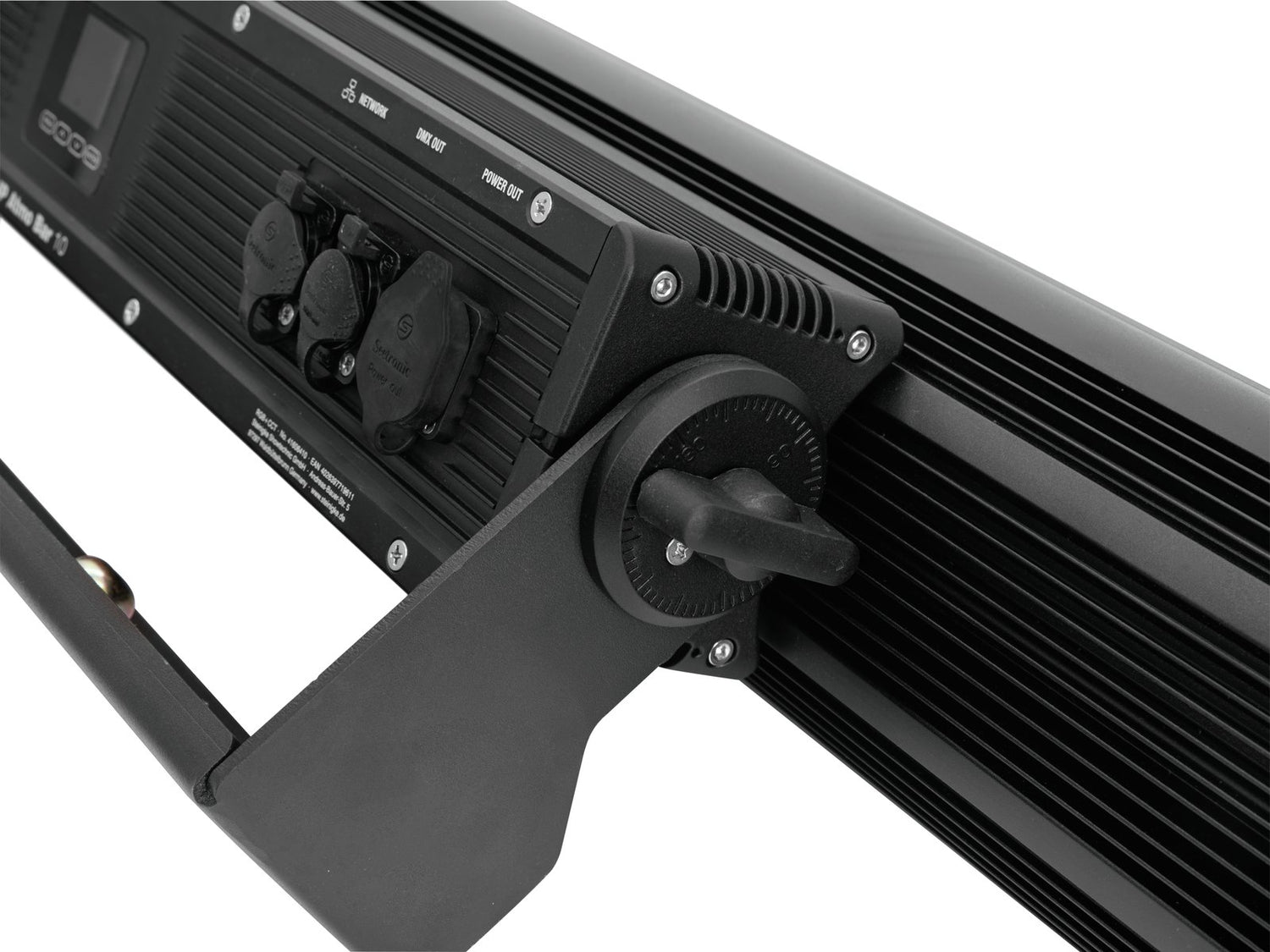

• With Mounting bracket; with Omega bracket

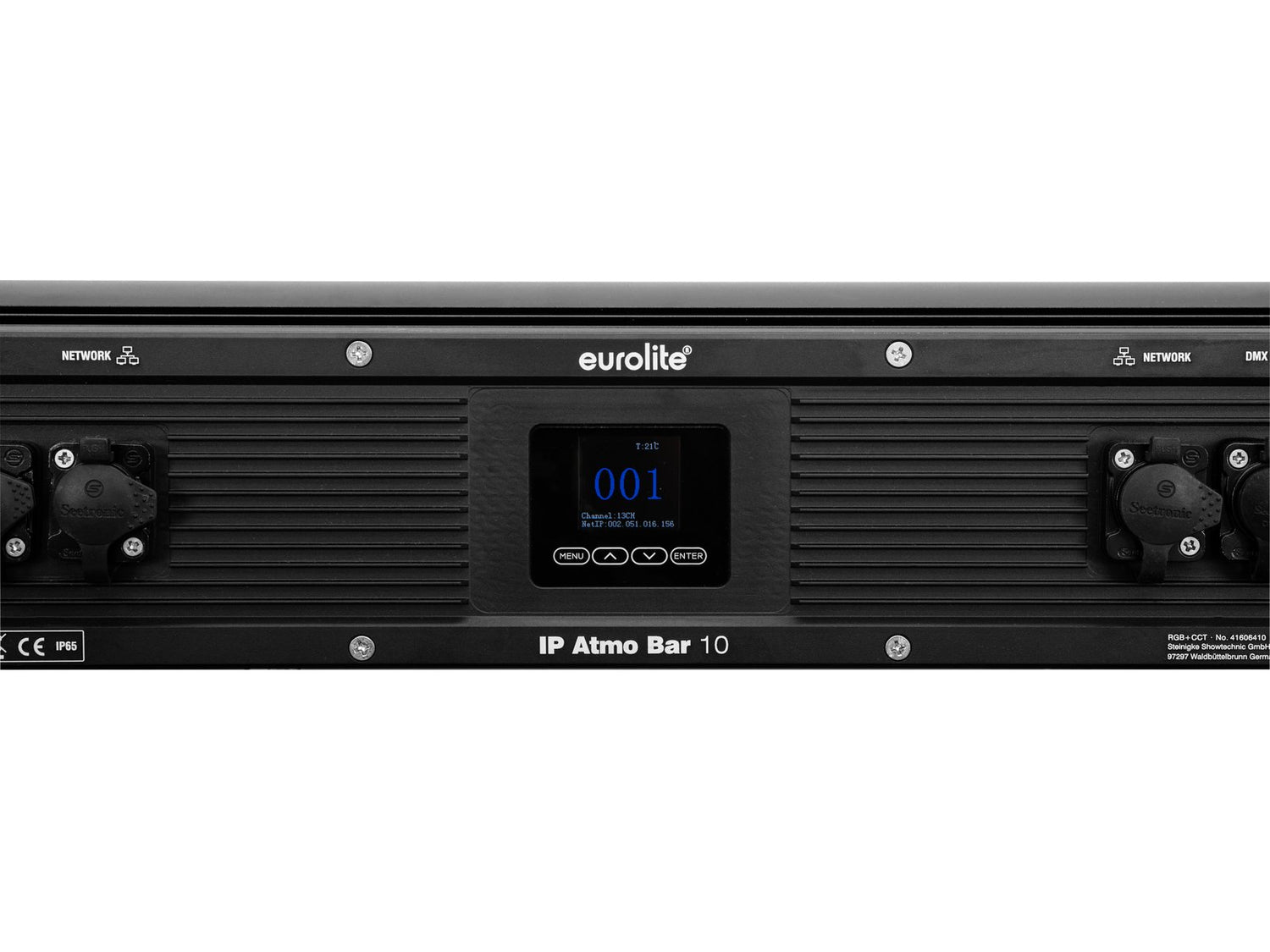

• OLED display
• Mains input and output for power linking up to 4 units
• Suitable for outdoor use IP65
• With pressure compensation membrane
• For application areas such as: Clubs/dancing school; Stage; Rental
• Very quiet working noise
• Application possibility: Suspended

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 315 W
• IP classification: IP65
• Protection class: Protection class I
• Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
• Power output: IP T-Con (F) mounting version
• Lamp type: LED lamp
• LED: 10 x 24 W COB (chip-on-board) CW/WW (homogeneous color mix)
• 200 x 0.2 W SMD 3528 3in1 TCL RGB (homogeneous color mix)
• Color temperature: 1800K - 6000K adjustable
• DMX channels: 10; 14; 20; 50; 59
• DMX input: 3-pin XLR (M) mounting version IP
• DMX output: 3-pin XLR (F) mounting version IP
• Cooling: Low-noise cooling fan
• Control: Stand-alone; Master/slave function; DMX; ArtNet; RDM
• Preprogrammed in: Light Captain; LED PC-Control 512
• Projection: Flicker-free
• Beam angle: 28°
• Beam angle (1/2 peak): 28°
• Beam angle (1/10 peak): 63
• Housing color: Black
• Attachment system: Mounting bracket
• 2x Omega bracket

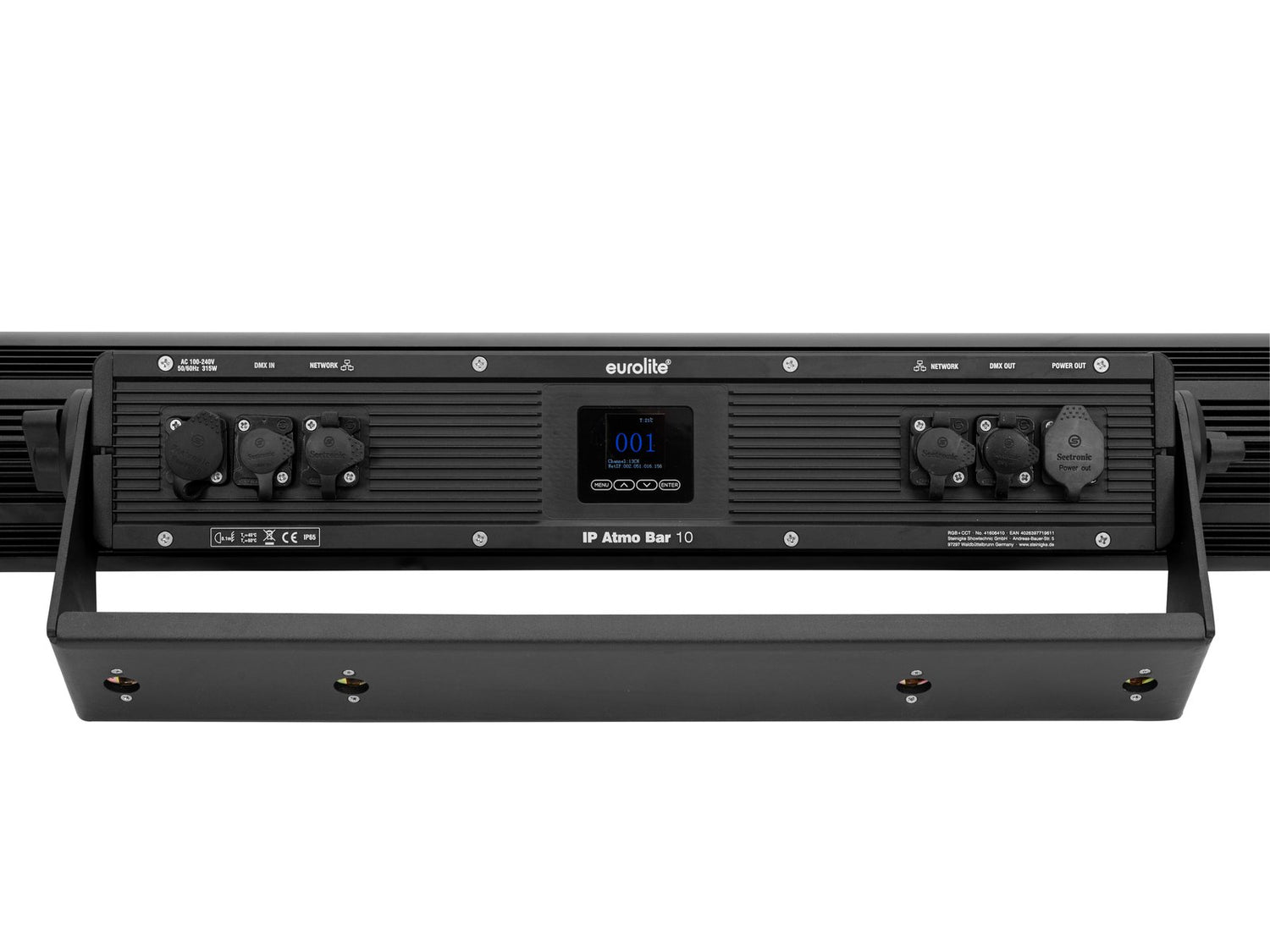

• Display type: OLED display
• Connections: 2 x RJ-45 E-Con (F) mounting version
• Dimensions: Length: 1.01 m
• Depth: 12.5 cm
• Height: 24 cm
• Weight: 10.50 kg
• Noise classification: Class 1 (very slight noise, suitable for noise-sensitive environments)
• Legal specifications
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
