Beschreibung
Beschreibung
- Leistungsstarker 300-W-LED-Lichtgenerator für kräftige, leuchtende Lichtstrahlen
- Perfekter Gobo-Übergang zwischen Goborädern
- Zwei Farbräder mit 7 Farben, Farbtrennungsfunktion und stufenlosem, variablem Scrollen
- Zwei Goboräder: ein feststehendes Scrollrad und ein drehbares, austauschbares Scrollrad
- Irisblende, Drei-Facetten-Prisma und Frostfilter zur Strahlsteuerung
- Wunderschöne 16-Bit-LED-Dimmung für ultimative Überblendsteuerung
- Neutrik® powerCON® Stromeingangs-/Ausgangsanschlüsse für die Stromverbindung
- 3- und 5-polige DMX-Ein-/Ausgangsanschlüsse
- RDM für Remote-Adressierung und Fehlerbehebung aktiviert
- Wählbare maximale LED-Lichtleistung, passend zu den älteren Rogue R2 Spots
- Wählbare PWM-Einstellungen zur Aufrechterhaltung eines flimmerfreien Betriebs der Kamera
- Einfache und komplexe DMX-Kanalprofile für vielseitige Programmierung

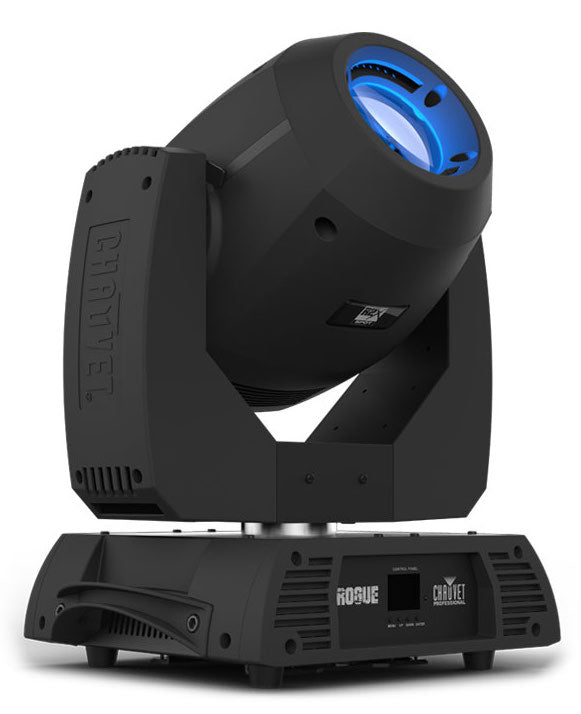

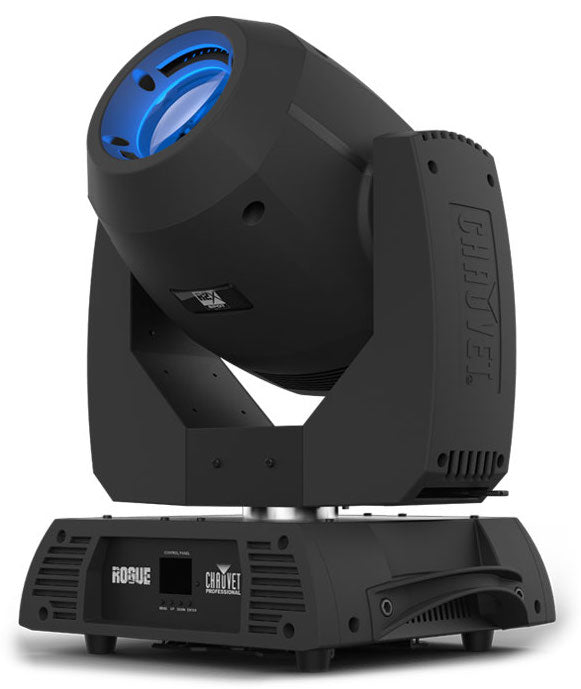

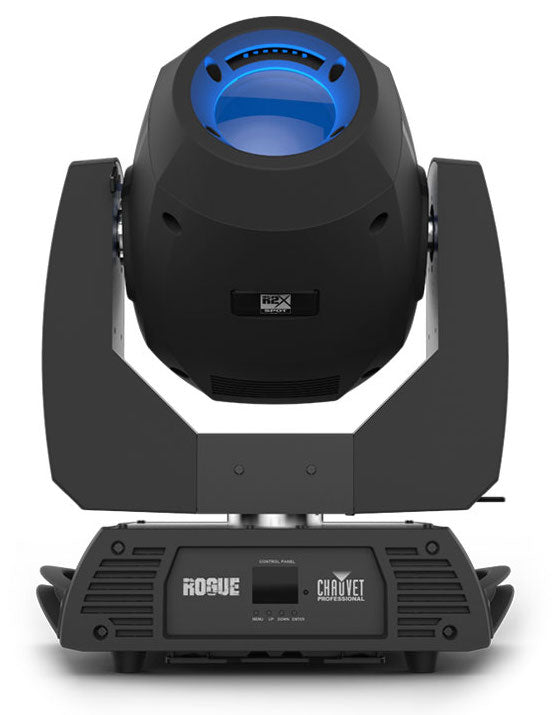

Rogue R2X Spot
-
Rogue R2X Spot bietet ein unglaubliches Preis-Leistungs-Verhältnis mit einer atemberaubenden Auswahl an Farben und Effekten, die alle durch professionelle Ingenieurskunst unterstützt werden.
Der Rogue R2X Spot erweitert die Funktionen des R1X Spot um eine Gobo-Morphing-Technologie und zwei variable Scroll-Farbräder für eine unbegrenzte Anzahl von Form- und Farbwechseleffekten.
Der Rogue R2X Spot nutzt eine leistungsstarke 300-W-LED-Lichtquelle mit einem Abstrahlwinkel von 16,5° für ein brillantes Licht, das ein unvergleichliches Publikumserlebnis schafft.
Technische Spezifikationen
Technische Spezifikationen
OPTICAL
- Light Source: 1 LEDs (CW) 300 W, (8.7 amps), 8831 K, 50,000 hours life expectancy
- Color Temperature (at full): 8847 K
- Front lens diameter: 100 mmCRI: 71.7
- Beam Angle: 16°
- Field Angle: 18°
- Cutoff Angle: 18.4°
- Lumens – Source: 23,000
- Lumens – Output: 14,789
- Illuminance (total): 9,344 lux @ 5 m
- Selectable LED Power output: 50-100Selectable
- PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz
DYNAMIC EFFECTS
- Pan and Tilt: 540°/250°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/250°, 180°, 90° tilt
- Colors (1): 7 + white, split colors, continuous scroll at variable speeds
- Colors (2): 7 + white, split colors, continuous scroll at variable speeds
- Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
- Gobo Size: Gobo Wheel 2 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)Framing
- Shutters: No
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Focus: Motorized
- Frost: MotorizedIris: Motorized
- Prism: 3 Facets, motorized, rotatingStrobe Rate: 0 to 22 Hz
- Standalone Color Mixing: No
- Color Temperature Presets: No
- Move-in-Black: Yes
CONSTRUCTION / PHYSICAL
- Dimensions (single unit): 409 x 343 x 489 mm
- Weight (single unit): 21.7 kg
- Exterior Color: Black
- Housing Material: High-impact flame-retardant polymer

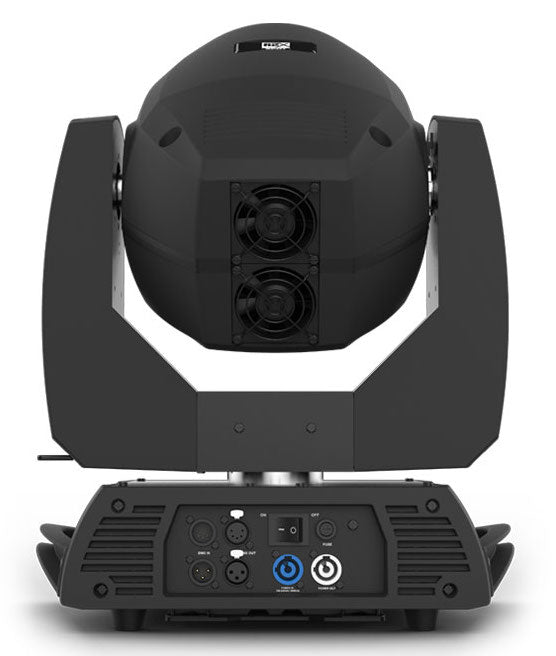

CONNECTIONS
- Power Connection: Edison (local) plug to Neutrik® powerCON®
- Power Input: Neutrik® powerCON®
- Power Output: Neutrik® powerCON®Data Connectors: 3- and 5-pin
- XLRCable Length (power): 1.5 m
CONTROL
- Control Protocol: DMX, RDMDMX
- Channels: 18 or 21
- Modes/Personalities: 2 personalities (18, 21)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 120 V; 5 units @ 208 V;5 units @ 230
- VPower and Current: 488 W, 4.09 A @ 120 V, 60
- HzPower and Current: 480 W, 2.35 A @ 208 V, 60
- HzPower and Current: 481 W, 2.03 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET, FCC, UKCAIP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
- Rogue R2X Spot
- Neutrik powerCON power cord
- Omega bracket with mounting hardware
