- LED-Spot mit IP65-Klassifizierung mit (2) Farbrädern, einem statischen und rotierenden Gobo-Rad, motorisiertem Zoom, Iris, 5-fach Prisma, eingekapselt in einer leichten Aluminium- und Magnesiumlegierung
- Zoom-Bereich von 4,9° bis 38,7° für einfache Abdeckung von Bühnen und Oberflächen aus der Ferne
- Zwei Farbräder mit 7 Farben, geteilte Farboption und kontinuierliches variables Geschwindigkeitsscrolling
- Zwei Gobo-Räder: ein festes scrollendes Rad und ein rotierendes, austauschbares, scrollendes Rad
- Iris, 5-fach Prisma und Frost für Strahlenkontrolle
- 5-polige DMX Ein-/Ausgänge
- RDM aktiviert für Fernadressierung und Fehlerbehebung
- Einfache und komplexe DMX-Kanalprofile für Programmierflexibilität
- USB-C-Port zum Aktualisieren der software

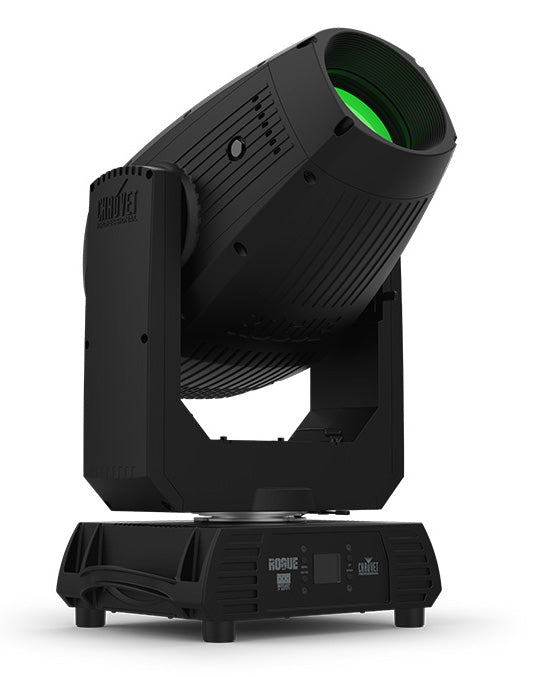

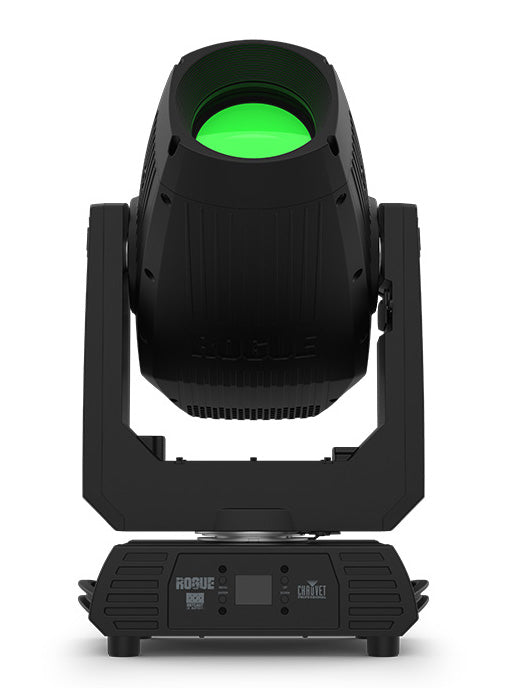

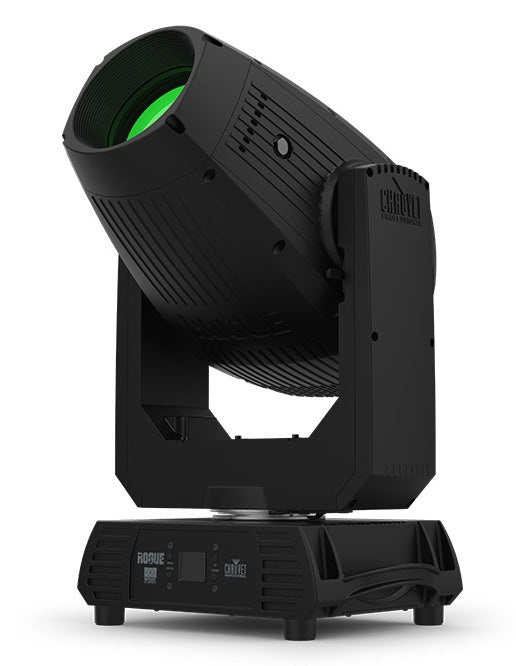

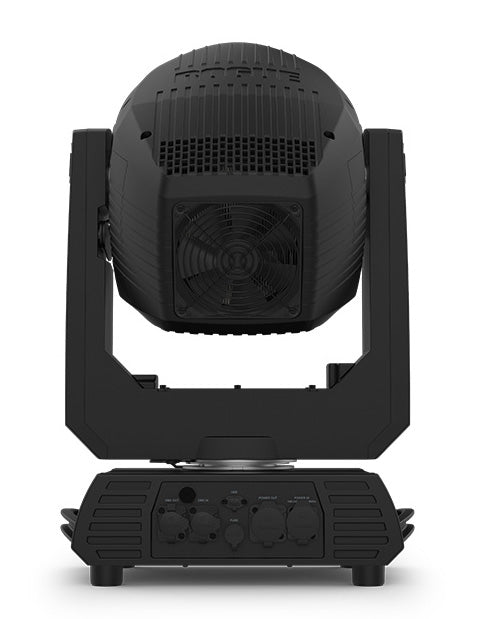

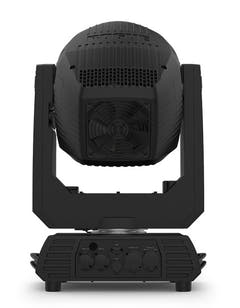

Rogue Outcast 3 Spot
- Der Rogue Outcast 3 Spot ist ein kompakter IP65 LED-Moving Head, der die neueste Leichtmetalltechnologie mit einem Radkasten kombiniert, der Farboptionen von doppelten Farbrädern, dynamische Morph-Effekte von doppelten Gobo-Rädern, die Schönheit von gleitenden 16-Bit-Fades und einen breiten Zoombereich bietet, der Flexibilität für die gewünschte Abdeckung hinzufügt.
- Iris, Prisma und Frost vervollständigen seine Effekte, und sein robustes Gehäuse widersteht nicht nur äußeren Einflüssen, sondern bringt auch Vorteile für Inneninstallationen mit einem wartungsfreundlichen Design, das unempfindlich gegenüber Partikeln wie Nebel und Rauch ist.
OPTICAL
- Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy.
- Color Temperature (at full): 7044 K
- Front lens diameter: 119 mm
- CRI: 70
- Beam Angle: 4.9° to 33.7°
- Field Angle: 5.5° to 38°
- Cutoff Angle: 5.6° to 38.7°
- Zoom Range: 4.9° to 38.7°
- Lumens – Source: 20,000
- Lumens – Output: 14,989
- Illuminance (4.9°): 56,916lux @ 5 m
- Illuminance (38.7°) 7,260 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
DYNAMIC EFFECTS
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
- Colors (1): 7 + white, split colors, continuous scroll at variable speeds
- Colors (2): 7 + white, split colors, continuous scroll at variable speeds
- Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 2 mm (max. thickness)
- Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Prism: 5 Facets, motorized, rotating
- Strobe Rate: 0 to 20 Hz
- Move in Black: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
- Weight: 51 lb (23.2 kg)
- Exterior Color: Black
- Housing Material: High-impact flame-retardant polymer
CONNECTIONS
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 20 or 25
- Modes/Personalities: 2 personalities (20, 25)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
- Power and Current: 494 W, 2.19 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET, UKCA
- IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
- Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
- Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
- Maximum Ambient Temperature (ta): 45° C / 113° F
WHAT'S INCLUDED
- Rogue Outcast 3 Spot
- Seetronic Powerkon IP65 power cord
- (2) Omega brackets with mounting hardware
Downloads
- Rogue Outcast 3 Spot - User Manual
- Rogue Outcast 3 Spot - Quick Reference Guide
- Rogue Outcast 3 Spot - Photometrics Report
- Rogue Outcast 3 Spot - CAD Files
- Rogue Outcast 3 Spot - IES files
