Beschreibung
Beschreibung
Dieses Produkt ist eine austauschbare Nadel, die zu Ortofon 2M Black und 2M Black Verso passt

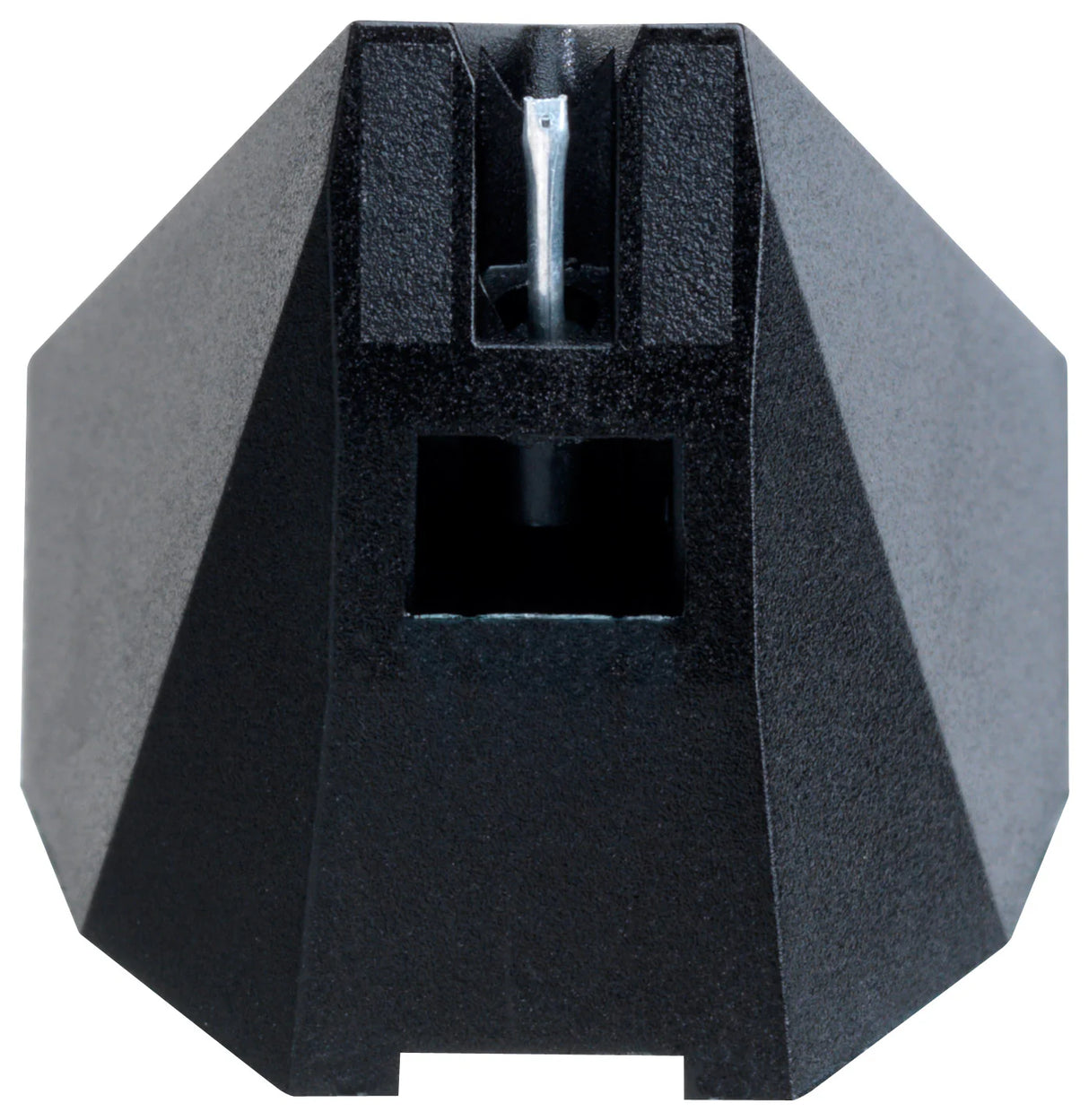

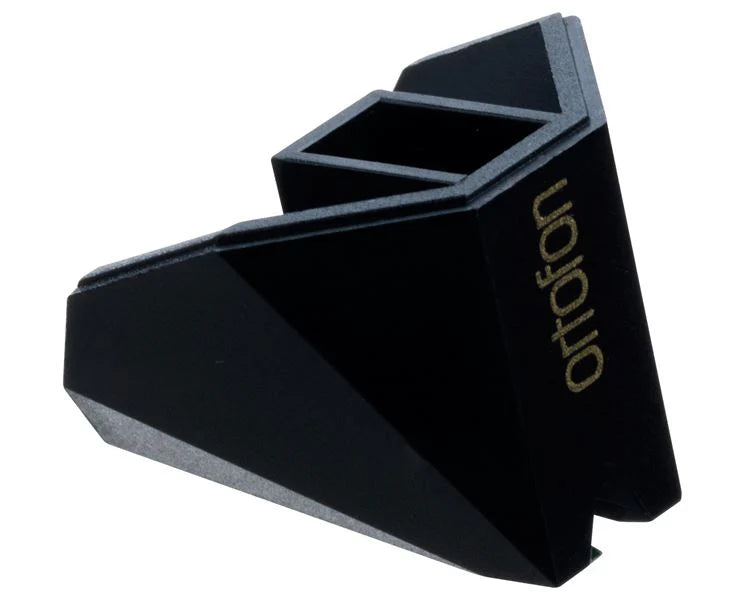

Ortofon 2M Black Nadel
Der 2M Black Ersatznadel ist ein Original-Ersatzteil für Ortofon 2M Black und 2M Black Verso Tonabnehmer
Eigenschaften:
Nude Shibata Diamant
Technische Spezifikationen
Technische Spezifikationen
• Output voltage at 1000 Hz, 5cm/sec.: 5 mV
• Channel balance at 1 kHz: 1 dB
• Channel separation at 1 kHz: 26 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at - 3dB: 20-31.000 Hz
• Frequency response: 20-20.000 Hz + 2 / - 0 dB
• Tracking ability at 315Hz at recommended tracking force: 80 µm
• Compliance, dynamic, lateral: 22 µm/mN
• Stylus type: Nude Shibata
• Stylus tip radius: r/R 8/50 µm
• Tracking force range: 1,4-1,7g (14-17 mN)
• Tracking force, recommended: 1,5 g (15 mN)
• Tracking angle: 20º
• Internal impedance, DC resistance: 1,2 kOhm
• Internal inductance: 630 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150-300 pF
Passendes Zubehör für
